Robotime Bi-Plane 3D Puzzle Kit TG301 Instruction Manual

1. Product Overview

This manual provides comprehensive instructions for assembling the Robotime Bi-Plane 3D Puzzle Kit, model TG301. This kit offers an engaging and educational activity, allowing you to construct a detailed wooden model of an iconic bi-plane. Designed for individuals aged 8 and above, this puzzle promotes problem-solving skills and provides a rewarding sense of accomplishment upon completion.

Key Features:

• Perfect STEM activity for ages 8 and above.
• Constructed from nontoxic materials.
• No additional tools or glue required for assembly.
• Comprises 145 precut wooden pieces.
• Approximate assembly time: 1-2 hours.

Figure 1: Fully assembled Robotime Bi-Plane 3D Puzzle Kit, showcasing its intricate wooden design.

2. Safety Information

Please read and understand all safety information before beginning assembly. Failure to follow these instructions may result in injury or damage to the product.

• WARNING: CHOKING HAZARD – This kit contains small parts. Not suitable for children under 3 years of age.
• Recommended for ages 8 and above.
• Adult supervision is recommended, especially for younger assemblers, to ensure safe handling of pieces.
• Keep all packaging materials away from children to prevent suffocation hazards.
• Do not ingest any parts of the kit.

3. Package Contents

Verify that all components are present and undamaged before starting assembly. The kit includes:

• 145 precut wooden pieces (on sheets).
• 1 x Instruction Manual (specific to model TG301).

Figure 2: The kit's packaging and the included instruction manual, alongside the wooden sheets containing the precut pieces.

4. Assembly Instructions

Follow the detailed, step-by-step instructions provided in the included manual to assemble your Bi-Plane 3D Puzzle. No glue or additional tools are required, as pieces are designed to interlock securely.

1. Preparation: Carefully remove all wooden pieces from their sheets. It is recommended to organize pieces by number or type as indicated in the manual.
2. Step-by-Step Assembly: Refer to the specific instruction manual (Figure 2) for visual diagrams and sequential steps. Each step will guide you on how to connect the precut pieces.
3. Interlocking Mechanism: Pieces are designed to fit snugly. Apply gentle, even pressure when connecting parts. Avoid forcing pieces, as this may cause damage.
4. Gear Drive Assembly: Pay close attention to the instructions for assembling the gear drive mechanism. Correct alignment is crucial for proper movement of the propeller and other parts.
5. Completion: Once all pieces are assembled, ensure all connections are secure. The approximate assembly time is 1-2 hours.

Figure 3: A close-up view of the bi-plane's propeller and engine section, illustrating the detail involved in the assembly process.

5. Operating and Displaying the Model

Upon successful assembly, your Robotime Bi-Plane model is ready for display. The integrated gear drive allows for interactive movement of certain parts.

• Movement: Gently turn the propeller or specific gears as indicated in the assembly manual to observe the intended mechanical movements.
• Display: Place the assembled model on a stable, flat surface. The kit includes a stand for optimal presentation.

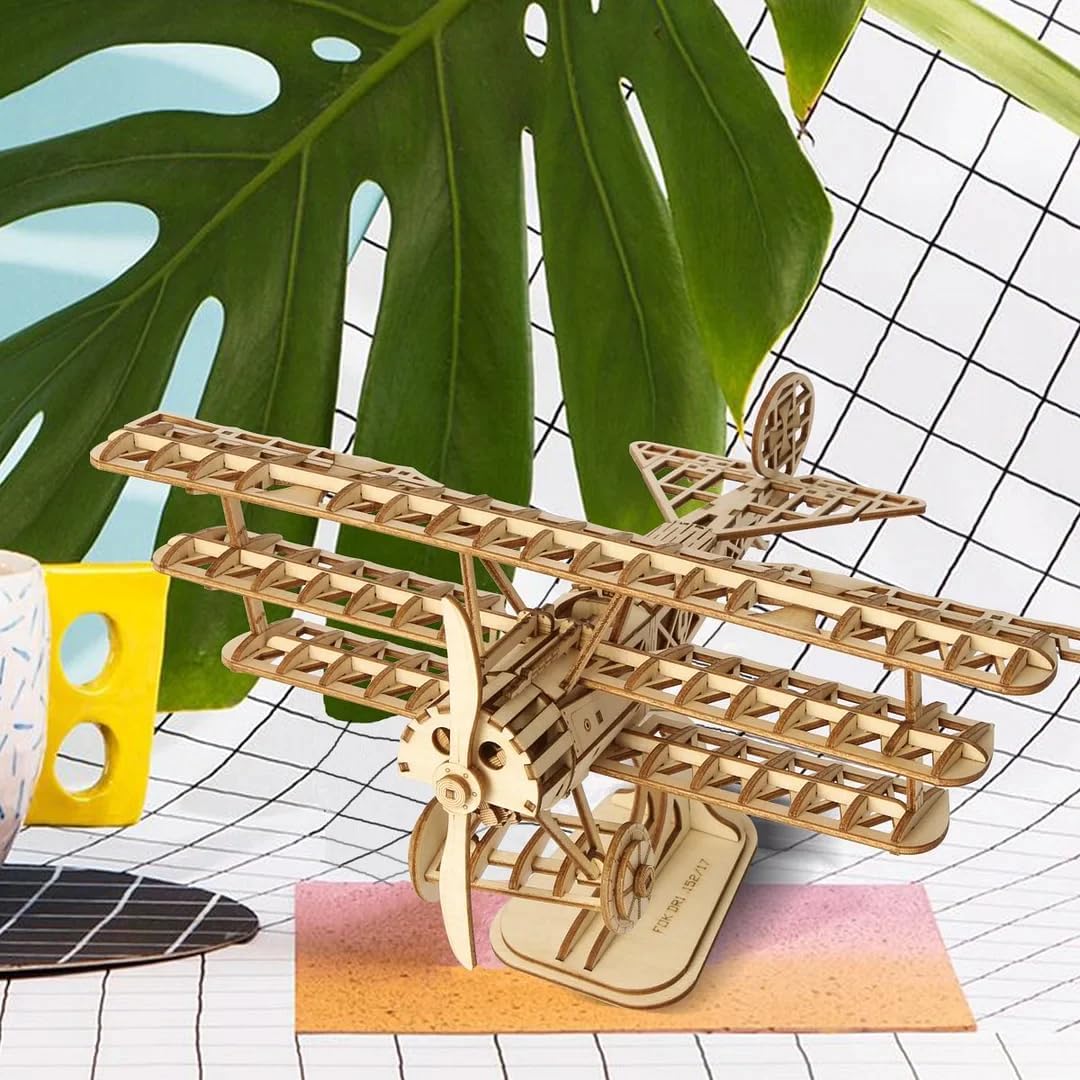

Figure 4: The completed bi-plane model displayed on a desk, showcasing its aesthetic appeal as a decorative item.

6. Maintenance

To ensure the longevity and appearance of your Robotime Bi-Plane model, follow these simple maintenance guidelines:

• Cleaning: Dust the model regularly with a soft, dry cloth or a soft brush. Avoid using abrasive cleaners or liquids, which may damage the wood.
• Environment: Keep the model in a dry environment, away from direct sunlight, extreme temperatures, and high humidity to prevent warping or discoloration of the wood.
• Handling: Handle the model carefully to avoid accidental breakage of delicate parts.

7. Troubleshooting

If you encounter any issues during assembly or with the finished model, consider the following:

• Pieces Not Fitting: Double-check the instruction manual to ensure you are using the correct pieces for the current step and that they are oriented correctly. Some pieces may require a gentle wiggle to fit.
• Damaged Pieces: If a piece is damaged during removal from the sheet or during assembly, contact customer support for assistance.
• Moving Parts Not Functioning: Ensure all gears and connecting parts are correctly aligned and fully engaged as per the manual's diagrams. Check for any obstructions.
• Missing Pieces: Carefully re-examine the wooden sheets and packaging. If a piece is genuinely missing, contact customer support.

8. Specifications

Figure 5: Dimensional overview of the assembled Bi-Plane model, showing length, width, and height measurements.

9. Warranty and Support

ROBOTIME is committed to providing high-quality products. While specific warranty details are not provided in this manual, for any product-related inquiries, missing parts, or support needs, please contact ROBOTIME customer service through the retailer where the product was purchased or visit the official ROBOTIME website.

You can find more information about ROBOTIME products and support at their official store: ROBOTIME Amazon Store.
