ipega PG-9162 Mini Wireless Game Controller Instruction Manual

1. Introduction

This manual provides detailed instructions for the ipega PG-9162 Mini Wireless Game Controller. This controller is designed for use with the Nintendo Switch console, offering both wireless and wired connectivity options. It features a compact design, six-axis gyroscope, dual motor vibration, and a TURBO function to enhance your gaming experience.

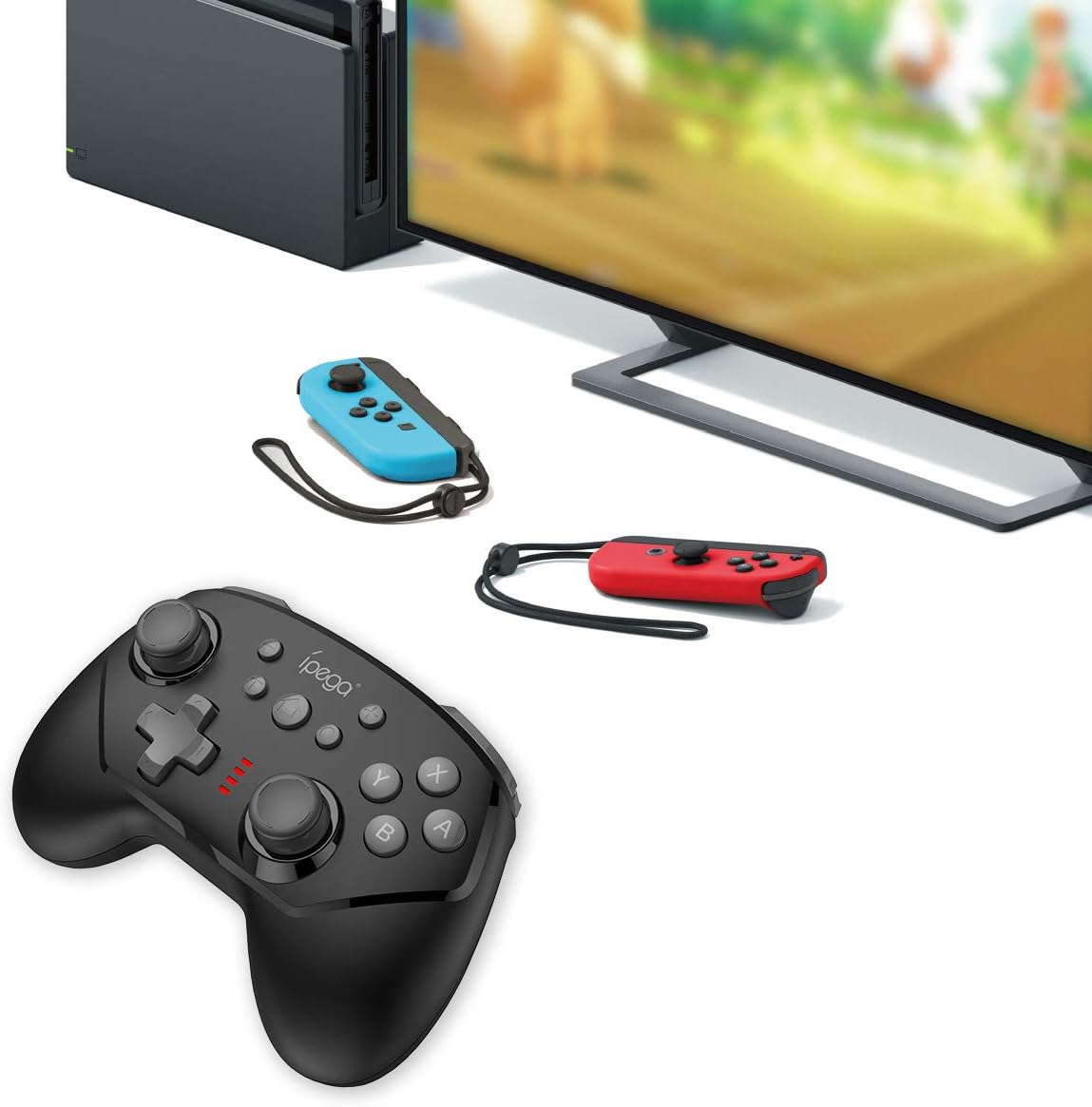

Image 1.1: Front view of the ipega PG-9162 Mini Wireless Game Controller.

2. Product Features

• Compatibility: Designed for the Nintendo Switch host, supporting both wireless and wired connections to the Switch dock.
• Ergonomic Design: Small and exquisite handle for comfortable grip during extended gaming sessions.
• Six-axis Gyroscope: Built-in six-axis gyro chip for precise motion control and fine-tuning assistance in games.
• Dual Motor Vibration: Integrated dual motors provide immersive feedback based on in-game actions.
• TURBO Function: Supports continuous TURBO function for rapid button presses.
• Long Battery Life: Built-in 380mAh battery capacity provides over 8 hours of continuous play.

Image 2.1: Overview of key features including vibration, gyroscope, and TURBO function.

3. Package Contents

• ipega PG-9162 Mini Wireless Game Controller
• USB Charging Cable (Type-C)
• User Manual

Image 3.1: Retail packaging of the ipega PG-9162 controller.

4. Product Overview

The ipega PG-9162 controller features standard gamepad buttons and joysticks, designed for intuitive control. Familiarize yourself with the layout:

Image 4.1: Top view of the controller highlighting its button layout.

• Left Analog Stick: For movement and camera control.
• D-Pad: Directional input.
• Home Button: Returns to the Switch home menu.
• Screenshot Button: Captures screenshots.
• Right Analog Stick: For camera control or specific in-game actions.
• Action Buttons (A, B, X, Y): For in-game actions.
• Shoulder Buttons (L, R) & Triggers (ZL, ZR): For various in-game functions.
• Plus (+) & Minus (-) Buttons: For menu navigation and options.
• LED Indicators: Display connection status and battery level.

5. Setup and Connection

5.1 Wireless Connection to Nintendo Switch

1. Ensure your Nintendo Switch console is powered on and updated to the latest system software.
2. From the HOME Menu, select "Controllers" > "Change Grip/Order".
3. On the ipega PG-9162 controller, press and hold the Home button and Y button simultaneously for a few seconds until the LED indicators start flashing rapidly. This indicates pairing mode.
4. The Switch console will detect the controller. Once detected, the LED indicators on the controller will become solid, indicating a successful connection.
5. You can now use the controller wirelessly with your Nintendo Switch.

5.2 Wired Connection to Nintendo Switch Dock

1. Place your Nintendo Switch console into its dock.
2. Connect one end of the USB charging cable to the ipega PG-9162 controller and the other end to an available USB port on the Nintendo Switch dock.
3. The controller will automatically connect to the Switch console via the wired connection.
4. Ensure that "Pro Controller Wired Communication" is enabled in the Switch System Settings (System Settings > Controllers and Sensors > Pro Controller Wired Communication).

Image 5.1: The controller connected to a Nintendo Switch dock, demonstrating wired play.

6. Operating Instructions

6.1 TURBO Function

The TURBO function allows for rapid, continuous pressing of a button without repeatedly pressing it manually.

1. To Set TURBO: Press and hold the desired action button (e.g., A, B, X, Y, L, R, ZL, ZR), then press the TURBO button once. The button will now continuously register presses as long as you hold it down.
2. To Clear TURBO: Repeat the process: press and hold the button with TURBO enabled, then press the TURBO button again. The TURBO function for that specific button will be deactivated.

6.2 Six-axis Gyroscope

The built-in six-axis gyroscope provides motion control capabilities, allowing for precise aiming and in-game interactions by tilting and moving the controller.

• Ensure the game you are playing supports gyroscope controls.
• Calibrate the gyroscope if you experience drift or inaccurate motion sensing. Refer to your Nintendo Switch system settings for calibration options.

Image 6.1: Illustration of the six-axis gyroscope in action, enhancing aiming precision.

6.3 Vibration Function

The dual motor vibration provides tactile feedback, immersing you further into the game by reacting to in-game events like collisions, explosions, or character actions.

• Vibration intensity is typically controlled by the game itself.
• If vibration is not working, check the in-game settings or Nintendo Switch system settings to ensure it is enabled.

Image 6.2: Visual representation of the built-in dual motor vibration feature.

7. Charging the Controller

The ipega PG-9162 controller has a built-in rechargeable battery. When the battery is low, the LED indicators will flash slowly.

1. Connect the provided USB charging cable to the Type-C port on the controller.
2. Connect the other end of the USB cable to a USB power source (e.g., Nintendo Switch dock, computer USB port, or a USB wall adapter).
3. The LED indicators will show charging status. Once fully charged, the indicators will typically turn off or show a solid light.
4. A full charge provides over 8 hours of gameplay.

8. Maintenance

• Keep the controller dry and away from moisture.
• Avoid exposing the controller to extreme temperatures.
• Clean the controller with a soft, dry cloth. Do not use harsh chemicals or abrasive cleaners.
• Store the controller in a safe place when not in use to prevent damage.

9. Troubleshooting

9.1 Controller Not Connecting

• Ensure the controller is sufficiently charged.
• Verify the Nintendo Switch console is updated to the latest system software.
• Repeat the pairing process (Section 5.1).
• If using wired connection, ensure "Pro Controller Wired Communication" is enabled in Switch settings.
• Try restarting both the controller and the Nintendo Switch console.

9.2 Input Lag or Disconnections

• Ensure there are no strong electromagnetic interferences nearby.
• Move closer to the Nintendo Switch console.
• Disconnect other wireless devices that might be causing interference.

9.3 Buttons Not Responding

• Check if the controller is properly connected.
• Test the buttons in the Switch's controller test menu (System Settings > Controllers and Sensors > Test Input Devices).
• Clean around the buttons to ensure no debris is obstructing them.

10. Specifications

11. Warranty and Support

This product comes with a standard manufacturer's warranty. For specific warranty terms, please refer to the documentation included with your purchase or contact the retailer. For technical support or further assistance, please visit the official ipega website or contact their customer service department.

Manufacturer: ipega

Date First Available: 2 August 2019
