D1D9 GSM Wireless Home Burglar Alarm System User Manual

1. Introduction

This user manual provides comprehensive instructions for the installation, operation, and maintenance of your D1D9 GSM Wireless Home Burglar Alarm System. This system is designed to enhance the security of your home by detecting unauthorized entry and alerting you through various methods, including a loud siren and mobile phone notifications via GSM network. Please read this manual thoroughly before using the product to ensure proper setup and functionality.

2. Product Overview

The D1D9 GSM Wireless Home Burglar Alarm System is a comprehensive security solution. It includes a central control panel, various wireless sensors, and remote controls to provide robust protection for your property.

2.1 System Components

Main Control Panel: The central hub of the alarm system, featuring a keypad, display, and GSM module for communication.
PIR Motion Sensors: Passive Infrared sensors detect movement within their coverage area.
Door/Window Contact Sensors: Two-part sensors that detect when a door or window is opened.
Remote Controls (Key Fobs): Used for arming, disarming, and triggering emergency alarms.
Siren: An external or internal siren that emits a loud sound when an alarm is triggered.
Power Adapter: For powering the main control panel.
Backup Battery: Integrated into the main control panel for continued operation during power outages.

2.2 System Diagram and Components

Complete D1D9 GSM Alarm System with control panel, sensors, and remotes

Figure 2.2.1: Overview of the D1D9 GSM Wireless Home Burglar Alarm System components, including the main control panel, multiple PIR motion sensors, door/window contact sensors, and remote controls.

Diagram showing placement of alarm system components in a house

Figure 2.2.2: Illustrative diagram demonstrating typical placement of alarm system components within a home, including PIR sensors, gas detectors, curtain PIR detectors, smoke detectors, door magnetic switches, and detectors for roller shutters.

3. Setup and Installation

Follow these steps to set up and install your D1D9 alarm system.

3.1 Main Control Panel Installation

Choose a Location: Select a central and secure location for the main control panel, away from direct sunlight, moisture, and extreme temperatures. Ensure it is within reach of a power outlet.
Mounting: Use the provided screws and anchors to securely mount the control panel to a wall at an accessible height.
Insert SIM Card: Open the SIM card slot cover on the control panel and insert a valid GSM SIM card. Ensure the SIM card has sufficient credit for calls and SMS.
Connect Power: Plug the power adapter into the control panel and then into a wall outlet. The system will power on.

D1D9 control panel mounted on a white wall

Figure 3.1.1: The main control panel installed on a wall, demonstrating its compact design and integration into a home environment.

3.2 Sensor Installation and Pairing

All sensors are pre-paired with the main unit. If re-pairing is needed, refer to the specific sensor's mini-manual or the control panel's pairing menu.

PIR Motion Sensors:
1. Install PIR sensors in corners of rooms or hallways, approximately 2-2.5 meters (6.5-8 feet) above the floor.
2. Ensure the sensor has a clear line of sight to the area it is monitoring, free from obstructions.
3. Avoid placing near heat sources, direct sunlight, or air vents that could cause false alarms.
Figure 3.2.1: A D1D9 PIR motion sensor mounted on a wall, designed to detect movement within its field of view.
Door/Window Contact Sensors:
1. Mount one part of the sensor on the door/window frame and the other part on the door/window itself.
2. Ensure the two parts are aligned and within 1 cm (0.4 inches) of each other when the door/window is closed.
3. Use the adhesive pads or screws provided for installation.

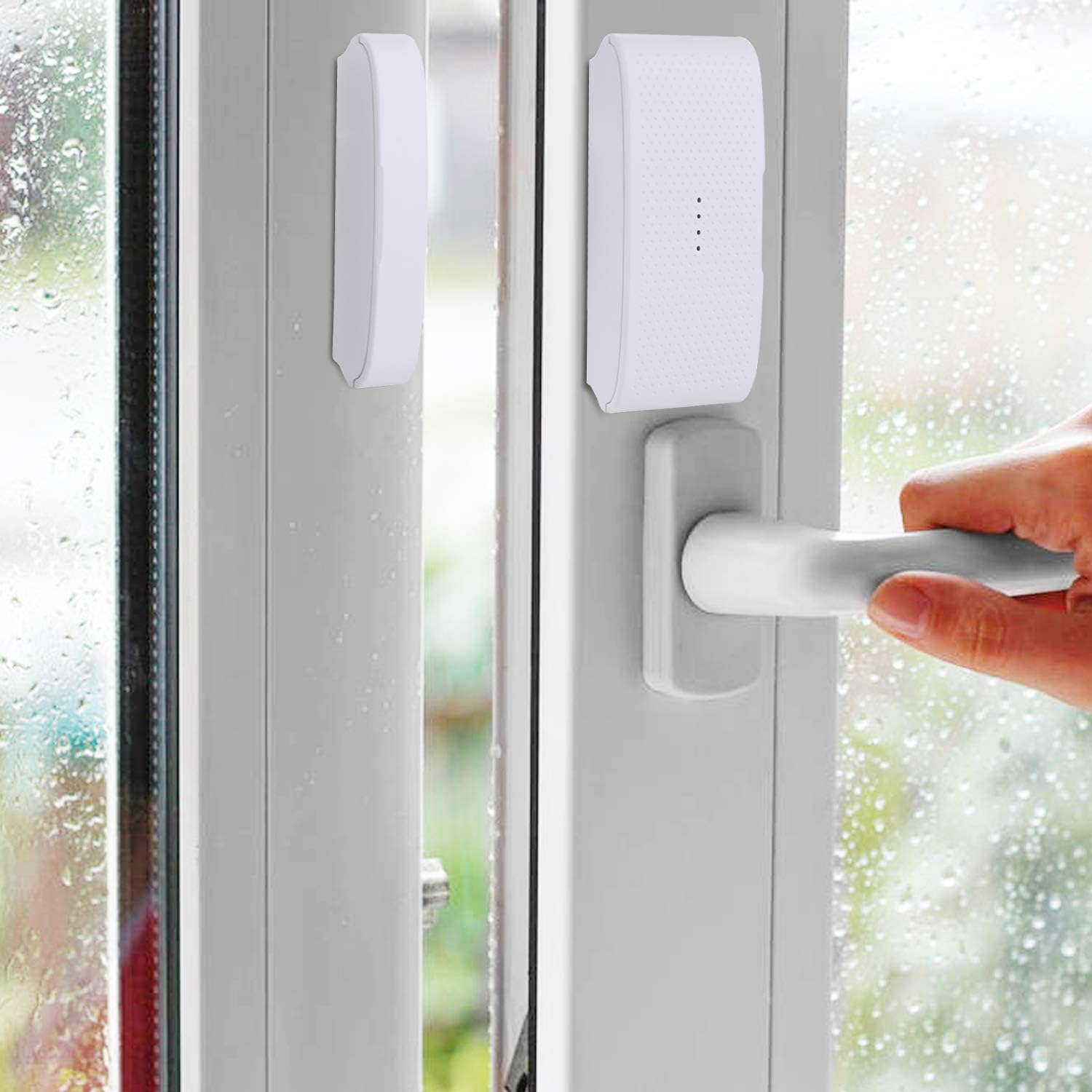

Figure 3.2.2: A D1D9 door/window contact sensor installed on a window frame, designed to trigger an alarm when the contact is broken.

4. Operating Instructions

Understand how to effectively operate your D1D9 alarm system.

4.1 Arming and Disarming

Arm (Away Mode): Press the "Arm" button on the control panel or the lock icon on the remote control. All sensors will be active. The system will beep to confirm arming.
Home Arm (Stay Mode): Press the "Home" button on the control panel. This activates perimeter sensors (e.g., door/window contacts) while allowing free movement inside.
Disarm: Enter your PIN on the control panel keypad and press "Disarm," or press the unlock icon on the remote control. The system will beep to confirm disarming.

4.2 Emergency (SOS) Function

In case of an emergency, you can instantly trigger the alarm.

Press the dedicated SOS button on your remote control. The system will immediately activate the siren and send alerts to pre-programmed phone numbers.

Hand pressing SOS button on D1D9 remote control

Figure 4.2.1: A hand pressing the SOS button on the D1D9 remote control, demonstrating the emergency alert function.

4.3 Mobile Phone Control

The system supports control via mobile phone calls or SMS commands, allowing you to manage your alarm from anywhere.

Remote Arm/Disarm: Call the SIM card number in the control panel and follow the voice prompts, or send specific SMS commands (refer to the full manual for command list).
Receive Alerts: When an alarm is triggered, the system will call and/or send SMS messages to the pre-programmed emergency contacts.

5. Maintenance

Regular maintenance ensures the longevity and reliability of your alarm system.

5.1 Battery Management

Main Control Panel Backup Battery: The integrated Lithium-ion battery provides power during outages. It has a life of approximately 48 hours. If the battery level is low, the panel will indicate it. Contact support for replacement if needed.
Sensor Batteries: Wireless sensors are powered by standard batteries (e.g., AA, AAA, or button cells). Replace them when the low battery indicator appears on the sensor or control panel.
Remote Control Batteries: Replace button cell batteries in remote controls when their range decreases or they stop responding.

5.2 Cleaning and Care

Wipe the control panel and sensors with a soft, dry cloth. Do not use abrasive cleaners or solvents.
Ensure sensors are free from dust and cobwebs, which can interfere with their operation.

5.3 Regular Checks

Test the alarm system periodically (e.g., monthly) by triggering a sensor to ensure the siren activates and notifications are sent. Inform your emergency contacts before testing.
Check the SIM card balance regularly to ensure continuous GSM communication.

6. Troubleshooting

This section addresses common issues you might encounter with your D1D9 alarm system.

Problem	Possible Cause	Solution
System does not arm/disarm.	Incorrect PIN, remote control battery low, out of range.	Verify PIN. Replace remote battery. Move closer to the control panel.
No mobile notifications.	SIM card issues (no credit, expired, incorrect insertion), incorrect phone numbers programmed.	Check SIM card balance and status. Re-enter emergency contact numbers. Ensure GSM signal is strong.
False alarms.	Improper sensor placement (near heat sources, drafts), sensor sensitivity too high, low sensor battery.	Adjust sensor placement. Reduce PIR sensitivity if adjustable. Replace sensor batteries.
Siren does not sound.	Siren not connected, siren power issue, siren malfunction.	Check siren connection to the control panel. Ensure siren has power if external. Contact support if issue persists.

7. Specifications

Detailed technical specifications for the D1D9 GSM Wireless Home Burglar Alarm System.

Dimensions of D1D9 control panel and sensors

Figure 7.1: Dimensional overview of the D1D9 GSM Alarm System main unit, PIR sensor, and door/window contact sensor.

Feature	Specification
Model Number	OCC1
Brand	D1D9
Manufacturer	Chenghelichuang CO.LTD
Product Dimensions (L x W x H)	26.42 x 16.76 x 18.03 cm (10.4 x 6.6 x 7.1 inches)
Item Weight	1.84 Kilograms (4.06 lbs)
Power Source	Battery Powered (Main unit: 220 Volts AC adapter with battery backup)
Battery Type (Main Unit)	1 Lithium-ion (included)
Battery Life (Main Unit Backup)	48 hours
Connectivity Technology	Wireless (GSM)
Installation Type	DIY (Do It Yourself)
Alert Type	Audio Only (Siren)
Compatible Devices	Smartphone

8. Warranty and Support

For warranty information and technical support, please refer to the documentation included with your purchase or contact the seller directly. Keep your proof of purchase for warranty claims.

Seller: d1d9

For further assistance, you may visit the seller's support page or contact them via the platform where the product was purchased.
