Breville Barista Mini Espresso Machine User Manual

1. Introduction

The Breville Barista Mini Espresso Machine is designed to bring professional-quality coffee into your home. Inspired by commercial machines, this intuitive espresso maker allows you to enjoy barista-level coffee with every cup. It features Temp IQ Shot Control technology for consistent and precise water temperature and gentle pre-infusion, ensuring a rich and balanced aroma. The powerful 15-bar Italian pump guarantees optimal pressure and a creamy crema.

2. Important Safety Warnings

WARNING: Pressurized content. Do not strike or puncture the container. Keep the container away from direct sunlight.

Always read all instructions before operating the appliance and save them for future reference. Ensure the machine is placed on a stable, level surface. Do not immerse the appliance, power cord, or plug in water or any other liquid. Unplug from the outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning the appliance.

3. Product Overview

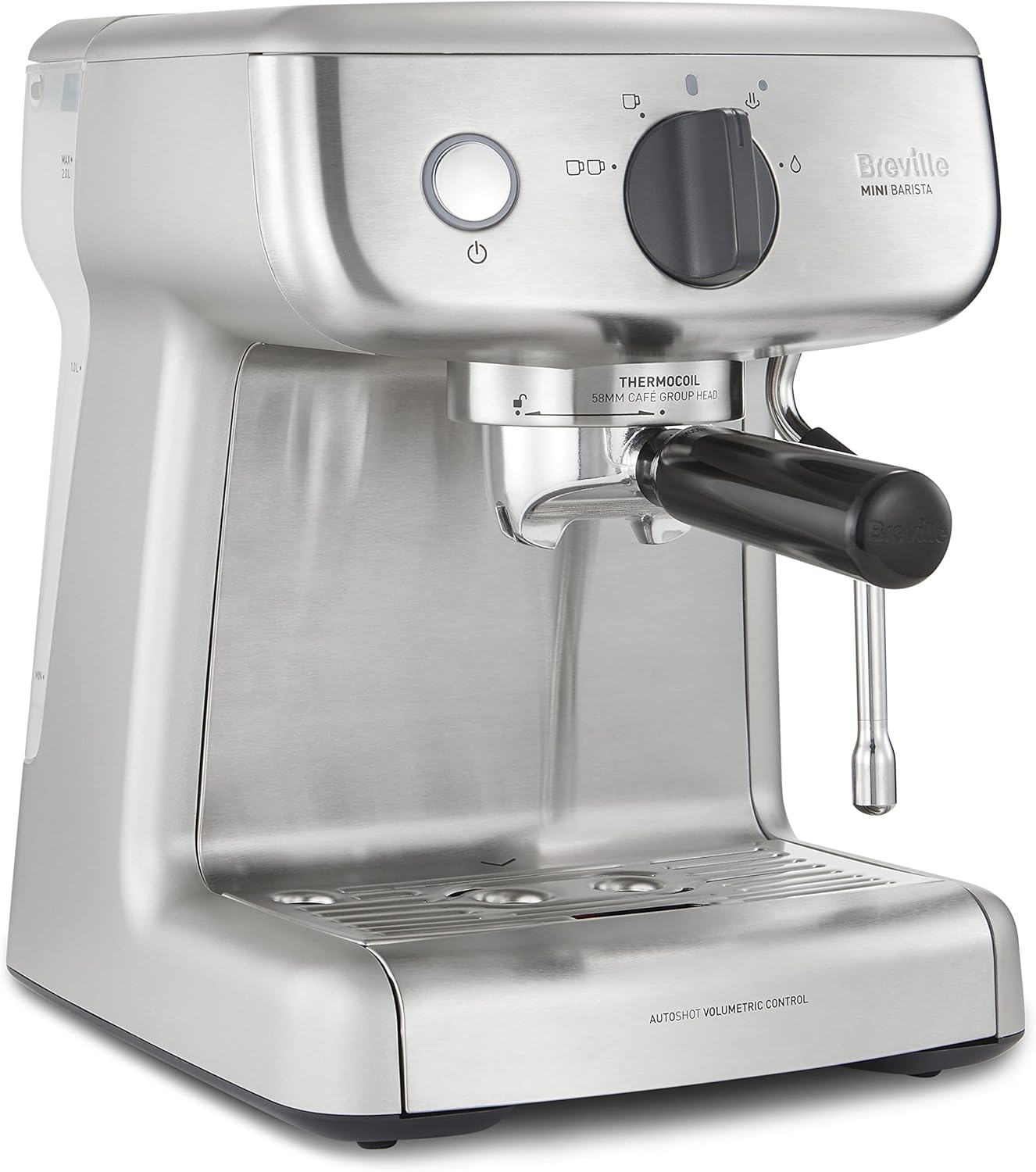

Familiarize yourself with the components of your Breville Barista Mini Espresso Machine.

4. Setup

4.1 Unpacking

Carefully remove all components from the packaging. The box should contain:

• 1x Barista Mini Espresso Machine
• 1x 58mm Portafilter with handle
• 1x Tamper
• 1x 350ml Stainless Steel Milk Pitcher
• Double-wall filter baskets (1-shot and 2-shot)
• 1x Cleaning Pin
• Instruction Manual

4.2 Initial Preparation

1. Wash the water tank, portafilter, filter baskets, and milk pitcher with warm soapy water. Rinse thoroughly and dry.
2. Fill the water tank with fresh, cold water up to the MAX line. Ensure the tank is securely placed in the machine.
3. Place a cup under the portafilter and another under the steam wand.
4. Plug the machine into a grounded power outlet. Press the power button to turn on the machine.
5. Allow the machine to heat up. The indicator lights will stop flashing when ready.
6. Run a blank shot (without coffee) by pressing the 2-cup button to prime the pump and flush the system.
7. Activate the steam wand for a few seconds to clear any air and prime the steam system.

5. Operating Instructions

5.1 Making Espresso

1. Ensure the water tank is filled.
2. Select the appropriate filter basket (1-shot or 2-shot) and place it in the portafilter.
3. Grind fresh coffee beans to a fine consistency suitable for espresso. Fill the filter basket with ground coffee.
4. Tamp the coffee firmly and evenly using the provided tamper. Wipe any excess grounds from the rim of the portafilter.
5. Insert the portafilter into the group head and twist firmly to lock it into place.
6. Place pre-warmed espresso cups under the portafilter spouts.
7. Press the 1-cup or 2-cup button for automatic dosing, or press and hold the button to manually control the shot volume.
8. The machine will pre-infuse and then extract the espresso. The flow will stop automatically for pre-programmed shots.

5.2 Frothing Milk

The powerful pivoting steam wand produces velvety micro-foam milk, perfect for lattes, flat whites, and cappuccinos.

1. Fill the stainless steel milk pitcher with cold milk (dairy or non-dairy).
2. Turn the control dial to the steam icon to activate the steam wand. Wait for the steam light to become solid.
3. Purge the steam wand by briefly opening the steam valve to release any condensed water. Close the valve.
4. Insert the steam wand tip just below the surface of the milk. Angle the pitcher slightly.
5. Open the steam valve fully. Lower the pitcher slightly to introduce air, creating foam.
6. Once desired foam is achieved, raise the pitcher to submerge the wand deeper, heating the milk to the desired temperature (around 60-65°C or 140-150°F).
7. Close the steam valve and remove the pitcher. Immediately wipe the steam wand with a damp cloth.

5.3 Automatic Dosing

The pre-programmed automatic dosing offers single or double shots. You can also customize the volume to your preference by pressing and holding the brew button until the desired volume is reached, then releasing it. The machine will remember this setting for future use.

6. Maintenance and Cleaning

6.1 Daily Cleaning

• Portafilter and Filter Baskets: After each use, remove spent coffee grounds and rinse the portafilter and filter basket under hot water.
• Drip Tray: Empty and rinse the drip tray daily or when the 'Full' indicator appears.
• Steam Wand: Immediately after frothing milk, wipe the steam wand with a damp cloth. Purge the wand briefly to clear any milk residue from inside.
• Group Head: Use a damp cloth to wipe the group head and shower screen after each use.

6.2 Descaling

Regular descaling is essential to maintain machine performance and extend its lifespan. The frequency depends on water hardness and usage. Refer to the indicator light or descale every 2-3 months.

1. Prepare a descaling solution according to the descaler manufacturer's instructions.
2. Fill the water tank with the descaling solution.
3. Place a large container under the group head and steam wand.
4. Follow the specific descaling procedure outlined in the full instruction manual (usually involves running the solution through the brew cycle and steam wand).
5. Rinse the machine thoroughly by running several cycles with fresh water after descaling.

7. Troubleshooting

8. Technical Specifications

9. Warranty and Support

Breville products are manufactured to the highest quality standards. For warranty information, product registration, or technical support, please refer to the warranty card included in your product packaging or visit the official Breville website. Keep your proof of purchase for any warranty claims.
