Product Overview
This manual provides essential information for the installation, operation, and maintenance of the WANATOP 6 Pins Fuel Rail High Pressure Sensor. This sensor is designed for precise measurement of fuel rail pressure in compatible Toyota 1KD and 2KD engines, ensuring optimal engine performance and fuel efficiency. It is a critical component for the vehicle's fuel injection system.
The sensor features a robust design with 6 pins for reliable electrical connection and accurate data transmission. Its primary function is to monitor the pressure within the common rail fuel system, sending signals to the engine control unit (ECU) to regulate fuel delivery.
Figure 1: Front view of the WANATOP 6 Pins Fuel Rail High Pressure Sensor, showing the main body and electrical connector.
Figure 2: Side view of the sensor, highlighting the threaded portion for secure installation into the fuel rail.
Figure 3: Angled view of the sensor, showing the overall compact design and the pressure sensing tip.
Figure 4: Top view of the sensor's electrical connector, showing the arrangement of the 6 pins.

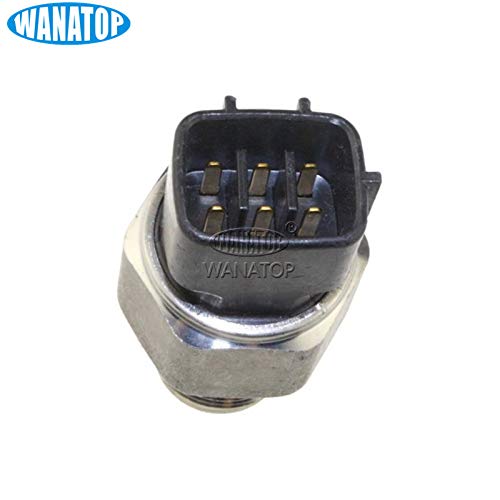

Figure 5: Close-up view of the 6-pin electrical connector, essential for proper wiring and signal transmission.
Specifications
| Feature | Detail |
|---|---|
| Model Number | 499000-6081 |
| Compatibility | Toyota 1KD, 2KD Engines |
| Connector Type | 6 Pins |
| Maximum Supply Voltage | 5 Volts |
| Measurement Accuracy | ±1.5% |
| Item Weight | 0.08 Kilograms (approx. 2.82 ounces) |
| Package Dimensions | 3.15 x 2.36 x 1.97 inches |
Setup and Installation
Installation of the fuel rail high pressure sensor should be performed by a qualified technician. Incorrect installation can lead to fuel leaks, engine malfunction, or personal injury.
Required Tools:
- Appropriate wrench for sensor removal/installation
- Torque wrench
- Clean rags
- Safety glasses and gloves
Installation Steps:
- Safety First: Ensure the vehicle's engine is off and cool. Disconnect the battery's negative terminal. Relieve fuel system pressure according to the vehicle manufacturer's service manual.
- Locate Old Sensor: Identify the existing fuel rail high pressure sensor on the common rail.
- Disconnect Wiring: Carefully disconnect the electrical connector from the old sensor.
- Remove Old Sensor: Using the appropriate wrench, carefully unscrew and remove the old sensor. Be prepared for residual fuel leakage and have rags ready.
- Inspect Area: Clean the sensor mounting area on the fuel rail, ensuring no debris is present.
- Install New Sensor: Apply a small amount of clean engine oil to the threads of the new WANATOP sensor. Carefully thread the new sensor into the fuel rail by hand to prevent cross-threading.
- Torque Sensor: Use a torque wrench to tighten the sensor to the vehicle manufacturer's specified torque setting. Do not overtighten.
- Reconnect Wiring: Reconnect the electrical connector to the new sensor, ensuring it clicks securely into place.
- Restore System: Reconnect the vehicle's battery.
- Check for Leaks: Start the engine and carefully check for any fuel leaks around the newly installed sensor. If leaks are detected, immediately shut off the engine and re-check installation.
Operating Principles
The WANATOP Fuel Rail High Pressure Sensor operates by converting the physical pressure within the fuel rail into an electrical signal. This signal is then sent to the vehicle's Engine Control Unit (ECU).
- Pressure Monitoring: The sensor continuously monitors the fuel pressure in the common rail, which is crucial for precise fuel injection.
- Signal Transmission: The electrical signal generated by the sensor is proportional to the fuel pressure.
- ECU Feedback: The ECU uses this pressure data to adjust fuel injection timing and quantity, optimizing combustion, fuel efficiency, and emissions.
- Diagnostic Function: The sensor also plays a role in the vehicle's diagnostic system, allowing the ECU to detect and report abnormal fuel pressure conditions.
Video: An overview of the WANATOP 6 Pins Fuel Rail High Pressure Sensor, showcasing its design and features. This video provides a visual representation of the product from various angles, demonstrating its physical characteristics and connection points. Duration: 0:24.
Maintenance
The WANATOP Fuel Rail High Pressure Sensor is designed for durability and typically requires minimal maintenance. However, periodic checks can help ensure its longevity and proper function.
- Visual Inspection: Periodically inspect the sensor and its wiring for any signs of damage, corrosion, or loose connections.
- Cleanliness: Keep the area around the sensor clean and free from excessive dirt, oil, or fuel residue. Use a clean, dry cloth for wiping.
- Avoid Harsh Chemicals: Do not use harsh solvents or abrasive cleaners on the sensor or its electrical connector.
- Professional Check: If you suspect any issues with the sensor's performance, have it inspected by a professional mechanic.
Troubleshooting
If you experience issues that you suspect are related to the fuel rail high pressure sensor, consider the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Check Engine Light (CEL) illuminated with fuel pressure codes (e.g., P0190, P0191) | Faulty sensor, wiring issue, or ECU problem. |
|
| Engine Cranking but No Start | Incorrect fuel pressure reading, leading to improper fuel delivery. |
|
| Rough Idling or Stalling | Inconsistent fuel pressure readings. |
|
Note: For complex issues, it is highly recommended to seek assistance from a certified automotive technician or a specialist in fuel injection systems.
Warranty and Support
WANATOP products are manufactured to high quality standards. For specific warranty information regarding your 6 Pins Fuel Rail High Pressure Sensor (Model: 499000-6081), please refer to the warranty card included with your purchase or visit the official WANATOP website.
If you require technical assistance, have questions about installation, or need to report a product issue, please contact WANATOP customer support through the following channels:
- Online Support: Visit the WANATOP official website for FAQs and contact forms.
- Email Support: Refer to your product packaging or the WANATOP website for the customer service email address.
- Authorized Dealers: Contact the retailer or authorized dealer from whom you purchased the product.
Please have your product model number (499000-6081) and purchase date available when contacting support.
