1. Introduction
The FAAC RP433SLH (787824) is a wired receiver designed for integration into automatic gate and garage door systems. It operates at a frequency of 433MHz and features one contact, making it compatible with FAAC XT2 433 SLH remote controls. This manual provides essential information for the safe and correct installation, operation, and maintenance of your receiver.
2. Safety Information
- WARNING: Installation must be performed by qualified personnel only.
- Disconnect power to the automation system before beginning any installation or maintenance procedures.
- Ensure all wiring complies with local electrical codes and regulations.
- Do not expose the device to moisture, rain, or extreme temperatures.
- Keep the device out of reach of children.
- Use only original FAAC spare parts and accessories.
3. Package Contents
Verify that all components are present and undamaged:
- 1 x FAAC RP433SLH Wired Receiver (787824)
- 1 x Instruction Manual (this document)
4. Setup and Installation
The RP433SLH receiver is designed for wired integration into your existing gate or garage door automation system. Ensure the power supply to the automation system is disconnected before proceeding with installation.
4.1 Mounting
Choose a suitable, protected location near the control unit, away from direct weather exposure and sources of electromagnetic interference. Secure the receiver using appropriate fasteners (not supplied) to a stable surface.
4.2 Wiring Connections
Refer to the wiring diagram provided with your gate/garage door control unit for specific connection points. The receiver typically requires a power supply and provides a contact output to trigger the automation system.
- Identify the power input terminals on the RP433SLH receiver (e.g., 12-24V AC/DC). Connect these to the appropriate power source from your control unit.
- Connect the receiver's output contact (typically Normally Open - NO, or Normally Closed - NC, depending on your system's requirements) to the control unit's input for remote control activation.
- Ensure all connections are secure and properly insulated.

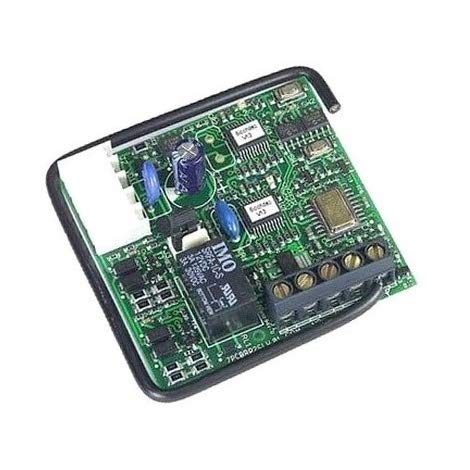

Image showing the FAAC RP433SLH wired receiver, highlighting its compact design and connection terminals. This image illustrates the physical appearance of the device for wiring reference.
5. Operating Instructions
Once the receiver is correctly installed and powered, it is ready to be programmed with compatible remote controls.
5.1 Remote Control Pairing
To pair a FAAC XT2 433 SLH remote control with the RP433SLH receiver:
- Locate the programming button on the RP433SLH receiver. This button is typically small and may be recessed.
- Press and hold the programming button until the LED indicator on the receiver illuminates or begins to flash.
- While the LED is active (within approximately 5-10 seconds), press the desired button on your FAAC XT2 433 SLH remote control that you wish to use for activation.
- The LED on the receiver should confirm successful pairing (e.g., flash rapidly, then turn off, or change color).
- Release the programming button on the receiver.
- Test the remote control to ensure it activates the gate/garage door system as expected.
Note: The receiver operates at 433MHz. Ensure your remote controls are also 433MHz SLH compatible for proper functionality.
6. Maintenance
The FAAC RP433SLH receiver requires minimal maintenance to ensure long-term reliable operation.
- Cleaning: Periodically clean the exterior of the receiver with a soft, dry cloth. Do not use abrasive cleaners, solvents, or harsh chemicals, as these can damage the casing or internal components.
- Connection Check: Annually inspect all wiring connections for tightness and signs of wear, corrosion, or damage. Ensure the receiver is securely mounted and that its housing is intact.
- Environmental Protection: Ensure the receiver remains protected from direct exposure to water, dust, and extreme temperatures, as specified in its technical characteristics.
7. Troubleshooting
If you encounter issues with your FAAC RP433SLH receiver, refer to the following common troubleshooting steps:
- Receiver not responding to remote control:
- Check the power supply to the receiver. Ensure it is receiving the correct voltage.
- Verify that the remote control batteries are not depleted.
- Ensure the remote control is correctly paired with the receiver. Attempt to re-pair the remote control following the instructions in Section 5.1.
- Confirm that the remote control is a compatible FAAC XT2 433 SLH 433MHz model.
- Automation system not activating:
- Check all wiring connections between the receiver and the main control unit of your gate/garage door system. Ensure they are secure and correct.
- Ensure the main control unit itself is powered and functioning correctly.
- Consult the control unit's manual for specific input requirements and troubleshooting steps related to its activation inputs.
- Short range or intermittent operation:
- Check for sources of radio interference near the receiver (e.g., other wireless devices, large metal objects).
- Ensure the receiver's antenna (if external) is properly positioned and not obstructed.
If problems persist after attempting these steps, contact qualified technical support.
8. Specifications
- Model: FAAC RP433SLH (787824)
- Frequency: 433 MHz
- Number of Contacts: 1
- Compatibility: FAAC XT2 433 SLH remote controls
- Power Supply: Refer to the product label or technical documentation for specific voltage requirements.
- ASIN: B07VHFMJ3J
9. Warranty and Support
For detailed warranty information, terms, and conditions, please refer to the documentation provided at the time of purchase or visit the official FAAC website. Keep your proof of purchase for any warranty claims.
For technical assistance, troubleshooting beyond this manual, or to inquire about spare parts, please contact your authorized FAAC distributor or customer support. Contact information can typically be found on the FAAC official website or through your point of purchase.
