Easytry123 Replacement Remote Control

1. Introduction

Thank you for choosing the Easytry123 Replacement Remote Control. This remote is designed to function as a replacement for various Sony CRT HDTV TV models, including RM-Y165, KV-36HS20, KV-32XBR200, RM-Y184, KV-36HS20H, KV-32XBR450, and KV-36XBR450H. This manual provides essential information for setting up, operating, and maintaining your new remote control.

Important Note: As a replacement unit, this remote control may not support all functions of your original remote. Please ensure your TV model is listed as compatible before use.

2. Product Overview

The Easytry123 Replacement Remote Control is an ergonomic, infrared (IR) device designed for ease of use with compatible Sony televisions. It features a standard layout for common television functions.

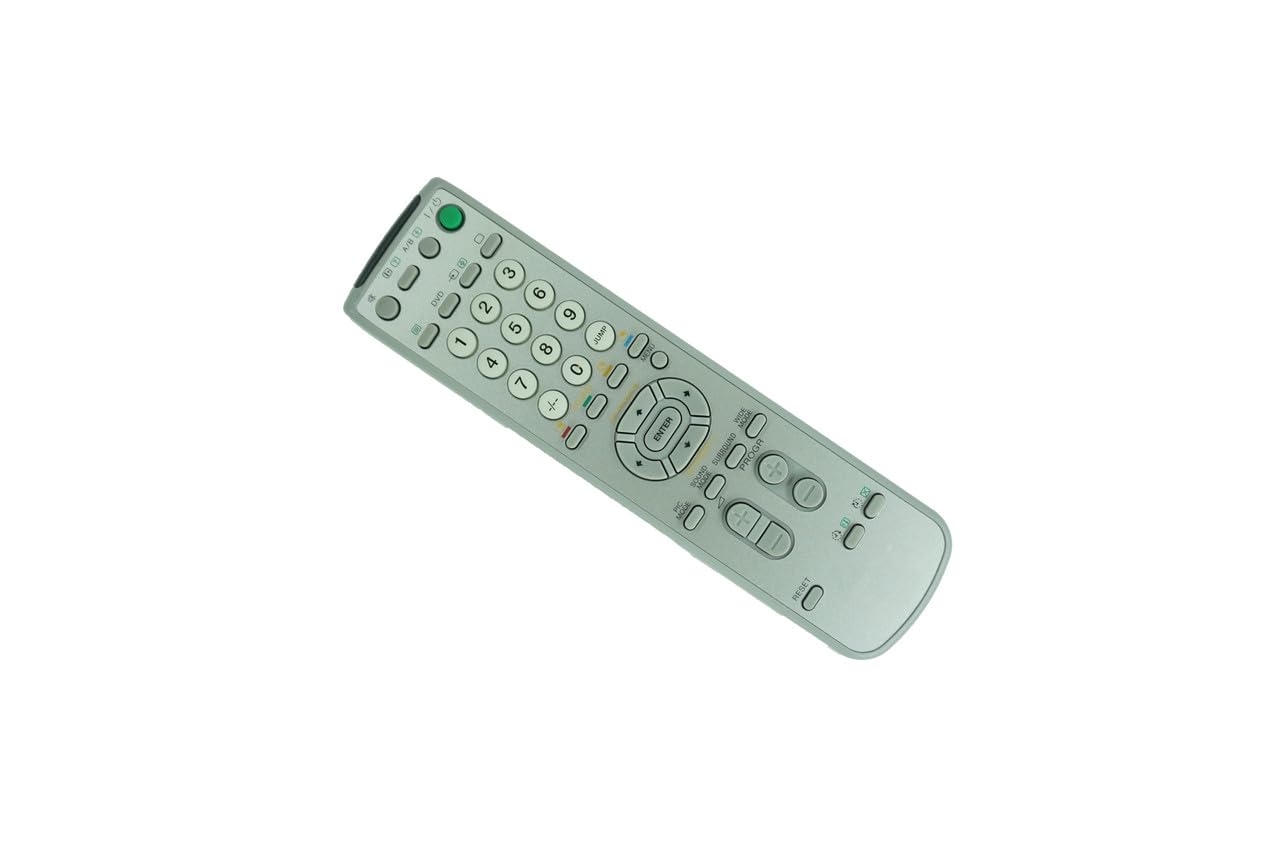

Figure 2.1: Front view of the Easytry123 Replacement Remote Control. This image displays the full button layout, including number keys, channel and volume controls, menu navigation, and power button.

Figure 2.2: Angled view of the Easytry123 Replacement Remote Control. This image provides a perspective view of the remote, highlighting its ergonomic design and button placement.

Key Features:

• Ergonomic Design: Comfortable to hold and operate.
• Infrared Connectivity: Standard IR signal for reliable communication with your TV.
• Direct Replacement: Functions without complex programming for listed compatible models.

3. Setup

3.1 Battery Installation

The remote control requires two (2) AA batteries (not included) for operation.

1. Locate the battery compartment cover on the back of the remote control.
2. Slide the cover downwards or press the latch (if present) to open the compartment.
3. Insert two new AA batteries, ensuring the positive (+) and negative (-) terminals align correctly with the markings inside the compartment.
4. Slide the battery compartment cover back into place until it clicks securely.

Note: Always use fresh batteries and replace both batteries at the same time. Do not mix old and new batteries or different types of batteries.

3.2 Initial Use

This replacement remote control is designed to work directly with compatible Sony CRT HDTV TV models without requiring any programming. Once batteries are installed, point the remote at your television and begin operation.

4. Operating Instructions

The remote control provides standard functions for your television. Familiarize yourself with the button layout shown in Figure 2.1.

• Power Button: Located at the top right, typically green. Press to turn the TV on or off.
• Number Buttons (0-9): Used for direct channel selection.
• Channel Up/Down: Navigate through channels sequentially.
• Volume Up/Down: Adjust the audio level.
• Mute Button: Temporarily silences the TV audio.
• Menu Button: Accesses the TV's on-screen menu system.
• Navigation (Arrow) Buttons & ENTER: Used to navigate within menus and confirm selections.
• Input/Source Button: Switches between different video input sources (e.g., TV, DVD, AV).

For specific advanced functions or TV settings, refer to your television's original user manual.

5. Maintenance

5.1 Cleaning

To clean your remote control, gently wipe it with a soft, dry cloth. For stubborn dirt, slightly dampen the cloth with water or a mild, non-abrasive cleaner. Avoid using harsh chemicals or excessive moisture, as these can damage the remote's electronics.

5.2 Battery Replacement

Replace batteries when the remote's response becomes sluggish or stops working. Follow the battery installation steps in Section 3.1. Dispose of used batteries responsibly according to local regulations.

5.3 Storage

If the remote control will not be used for an extended period, remove the batteries to prevent leakage and potential damage to the device.

6. Troubleshooting

• Remote not responding:
  • Ensure the remote is pointed directly at the TV's IR receiver.
  • Check if there are any obstructions between the remote and the TV.
  • Replace the batteries with fresh AA batteries.
  • Verify that your TV model is listed as compatible with this remote.
• Some functions do not work:
  • As a replacement remote, some advanced or specific functions of your original TV remote may not be supported. This is normal for universal or replacement remotes.
  • Refer to your TV's original manual for specific function details.
• Buttons are sticky or unresponsive:
  • Clean the remote control as described in Section 5.1.
  • Ensure no liquids have entered the remote.

7. Specifications

8. Warranty and Support

Specific warranty information for this Easytry123 Replacement Remote Control is not provided in the product details. For any questions regarding warranty, returns, or technical support, please contact the seller directly through your purchase platform.

For further assistance or inquiries, please refer to the contact information provided by the retailer or seller where you purchased this product.
