Introduction
Thank you for choosing the NCVI Manual Breast Pump Model 8610. This manual provides detailed instructions for the safe and effective use, assembly, cleaning, and maintenance of your breast pump. Please read this manual thoroughly before first use and retain it for future reference.
Image: The NCVI Manual Breast Pump, showing the assembled pump next to its product packaging.
Important Safety Information
Always follow basic safety precautions when using this product to reduce the risk of injury. Failure to follow these instructions could result in harm to you or your baby.
- This product is intended for single user only. Multiple users may pose a health risk.
- Inspect all components before each use. Discard and replace any damaged or worn parts.
- Keep out of reach of children when not in use.
- Do not use while bathing or showering.
- Do not immerse the pump handle or main body in water.
- Ensure all parts are clean and sterilized before first use and after each subsequent use.
- If you experience pain or discomfort during pumping, stop immediately and consult a healthcare professional.
Product Components
The NCVI Manual Breast Pump Model 8610 consists of several parts designed for easy assembly and effective milk expression. Familiarize yourself with each component:
Image: An exploded diagram illustrating all individual components of the NCVI Manual Breast Pump, including the cylinder cover, cylinder, piston, handle, pump body, flange cover, flange, valve, bottle, bottle stand, nipple with lid, and bottle adaptor.
- Cylinder Cover: Protects the cylinder and piston.
- Cylinder: Houses the piston mechanism.
- Piston: Creates suction when the handle is pressed.
- Handle: Ergonomically designed for manual operation.
- Pump Body: Connects the handle assembly to the flange and bottle.
- Flange Cover: A protective cover for the flange.
- Flange (20mm Silicone Soft Flange): The part that comes into contact with the breast, designed for comfort and effective suction.
- Valve: Regulates milk flow into the bottle.
- Bottle (5oz/140ml): Collects expressed milk.
- Bottle Stand: Provides stability for the bottle.
- Nipple with Lid: For feeding the baby directly from the collection bottle.
- Bottle Adaptor: Allows connection to various wide-mouth bottles.
Image: The bottle adaptor component shown separately, with examples of various wide-mouth bottles it can connect to.
Image: A close-up view of the soft, food-grade silicone flange, highlighting its flexible and comfortable material.
Setup and Assembly
Before first use, disassemble all parts and clean them thoroughly as described in the "Maintenance and Cleaning" section. Ensure all parts are completely dry before assembly.
- Insert the valve into the bottom of the pump body. Ensure it is securely seated.
- Screw the collection bottle onto the pump body until it is firmly attached.
- Place the silicone flange onto the pump body, ensuring a tight seal.
- Assemble the piston into the cylinder, then attach the handle to the piston.
- Attach the assembled handle and piston/cylinder unit to the top of the pump body.
- If desired, place the bottle stand under the collection bottle for added stability.
Operating Instructions
The NCVI Manual Breast Pump offers two adjustable suction modes for personalized comfort and efficiency.
Image: A diagram illustrating the two adjustable suction gears: First Gear for Gentle Expression and Second Gear for Strong Expression, with a visual representation of the mechanism.
Pumping Procedure:
- Preparation: Wash your hands thoroughly. Ensure the pump is clean and correctly assembled. Find a comfortable and private place to pump.
- Positioning: Center the silicone flange over your nipple. Ensure a good seal around your breast to maximize suction.
- Initiating Suction: Gently press the handle to create suction. You can adjust the suction strength by selecting one of the two gears:
- First Gear (Gentle Expression): For stimulating milk let-down or when a softer suction is preferred.
- Second Gear (Strong Expression): For faster milk expression once let-down has occurred.
- Pumping Rhythm: Mimic your baby's natural sucking rhythm. Press the handle until you feel suction, hold briefly, then release. Repeat this motion.
- Milk Flow: Milk will begin to flow into the collection bottle. Continue pumping until your breast feels empty or milk flow significantly slows.
- Finishing: Gently break the seal by inserting a finger between your breast and the flange. Remove the pump.
- Storage: Detach the bottle, cap it with the provided nipple and lid, or transfer milk to a storage bag/container. Clean all pump parts immediately after use.

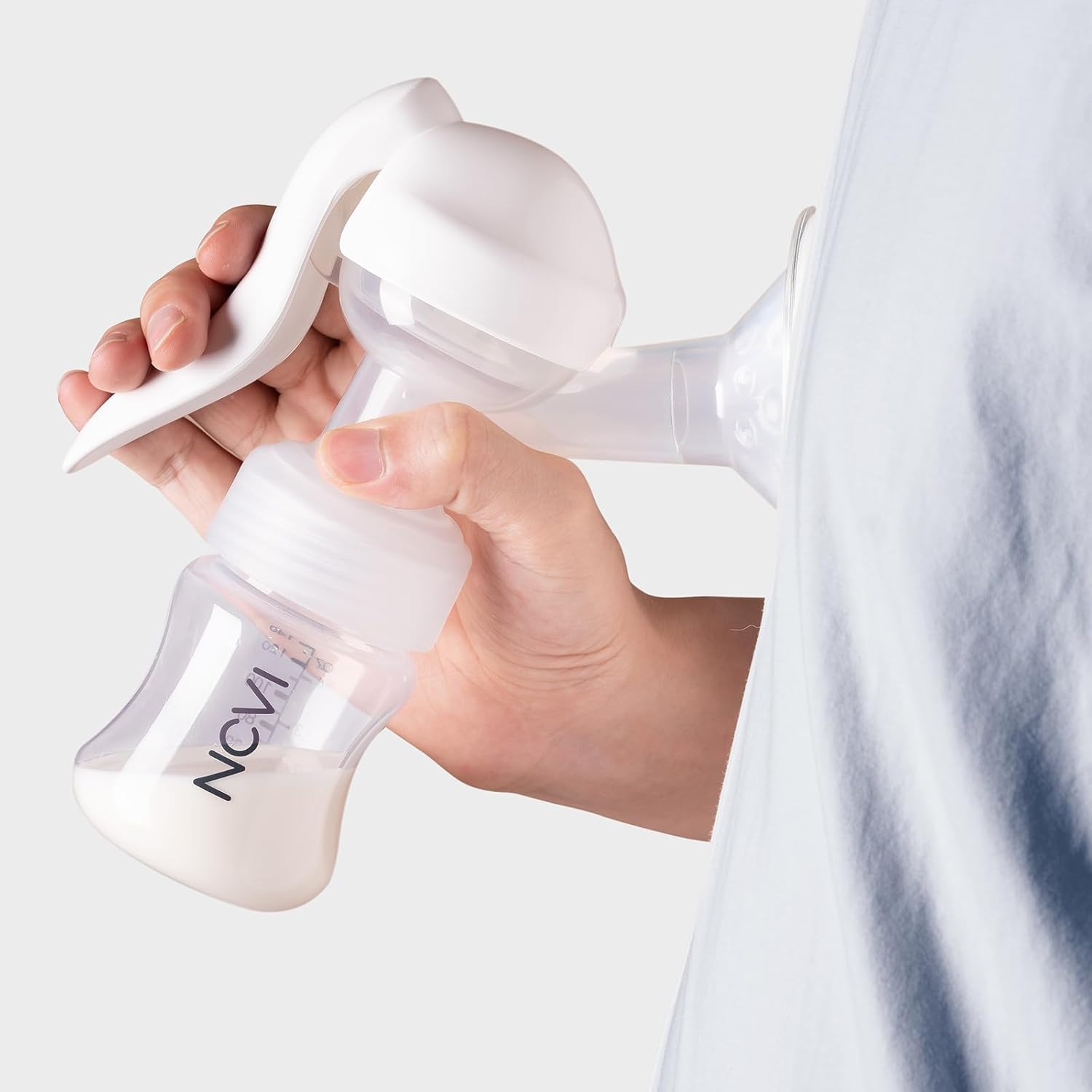

Image: A person demonstrating the use of the NCVI Manual Breast Pump, holding it against the breast to express milk.
Maintenance and Cleaning
Proper cleaning and sterilization are crucial for hygiene and product longevity. All parts that come into contact with breast milk are BPA-free and safe for sterilization.
Image: A person cleaning the breast pump bottle and flange under running water, demonstrating ease of cleaning.
After Each Use:
- Disassemble: Carefully take apart all components of the breast pump.
- Rinse: Rinse all parts under cold running water to remove any residual milk.
- Wash: Wash all parts in warm, soapy water using a mild dish soap. Use a soft brush for hard-to-reach areas. Ensure all milk residue is removed.
- Rinse Again: Rinse thoroughly under clean running water to remove all soap residue.
- Sterilize: Sterilize parts using one of the following methods:
- Boiling: Place parts in a pot of boiling water for 5 minutes.
- Steam Sterilizer: Use a microwave or electric steam sterilizer according to its instructions.
- Dishwasher: Place parts on the top rack of a dishwasher if they are dishwasher-safe (check product markings).
- Dry: Air dry all parts on a clean drying rack or use a clean cloth. Do not wipe with paper towels as they may leave fibers.
- Store: Store dry parts in a clean, covered container until next use.
Note: The pump handle and main body should not be immersed in water. Wipe them clean with a damp cloth if necessary.
Troubleshooting
If you encounter issues with your NCVI Manual Breast Pump, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| No or low suction |
|
|
| Milk leaks from the pump |
|
|
| Discomfort during pumping |
|
|
Specifications
Image: A diagram showing the approximate dimensions of the assembled NCVI Manual Breast Pump, indicating a height of 6 inches and a base width of 3 inches.
- Model: 8610
- Operation Mode: Manual
- Flange Size: 20mm (suitable for 17/18/19/20mm nipples)
- Suction Modes: 2 adjustable gears (Gentle, Strong)
- Bottle Capacity: 5oz (140ml)
- Material: BPA-Free Plastic, Food-Grade Silicone
- Special Feature: Portable, Lightweight (approx. 155.7g / 5.49 ounces)
- Package Dimensions: 6.57 x 5.79 x 4.29 inches
- Manufacturer: NVCI
- First Available: September 25, 2019
Image: The NCVI Manual Breast Pump shown as light and portable, being carried in a clear bag, emphasizing its suitability for travel.
Warranty and Support
For warranty information or product support, please refer to the contact details provided with your purchase or visit the official NCVI website. Keep your proof of purchase for any warranty claims.
For additional assistance, you may contact NCVI customer service through their official channels. Always ensure you are using genuine NCVI replacement parts for optimal performance and safety.
