Introduction
Thank you for choosing the Koolatron KIM26B Countertop Portable Ice Machine. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new ice maker. Please read these instructions thoroughly before first use and retain them for future reference.
Figure 1: Front view of the Koolatron KIM26B Countertop Portable Ice Machine.
Safety Information
To reduce the risk of fire, electric shock, or injury, always follow basic safety precautions when using this appliance:
- Read all instructions before use.
- Do not touch cold surfaces or ice cubes when the machine is operating.
- Do not immerse the appliance, power cord, or plug in water or other liquids.
- Supervise children when the appliance is in use.
- Unplug the appliance from the outlet when not in use or before cleaning.
- Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner.
- Use only potable water in the ice maker.
- Ensure proper ventilation around the appliance. Maintain at least 6 inches of space on all sides.
What's in the Box
Upon unpacking, please ensure all items are present and in good condition:
- Ice-maker base
- Removable ice bucket
- Ice scoop
Specifications
| Feature | Specification |
|---|---|
| Brand | Koolatron |
| Model Name | KIM26B |
| Product Dimensions | 11.5"D x 9.5"W x 11.5"H |
| Ice Production Capacity | Up to 26 Pounds per day |
| Wattage | 105 watts |
| Voltage | 120 Volts (AC) |
| Refrigerant | R600a |
| Material | Stainless Steel |
| Item Weight | 13.53 pounds |
Figure 2: Product dimensions of the ice maker.
Setup
- Unpacking: Remove all packaging materials and check for any damage. Keep packaging for future storage or transport.
- Placement: Place the ice maker on a flat, stable surface away from direct sunlight and heat sources. Ensure there is at least 6 inches of clear space around the unit for proper ventilation.
- Initial Cleaning: Before first use, clean the interior of the ice maker. Remove the ice basket and wash it with warm, soapy water. Wipe the interior with a soft cloth and mild detergent, then rinse thoroughly. Drain any remaining water through the drain plug located at the bottom.
- First Use: For the first few cycles, the ice produced may be small or irregular. Discard the first 2-3 batches of ice to ensure optimal performance and cleanliness.
Operating Instructions
- Add Water: Open the lid and fill the water reservoir with potable water up to the 'MAX' fill line. Do not overfill.
- Power On: Plug the ice maker into a grounded electrical outlet. Press the 'ON/OFF' button to turn on the unit. The 'POWER' indicator light will illuminate.
- Select Ice Size: Press the 'SELECT' button to choose between small (S) or large (L) bullet-shaped ice cubes. The corresponding indicator light will illuminate.
- Ice Production: The ice maker will begin its cycle. The first batch of ice is typically ready in 7-15 minutes, depending on the selected size and ambient temperature.
- Ice Full Indicator: When the ice basket is full, the 'ICE FULL' indicator light will turn on, and the ice production will automatically pause. Remove ice from the basket to resume production.
- Add Water Indicator: If the water reservoir is low, the 'ADD WATER' indicator light will turn on, and the unit will pause. Add more water to resume ice production.
- Power Off: To turn off the ice maker, press the 'ON/OFF' button.
Figure 3: Digital control panel with ON/OFF, SELECT, and indicator lights.

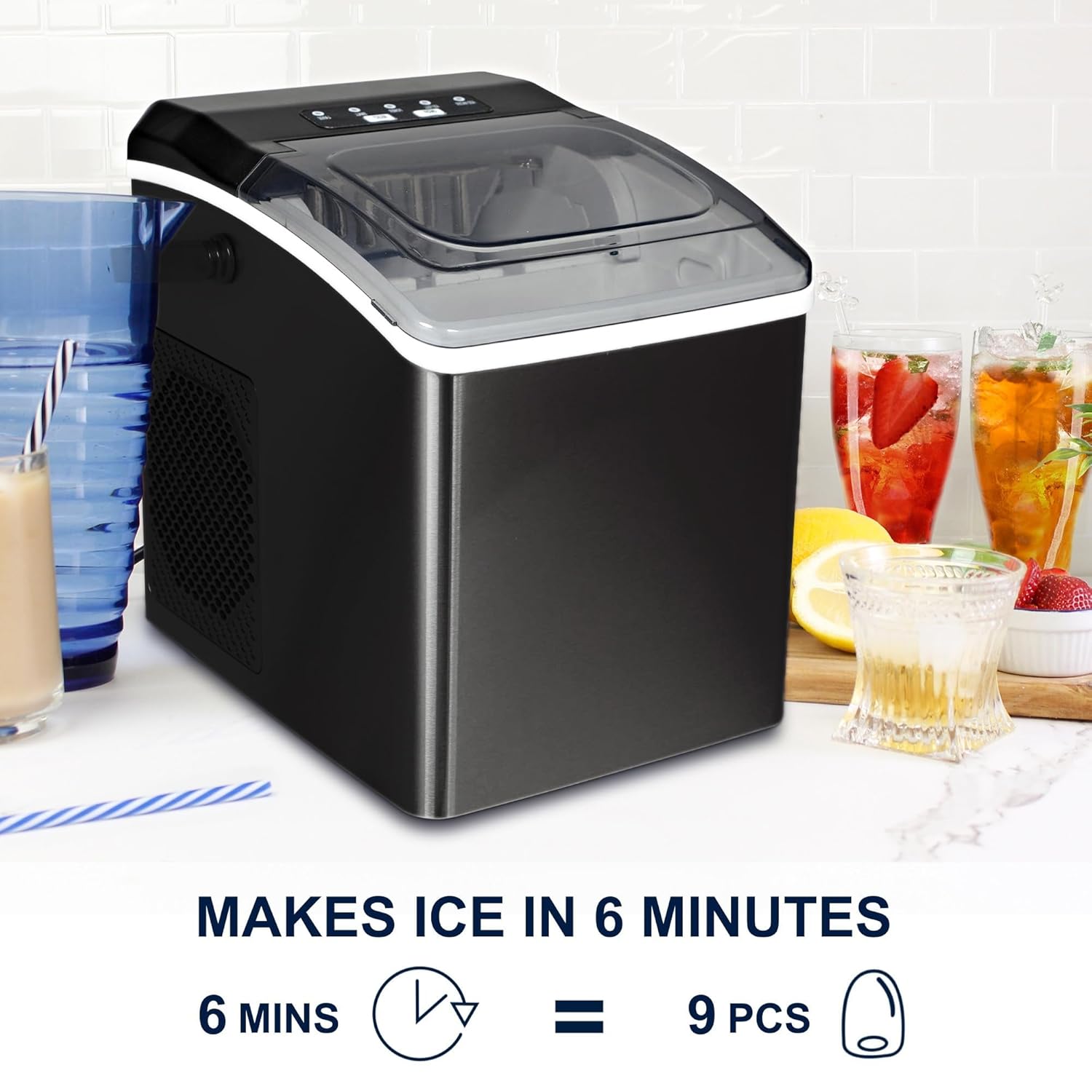

Figure 4: The ice maker can produce ice in as little as 6 minutes.
Figure 5: Choose between two ice cube sizes: small or large.
Figure 6: The ice maker can produce up to 26 lbs of ice in 24 hours.
Maintenance and Cleaning
Regular cleaning and maintenance will ensure the longevity and optimal performance of your ice maker.
- Daily Cleaning: After each use, remove the ice basket and empty any remaining water from the reservoir. Wipe the interior with a soft cloth.
- Auto Clean Function: The ice maker features an auto-clean function. To activate, ensure the reservoir is filled with water. Press and hold the 'ON/OFF' button for 5 seconds while in standby mode to initiate the self-cleaning cycle.
- Deep Cleaning (Weekly/Bi-weekly): For a more thorough cleaning, unplug the unit. Remove the ice basket. Drain all water from the reservoir via the drain plug. Clean the interior with a solution of water and mild detergent or a vinegar solution. Rinse thoroughly. Clean the exterior with a soft, damp cloth.
- Removable Parts: The ice bucket and scoop are removable and dishwasher-safe (top rack recommended) for easy cleaning.
Troubleshooting
If you encounter issues with your ice maker, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| 'ADD WATER' indicator is on | Water reservoir is empty or low. | Fill the water reservoir with potable water up to the 'MAX' line. |
| 'ICE FULL' indicator is on | Ice basket is full. | Remove ice from the basket. Ice production will resume automatically. |
| Ice maker is not producing ice | Lack of water, high ambient temperature, or internal malfunction. | Check water level. Ensure unit is in a cool, well-ventilated area. If problem persists, contact customer support. |
| Ice cubes are small or irregular | First few cycles, water temperature too high, or air bubbles. | Discard first few batches. Use colder water. This is normal during initial operation. |
| Unit is making loud noise | Normal compressor operation, or unit not level. | Ensure the unit is on a flat, stable surface. Some noise from the compressor is normal. |
Official Product Video
Video 1: An overview of the Koolatron Countertop Ice Machine, highlighting its features and ease of use. This video is provided by Newestneeds, a seller of the product.
Warranty and Support
Specific warranty details for the Koolatron KIM26B are not provided in this manual. For warranty information, technical support, or service inquiries, please refer to the documentation included with your purchase or contact Koolatron customer service directly.
You can often find contact information on the manufacturer's official website or through the retailer where the product was purchased.
