Grizzly Dry Vacuum Floor Nozzle Instruction Manual

1. Introduction

This manual provides essential instructions for the proper installation, operation, and maintenance of your Grizzly Dry Vacuum Floor Nozzle. This accessory is designed as a replacement part for the Parkside PNTS 1500 D5 wet and dry vacuum cleaner (LIDL IAN 304887) and is intended for dry vacuuming applications only. Please read this manual thoroughly before use to ensure safe and efficient operation.

2. Safety Instructions

• Always ensure the vacuum cleaner is switched off and unplugged from the power source before attaching, detaching, or cleaning the floor nozzle.
• This floor nozzle is designed for dry vacuuming only. Do not use it for wet suction or with liquids.
• Inspect the nozzle for any damage before each use. Do not use if bristles are heavily worn or if the nozzle is cracked.
• Keep hair, loose clothing, fingers, and all parts of the body away from openings and moving parts.
• Do not vacuum up flammable or combustible materials, hot ashes, or sharp objects that could damage the nozzle or vacuum cleaner.
• Ensure the nozzle is securely attached to the vacuum hose or extension wand before operating the vacuum cleaner.

3. Product Overview

The Grizzly Dry Vacuum Floor Nozzle is a robust accessory designed for effective dry cleaning of various floor surfaces. It features durable plastic bristles and a flexible swivel joint for enhanced maneuverability.

Figure 3.1: Overall view of the Grizzly Dry Vacuum Floor Nozzle. This image shows the main body of the nozzle with its angled connection point and the visible bristles along the bottom edge.

Key Components:

• Connection Port: Angled port for attaching to the vacuum hose or extension wand.
• Swivel Joint: Allows for 360° rotation, providing flexibility and ease of movement during cleaning.
• Bristle Strips: Located on the front and rear of the nozzle base, designed to agitate and collect dry debris from surfaces.
• Wheels: Small wheels at the rear corners facilitate smooth gliding over floors.

Figure 3.2: Side view illustrating the angled connection port and the profile of the nozzle body.

4. Setup and Installation

Follow these steps to properly attach the dry vacuum floor nozzle to your Parkside PNTS 1500 D5 vacuum cleaner:

1. Ensure Power is Off: Before beginning, switch off your vacuum cleaner and unplug it from the electrical outlet.
2. Prepare the Vacuum: If an existing attachment is in place, remove it from the end of the vacuum hose or extension wand.
3. Attach the Nozzle: Take the Grizzly Dry Vacuum Floor Nozzle and firmly push its connection port onto the end of your vacuum cleaner's hose or extension wand. Ensure a snug fit to prevent air leaks and maintain optimal suction.
4. Verify Connection: Gently tug on the nozzle to confirm it is securely attached and will not detach during use.

Figure 4.1: Top view of the nozzle, showing the opening of the connection port where it attaches to the vacuum hose.

5. Operating Instructions

This dry vacuum floor nozzle is suitable for cleaning various dry surfaces, including carpets and hard floors.

1. Power On: Once the nozzle is securely attached, plug in your vacuum cleaner and switch it on.
2. Surface Cleaning: Guide the floor nozzle over the surface to be cleaned. The bristles will help to agitate and collect dry dirt and debris.
3. Maneuverability: Utilize the 360° swivel joint to easily navigate around furniture and into corners. The low profile of the nozzle allows access under many objects.
4. Optimal Performance: For best results, move the nozzle in slow, overlapping passes.
5. After Use: When finished, switch off and unplug the vacuum cleaner.

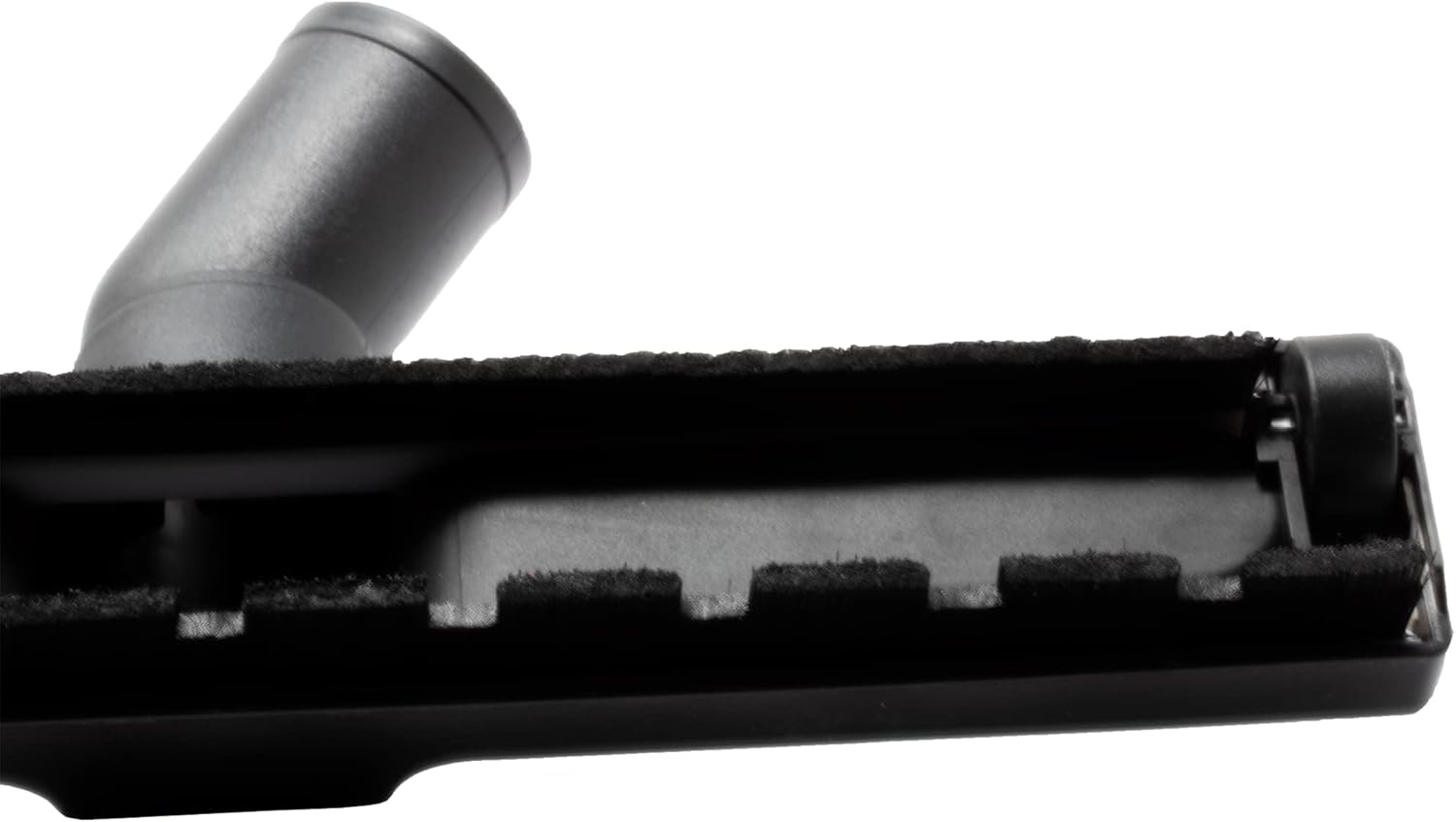

Figure 5.1: Close-up of the bristle strips, which are essential for effective dry cleaning on various surfaces.

6. Maintenance

Regular maintenance of your floor nozzle will ensure its longevity and optimal cleaning performance.

1. Cleaning Bristles: Periodically check the bristle strips for tangled hair, threads, or accumulated debris. Use scissors or a small brush to carefully remove any obstructions.
2. Wipe Down: Wipe the exterior of the nozzle with a damp cloth to remove dust and dirt. Do not use harsh chemicals or abrasive cleaners.
3. Check for Damage: Regularly inspect the nozzle for cracks, excessive bristle wear, or damage to the swivel joint. Replace the nozzle if significant damage is observed.

Figure 6.1: Bottom view of the nozzle, clearly showing the front and rear bristle strips and the small wheels.

7. Troubleshooting

If you encounter issues while using the floor nozzle, consider the following common solutions:

• Reduced Suction:
  • Ensure the nozzle is securely attached to the vacuum hose/wand.
  • Check the nozzle's air intake for blockages (e.g., large debris).
  • Verify that the vacuum cleaner's dust bag/container is not full and its filters are clean.
• Difficulty Gliding:
  • Clean any debris or hair from the bristle strips and wheels.
  • Ensure the surface is appropriate for dry vacuuming.
• Nozzle Detaches:
  • Re-attach the nozzle firmly. If it consistently detaches, the connection port or vacuum hose may be worn.

8. Specifications

9. Warranty and Support

Information regarding specific warranty terms or direct support contacts for this Grizzly Dry Vacuum Floor Nozzle is not available in the provided product details. For any issues or inquiries, please refer to the documentation provided with your original Parkside PNTS 1500 D5 vacuum cleaner or contact the retailer where this accessory was purchased.
