YHTAUTO Rear Suspension Ride Height Sensor Instruction Manual

1. Introduction

This manual provides essential information for the proper installation, operation, and maintenance of the YHTAUTO Rear Suspension Ride Height Sensor, Model 924-488. The ride height level sensor is an electronic device designed to measure the distance between the road and a specific point on the vehicle's suspension, chassis, or body. It transmits signals to the Electronic Control Unit (ECU), enabling the suspension system to adjust for optimal ride comfort and stability, particularly when encountering road irregularities or carrying heavy loads.

2. Product Compatibility

This sensor set (Rear Driver & Passenger) is compatible with the following vehicle models:

• Yukon/Yukon XL 1500: 2004-2010 Sport Utility
• Cadillac Escalade/Escalade ESV: 2004-2010 Sport Utility
• Cadillac Escalade EXT: 2004-2010 Crew Cab Pickup
• Chevrolet Avalanche: 2007-2010 Crew Cab Pickup
• Chevrolet Suburban 1500/Tahoe: 2004-2010 Sport Utility

Important Note:

• Not compatible with vehicles equipped with RPO Code Z55 (Real Time Damping).
• Not compatible with vehicles equipped with RPO Code Z95 (MagneRide Suspension).

3. Safety Information

Always prioritize safety when working on your vehicle. Improper installation can lead to vehicle damage or personal injury. If you are not confident in performing the installation, seek assistance from a qualified automotive technician.

• Wear appropriate personal protective equipment (e.g., safety glasses, gloves).
• Ensure the vehicle is securely supported on jack stands before working underneath it.
• Disconnect the vehicle's battery before beginning electrical work.
• Refer to your vehicle's service manual for specific procedures and torque specifications.

4. Installation Guide (Setup)

This section outlines the general steps for replacing the rear suspension ride height sensors. Specific procedures may vary by vehicle model and year. Professional installation is highly recommended.

4.1. Required Tools and Materials

• Socket wrench set
• Torque wrench
• Vehicle jack and jack stands
• Wire brush (for cleaning mounting surfaces)
• Dielectric grease (optional, for electrical connections)

4.2. Pre-Installation Steps

1. Park the vehicle on a level surface and engage the parking brake.
2. Disconnect the negative terminal of the vehicle's battery.
3. Safely lift the rear of the vehicle using a jack and support it with jack stands. Ensure the vehicle is stable.
4. Locate the existing rear suspension ride height sensors on both the driver and passenger sides.

4.3. Sensor Replacement Procedure

1. Carefully disconnect the electrical connector from the old sensor.
2. Remove the mounting bolts or nuts securing the old sensor to the vehicle frame and suspension component.
3. Remove the old sensor.
4. Clean the mounting surfaces to ensure proper contact for the new sensor.
5. Position the new YHTAUTO sensor (Model 924-488) in place, ensuring correct orientation.
6. Secure the new sensor with the mounting bolts/nuts. Tighten to the vehicle manufacturer's specified torque. (Refer to your vehicle's service manual for exact torque specifications.)
7. Connect the electrical connector to the new sensor. Ensure a secure connection.
8. Repeat the process for the sensor on the opposite side of the vehicle.

4.4. Post-Installation Steps

1. Carefully lower the vehicle from the jack stands.
2. Reconnect the negative terminal of the vehicle's battery.
3. Start the vehicle and check for any warning lights related to the suspension system.
4. It may be necessary to perform a suspension system calibration or reset using a diagnostic tool, depending on the vehicle model. Consult your vehicle's service manual or a qualified technician.

Figure 1: Overview of the YHTAUTO Rear Suspension Ride Height Sensor set (Model 924-488).

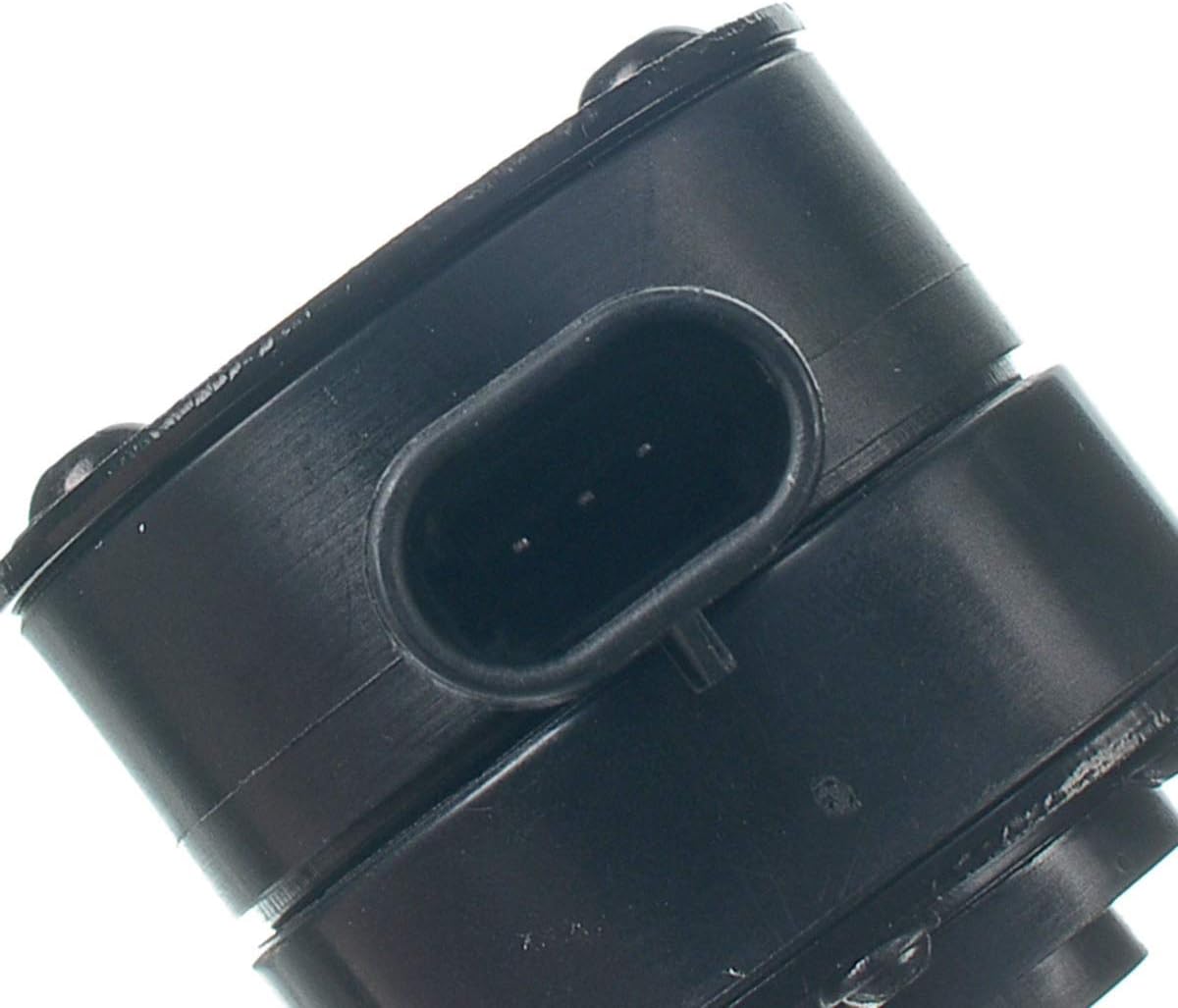

Figure 2: Detail of the electrical connector on the sensor, crucial for proper installation.

5. Operation

Once correctly installed, the YHTAUTO Rear Suspension Ride Height Sensor operates continuously as part of your vehicle's active suspension system. It monitors the vehicle's ride height in real-time and sends this data to the ECU. The ECU then processes this information to adjust the suspension components (e.g., air springs, shock absorbers) to maintain a consistent ride height, improve handling, and enhance ride comfort under various driving conditions and loads.

6. Maintenance

The YHTAUTO Rear Suspension Ride Height Sensor is designed for durability and typically requires minimal maintenance. However, periodic inspection can help ensure its longevity and proper function:

• Visual Inspection: During routine vehicle maintenance, visually inspect the sensors and their wiring for any signs of physical damage, corrosion, or loose connections.
• Cleaning: If the sensors are excessively dirty, gently clean them with a soft cloth and mild automotive cleaner. Avoid high-pressure washing directly on the sensor.
• Connection Check: Ensure the electrical connectors remain securely attached and free from moisture or debris.

7. Troubleshooting

If you experience issues with your vehicle's suspension system after sensor replacement, consider the following troubleshooting steps:

• Warning Lights: If a suspension-related warning light appears on your dashboard, it indicates a potential fault. A diagnostic scan tool may be required to retrieve specific error codes.
• Incorrect Ride Height: Verify that the sensors are correctly installed and oriented. Check for any obstructions or damage to the sensor linkage.
• Loose Connections: Ensure all electrical connections to the sensors are tight and free of corrosion.
• Wiring Damage: Inspect the wiring harness leading to the sensors for any cuts, pinches, or frayed insulation.
• Calibration: Some vehicles require a suspension system calibration after replacing ride height sensors. Consult your vehicle's service manual or a professional technician for this procedure.

If problems persist, it is recommended to consult a certified automotive technician for diagnosis and repair.

8. Specifications

9. Warranty and Support

For specific warranty information regarding your YHTAUTO Rear Suspension Ride Height Sensor, please refer to the purchase documentation or contact the seller directly. Warranty terms typically cover manufacturing defects for a specified period from the date of purchase.

If you require technical assistance or have questions not covered in this manual, please contact YHTAUTO customer support through their official channels or the retailer from whom the product was purchased.
