Introduction
This instruction manual provides essential information for the setup and operation of your new Easytry123 replacement infrared remote control. This remote is designed to be compatible with various Haier room air conditioner models. Please read this manual thoroughly before use to ensure proper functionality and to maximize the lifespan of your device.
Safety Information
- Keep batteries out of reach of children.
- Do not mix old and new batteries, or different types of batteries.
- Remove batteries if the remote control will not be used for an extended period.
- Avoid dropping the remote control or exposing it to moisture or extreme temperatures.
- Do not attempt to disassemble or modify the remote control.
Package Contents
- 1 x Easytry123 Replacement Remote Control (Model: Easytry8065)
Note: AAA batteries are not included and must be purchased separately.
Setup: Battery Installation
- Locate the battery compartment on the back of the remote control.
- Slide the battery cover downwards to open the compartment.
- Insert two (2) AAA batteries, ensuring the positive (+) and negative (-) terminals align correctly with the markings inside the compartment.
- Slide the battery cover back into place until it clicks securely.
Image: Rear view of the remote control with the battery cover removed, illustrating the correct orientation for AAA battery insertion.
Operating Instructions
Point the remote control directly at the infrared receiver on your Haier air conditioner. Ensure there are no obstructions between the remote and the air conditioner.

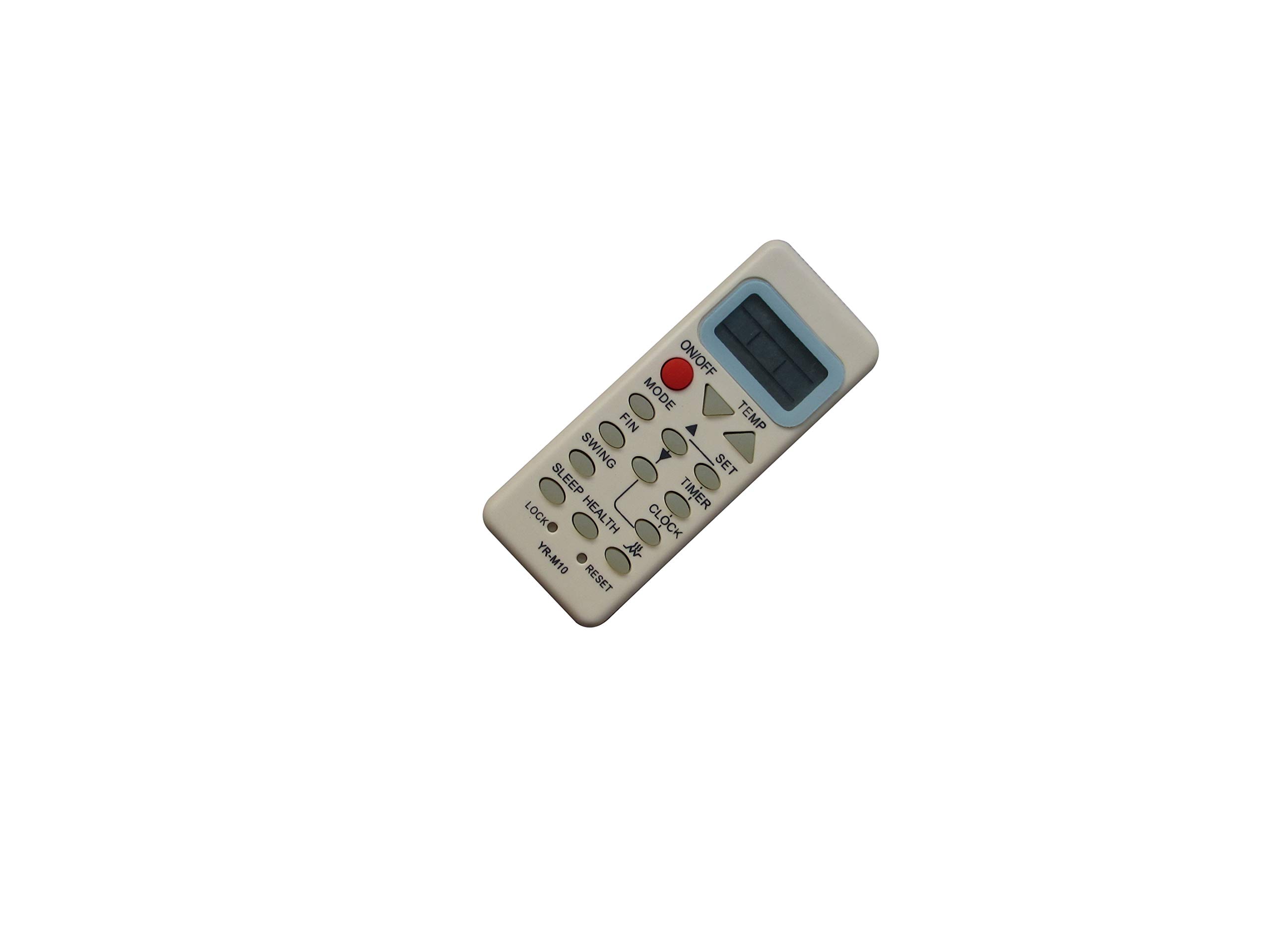

Image: Front view of the Easytry123 replacement remote control, displaying its buttons and LCD screen.
| Button | Function |
|---|---|
| ON/OFF | Powers the air conditioner on or off. |
| MODE | Cycles through operating modes (e.g., Cool, Heat, Fan, Dry, Auto). |
| TEMP ▲ / ▼ | Adjusts the desired temperature setting. |
| FIN (Fan) | Adjusts the fan speed (e.g., Low, Medium, High, Auto). |
| SWING | Activates or deactivates the louver swing function. |
| SET | Used for confirming settings, often in conjunction with Timer or Clock. |
| TIMER | Sets the timer for automatic power on/off. |
| CLOCK | Sets the current time on the remote's display. |
| SLEEP | Activates or deactivates the sleep mode, which adjusts temperature for comfort during sleep. |
| HEALTH | Activates or deactivates health-related functions (if supported by the AC unit). |
| RESET | Resets the remote control to factory default settings. |
| LOCK | Locks the remote control buttons to prevent accidental changes. |
Note: Not all functions may be supported by every compatible air conditioner model. Refer to your air conditioner's original manual for specific feature availability.
Compatible Haier Air Conditioner Models
This Easytry123 replacement remote control is designed to be compatible with the following Haier room air conditioner models:
- HSU-18C13
- HSU-18CK03
- HSU-24C13
- HSU-07HC03/R2
- HSU-09HC03/R2
- HSU-22HB13
- HSU-18HC13
- HSU-22HC13
If your specific Haier model is not listed, please verify compatibility before use.
Troubleshooting
- Remote not responding:
- Ensure batteries are inserted correctly with proper polarity.
- Replace old batteries with new AAA batteries.
- Check if there are any obstructions between the remote and the air conditioner's receiver.
- Ensure the remote is pointed directly at the air conditioner.
- Limited range:
- Replace batteries if they are low.
- Ensure the remote's infrared emitter and the AC's receiver are clean and unobstructed.
- Specific functions not working:
- This replacement remote may not support all advanced functions of your original air conditioner remote. Refer to your AC unit's manual for supported features.
Specifications
| Brand | Easytry123 |
| Model Number | Easytry8065 |
| Connectivity Technology | Infrared |
| Compatible Devices | Haier Air Conditioners |
| Power Source | 2 x AAA Batteries (not included) |
| Maximum Range | 10 Meters (approximately 33 feet) |
| Item Weight | 60 Grams |
| Special Feature | Ergonomic, Replacement |
Warranty and Support
This product is a replacement remote control. For any issues or questions regarding its functionality, please contact the seller or manufacturer directly. Please note that specific warranty details may vary and are typically provided at the point of purchase.
Ensure your original remote matches the appearance of this replacement remote for optimal compatibility. If you have doubts about compatibility with your specific Haier air conditioner model, please consult the seller before use.
