TecTake 6x4m Freestanding Garden Gazebo Instruction Manual

Introduction

This manual provides comprehensive instructions for the assembly, safe operation, and maintenance of your TecTake 6x4m Freestanding Garden Gazebo. Please read this manual thoroughly before assembly and use to ensure proper setup and to maximize the lifespan of your product. Keep this manual for future reference.

Safety Information

Important Warning: Do not use the gazebo during storms, strong winds, heavy rain, or other severe weather conditions. Disassemble and store the gazebo to prevent damage in such situations. Failure to do so may result in damage to the product or personal injury. Ensure all components are securely fastened during use.

Components List

Before beginning assembly, verify that all parts are present and undamaged. Refer to the diagram below for a visual representation of the components included.

The package typically includes:

• Steel frame tubes and connectors
• Roof tarp (polyethylene, 170 g/m²)
• Side panels (polyethylene, 140 g/m²) with windows
• Anchoring ropes
• Ground stakes
• Assembly instructions

Setup and Assembly

Assembly of the TecTake garden gazebo is designed to be straightforward. It is recommended that two or more people assist with the assembly process for ease and safety.

1. Prepare the Area: Choose a flat, level surface for assembly. Clear any debris or sharp objects that could damage the tarp.
2. Assemble the Roof Frame: Connect the steel tubes for the roof structure using the easy interlocking system. Ensure all connections are secure.
3. Attach the Roof Tarp: Drape the roof tarp over the assembled roof frame. Secure it according to the instructions, ensuring the welded seams are properly aligned for waterproofing.
4. Install the Legs: Attach the vertical leg poles to the roof frame. Lift the structure carefully, one side at a time, and insert the legs.

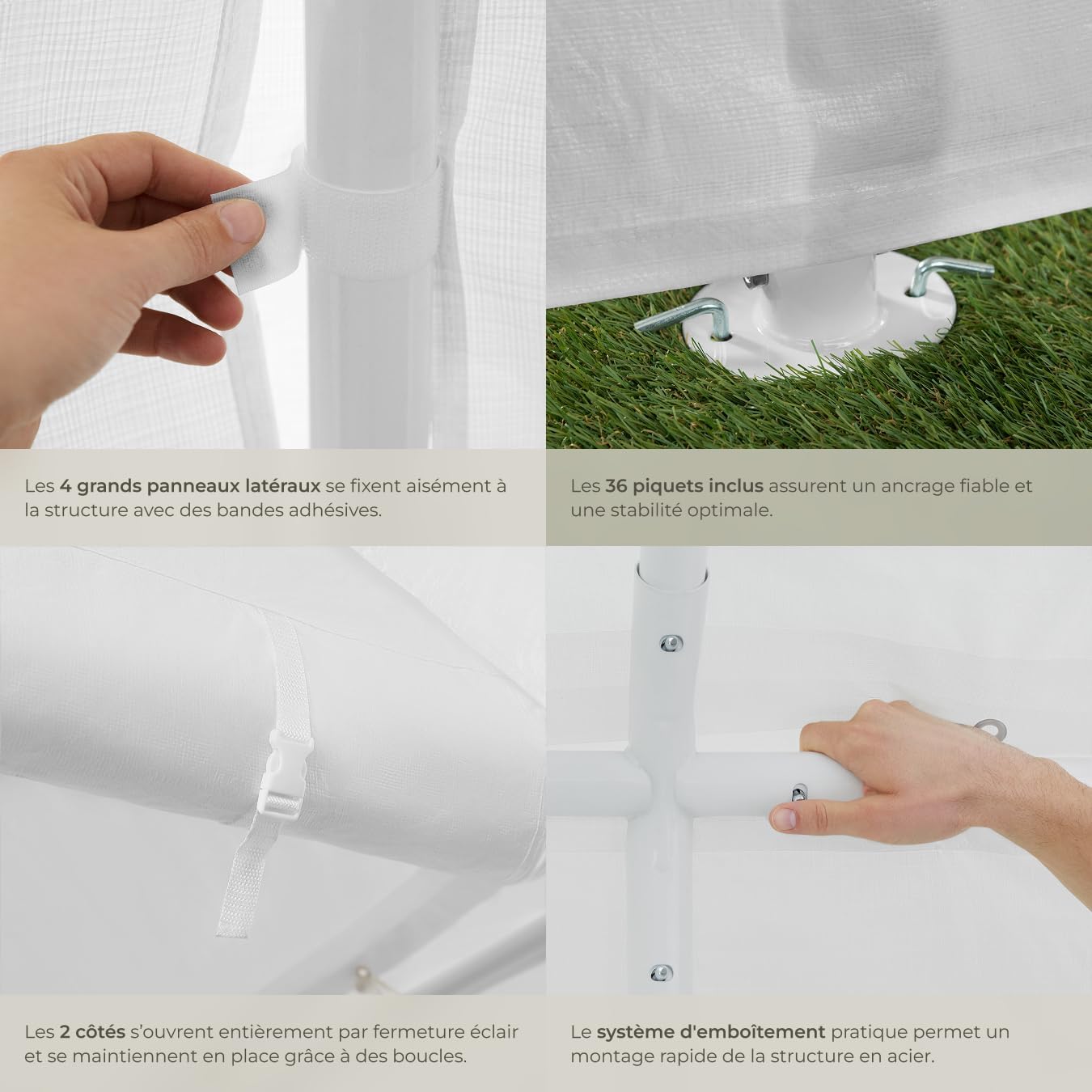

5. Attach Side Panels: The side panels are removable and attach to the frame using adhesive strips (velcro) and buckles. Position the panels as desired, utilizing the large windows for light.
6. Secure the Gazebo: Use the provided ground stakes and tension ropes to firmly anchor the gazebo to the ground. This is crucial for stability.

Operating Instructions

Your TecTake gazebo offers flexible usage options:

• Modularity: The side panels are fully removable, allowing you to transform the gazebo into an open canopy or a fully enclosed tent depending on your needs and weather conditions.
• Ventilation and Access: Utilize the large openings equipped with zippers for easy access and to control ventilation within the gazebo.
• Weather Protection: The polyethylene tarp with welded seams provides superior waterproof protection against rain and UV protection from the sun.

Maintenance

Proper maintenance will extend the life of your gazebo:

• Cleaning: Clean the polyethylene tarps with mild soap and water. Avoid harsh chemicals or abrasive materials that could damage the fabric.
• Drying: Ensure the tarps are completely dry before folding and storing to prevent mold and mildew growth.
• Storage: When not in use, especially during off-season or severe weather forecasts, disassemble the gazebo and store all components in a dry, protected area.
• Frame Inspection: Periodically check the steel frame for any signs of rust or damage. Clean and treat any rust spots promptly.

Troubleshooting

• Instability: Ensure all frame connections are fully engaged. Verify that all ground stakes are firmly inserted and tension ropes are taut. Re-anchor if necessary.
• Water Leakage: Check that the roof tarp is correctly positioned and stretched, and that all welded seams are intact. Ensure side panels are properly zipped and fastened.
• Difficulty Assembling: Refer to the assembly diagrams and ensure you have identified each part correctly. A second person can greatly assist with aligning and connecting components.
• Damaged Components: If any part is damaged during assembly or use, contact TecTake customer support for assistance.

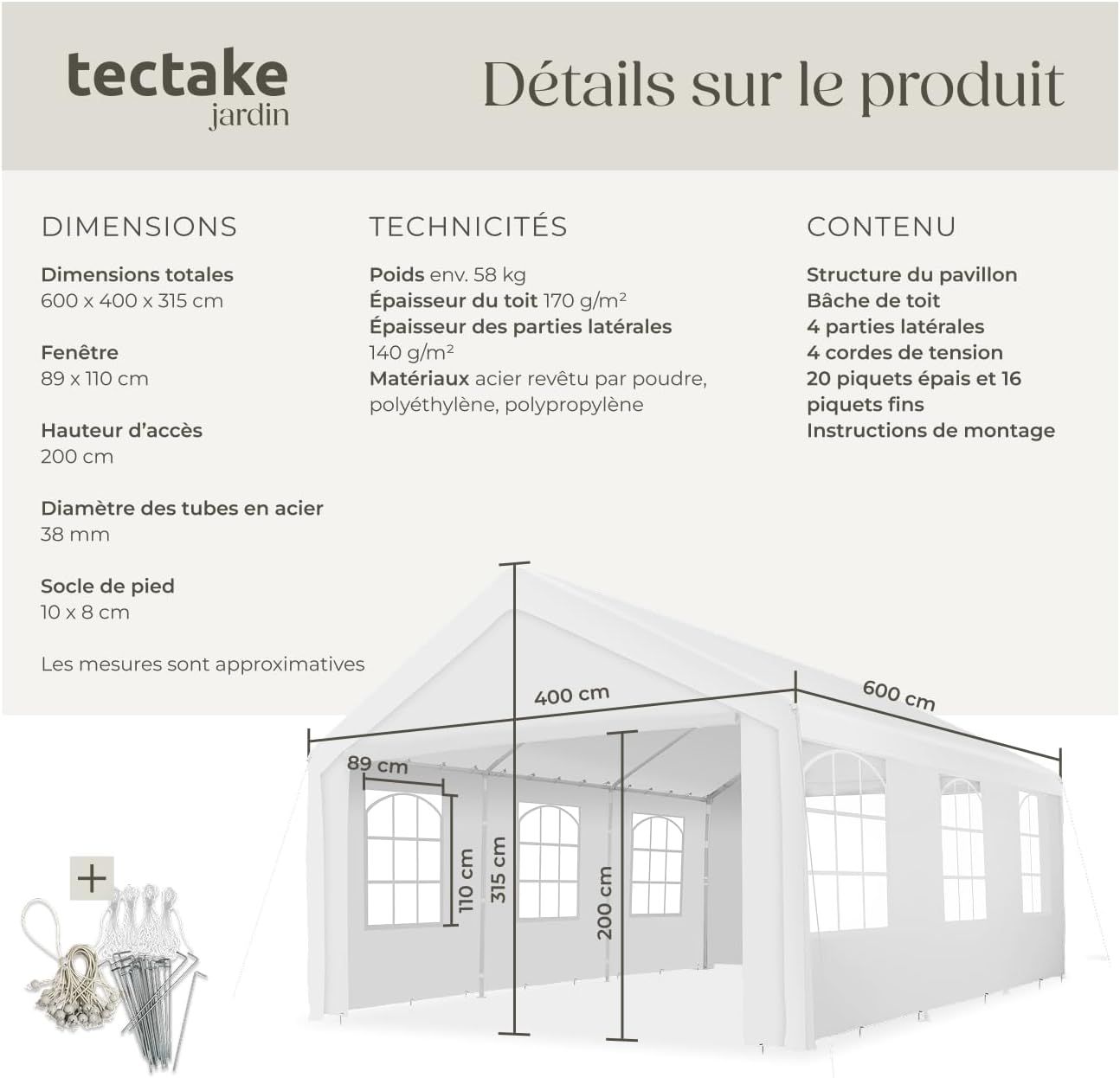

Specifications

Detailed technical specifications for the TecTake 6x4m Garden Gazebo:

Warranty and Support

For warranty information or support regarding your TecTake gazebo, please refer to the purchase documentation or contact TecTake customer service directly. Information regarding spare parts availability is not provided in this manual; please inquire with the manufacturer or retailer for details.
