Introduction
This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your Güde GSE 951 2-stroke gasoline generator. Please read these instructions carefully before operating the device and keep them for future reference. Proper use and maintenance will ensure the longevity and optimal performance of your generator.
Important Note: This generator is not suitable for sensitive electronic devices such as laptops, smartphones, or music systems due to its power output characteristics.
Safety Instructions
Always observe the following safety precautions to prevent injury and damage:
- Read the operating instructions carefully before use.
- Never operate the generator in enclosed spaces. Ensure adequate ventilation.
- Never refuel the generator while the engine is running.
- Do not smoke or use open flames while refueling.
- Do not touch the device with wet hands or in wet conditions.
- Never connect the generator to the household power grid.
- Ensure the generator is placed on a stable, level surface.
- Keep children and unauthorized persons away from the operating generator.
- Wear appropriate personal protective equipment (PPE) when handling fuel or operating the generator.
Image: Power outlet and safety warnings on the Güde GSE 951 generator. The labels indicate important safety information regarding operation and refueling.
Product Components
Familiarize yourself with the main components of your Güde GSE 951 generator:
- Fuel Tank: Located on top, for 2-stroke fuel mixture.
- Carrying Handle: For easy transport.
- 2-Stroke Engine: The power unit of the generator.
- Recoil Starter: For manual engine starting.
- Vibration-Damping Rubber Feet: Provide stability and reduce vibration during operation.
- 230V Outlet: For connecting electrical devices.
- Engine Switch: To turn the engine ON/OFF.
- Choke Lever: Used for cold starts.
- Overload Protection: Automatically shuts off power in case of overload.

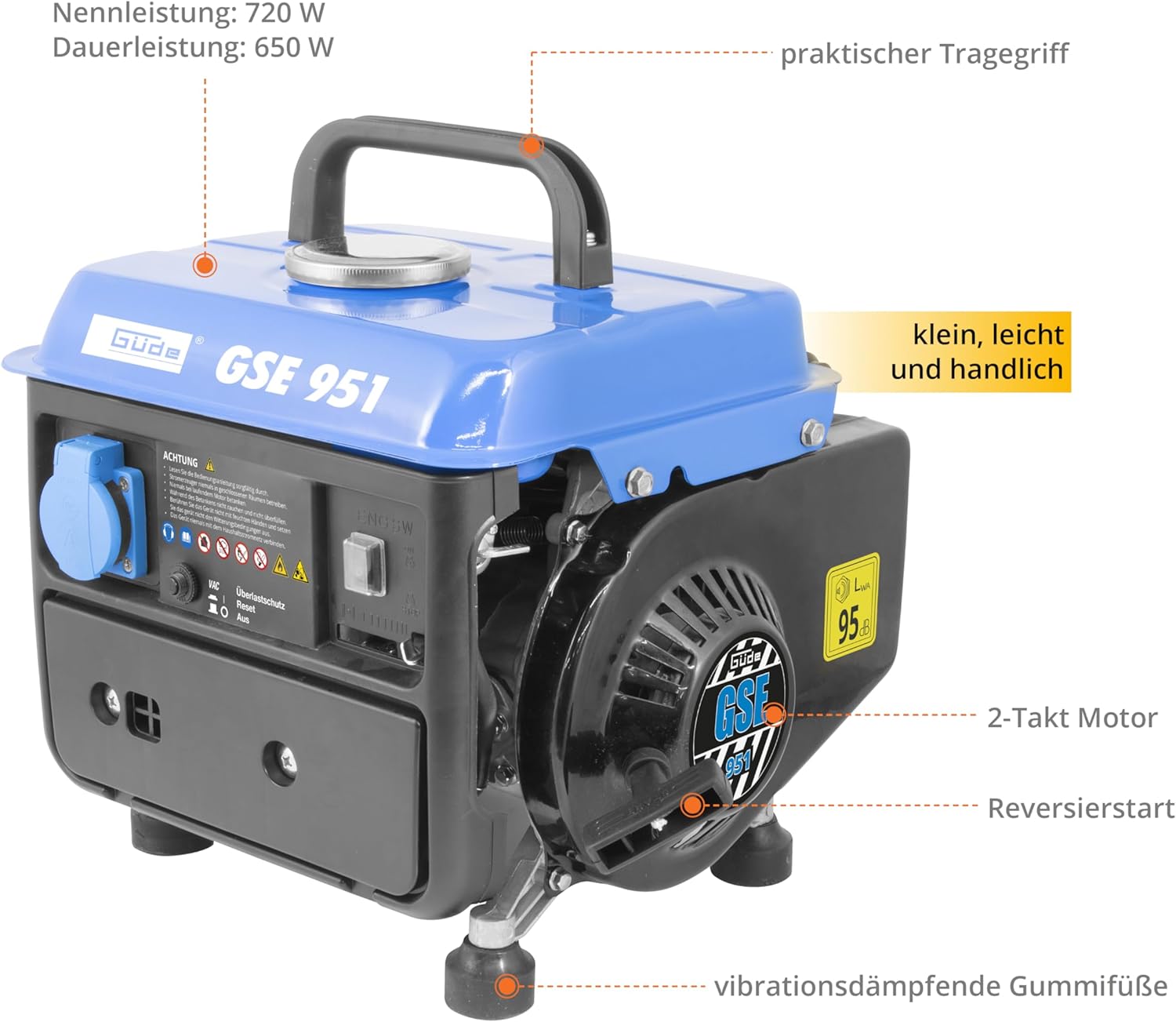

Image: Front view of the Güde GSE 951 generator highlighting key features such as the carrying handle, 2-stroke engine, recoil starter, and vibration-damping feet. Rated power is 720W, continuous power is 650W.

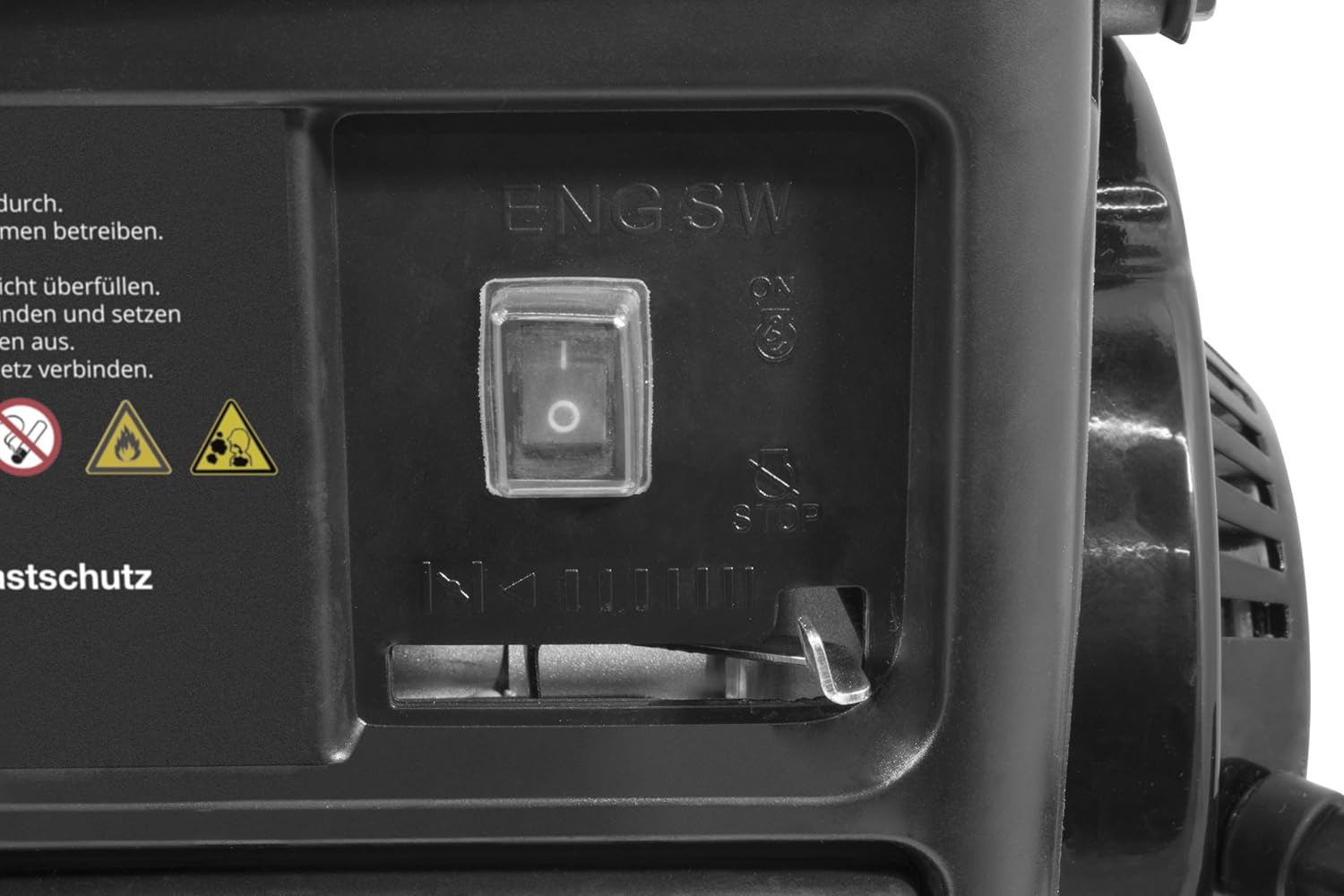

Image: Close-up of the engine switch and choke lever, essential controls for starting and stopping the generator.
Setup
- Unpacking: Carefully remove the generator from its packaging. Check for any shipping damage.
- Placement: Place the generator on a firm, level, and non-combustible surface. Ensure there is sufficient ventilation around the unit. Keep it away from walls, flammable materials, and other obstructions.
- Fueling:
- Ensure the engine is OFF and cool before refueling.
- Use a 2-stroke fuel mixture with a ratio of 1:40 (e.g., 25 ml 2-stroke oil per 1 liter of gasoline).
- Open the fuel cap and carefully pour the fuel mixture into the tank using a funnel to avoid spills.
- Do not overfill. Leave some space for fuel expansion.
- Securely close the fuel cap. Wipe up any spilled fuel immediately.
Image: The fuel cap and opening for the 3.8-liter fuel tank. Always ensure the engine is off and cool before refueling with the correct 2-stroke mixture.
Operating Instructions
Starting the Generator:
- Ensure the generator is on a stable surface and properly fueled.
- Set the engine switch to the "ON" position.
- If the engine is cold, move the choke lever to the "CHOKE" position. For a warm engine, the choke may not be necessary.
- Firmly pull the recoil starter handle until the engine starts. Do not let the rope snap back; guide it gently.
- Once the engine starts, slowly move the choke lever back to the "RUN" position.
- Allow the engine to warm up for a few minutes before connecting any electrical devices.
Image: The recoil starter mechanism, used for manually starting the generator's 2-stroke engine.
Connecting Devices:
- Ensure the total wattage of connected devices does not exceed the generator's continuous power output (650 W).
- Plug your 230V devices into the generator's outlet.
- Monitor the generator for any signs of strain or overload. The overload protection will activate if the load is too high.
Stopping the Generator:
- Disconnect all electrical devices from the generator.
- Set the engine switch to the "OFF" position.
- Allow the generator to cool down completely before storing or transporting.
Image: The Güde GSE 951 generator positioned on grass in a garden, demonstrating its portable nature for outdoor use.
Image: An example of the generator in use, powering a hedge trimmer for garden maintenance. This illustrates its suitability for various outdoor tools.
Maintenance
Regular maintenance ensures the optimal performance and extends the lifespan of your generator. Always ensure the engine is off and cool before performing any maintenance.
- Spark Plug: Inspect and clean the spark plug regularly. Replace if worn or fouled.
- Air Filter: Check and clean the air filter periodically. A dirty air filter can reduce engine performance.
- Fuel System: If storing the generator for an extended period, drain the fuel tank and carburetor to prevent fuel degradation and clogging.
- General Cleaning: Keep the exterior of the generator clean. Remove any dirt or debris from cooling fins to prevent overheating.
- Storage: Store the generator in a dry, well-ventilated area, away from direct sunlight and extreme temperatures.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Engine does not start | No fuel or incorrect fuel mixture Engine switch OFF Choke not engaged (cold engine) Spark plug fouled or faulty | Check fuel level and mixture ratio Set engine switch to ON Engage choke for cold start Clean or replace spark plug |
| No power output | Overload protection tripped Connected device faulty Loose connection | Reduce load, reset overload protection Check connected device Ensure secure connections |
| Engine runs poorly or stalls | Dirty air filter Incorrect fuel mixture Clogged fuel line/carburetor | Clean air filter Ensure correct 1:40 fuel mixture Clean fuel system (professional service recommended) |
If you encounter problems not listed here or if solutions do not resolve the issue, please contact Güde customer support.
Technical Specifications
| Feature | Value |
|---|---|
| Model | GSE 951 |
| Item Model Number | 40726 |
| Output Voltage | 230 V |
| Output Current | 4 A |
| Frequency | 50 Hz |
| Rated Power | 720 W |
| Continuous Power | 650 W |
| Engine Type | 2-stroke |
| Engine Power | 1 kW / 1.36 HP |
| Displacement | 63 cm³ |
| Fuel Type | 2-stroke mixture (Gasoline) |
| Mixing Ratio | 1:40 |
| Tank Capacity | 3.8 L |
| Operating Time (50% load) | Up to 7.5 hours |
| Starting System | Recoil (Inversion) start |
| Protection Class (IP) | 23 m |
| Overload Protection | Yes |
| Sound Power Level LWA | 95 dB |
| Dimensions (L x W x H) | 370 x 325 x 370 mm |
| Net Weight | 15.85 kg |
| Color | Black/Blue |
| Material | Plastic |
| Recommended Uses | Camping, outdoor power needs |
Warranty and Support
Güde is committed to providing durable products and excellent customer service.
- Spare Parts Availability: Güde maintains a stock of appropriate spare parts for all products, including older models, available through their service center.
- Technical Assistance: For any difficulties with your Güde device, qualified staff at the internal service center are available to provide telephone support.
- Repair Service: If your Güde device requires professional repair, the internal repair service is available to assist.
For specific warranty terms and to access support services, please refer to the official Güde website or contact their customer service directly.
