Lexon TYKHO 3 Wireless Bluetooth Speaker and FM Radio Instruction Manual

Introduction

The Lexon TYKHO 3 is a versatile and portable audio device, combining a wireless Bluetooth speaker with an FM radio. Designed for ease of use and durability, its splash-proof silicone rubber finish makes it suitable for various environments. This manual provides essential information for setting up, operating, and maintaining your TYKHO 3.

Key Features:

• Iconic retro design.
• Integrated FM radio and Bluetooth speaker.
• Splash-proof silicone rubber finish for enhanced durability.
• Up to 20 hours of playtime on a single charge.
• Rechargeable via Micro-USB.
• Hands-free function for calls when connected via Bluetooth.

Product Overview

Familiarize yourself with the main components and controls of your Lexon TYKHO 3.

Figure 1: Front view of the Lexon TYKHO 3, showing the speaker grille and control buttons.

Figure 2: Product dimensions of the Lexon TYKHO 3: 5.51"L x 1.77"W x 3.19"H.

Setup

1. Charging the Device

Before first use, fully charge your TYKHO 3. Connect the provided Micro-USB cable to the charging port on the device and to a compatible USB power source (e.g., computer, wall adapter). The charging indicator will illuminate during charging and turn off when fully charged. A full charge provides up to 20 hours of playtime.

Figure 3: Connecting the Micro-USB cable to the TYKHO 3 for charging.

2. Powering On/Off

Locate the power button on the top of the device. Press and hold the power button for a few seconds to turn the TYKHO 3 on or off.

3. Bluetooth Pairing

1. Ensure the TYKHO 3 is powered on and in Bluetooth mode (indicated by a specific LED light or audio cue).
2. On your mobile device (phone, tablet), enable Bluetooth and search for available devices.
3. Select "TYKHO 3" from the list of devices to pair.
4. Once paired, the TYKHO 3 will confirm the connection with an audio cue.

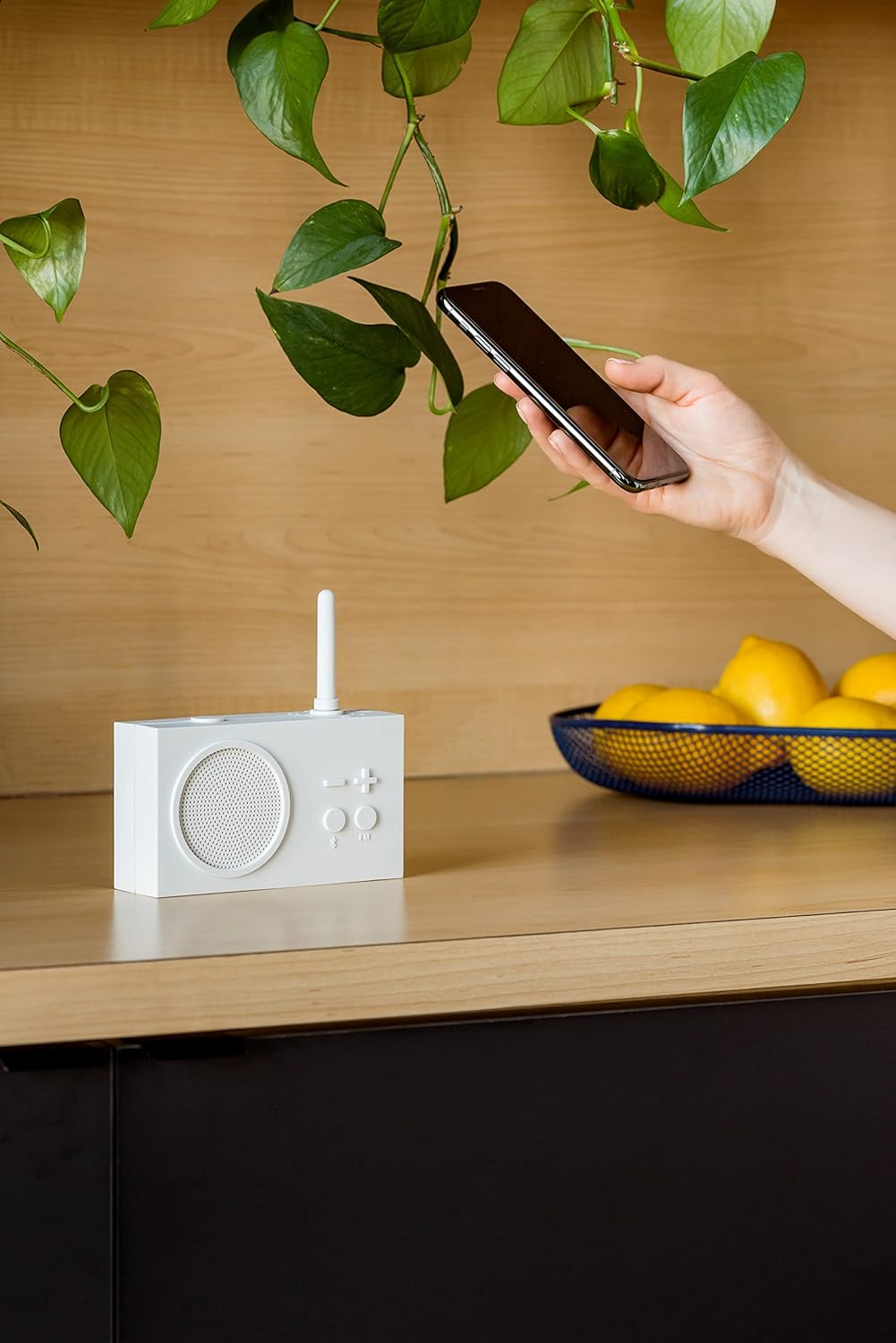

Figure 4: TYKHO 3 wirelessly connected to a smartphone for audio streaming.

4. FM Radio Tuning

To use the FM radio function, ensure the device is in FM mode. Extend the antenna and rotate it to tune into your desired radio station. The antenna acts as the tuning dial.

Figure 5: Adjusting the antenna to tune FM radio stations.

Operating Instructions

1. Switching Modes

Press the dedicated mode button (often labeled with Bluetooth and FM icons) to switch between Bluetooth speaker mode and FM radio mode.

2. Volume Control

Use the '+' and '-' buttons on the device to adjust the volume. For Bluetooth mode, you can also control the volume from your connected mobile device.

3. Hands-Free Function

When connected to your phone via Bluetooth, the TYKHO 3 can be used for hands-free calls. Incoming calls will be routed through the speaker, and you can answer/end calls using the appropriate button on the device (refer to the quick start guide for specific button functions).

Maintenance

The Lexon TYKHO 3 features a splash-proof rubber finish. To clean the device, gently wipe it with a soft, damp cloth. Avoid using harsh chemicals or abrasive cleaners, as these may damage the finish. Ensure the charging port cover is securely closed when not charging to maintain splash-proof integrity.

Figure 6: The TYKHO 3's splash-proof design allows for use in environments like bathrooms.

Troubleshooting

• No Power: Ensure the device is fully charged. Connect it to a power source using the Micro-USB cable and allow it to charge for at least 30 minutes before attempting to power on again.
• Bluetooth Not Connecting:
  • Make sure the TYKHO 3 is in Bluetooth pairing mode.
  • Ensure Bluetooth is enabled on your mobile device.
  • Move your mobile device closer to the TYKHO 3.
  • If previously paired, try unpairing and re-pairing the device.
• Poor FM Reception:
  • Fully extend the antenna.
  • Adjust the position and orientation of the antenna.
  • Move the device to a different location, away from potential interference sources (e.g., other electronic devices, large metal objects).
• Low Volume: Increase the volume using the '+' button on the TYKHO 3 and also check the volume level on your connected mobile device if in Bluetooth mode.

Specifications

Warranty and Support

Warranty Information:

The Lexon TYKHO 3 comes with a 2-year manufacturer's warranty. Please retain your proof of purchase for warranty claims.

Included Components:

• Owner's Manual (this document)
• Quick Start Guide
• Micro-USB Charging Cable

Customer Support:

For further assistance, product registration, or to view additional support resources, please visit the official Lexon website or contact their customer service department. Contact information can typically be found in the Quick Start Guide or on the manufacturer's website.
