Important Safeguards
When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons. Read all instructions before using this appliance.
- Do not touch hot surfaces. Use handles or knobs.
- To protect against electrical shock, do not immerse cord, plugs, or the appliance in water or other liquid.
- Close supervision is necessary when any appliance is used by or near children.
- Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
- Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner.
- Do not use outdoors.
- Do not let cord hang over edge of table or counter, or touch hot surfaces.
- Do not place on or near a hot gas or electric burner, or in a heated oven.
- Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
- Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to “off”, then remove plug from wall outlet.
- Do not use appliance for other than intended use.
Product Overview
The Admiral 2 Quart Air Fryer uses rapid air circulation technology to cook food with little to no oil, providing a healthier alternative to traditional deep frying. It features adjustable temperature control and a timer for precise cooking.

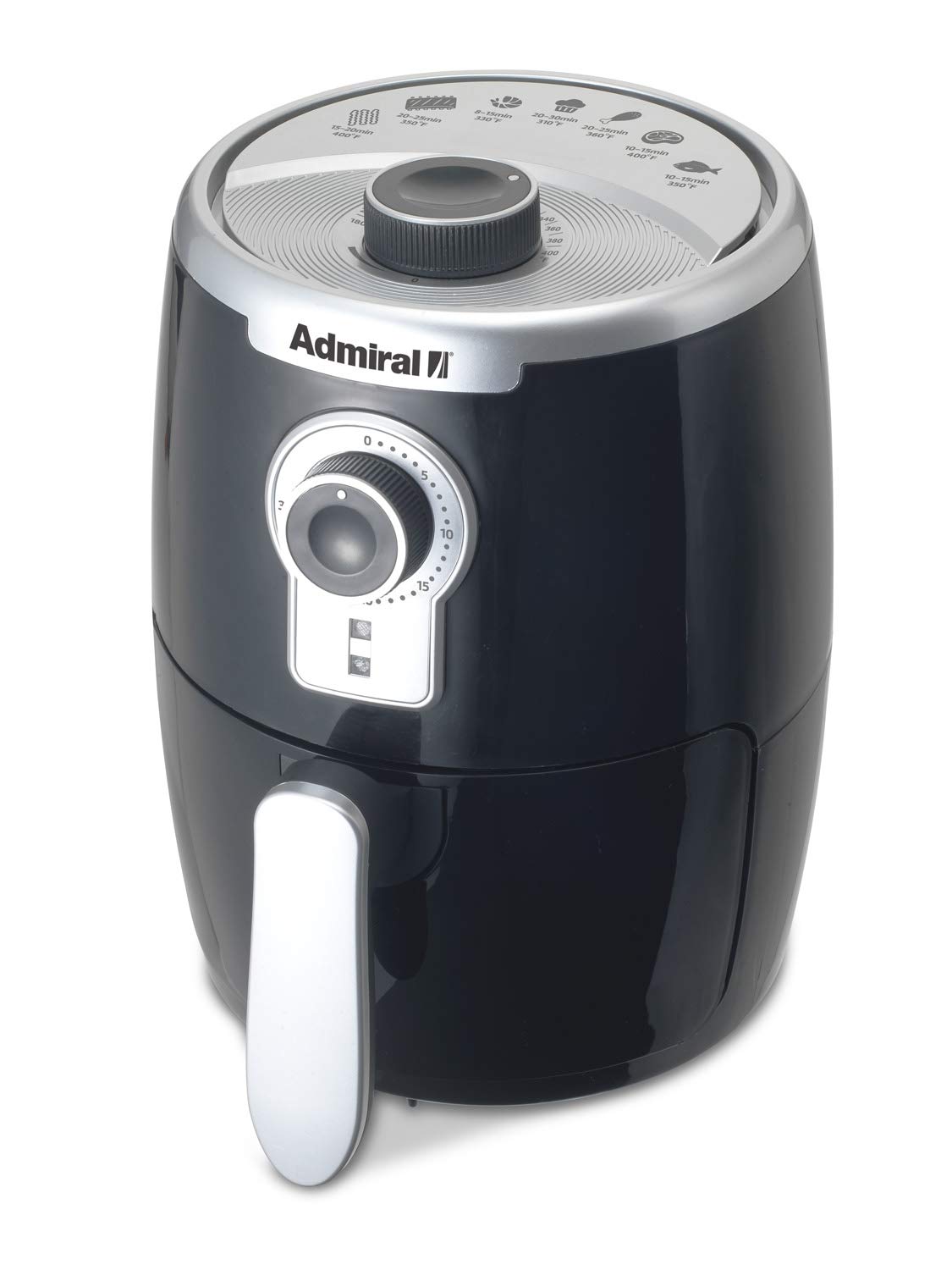

Image: Front view of the Admiral 2 Quart Air Fryer, showing the main unit with its control dials for time and temperature, and the handle for the cooking basket.
Setup
- Unpacking: Carefully remove the air fryer and all packaging materials. Ensure all components are present: main unit, cooking basket, and instruction manual.
- Initial Cleaning: Before first use, wipe the exterior of the air fryer with a damp cloth. Wash the cooking basket and any removable parts with warm, soapy water. Rinse thoroughly and dry completely. Do not immerse the main unit in water.
- Placement: Place the air fryer on a stable, heat-resistant surface, away from walls or other appliances to allow for proper air circulation. Ensure there is at least 6 inches of space around the unit.
- Power Connection: Plug the power cord into a grounded electrical outlet.
Operating Instructions
- Preheating (Optional): For best results, preheat the air fryer. Turn the temperature dial to the desired setting (e.g., 375°F) and the timer dial to 3-5 minutes. The indicator light will illuminate. Once the timer rings, the air fryer is preheated.
- Prepare Food: Place your food in the cooking basket. Do not overfill the basket; ensure there is enough space for air to circulate. For crispy results, lightly coat food with oil if desired.
- Insert Basket: Slide the cooking basket firmly back into the air fryer until it clicks into place.
- Set Temperature and Time: Turn the temperature dial to the recommended setting for your food (range 175°F to 390°F). Turn the timer dial to the desired cooking time (up to 30 minutes). The air fryer will begin cooking.
- Shaking Food: For even cooking, especially with smaller items like fries, pull out the basket halfway through the cooking time and gently shake the contents. Then, reinsert the basket to resume cooking.

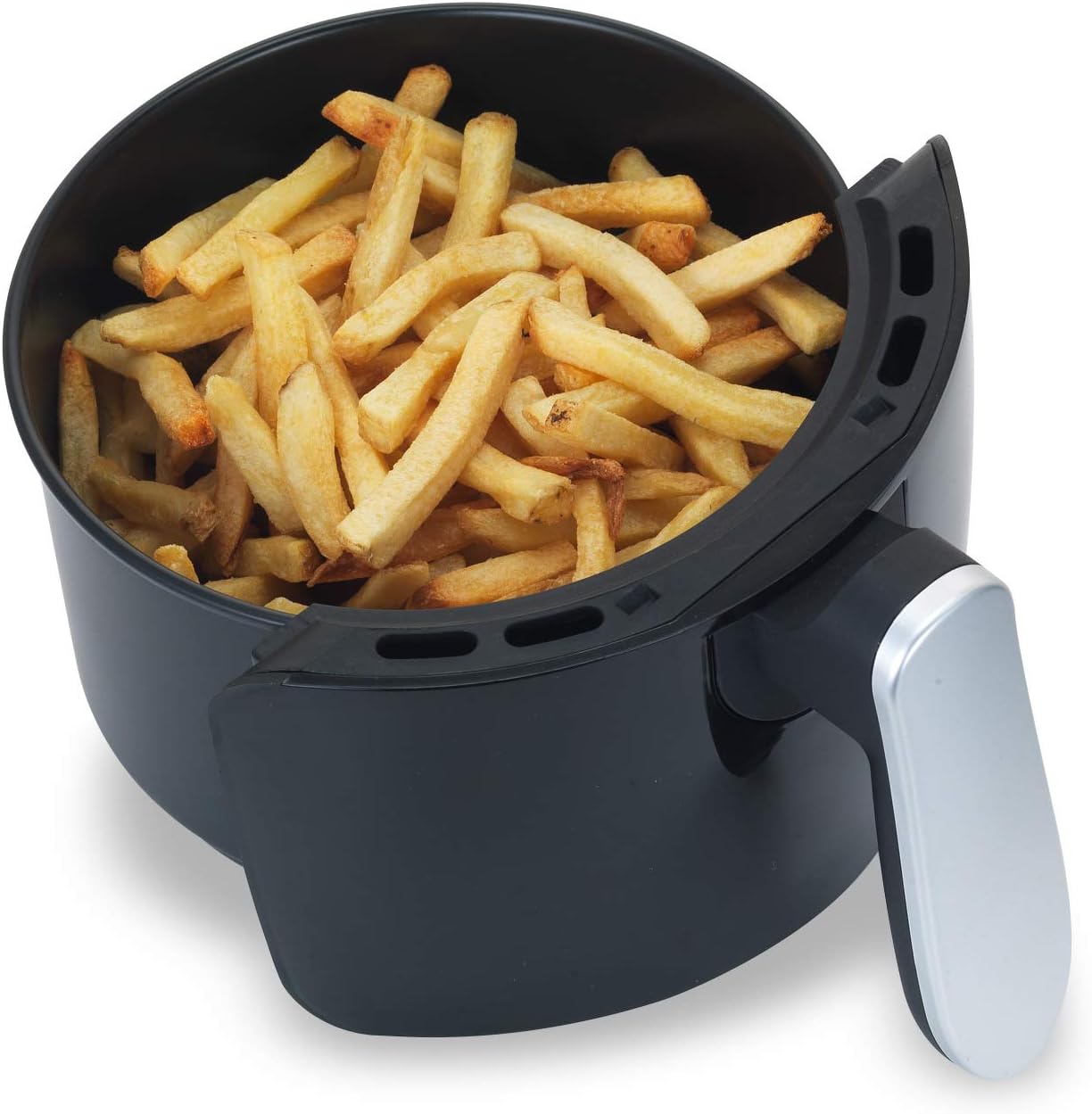

Image: The air fryer's non-stick basket filled with cooked french fries, demonstrating how food is placed inside for air frying.
- Completion: When the timer rings, the cooking process is complete, and the air fryer will automatically shut off. Carefully pull out the basket using the cool-touch handle.
- Serving: Remove cooked food from the basket using tongs or by carefully emptying the basket onto a plate. Be cautious of hot steam.
Image: The air fryer's non-stick basket containing several crispy, golden-brown breaded fish sticks, illustrating another type of food that can be prepared.
Maintenance and Cleaning
Proper maintenance ensures the longevity and performance of your air fryer.
- Unplug and Cool: Always unplug the air fryer from the power outlet and allow it to cool completely before cleaning.
- Cleaning the Basket: The non-stick coated air basket is dishwasher safe. Alternatively, wash it with warm, soapy water and a non-abrasive sponge. For stubborn food residue, soak the basket in warm water for about 10 minutes before cleaning.
- Cleaning the Interior: Wipe the interior of the air fryer with a damp cloth. Do not use abrasive cleaners or scouring pads.
- Cleaning the Exterior: Wipe the exterior of the air fryer with a damp cloth. Do not immerse the main unit in water or any other liquid.
- Storage: Ensure all parts are clean and dry before storing. Store the air fryer in a cool, dry place.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Air fryer does not turn on. | Appliance is not plugged in. Timer is not set. | Ensure the power cord is securely plugged into a grounded outlet. Set the timer to the desired cooking time. |
| Food is not cooked evenly. | Basket is overfilled. Food was not shaken. | Do not overfill the basket. Shake the basket halfway through cooking for even results. |
| Food is not crispy. | Not enough oil (for certain foods). Temperature too low. | Lightly brush or spray food with oil. Increase the cooking temperature slightly. |
| White smoke coming from the appliance. | Grease residue from previous use. Excess oil on food. | Clean the basket and interior thoroughly. Remove excess oil from food before air frying. |
Specifications
- Model: Admiral 2 Quart Air Fryer
- Capacity: 2 Quarts (1.89 Liters)
- Temperature Range: 175°F to 390°F
- Timer: Up to 30 minutes with auto shut-off
- Dimensions (Package): Approximately 13.3 x 10 x 9.7 inches
- Item Weight: Approximately 6.64 pounds
- Features: Non-stick coated air basket, cool-touch housing, dishwasher safe parts.
Warranty and Support
This Admiral Air Fryer is covered by a limited manufacturer's warranty. Please refer to the warranty card included with your purchase for specific terms and conditions. For technical support, replacement parts, or warranty inquiries, please contact Admiral customer service through the contact information provided on your product packaging or the official Admiral website.
Please retain your proof of purchase for warranty claims.
