ADATA SE800 External SSD User Manual

1. Introduction

The ADATA SE800 is a high-performance, rugged external solid-state drive designed for fast and reliable data storage. Featuring SuperSpeed USB 3.2 Gen 2 connectivity, it offers rapid data transfer speeds. Its IP68 rating ensures protection against dust and water, while its military-grade shock resistance provides durability for various environments. This manual provides essential information for setting up, operating, and maintaining your SE800 SSD.

Image: The ADATA SE800 External SSD, showcasing its compact form factor and USB-C port.

2. Package Contents

Verify that all items are present in your product package:

• ADATA SE800 External Solid State Drive
• USB-C to USB-C Cable
• Quick Start Guide (QSG)

3. Features

• Superfast Read/Write Speed: Up to 1000 MB/s via USB 3.2 Gen 2 interface. Actual performance may vary.
• IP68 Rated Ruggedness: Certified waterproof, dust-proof, and drop-proof for enhanced durability.
• Compact and Lightweight Design: Features an exquisite hairline-brushed surface, making it ideal for portability.
• USB-C Interface: Equipped with USB 3.2 Gen 2 Type-C, backward compatible with USB 2.0.
• Broad Compatibility: Works with Windows, macOS, Android devices, and gaming consoles.

Image: Visual representation of the SE800's waterproof, dustproof, and shockproof capabilities.

4. Setup

4.1 Connecting the SSD

1. Locate the USB-C port on your ADATA SE800 SSD.
2. Connect one end of the provided USB-C cable to the SSD's USB-C port. Ensure the port cover is securely closed after connection for IP68 protection.
3. Connect the other end of the USB-C cable to an available USB-C port on your computer, Android device, or gaming console.
4. The device should automatically detect the SSD. A small LED indicator on the SSD will illuminate when connected and active.

Image: Connecting the ADATA SE800 SSD to a device using the USB-C cable.

4.2 Initial Formatting (If Required)

For optimal performance and compatibility, especially with macOS or specific operating systems, you may need to format the SSD before first use. Refer to your operating system's disk utility or management tools for instructions on how to format an external drive. Common file systems include NTFS (Windows), HFS+ or APFS (macOS), and exFAT (cross-platform compatibility).

Important: Formatting an SSD will erase all data on the drive. Ensure no critical data is present before proceeding.

5. Operating Instructions

5.1 Data Transfer

Once connected and recognized by your device, the ADATA SE800 will appear as an external storage device. You can drag and drop files, copy and paste, or use your system's file management software to transfer data to and from the SSD. For maximum speed, ensure you are connected to a USB 3.2 Gen 2 compatible port.

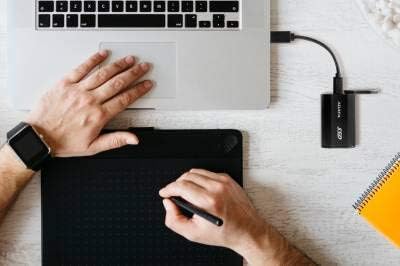

Image: The ADATA SE800 SSD in use with a laptop, suitable for various tasks.

5.2 Safe Removal

To prevent data corruption, always safely eject or unmount the ADATA SE800 before disconnecting it from your device. This can typically be done through your operating system's taskbar (Windows) or by dragging the drive icon to the Trash/Eject icon (macOS).

5.3 Gaming Console Use

The SE800 can be used to expand storage for compatible gaming consoles. Connect the SSD to an available USB port on your console. Follow the console's instructions for formatting and setting up external storage. Note that some consoles may have limitations on playing games directly from external drives, especially for newer generation titles.

Image: ADATA SE800 SSDs used for expanding gaming console storage.

6. Maintenance

• Port Cover: Always ensure the USB-C port cover is securely closed when not in use to maintain the IP68 waterproof and dust-proof rating.
• Cleaning: Use a soft, dry cloth to clean the exterior of the SSD. Avoid using harsh chemicals or abrasive materials.
• Temperature: While designed for durability, prolonged heavy use may cause the device to warm up. Ensure adequate airflow around the device during operation.
• Storage: Store the SSD in a cool, dry place away from extreme temperatures and direct sunlight.

7. Troubleshooting

SSD Not Detected:

• Ensure the USB-C cable is securely connected to both the SSD and your device.
• Try a different USB port on your device.
• Test with a different USB-C cable if available.
• Check your device's disk management or system information to see if the drive is recognized but unformatted.
• Restart your computer or device.

Slow Transfer Speeds:

• Verify that your device's USB port supports USB 3.2 Gen 2 (or at least USB 3.0/3.1). Connecting to a USB 2.0 port will result in significantly slower speeds.
• Ensure your operating system and drivers are up to date.
• Avoid transferring many small files simultaneously, as this can reduce overall transfer speed compared to large single files.
• Close other applications that might be using system resources or disk I/O.

Drive Gets Warm During Use:

It is normal for the SSD to generate some heat during intensive data transfers due to its high-speed operation. This is generally not a cause for concern. Ensure the device is not covered and has adequate ventilation.

8. Specifications

9. Product Video

10. Warranty and Support

The ADATA SE800 External SSD comes with a Limited 3-Year Manufacturer Warranty. For warranty claims, technical support, or further assistance, please visit the official ADATA website or contact their customer service department. Keep your proof of purchase for warranty validation.

Official ADATA Website: www.adata.com
