1. Introduction
This manual provides essential information for the safe assembly, operation, and maintenance of your Ameriwood Home Farmington Electric Fireplace TV Console. This console is designed to accommodate flat panel TVs up to 60 inches wide and up to 95 lbs, featuring an integrated 23-inch electric fireplace insert and ample storage solutions.
2. Safety Information
Important Safety Instructions:
- Read all instructions before using this appliance.
- Do not operate any fireplace with a damaged cord or plug, or if the heater has malfunctioned or been dropped or damaged in any manner.
- Always plug heaters directly into a wall outlet/receptacle. Never use with an extension cord or relocatable power tap (outlet/power strip).
- Keep combustible materials, such as furniture, pillows, bedding, papers, clothes, and curtains at least 3 feet (0.9 m) from the front of the heater and keep them away from the sides and rear.
- This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm (Proposition 65 warning).
3. Package Contents
Verify all components are present and undamaged before beginning assembly. The package includes:
- TV Console components (engineered wood panels, hardware)
- 23-inch Electric Fireplace Insert
- Infrared Remote Control (with AAA batteries)
- Assembly Instructions
4. Assembly Instructions
The TV Console ships flat in one box and requires assembly. Two adults are recommended for assembly to ensure proper handling and safety.
- Unpack all components and lay them out on a clean, soft surface to prevent scratches.
- Refer to the included detailed assembly instructions for step-by-step guidance.
- Ensure all screws and fasteners are securely tightened before placing any items on the console.
- Insert the electric fireplace into the designated central opening.

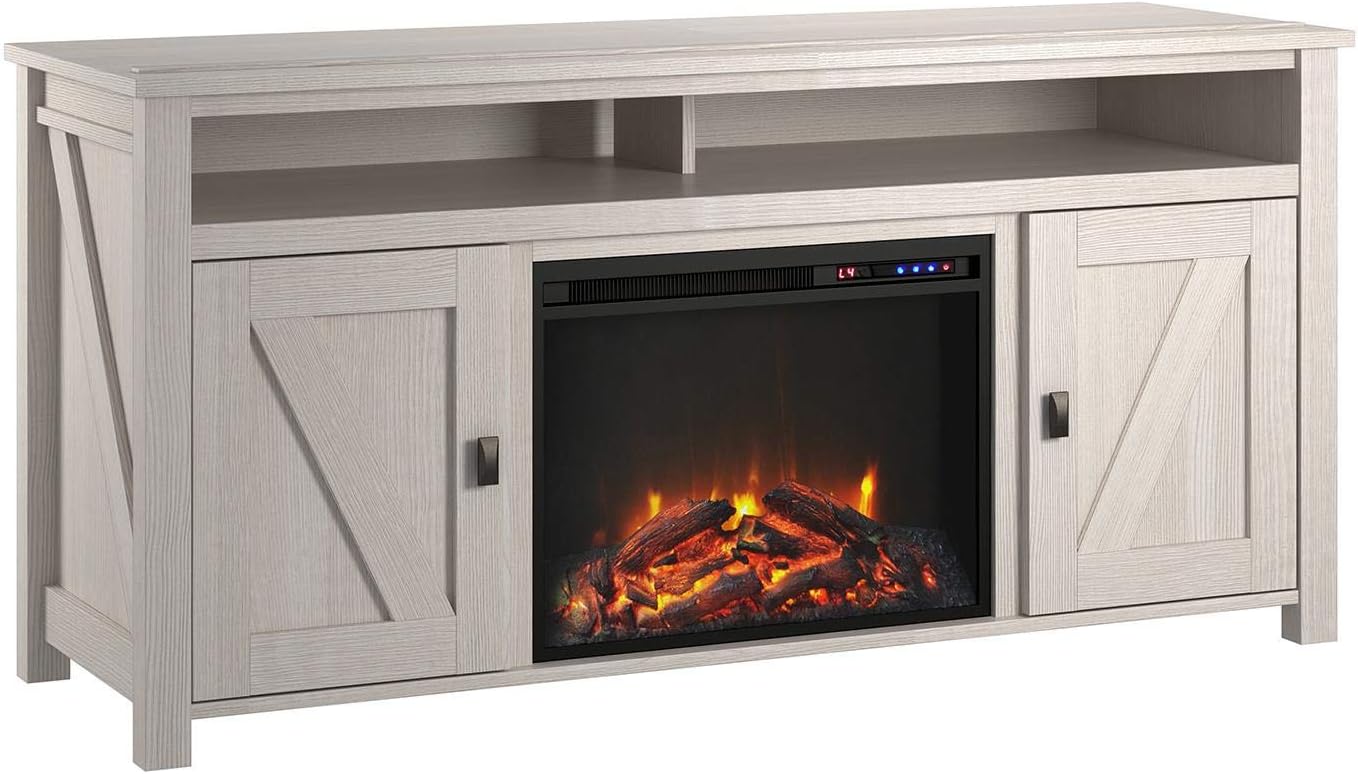

Figure 1: Assembled Ameriwood Home Farmington Electric Fireplace TV Console in Ivory Oak.
Figure 2: Detailed dimensions and weight capacities for the TV console. Top surface supports up to 95 lbs, open shelf up to 40 lbs, and concealed shelves up to 20 lbs each.
5. Operating Instructions (Electric Fireplace)
The 23-inch electric fireplace insert provides both heat and ambient flame effects. It can be operated using the included infrared remote control or the touch panel buttons on the unit.
5.1. Power On/Off
- Press the Power Button on the remote or touch panel to turn the fireplace on or off.
5.2. Flame Settings
- Use the Flame Setting Button on the remote to cycle through 4 brightness levels for the realistic LED flame. The flame effect can be used independently without heat.
Video 1: Demonstration of the 23" Electric Fireplace Insert's flame and heat settings. This video illustrates how to adjust the flame brightness and activate the heating function using the remote control.
5.3. Heat Settings
- Press the Heat On/Off Button on the remote to activate or deactivate the heating function.
- Use the Temperature Control Buttons (up/down arrows) to adjust the desired room temperature from 72° to 82°F. The heater is capable of warming rooms up to 400 sq. ft.
- The fireplace features 4600 BTUs of heat output and 1400 Watts of power, operating on a standard 120-volt outlet.
5.4. Timer Function
- Activate the timer function using the Timer Control Button on the remote. This allows you to set the fireplace to automatically shut off after a specified duration.
6. Storage Features
The console offers versatile storage options for your media components and other items.
- Open Top Shelf: A large open divided shelf is located above the fireplace insert, ideal for media components such as soundbars, DVD players, or gaming consoles. This shelf can hold up to 40 lbs.
- Side Cabinets: Two side cabinets flank the electric fireplace. Each cabinet features an adjustable and a fixed shelf, allowing for customized storage space. Each concealed shelf can hold up to 20 lbs.
Figure 3: The TV console displaying a television on top and various media devices within the open central shelf.
7. Care and Maintenance
To maintain the appearance and longevity of your TV console:
- Wipe surfaces with a damp cloth. Avoid harsh chemicals or abrasive cleaners.
- Ensure the fireplace insert's air vents are clear of obstructions for optimal performance and safety.
8. Troubleshooting
If you encounter issues with your electric fireplace TV console, consider the following:
- No Power: Ensure the unit is properly plugged into a standard 120-volt wall outlet. Avoid using extension cords or power strips. Check the circuit breaker.
- No Heat: Verify the heat function is activated via the remote or touch panel. Ensure the temperature setting is above the current room temperature.
- Flame Issues: Check flame brightness settings. If the LED lights are not functioning, contact customer support.
- Assembly Issues: Re-check the assembly instructions to ensure all steps were followed correctly.
9. Specifications
| Feature | Detail |
|---|---|
| Brand | Ameriwood Home |
| Model Number | 1795884COM |
| Product Dimensions (H x W x D) | 29.125" H x 59.625" W x 15.6875" D |
| Material | Engineered Wood |
| Finish Type | Laminated (Ivory Oak) |
| Power Source | Corded Electric (120 Volts) |
| Heat Output | 4600 British Thermal Units (BTU) |
| Heating Coverage | Up to 400 sq ft |
| Wattage | 1400 Watts |
| LED Life | Up to 50,000 hours |
| Max TV Size | Up to 60 inches |
| Max Top Weight Capacity | 95 lbs |
| Max Open Shelf Weight Capacity | 40 lbs |
| Max Concealed Shelf Weight Capacity | 20 lbs each |
| Safety Certifications | CSA certified with overheat protection, auto shutoff, cool touch tempered glass front. |
10. Warranty Information
This product comes with a 1-year limited warranty from the date of original purchase. Please retain your proof of purchase for warranty claims.
11. Customer Support
For assistance with assembly, parts, or product inquiries, please refer to the contact information provided in your original packaging or visit the Ameriwood Home website.
