Knifel 450GPH Submersible Pump User Manual

1. Introduction

Thank you for choosing the Knifel 450GPH Submersible Pump. This manual provides essential information for the safe and efficient installation, operation, and maintenance of your pump. Please read these instructions carefully before use and retain them for future reference.

2. Safety Information

To ensure safe operation and prolong the life of your pump, please observe the following safety guidelines:

• Always use a power socket with stable voltage (AC110-120V/60Hz) and ensure the motor runs within its rated power.
• The pump is designed for submersible use only. Ensure it is fully submerged in water during operation to prevent dry burning.
• The pump features dry burning protection, which automatically cuts off power if the temperature becomes too high due to lack of water. While this protects the pump, continuous dry running should be avoided.
• Regularly inspect the power cord for any damage. Do not operate the pump if the cord is damaged.
• Before performing any maintenance or cleaning, always unplug the pump from the power source.
• Keep children and pets away from the pump and water feature during operation.

Image: The Knifel pump is equipped with 360-hour dry burning protection, a safety feature designed to prevent damage if the water level drops too low.

3. Package Contents

Verify that all items are present in the package:

• 1 x Knifel 450GPH Submersible Pump
• 1 x Instruction Manual (this document)
• 3 x Nozzles (3/4 inch, 5/8 inch, 1/2 inch)

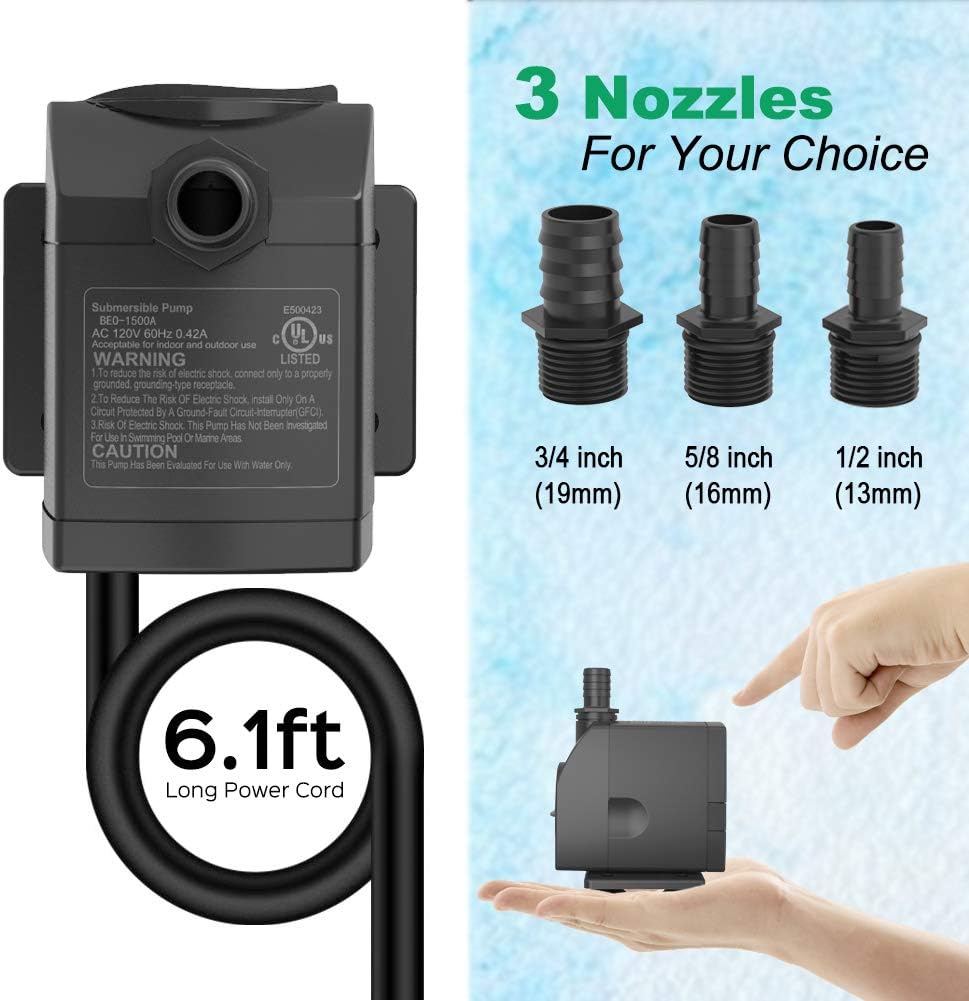

Image: The pump comes with three different sized nozzles and a 6.1ft power cord for versatile applications.

4. Specifications

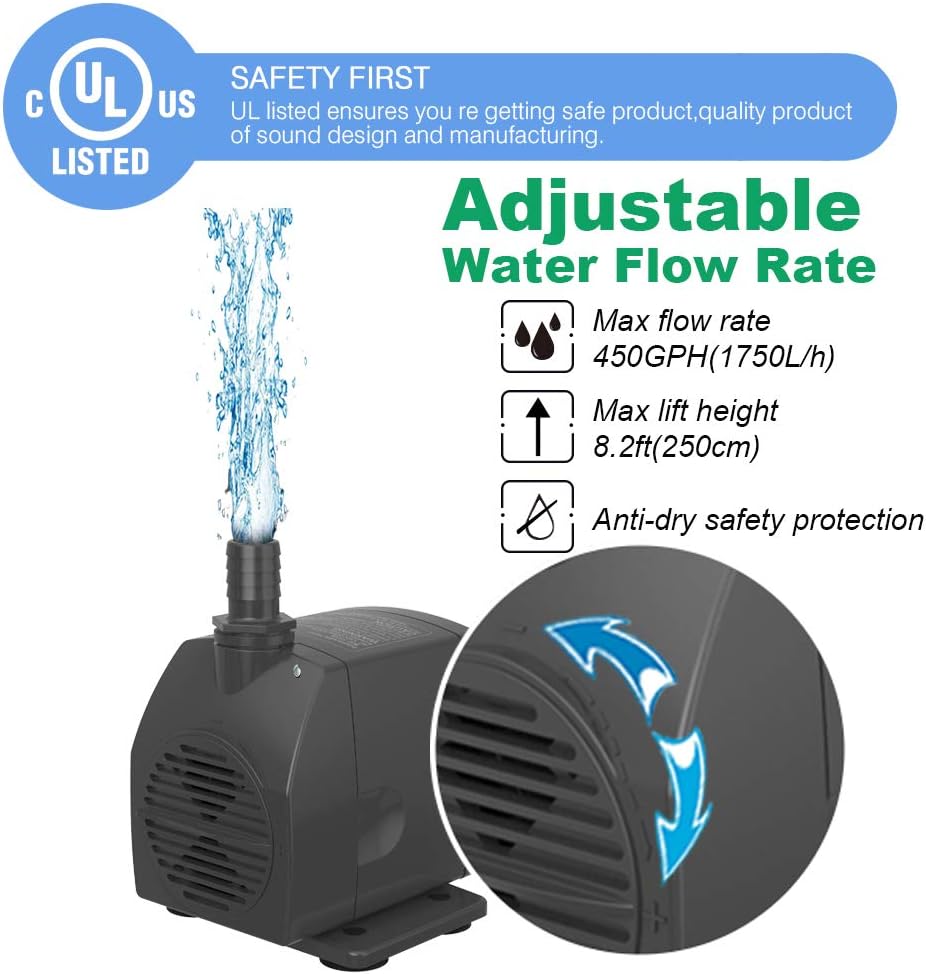

Image: Key specifications of the Knifel Submersible Pump, highlighting its flow rate, lift height, and safety features.

5. Setup

1. Choose the Right Nozzle: Select one of the three provided nozzles (3/4 inch, 5/8 inch, or 1/2 inch) based on your application's flow requirements. Attach it securely to the pump's outlet.
2. Position the Pump: Place the pump completely submerged in the water. The pump is equipped with suction cups on its base for stable placement on smooth surfaces. Ensure the water level is sufficient to cover the pump.
3. Connect to Power: Once the pump is securely placed and fully submerged, plug the power cord into a stable AC110-120V/60Hz power outlet. The pump will start operating immediately.

6. Operating

The Knifel Submersible Pump is designed for continuous operation when properly submerged.

• Power On/Off: The pump does not have an on/off switch. It starts operating when plugged into a power outlet and stops when unplugged.
• Adjusting Water Flow: An adjustable knob is integrated into the pump to control the water flow rate. Rotate the knob to achieve your desired water pressure and flow.

Image: The pump's ultra-quiet design, achieved through a high-quality rotor and copper winding, ensures minimal operational noise.

7. Maintenance

Regular cleaning is crucial for maintaining optimal performance and extending the pump's lifespan.

1. Frequency: Clean the pump regularly, approximately once every two weeks, or more frequently if used in environments with high debris.
2. Disassembly: No tools are required for disassembly. The pump is designed to be easily separated for cleaning.
3. Cleaning Procedure: Unplug the pump. Remove the front cover and impeller. Rinse all components under clean water to remove any debris, algae, or mineral buildup. For stubborn buildup, a soft brush can be used.
4. Rotor Lubrication: If the pump makes unusual noises after cleaning, you may add a few drops of olive oil to the rotor to ensure smooth operation.
5. Reassembly: Reassemble the pump components in reverse order, ensuring all parts are securely fitted.

8. Troubleshooting

If you encounter issues with your pump, refer to the following common problems and solutions:

• Pump Stops Working or Makes Noise: This is often caused by debris blockage. Unplug the pump and clean it thoroughly as described in the Maintenance section. Ensure the impeller is free of obstructions. Adding a small amount of olive oil to the rotor after cleaning can help.
• Low Flow Rate:
  • Check for debris blockage in the pump or nozzles.
  • Ensure the power supply is stable and sufficient. Insufficient power or frequency can affect flow rate.
  • If connected to a long or narrow water pipe, the maximum flow rate will be reduced.
  • If the water sprays out of the container, the effective flow rate will also be less than the maximum stated GPH.
  • Verify the water level is adequate; the pump must be fully submerged.
• Pump Not Starting:
  • Ensure the pump is properly plugged into a functional power outlet.
  • Check for any electrical circuit breakers that may have tripped.
  • Inspect the power cord for damage.
  • Clean the pump for potential debris blockage that might prevent the impeller from turning.

9. Applications

The Knifel 450GPH Submersible Pump is versatile and suitable for a variety of water circulation needs:

• Fountains: Ideal for creating decorative water features in gardens or indoors.
• Hydroponics: Provides essential water circulation for hydroponic growing systems.
• Ponds: Suitable for small to medium-sized ponds to maintain water movement and aeration.
• Aquariums: Can be used for water circulation in aquariums, ensuring proper oxygenation and filtration.
• Rockeries: Enhances rockery features with flowing water effects.

Image: The pump is suitable for a wide range of applications, from decorative fountains to functional hydroponic systems.

Image: An example of the pump's use in an outdoor fountain setting.

10. Warranty and Support

Knifel products are manufactured to high-quality standards. For specific warranty details and customer support, please refer to the warranty card included with your purchase or contact Knifel customer service directly. Keep your purchase receipt as proof of purchase for warranty claims.
