1. Product Overview
The DINGLILIGHTING LED Reading Light with USB Clip is a versatile and eye-friendly illumination solution designed for various tasks. Featuring a flexible gooseneck and a sturdy clip, this 6W LED lamp provides adjustable light colors (warm white and cool white) to suit different environments and preferences. It is ideal for reading, studying, working, or as general task lighting.

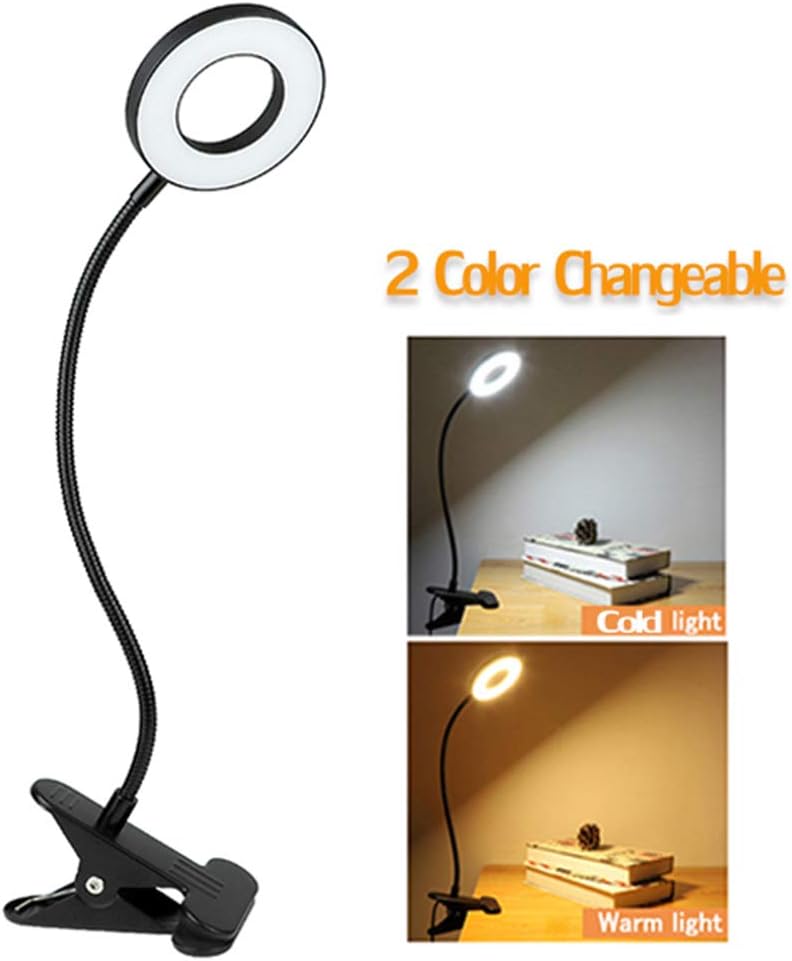

This image displays the DINGLILIGHTING LED Reading Light with its flexible gooseneck and clip base. It highlights the two available light color modes: a bright 'Cold light' and a softer 'Warm light', demonstrating the versatility of the lamp for different environments and preferences.
2. Safety Information
- Ensure the power source matches the lamp's voltage requirements (USB 5V).
- Do not expose the lamp to water or excessive moisture.
- Avoid disassembling the lamp; refer to qualified personnel for repairs.
- Keep out of reach of children.
- Do not stare directly into the LED light for extended periods.
3. Package Contents
Please check the package for the following items:
- 1 x LED Reading Light with Clip
- 1 x USB Cable (Note: The lamp is not rechargeable and does not include a battery or wall adapter.)
4. Features
- Adjustable Light Color: Easily switch between warm white and cool white light modes.
- Eye Protection: Designed as a professional reading lamp with no blue light hazard, flicker-free operation, and a non-glare screen.
- 360-Degree Adjustable Angle: The flexible gooseneck allows for precise positioning of the light.
- Sturdy Clip: Securely attaches to surfaces up to 2.4 inches thick, ensuring stability without movement or sliding.
- Energy Efficient: Equipped with 48 LED pieces, providing bright and efficient illumination while saving energy.
- Durable Construction: Made with high-quality engineered aluminum for rapid heat dissipation and extended lifespan.
- USB Powered: Conveniently powered via any standard USB port (e.g., power bank, laptop, USB wall adapter).
A detailed diagram illustrating the key components of the LED Reading Light. Labels point to the flexible gooseneck for adjustable positioning, the sturdy clip for secure attachment, the inline switch for power and light mode selection, and the USB cable for power supply. The switch has positions for Warm White (I), Off (O), and Cool White (II).
5. Setup
- Unpack: Carefully remove all components from the packaging.
- Attach the Clip: Securely attach the lamp's clip to a stable surface such as a desk, headboard, or shelf. Ensure the surface thickness does not exceed 2.4 inches for optimal grip.
- Connect Power: Plug the USB cable into a compatible USB power source (e.g., a computer USB port, a power bank, or a USB wall adapter).
- Position the Light: Adjust the flexible gooseneck to direct the light to your desired area.
This image showcases the versatility of the LED Reading Light, depicting its use in multiple settings such as a writing desk, bookcase, dormitory, bedside table, office table, and student table. It emphasizes the lamp's adaptability for different personal and professional environments.
6. Operating Instructions
The lamp is operated using the inline switch located on the USB cable.
- To Turn On (Warm White): Slide the switch to position 'I'. The lamp will illuminate with a warm white light.
- To Turn Off: Slide the switch to position 'O'. The lamp will turn off.
- To Turn On (Cool White): Slide the switch to position 'II'. The lamp will illuminate with a cool white light.
A collage of four images demonstrating the LED Reading Light in practical use. Examples include reading a book on a desk, illuminating a book held by hand, and being clipped onto a bookshelf, highlighting its flexibility and convenience for various reading and task lighting scenarios.
7. Maintenance
- Cleaning: Disconnect the power before cleaning. Use a soft, dry cloth to wipe the lamp. Do not use abrasive cleaners or solvents.
- Storage: When not in use for extended periods, store the lamp in a cool, dry place.
- Cable Care: Avoid bending or twisting the USB cable excessively to prevent damage.
8. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Lamp does not turn on. | No power or loose connection. | Check if the USB cable is securely connected to both the lamp and the power source. Try a different USB port or power adapter. Ensure the inline switch is in position 'I' or 'II'. |
| Light flickers. | Unstable power supply. | Ensure the USB power source provides stable 5V output. Try a different power source. |
| Gooseneck does not hold position. | Excessive weight or wear. | Ensure no additional weight is placed on the gooseneck. If the issue persists, contact customer support. |
9. Specifications
- Model Number: WS-MPJ2-6F
- Materials: Aluminum + Acrylic
- Input Voltage: USB 5V
- Power: 6W
- Beam Angle: 120 degrees
- Operating Temperature: -30~50 degrees Celsius
- USB Cable Length: 59 inches (approx. 1.5 meters)
- Light Modes: Warm White, Cool White (controlled by inline switch)
- Max Clamp Opening: 2.4 inches
- Color: Black
- Dimensions (Shipping): 14.2 x 10.7 x 8.2 cm
- Weight (Shipping): 310 grams

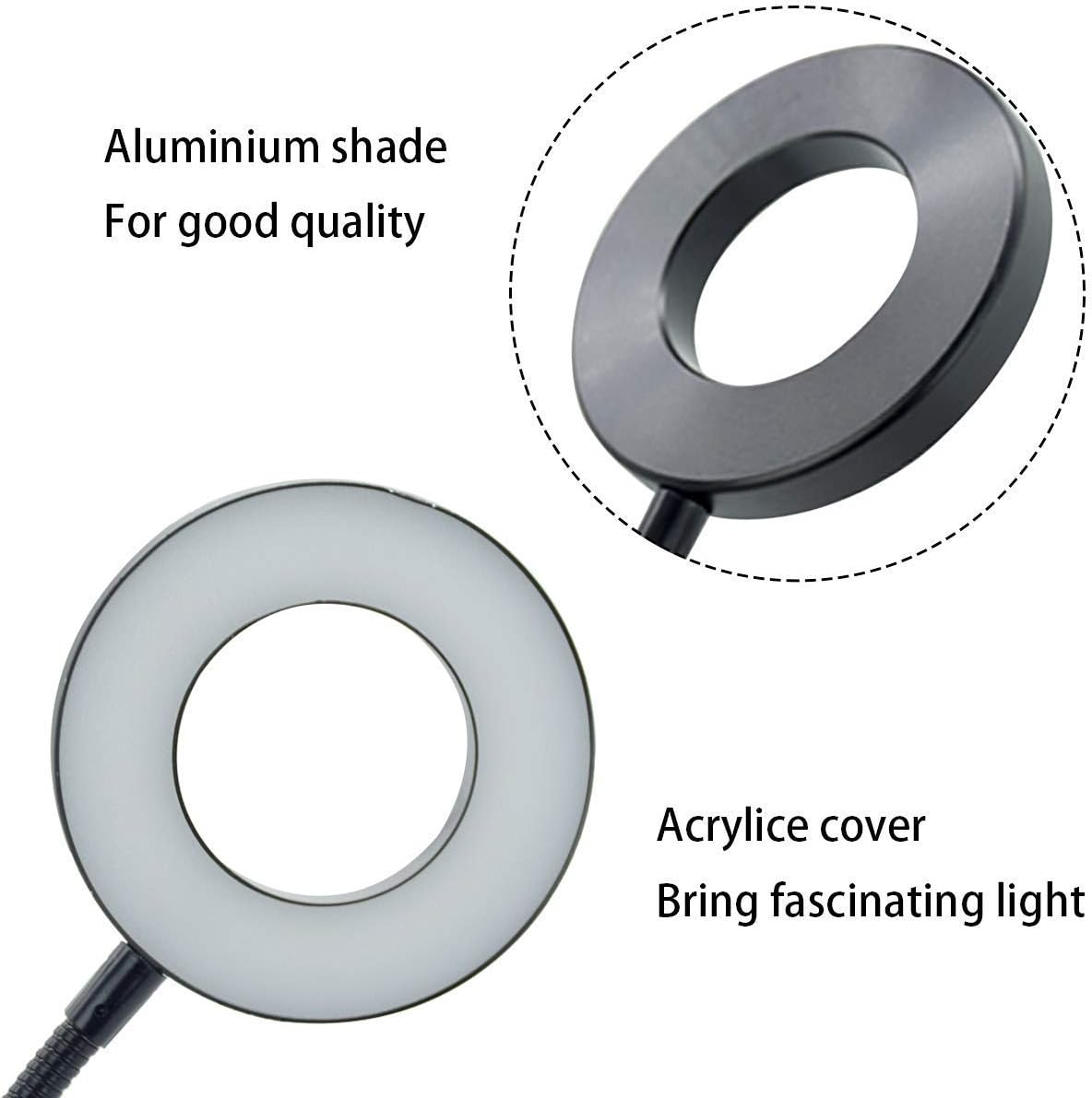

A close-up view of the lamp head, highlighting its construction. The image points out the aluminum shade, indicating good quality and heat dissipation, and the acrylic cover, designed to provide a pleasant and even light distribution.
This image illustrates the three convenient methods to power the LED Reading Light via its USB connection: using a power bank for portability, plugging into a laptop's USB port, or connecting to a wall adapter (not included). This emphasizes the lamp's flexible power options.
10. Warranty and Support
For any issues or inquiries regarding your DINGLILIGHTING LED Reading Light, please contact our customer support team.
Email: support03@dingliled.com
We are committed to providing the best possible response and solution to ensure your satisfaction.
