Renault Platinum Mach8 AL209 Folding Bike User Manual

1. Introduction

This manual provides essential information for the safe and efficient use of your Renault Platinum Mach8 AL209 folding bicycle. Please read this manual thoroughly before initial use and retain it for future reference. This 20-inch ultra-lightweight folding bike features an aluminum frame and a Shimano ALTUS 9-speed shifter, designed for portability and performance.

2. Safety Information

Always wear a helmet when riding. Ensure all quick releases and fasteners are securely tightened before each ride. Regularly check tire pressure, brake function, and gear shifting. Do not ride in conditions that exceed your skill level or the bike's design limitations. Be aware of traffic laws and signals.

• Perform a pre-ride safety check before every use.
• Ensure proper lighting for night riding.
• Do not exceed the maximum weight capacity of the bicycle.
• Keep hands and feet clear of moving parts.
• Familiarize yourself with local cycling regulations.

3. Product Overview

3.1 Key Features

• Ultra-Lightweight Design: Approximately 8.9 kg (19.6 lbs).
• Aluminum Frame: Original aluminum padded (butted) frame for strength and lightness.
• 20-inch Wheels: Equipped with 20 x 1-1/8 (451) tires for enhanced performance.
• 9-Speed Shimano ALTUS Shifter: Provides smooth and reliable gear changes.
• Foldable Design: Compact for easy transport and storage.

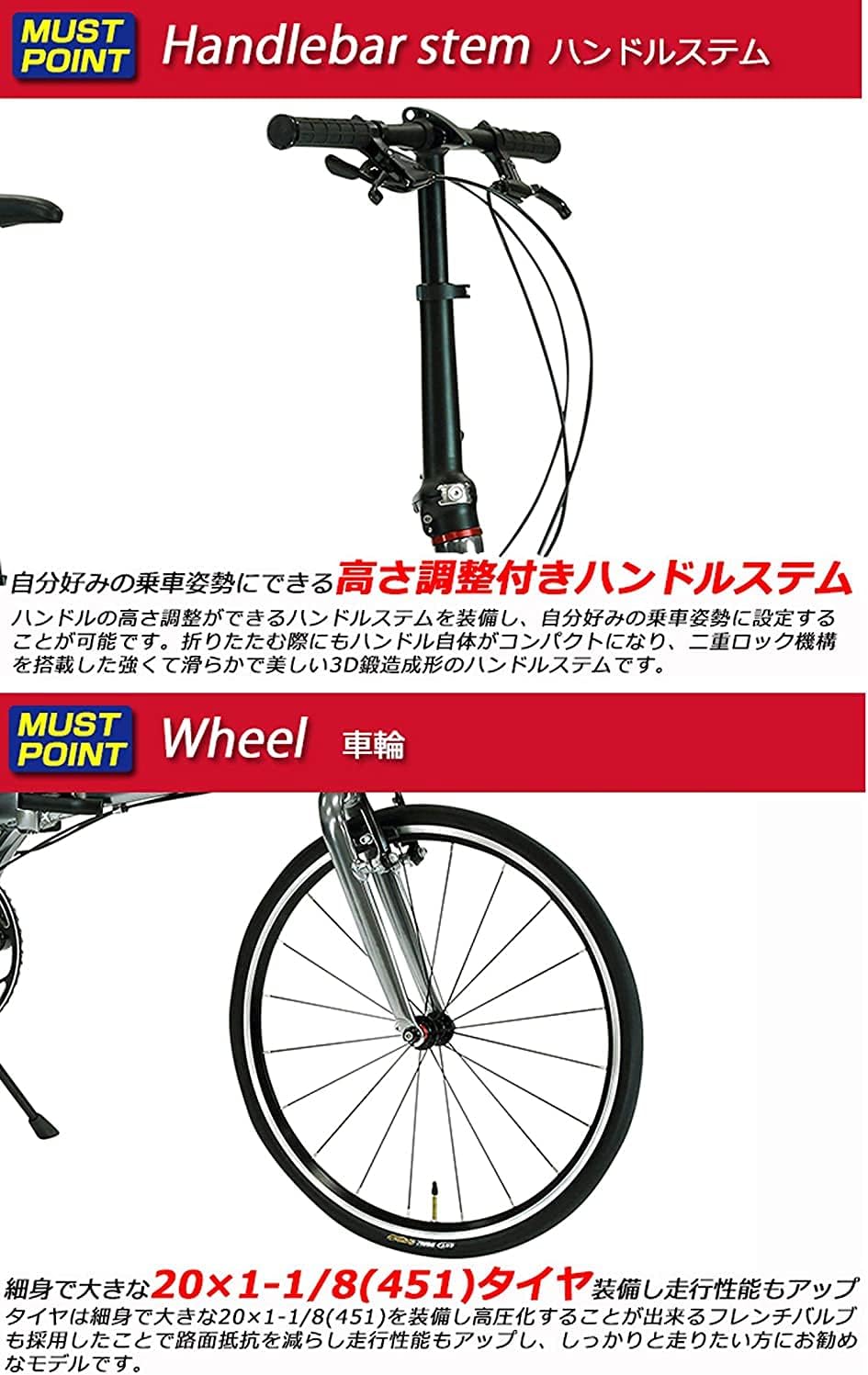

• Adjustable Handle Stem: Allows for personalized riding posture.
• V-Brake System: Reliable front and rear braking.

3.2 Components

The Renault Platinum Mach8 AL209 is comprised of several key components designed for optimal performance and portability.

• Frame: Aluminum, foldable.
• Fork: Rigid.
• Handlebar: Adjustable height stem.
• Shifter: Shimano ALTUS 9-speed trigger shifter.
• Derailleur: Shimano ALTUS (rear).
• Crankset: 52T chainwheel.
• Freewheel: 11-32T.
• Brakes: Front and rear V-Brake system.
• Wheels: 20-inch aluminum.
• Tires: 20 x 1-1/8 (451).

4. Setup

4.1 Unfolding the Bicycle

Your bicycle is shipped in a folded configuration. Follow these steps to unfold it safely:

1. Place the folded bike on a flat, stable surface.
2. Release the frame hinge latch. Carefully swing the front and rear sections of the frame apart until they align.
3. Secure the frame hinge latch firmly. Ensure it is fully engaged and locked.
4. Raise the handlebar stem. Release the handlebar stem latch, pull the stem upwards to its riding position, and secure the latch.
5. Adjust the handlebar height using the quick-release mechanism on the stem.
6. Insert the seat post and saddle. Adjust the saddle height to your preference and secure the quick-release clamp.
7. Unfold the pedals if they are foldable (note: standard pedals may not be foldable).

4.2 Initial Adjustments

• Saddle Height: Adjust the saddle height so that your leg is slightly bent at the knee when the pedal is at its lowest point.
• Handlebar Height: Adjust the handlebar stem to a comfortable height that allows for good control and posture. The handle stem has a height adjustment feature.
• Brake Levers: Ensure brake levers are within easy reach and provide firm braking action.
• Tire Pressure: Inflate tires to the recommended pressure indicated on the tire sidewall.

5. Operating Instructions

5.1 Folding the Bicycle

To fold your Renault Platinum Mach8 AL209 for transport or storage:

1. Lower the saddle to its lowest position or remove the seat post.
2. Lower the handlebar stem to its lowest position or fold it down if applicable.
3. Release the frame hinge latch and carefully fold the frame in half.
4. Secure the frame in the folded position using any integrated clasps or magnets.
5. Fold the pedals if they are designed to fold.

5.2 Shifting Gears

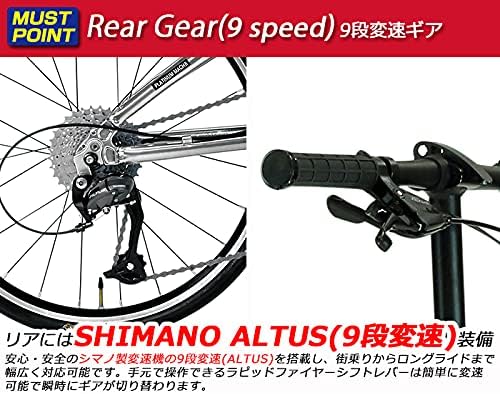

Your bike is equipped with a Shimano ALTUS 9-speed trigger shifter.

• Use the right-hand shifter to change gears on the rear derailleur.
• Press the larger lever to shift to a higher gear (harder to pedal, faster speed).
• Press the smaller lever to shift to a lower gear (easier to pedal, slower speed).
• Shift gears smoothly and avoid shifting under heavy load to prevent damage to the drivetrain.

5.3 Braking

The bike uses a V-Brake system for effective stopping power.

• The right lever controls the rear brake, and the left lever controls the front brake.
• Apply both brakes simultaneously for controlled stopping.
• Avoid sudden, hard braking with the front brake only, especially at high speeds, as this can cause loss of control.
• Regularly check brake pad wear and cable tension.

6. Maintenance

Regular maintenance ensures the longevity and safe operation of your bicycle.

• Cleaning: Clean the frame and components regularly with a mild soap and water solution. Avoid high-pressure washing.
• Lubrication: Lubricate the chain every 100-200 km or after riding in wet conditions. Use bicycle-specific chain lubricant.
• Tire Pressure: Check tire pressure before each ride. Maintain pressure within the range specified on the tire sidewall (e.g., 20 x 1-1/8 (451) tires).
• Brakes: Inspect brake pads for wear and replace them when necessary. Ensure brake cables are free from fraying and properly tensioned.
• Gears: Check gear shifting for smoothness. Adjust derailleur limits and cable tension if shifting becomes imprecise.
• Fasteners: Periodically check all bolts and quick releases for tightness.

7. Troubleshooting

8. Specifications

9. Warranty and Support

For warranty information and customer support, please refer to the documentation provided at the time of purchase or contact your retailer.

• Returns Policy: This product is subject to a 15-day return policy for refund or replacement.
• Manufacturer: GIC (Jikk)
