ABLEWE USB to HDMI Adapter (Model AB-HDMI-USB-069-US) User Manual

1. Introduction

This manual provides detailed instructions for the ABLEWE USB to HDMI Adapter, designed to connect your computer or laptop to an HDTV, monitor, or projector via a USB interface. It supports high-definition audio and video transmission, enhancing your display capabilities.

Important Compatibility Note: This adapter is compatible with Windows XP, 7, 8, 8.1, and 10. Mac OS and Chrome OS are not supported.

ABLEWE USB to HDMI adapter connected to a laptop, highlighting compatibility with Windows XP, 7, 8, 8.1, 10, and explicitly stating non-support for Mac OS, Linux, and Chrome OS.

Figure 1: Adapter compatibility with Windows operating systems.

Diagram illustrating the connection of the ABLEWE USB to HDMI adapter from a computer or laptop to various display devices like projectors, monitors, or TVs.

Figure 2: Connection diagram for the USB to HDMI adapter.

2. What's in the Box

Please verify that all items are present in your package:

ABLEWE USB to HDMI Adapter
Driver Mini-CD
User Guide

Video 1: Official guide on how to use the USB to HDMI adapter, including unboxing and setup.

3. Setup Instructions

3.1 Driver Installation

The ABLEWE USB to HDMI Adapter features internal drivers for convenient installation. When you plug the adapter into your computer for the first time, it will typically appear as a virtual CD-ROM drive. Follow these steps to install the necessary drivers:

Connect the USB end of the adapter to an available USB 3.0 or USB 2.0 port on your computer.
Your computer should detect the adapter and display it as a new drive (e.g., CD DRIVE (H:)).
Open 'My Computer' or 'This PC' and navigate to the newly detected drive.
Inside the drive, you will find two software installers: one for Windows XP and another for Windows 7/8/8.1/10. Select and run the appropriate installer for your operating system.
Follow the on-screen prompts to complete the driver installation.
After installation, a system restart may be required for the changes to take effect.

Close-up view of the ABLEWE USB to HDMI adapter, showing the HDMI port and a USB 3.0 connector. Text on the image indicates a built-in driver accessible as a CD drive for easy installation.

Figure 3: Adapter with built-in driver accessible as a virtual CD drive.

3.2 Physical Connection

Once drivers are installed, connect the HDMI end of the adapter to your external display (HDTV, monitor, or projector) using a standard HDMI cable (not included).

4. Operating Instructions

4.1 Display Modes

The adapter supports two primary display modes:

Mirror Mode: Duplicates your computer's screen onto the external display. Both screens will show the same content.
Extend Mode: Expands your computer's desktop across both screens, allowing you to open applications and windows independently on each display. This mode is ideal for multitasking and increasing productivity.

You can switch between these modes through your computer's display settings (usually accessible by right-clicking on the desktop and selecting 'Display settings' or by pressing Windows Key + P).

Two laptops demonstrating the display modes of the ABLEWE USB to HDMI adapter: one in Mirror Mode, duplicating the screen, and the other in Extend Mode, expanding the desktop across two screens for enhanced multitasking.

Figure 4: Illustration of Mirror Mode and Extend Mode.

4.2 Resolution and Audio

The adapter supports video resolutions up to 1080P (1920x1080) at 60Hz, even when connected to a USB 2.0 port. It also supports 3D display. Audio is transmitted separately through the HDMI connection.

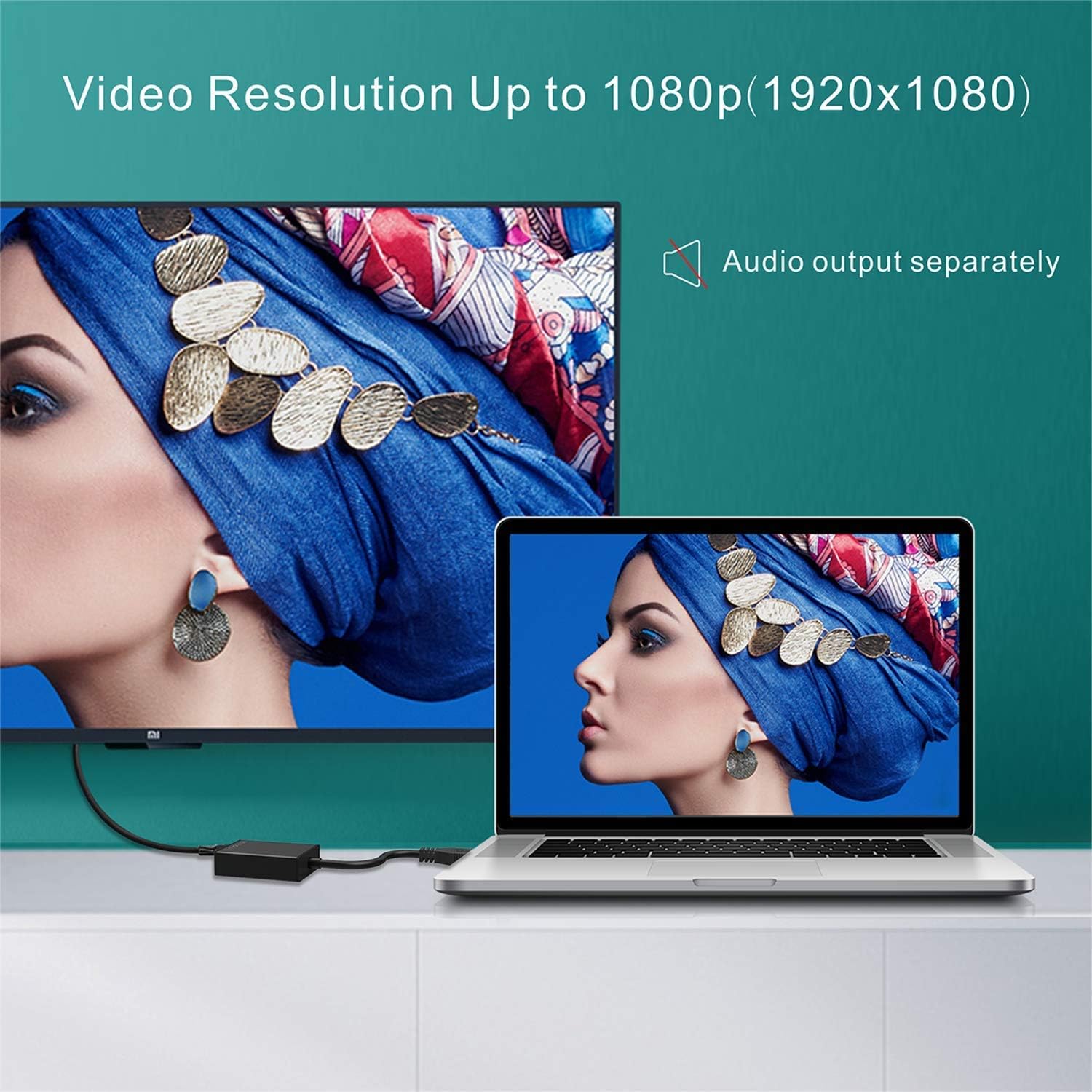

A laptop and an external monitor displaying the same high-definition image, illustrating the adapter's capability for video resolution up to 1080p (1920x1080) and separate audio output.

Figure 5: High-definition video output and separate audio.

A display screen showing a resolution of 1920x1080, emphasizing that this resolution is achievable even when connected via a USB 2.0 interface.

Figure 6: 1920x1080 resolution supported even with USB 2.0.

5. Troubleshooting

If you encounter issues with your ABLEWE USB to HDMI Adapter, please refer to the following common solutions:

Display Not Detected: Ensure the adapter is securely connected to both your computer's USB port and the display's HDMI port. Verify that the correct input source is selected on your display.
Driver Issues: If the display is not working or is unstable, the driver may not be installed correctly or may be corrupted. Re-run the driver installation from the virtual CD-ROM drive or consult the official ABLEWE support website for the latest drivers.
Lagging or Choppy Video: While the adapter supports 1080P@60Hz, performance can be affected by your computer's processing power and the USB port used. Ensure you are using a USB 3.0 port if available for optimal performance. Close unnecessary applications to free up system resources.
No Audio: Check your computer's sound settings to ensure audio is routed to the HDMI output. Also, verify that your HDMI cable supports audio transmission.
Compatibility: Remember that this adapter is designed for Windows operating systems only. It will not function with Mac OS or Chrome OS.

6. Specifications

Feature	Detail
Brand	ABLEWE
Model Number	AB-HDMI-USB-069-US
Item Weight	1.06 ounces
Product Dimensions	5.51 x 3.15 x 0.79 inches
Color	Black
Connector Type	HDMI
Compatible Devices	PC
Specific Uses	Monitor, Projector
Max Resolution	1080P (1920x1080) @ 60Hz
USB Standard	USB 3.0 / USB 2.0

7. Warranty and Support

The ABLEWE USB to HDMI Adapter comes with a 12-month warranty and lifetime technical support. If you encounter any problems or have questions during the use of this product, please contact us. We are committed to providing worry-free service.

For support, please refer to the contact information provided in your product packaging or visit the official ABLEWE website.
