1. Introduction
This manual provides essential information for the proper installation, operation, and maintenance of your DS18 PRO-X12.4M 12-inch Midrange Loudspeaker. Please read this manual thoroughly before attempting installation or use to ensure optimal performance and longevity of your product.
2. Key Features
- Midrange Performance: Designed to handle the audible sound spectrum, providing clear instrumentals and vocals.
- High Power Handling: Delivers 900W Max Power with 450W RMS at 4 Ohms.
- Durable Voice Coil: Features a high-temperature Kapton voice coil for structural integrity and extended speaker life.
- Enhanced Audio: Upgrades stock stereo systems by providing a true midrange sound experience.
- Ferrite Magnet: Equipped with high-strength Ferrite magnets for a wider range of tones and robust power handling at high volumes.
3. Specifications
| Specification | Value |
|---|---|
| Model | PRO-X12.4M |
| Type | Midrange Loudspeaker |
| Size | 12 inches |
| RMS Power | 450W |
| MAX Power | 900W |
| Frequency Response | 63.5Hz-11.3KHz |
| Impedance | 4 Ohm |
| Sensitivity | 97.5dB |
| Surround Material | Cloth Edge |
| Frame Material | Red Steel Basket |
| Cone Material | Non-Pressed Paper Cone |
| Magnet Material | Ferrite |
| Voice Coil Wire | CCAR |
| Voice Coil Size | 2.5 inches |
| Magnet Size | 60 oz |
| Mounting Depth | 5.35 inches (126mm) |
| Cut-Out Dimension | 11.22 inches (285mm) |
| UPC | 810005182249 |
4. Setup and Installation
Proper installation is crucial for the performance and safety of your loudspeaker. It is recommended that installation be performed by a qualified professional.
4.1 Mounting
The DS18 PRO-X12.4M is designed for car door or similar panel mounting. Ensure the mounting location provides sufficient depth and clearance for the speaker and its magnet structure. The cut-out dimension required is 11.22 inches (285mm) and the mounting depth is 5.35 inches (126mm).

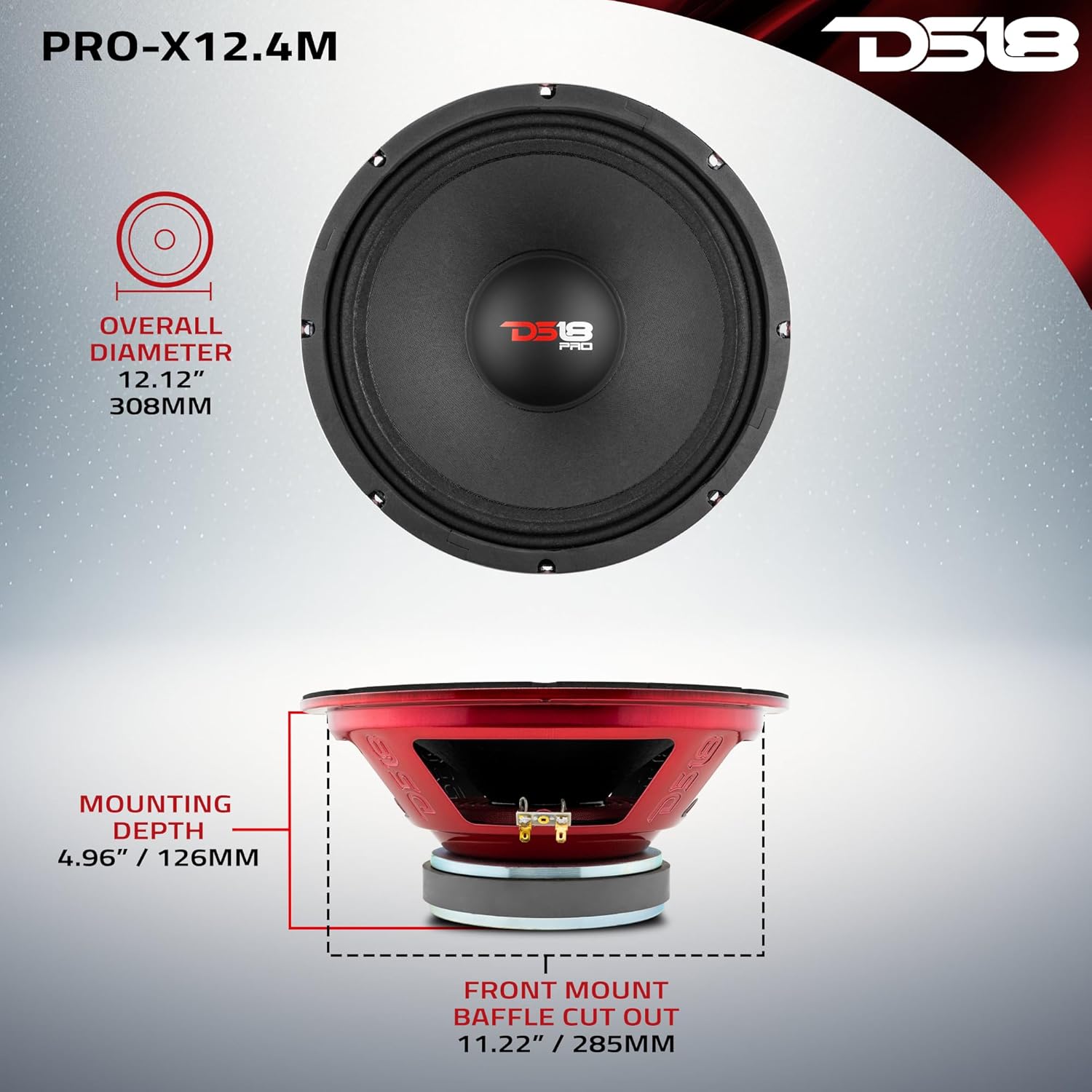

Figure 1: Diagram showing the overall diameter, mounting depth, and front mount baffle cut-out dimensions for the DS18 PRO-X12.4M loudspeaker.
4.2 Wiring
- Power Source: Connect the loudspeaker to an appropriate amplifier capable of delivering 450W RMS at 4 Ohms. Ensure the amplifier's impedance matches the speaker's 4 Ohm impedance.
- Polarity: Observe correct polarity when connecting the speaker wires to the amplifier. Positive (+) terminals should connect to positive, and negative (-) to negative. Incorrect polarity can lead to reduced sound quality and phase issues.
- Secure Connections: Ensure all connections are tight and free from corrosion. Use high-quality speaker wire of appropriate gauge for the power level.
Figure 2: Side view of the loudspeaker, highlighting the magnet structure and the speaker terminals for wiring connections.
5. Operating Guidelines
- Break-in Period: Allow a break-in period of approximately 10-20 hours of moderate listening before operating the speakers at high volumes. This allows the speaker's suspension components to loosen and perform optimally.
- Volume Control: Avoid prolonged listening at extremely high volumes, which can cause hearing damage and potentially damage the speakers.
- Amplifier Gain: Set your amplifier's gain correctly to prevent clipping and distortion. Consult your amplifier's manual for proper gain setting procedures.
6. Maintenance
Regular maintenance helps ensure the longevity and performance of your loudspeaker.
- Cleaning: Use a soft, dry cloth to gently wipe the speaker cone and frame. Avoid using harsh chemicals or abrasive materials.
- Inspection: Periodically check speaker connections for tightness and signs of corrosion. Inspect the speaker cone and surround for any tears or damage.
- Environmental Factors: Protect the speakers from direct sunlight, extreme temperatures, and moisture.
Figure 3: Angled front view of the DS18 PRO-X12.4M loudspeaker, showcasing its black non-pressed paper cone and red steel basket.
7. Troubleshooting
If you experience issues with your loudspeaker, refer to the following common problems and solutions:
- No Sound:
- Check all wiring connections from the amplifier to the speaker.
- Verify the amplifier is powered on and functioning correctly.
- Ensure the audio source is playing and volume is up.
- Distorted Sound:
- Reduce the volume level. Distortion often occurs when the amplifier or speaker is overdriven.
- Check amplifier gain settings to ensure they are not too high.
- Inspect speaker cone and surround for physical damage.
- Low Volume:
- Confirm correct wiring polarity.
- Check amplifier output and settings.
- Ensure the audio source volume is adequate.
If problems persist after performing these checks, contact DS18 customer support or a qualified car audio technician.
8. Warranty Information
The DS18 PRO-X12.4M Loudspeaker comes with a limited manufacturer's warranty. For specific details regarding warranty coverage, terms, and conditions, please refer to the official DS18 website or contact their customer service directly. Keep your proof of purchase for warranty claims.
9. Support
For further assistance, technical support, or inquiries about your DS18 PRO-X12.4M Loudspeaker, please visit the official DS18 website or contact their customer support department. You can find contact information and additional resources on their website.
Figure 4: Rear view of the loudspeaker, displaying the product label with model information and specifications.
