Infinity KAPPA-1000W 10-inch Subwoofer User Manual

Introduction

This manual provides instructions for the installation, operation, and maintenance of your Infinity KAPPA-1000W 10-inch Subwoofer. The KAPPA-1000W features Selectable Smart Impedance (SSI) for flexible system configuration, an aero-cooling design for enhanced reliability, and glass-fiber cones for clear audio reproduction.

Safety Information

Please read all safety instructions before installing or operating this product. Failure to follow these instructions may result in injury or damage to the product or vehicle.

• Always disconnect the vehicle's battery negative terminal before beginning any installation.
• Ensure proper wiring and connections to prevent electrical shorts or damage.
• Mount the subwoofer securely to prevent movement during vehicle operation.
• Avoid exposing the subwoofer to excessive moisture or extreme temperatures.
• Consult a professional installer if you are unsure about any part of the installation process.

What's in the Box

The package for the Infinity KAPPA-1000W subwoofer typically includes:

• Infinity KAPPA-1000W 10-inch Subwoofer
• Owner's Manual (this document)
• Mounting hardware (if applicable, check packaging)

Note: Specific contents may vary. Please check your product packaging.

Setup and Installation

Proper installation is crucial for optimal performance and longevity of your subwoofer.

1. Mounting the Subwoofer

The KAPPA-1000W is designed for car mount applications. Ensure the mounting location is sturdy and provides adequate clearance for the subwoofer's dimensions (14.5"D x 17"W x 13.38"H). Secure the subwoofer using appropriate mounting hardware to prevent vibration and movement.

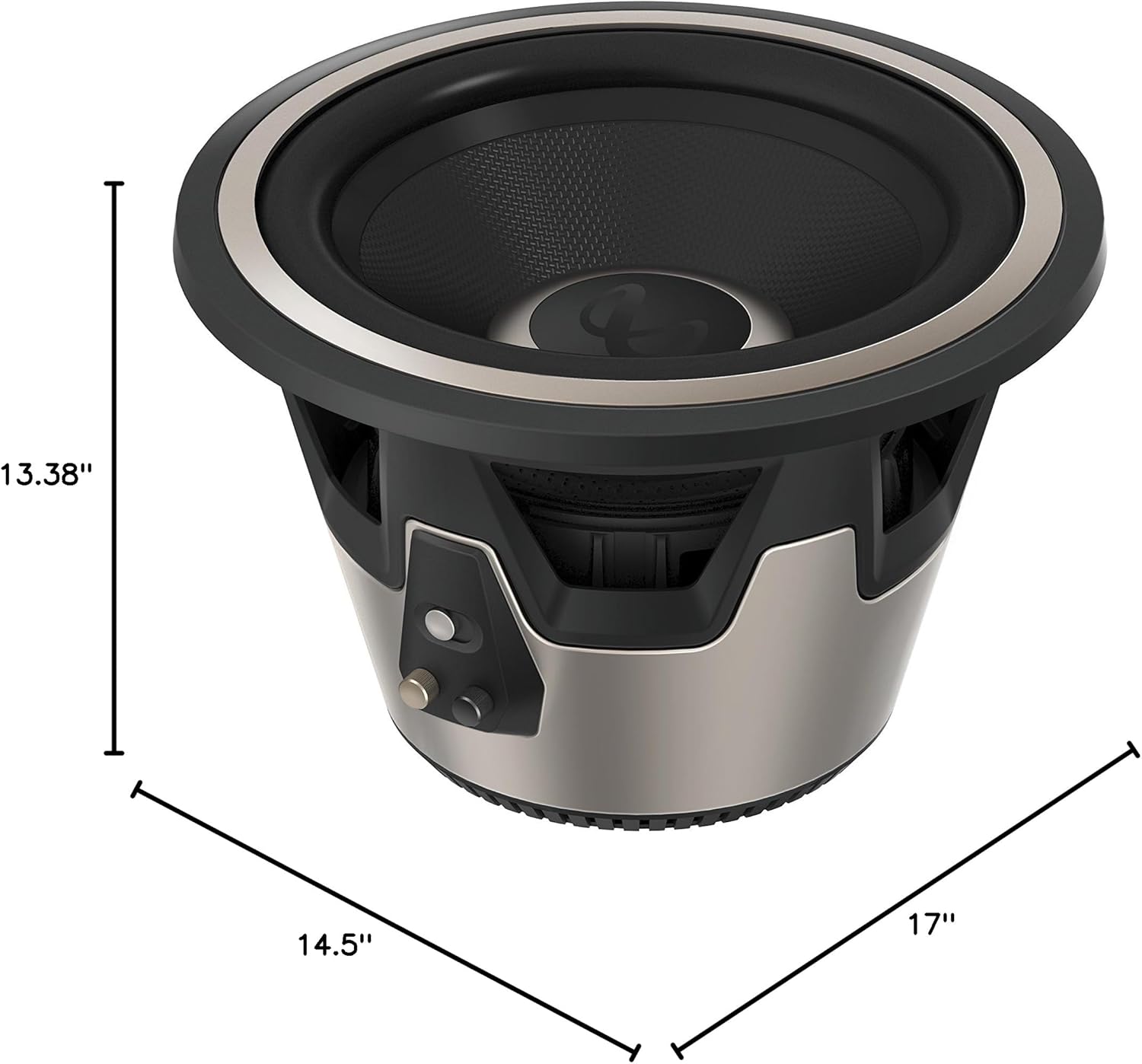

Image: The Infinity KAPPA-1000W subwoofer shown with its dimensions: 14.5 inches deep, 17 inches wide, and 13.38 inches high. This image helps in planning the installation space.

2. Selectable Smart Impedance (SSI)

The KAPPA-1000W features SSI, allowing you to select between 2-ohm or 4-ohm impedance. This flexibility enables compatibility with a wider range of amplifiers and system configurations. Locate the SSI switch on the subwoofer's terminal panel.

Image: A close-up view of the Infinity KAPPA-1000W subwoofer's side, highlighting the SSI (Selectable Smart Impedance) switch and terminals. The switch allows selection between 2-ohm and 4-ohm impedance.

• To select 2-ohm impedance: Flip the switch to the '2Ω' position.
• To select 4-ohm impedance: Flip the switch to the '4Ω' position.

Important: Always ensure the amplifier is compatible with the selected impedance. Change the impedance setting only when the subwoofer is disconnected from the amplifier.

3. Wiring Connections

Connect the subwoofer to your amplifier using high-quality speaker wire. The terminals on the KAPPA-1000W accommodate up to 8-gauge wire (8.37mm² cross-section) for efficient power transfer. Ensure correct polarity (+ to + and - to -) to avoid phase issues.

Image: A top-down view of the Infinity KAPPA-1000W subwoofer, showcasing the speaker cone and surround. This view is typical for understanding the overall design and placement.

4. Aero-Cooling Design and Glass-Fiber Cones

The subwoofer incorporates a two-sided, ducted airflow design for voice coil cooling, which enhances power handling and reliability. The glass-fiber cones are designed to minimize distortion, providing accurate and detailed bass reproduction.

Operating Instructions

Once installed and wired correctly, the KAPPA-1000W subwoofer operates as part of your car audio system.

• Power On/Off: The subwoofer will power on and off with your car audio system, provided it is connected to a switched power source from your amplifier.
• Audio Source: Ensure your head unit or audio source is providing a signal to the amplifier connected to the subwoofer.
• Volume Control: Adjust the subwoofer's output level via your amplifier's gain control and your head unit's subwoofer level control.
• Voice Control: If your car audio system supports voice control and is connected to compatible devices (Smartphone, MP3 Player, Laptop), you may be able to control certain audio functions via voice commands. The subwoofer itself does not have integrated voice control but responds to the audio signals it receives.

Maintenance

The Infinity KAPPA-1000W subwoofer requires minimal maintenance to ensure long-term performance.

• Cleaning: Use a soft, dry cloth to wipe the subwoofer's exterior. Avoid using harsh chemicals or abrasive cleaners.
• Inspection: Periodically check all wiring connections to ensure they are secure and free from corrosion.
• Environment: Keep the subwoofer free from dust, debris, and direct sunlight. Ensure proper ventilation around the subwoofer and its enclosure.

Troubleshooting

If you experience issues with your subwoofer, refer to the following common problems and solutions:

If the problem persists after trying these solutions, contact customer support or a qualified technician.

Specifications

Warranty Information

The Infinity KAPPA-1000W subwoofer is covered by a 1-Year Manufacturer Warranty. This warranty covers defects in materials and workmanship under normal use. Please retain your proof of purchase for warranty claims.

For detailed warranty terms and conditions, please refer to the warranty card included with your product or visit the official Infinity website.

Customer Support

If you require assistance with your Infinity KAPPA-1000W subwoofer, please contact Infinity customer support.

• Online Support: Visit the official Infinity website for FAQs, support articles, and contact information.
• Telephone Support: Refer to your product packaging or the Infinity website for regional customer service phone numbers.

When contacting support, please have your product model number (KAPPA-1000W) and proof of purchase available.
