Product Overview
The Lepro LED Strip Light provides versatile and efficient lighting for various indoor applications. This dimmable 16.4ft (5m) strip features 300 warm white LEDs (3000K) and comes with a dimmer and a 12V power adapter, offering a complete lighting solution. Its strong 3M adhesive backing ensures easy and secure installation.
Image: Complete Lepro LED Strip Light kit, showing the coiled LED strip, dimmer switch, and power adapter.
Key Features:
- Dimmable: The 16.4ft LED strip includes a dimmer for adjustable brightness, enhancing convenience and energy saving.
- Strong 3M Adhesive: Features professional and strong 3M adhesive for secure mounting. Extra mounting brackets/fixing clips are also included.
- Standard Kit: Comes as a complete kit with a 16.4ft (5m) non-waterproof light strip, a dimmer, and a 1.5A 12V US plug power adapter.
- Bright and Safe: Equipped with 300 LEDs for ample brightness. Operates at a safe 12V DC, ensuring strong heat dissipation and long service life.
- Widely Used: Ideal for decorating and lighting various indoor spaces such as kitchens, living rooms, bedrooms, TV backgrounds, mirrors, walls, stairs, ceilings, and cabinets.
Safety Information
Please read all safety instructions carefully before installation and use. Failure to follow these instructions may result in electric shock, fire, or other hazards.
- This product is designed for indoor use only. Do not expose to water or high humidity.
- Ensure the power supply is disconnected before installation or maintenance.
- Use only the provided 12V DC power adapter. Using an incompatible power supply may damage the strip and pose a fire risk.
- Do not bend the LED strip sharply or at angles less than 90 degrees, as this can damage the circuit board.
- Do not cover the LED strip with materials that could impede heat dissipation, as this may lead to overheating.
- Keep out of reach of children.
Image: Close-up of the LED strip and the UL Listed 12V power adapter, highlighting the "Safe to Use" feature.
Package Contents
Your Lepro LED Strip Light package should contain the following items:
- 1 x 16.4ft (5m) Non-Waterproof LED Strip Light
- 1 x Dimmer Switch
- 1 x 1.5A 12V Power Adapter (US Plug)
- Additional Mounting Brackets/Fixing Clips (if applicable)
Installation Guide
Follow these steps for a simple and secure installation of your LED strip light:
- Step 1: Prepare the Surface
Ensure the surface where you plan to install the LED strip is clean, dry, and smooth. Wipe the surface thoroughly to remove any dust, dirt, or grease. A clean surface ensures optimal adhesion of the 3M tape.
Image: Step-by-step guide for easy installation, including cleaning the surface, removing adhesive, cutting, and pressing the strip.
- Step 2: Measure and Cut (Optional)
If the 16.4ft length is too long for your application, you can cut the LED strip at designated cutting marks (usually indicated by a copper pad and a scissor icon). Ensure you cut only at these marks to avoid damaging the circuit.
- Step 3: Remove Adhesive Backing
Carefully peel off the protective backing from the 3M adhesive tape on the back of the LED strip. Peel only a small section at a time to prevent the adhesive from collecting dust or sticking prematurely.
- Step 4: Attach the LED Strip
Press the exposed adhesive side of the LED strip firmly onto the prepared surface. Work your way along the desired path, pressing down to ensure good contact. For added security, use the included mounting clips if necessary, especially around corners or areas with potential stress.
- Step 5: Connect Power
Connect the LED strip to the dimmer switch, and then connect the dimmer switch to the 12V power adapter. Finally, plug the power adapter into a standard wall outlet. Ensure all connections are secure.
Image: Schematic diagram illustrating how to connect the 5-meter LED strip to the dimmer and power adapter.
Operating Instructions
The Lepro LED Strip Light is designed for simple operation:
- Power On/Off: Once connected to power, the LED strip can be turned on or off using the rotary knob on the dimmer switch.
- Adjust Brightness: Rotate the knob on the dimmer switch clockwise to increase brightness and counter-clockwise to decrease brightness. The dimmer allows for any-level adjustment from 10% to 100% illumination.
Image: Visual representation of the dimmable feature, showing the dimmer knob and the LED strip at 10%, 50%, and 100% brightness levels.
Applications:
The flexibility and dimmable nature of the Lepro LED Strip Light make it suitable for a wide range of decorative and functional lighting purposes:

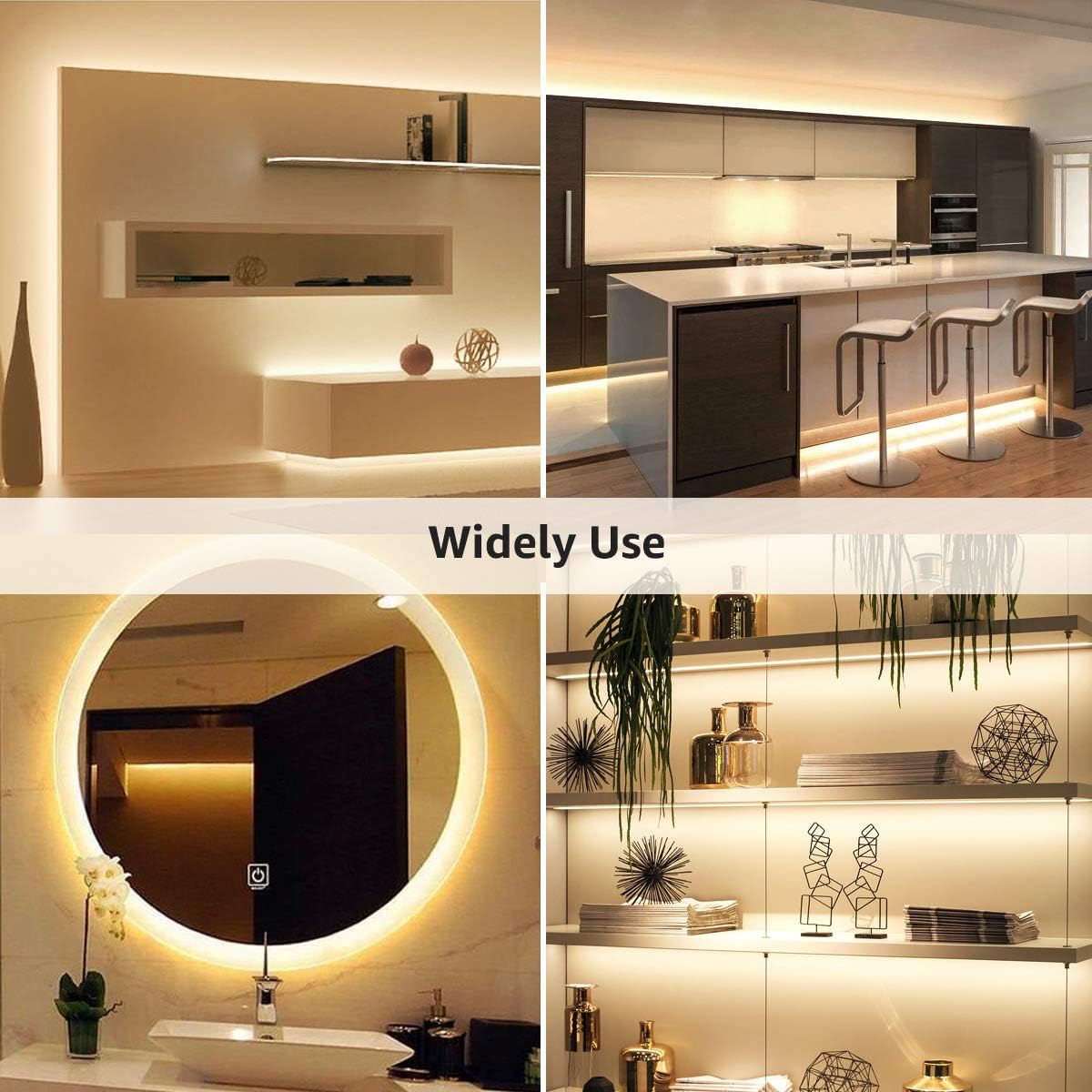

Image: Examples of wide usage, including lighting for shelves, kitchen cabinets, vanity mirrors, and display cases.
Image: Examples showcasing the flexibility, cuttable design, and DIY potential of the LED strip lights in various installations.
Maintenance
To ensure the longevity and optimal performance of your Lepro LED Strip Light, follow these simple maintenance guidelines:
- Cleaning: Disconnect the power before cleaning. Gently wipe the LED strip with a soft, dry cloth. Do not use abrasive cleaners or solvents, as they may damage the strip or its adhesive.
- Inspection: Periodically check the strip for any signs of damage, such as cuts, frayed wires, or loose connections. If any damage is found, discontinue use and contact customer support.
- Storage: If storing the LED strip for an extended period, ensure it is coiled loosely and kept in a cool, dry place away from direct sunlight and extreme temperatures.
Troubleshooting
If you encounter issues with your LED Strip Light, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Lights do not turn on. | No power, loose connection, faulty adapter. | Check if the power adapter is securely plugged into the outlet. Ensure all connections (strip to dimmer, dimmer to adapter) are firm. Test the outlet with another device. |
| Lights are dim or flickering. | Dimmer setting too low, insufficient power, damaged section. | Adjust the dimmer knob to increase brightness. Ensure the power adapter is providing sufficient power. Inspect the strip for any visible damage. |
| Adhesive is not sticking. | Surface not clean or smooth, old adhesive. | Clean the surface thoroughly before application. Ensure the surface is smooth and non-porous. Use the included mounting clips for extra support. |
| Part of the strip is not lighting up. | Damage to the circuit, improper cutting. | This usually indicates damage to a section of the strip. If the strip was cut, ensure it was cut only at the designated marks. This issue may require replacement of the strip. |
Specifications
| Attribute | Detail |
|---|---|
| Brand | Lepro |
| Model Number | PR4100067-WW-US-NF |
| Light Source Type | LED |
| Light Color | Warm White |
| Color Temperature | 3000 Kelvin |
| Number of LEDs | 300 |
| Length | 16.4 ft (5m) |
| Voltage | 12V DC |
| Wattage | 15 watts |
| Luminous Flux | 1200 Lumen |
| Control Method | Remote (Dimmer Knob) |
| Indoor/Outdoor Usage | Indoor |
| Water Resistance Level | Not Water Resistant |
| Material | Plastic |
| Item Weight | 7.4 ounces |
| Package Dimensions | 4.49 x 4.37 x 2.64 inches |
Warranty and Support
The Lepro LED Strip Light is covered by a 2-year warranty from the date of purchase. This warranty covers defects in materials and workmanship under normal use.
For warranty claims, technical support, or any questions regarding your product, please contact Lepro customer service through the retailer's platform or the official Lepro website. Please have your purchase receipt and model number ready when contacting support.
