Golden Lighting 7936-4 BS-BS-CH Atom Collection Chandelier Instruction Manual

1. Introduction

This manual provides detailed instructions for the safe installation, operation, and maintenance of your Golden Lighting 7936-4 BS-BS-CH Atom Collection Chandelier. Please read all instructions carefully before beginning installation and retain this manual for future reference.

2. Safety Information

• WARNING: To avoid electric shock, ensure power is turned off at the circuit breaker or fuse box before installation, servicing, or changing bulbs.
• All electrical connections must be in accordance with local codes, ordinances, or the National Electric Code (NEC). Consult a qualified electrician if you are unfamiliar with proper electrical wiring connections.
• This fixture is intended for indoor use only.
• Do not exceed the maximum wattage specified for the bulbs.
• Handle glass components with care to prevent breakage.
• Ensure the fixture is securely mounted to a structurally sound ceiling junction box.

3. Package Contents

Carefully unpack your new fixture and lay out all parts on a clear surface. Verify that all components listed below are present.

• Chandelier Frame (Spherical structure with light sockets)
• Mounting Canopy
• Downrod(s)
• Mounting Hardware (Crossbar, mounting screws, wire nuts)
• Instruction Manual

4. Tools Required (Not Included)

• Phillips Head Screwdriver
• Flathead Screwdriver
• Wire Strippers
• Pliers
• Electrical Tape
• Safety Glasses
• Ladder

5. Setup and Installation

Follow these steps to properly install your chandelier. Professional installation is recommended.

1. Turn Off Power: Locate the circuit breaker or fuse box that supplies power to the light fixture outlet box. Turn off the power completely.
2. Prepare Mounting: Attach the mounting crossbar to the outlet box using the provided mounting screws. Ensure it is securely fastened.
3. Assemble Downrod: Thread the downrod(s) onto the fixture body and then onto the mounting canopy. Adjust the length as desired.
4. Wiring Connections:
   • Connect the bare copper (ground) wire from the fixture to the green or bare copper ground wire from the outlet box using a wire nut.
   • Connect the ribbed (neutral) wire from the fixture to the white (neutral) wire from the outlet box using a wire nut.
   • Connect the smooth (hot) wire from the fixture to the black (hot) wire from the outlet box using a wire nut.
   • Ensure all wire connections are secure and wrap them with electrical tape if necessary.
5. Secure Fixture: Carefully push the wired connections into the outlet box. Raise the mounting canopy to the ceiling and secure it to the mounting crossbar using the canopy screws.
6. Install Bulbs: Insert four (4) E12 base bulbs (not included) into the sockets. Do not exceed the maximum wattage of 60W per bulb.
7. Restore Power: Turn the power back on at the circuit breaker or fuse box. Test the fixture.

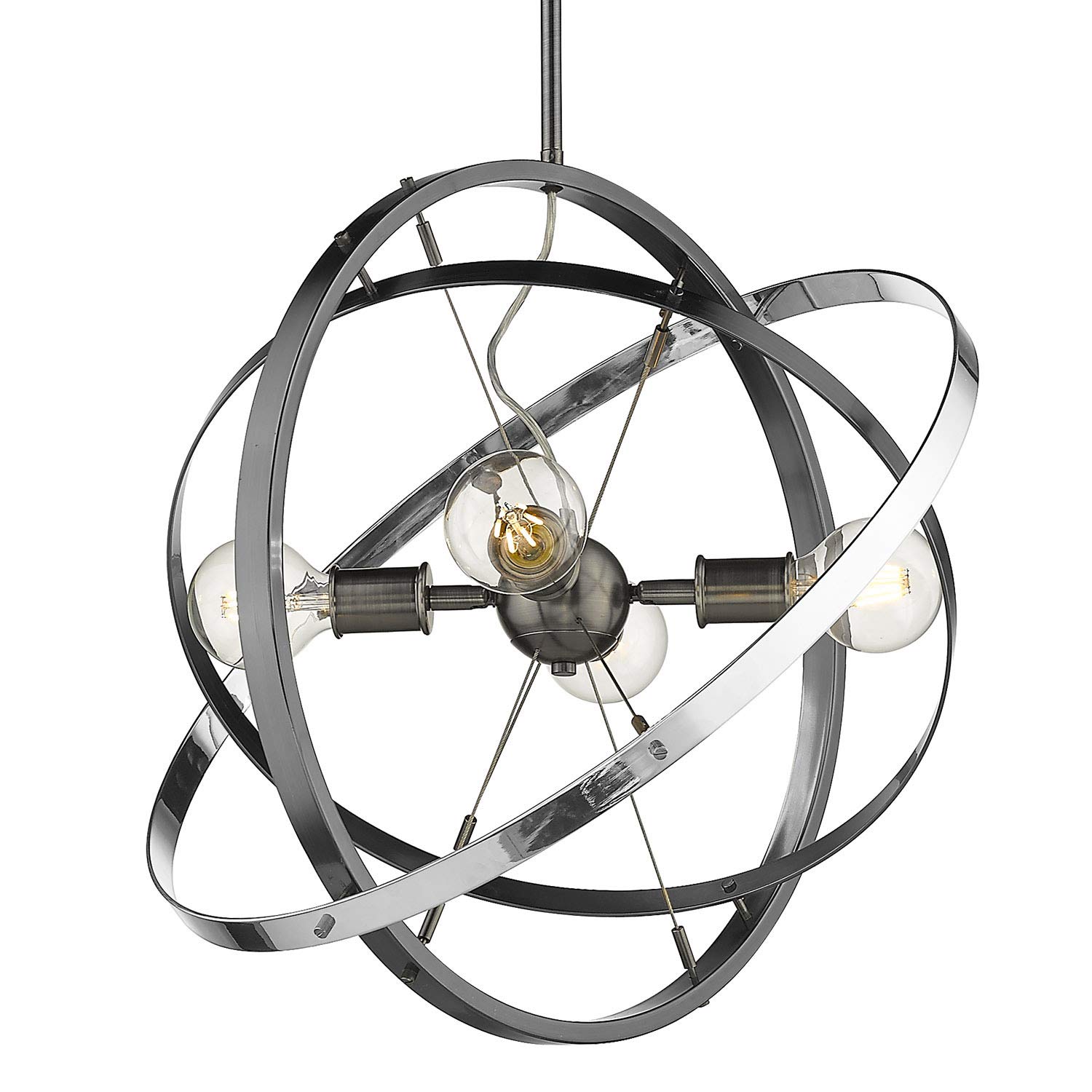

Image 1: The Golden Lighting 7936-4 BS-BS-CH Atom Collection Chandelier in Brushed Steel finish, featuring a spherical design with four exposed light bulbs.

6. Operating Instructions

Once installed, operate your chandelier using a standard wall switch connected to the fixture's electrical circuit. Ensure the correct E12 base bulbs are installed and within the specified wattage limits.

7. Maintenance

• Cleaning: To clean the fixture, turn off the power and allow it to cool. Wipe with a soft, dry cloth. Do not use abrasive cleaners or solvents, as they may damage the finish.
• Bulb Replacement: Turn off the power before replacing bulbs. Allow old bulbs to cool before removing. Replace with new E12 base bulbs, ensuring they do not exceed 60 watts each.
• Periodic Checks: Periodically check all connections and mounting hardware to ensure they remain secure.

8. Troubleshooting

• Fixture does not light:
  • Ensure power is on at the circuit breaker.
  • Check that the wall switch is in the 'ON' position.
  • Verify that bulbs are correctly installed and not faulty.
  • Check wiring connections inside the canopy.
• Flickering lights:
  • Ensure bulbs are fully tightened into their sockets.
  • Check for loose wiring connections.
  • Confirm bulbs are compatible with any dimmer switches, if applicable.

9. Specifications

10. Warranty and Support

This Golden Lighting fixture comes with a 1-year manufacturer's warranty from the date of purchase, covering defects in materials and workmanship. Please retain your proof of purchase for warranty claims.

For technical support, replacement parts, or warranty inquiries, please contact Golden Lighting customer service. Refer to the product packaging or the Golden Lighting website for current contact information.
