Important Safety Information
WARNING: For outdoor use only. Improper installation, adjustment, alteration, service or maintenance can cause injury or property damage. Read the installation, operating, and maintenance instructions thoroughly before installing or servicing this equipment.
This fire pit is designed for use with either Liquid Propane (LP) gas or Natural Gas (NG). Conversion to Natural Gas must be performed by a Certified Gas Technician. An external gas line is required for connection to a natural gas source.
Proposition 65 Warning: This product can expose you to chemicals including carbon monoxide, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Product Overview
The Real Flame Riverside Gas Fire Bowl is a durable, fiber-cast concrete fire pit designed to enhance outdoor spaces. It features a 50,000 BTU stainless steel burner and electronic push-button ignition for ease of use. This model includes a natural gas conversion kit, allowing flexibility in fuel type.
- Material: Fiber-cast concrete (Stone finish)
- Heat Output: 50,000 BTUs
- Ignition: Battery-operated electronic push-button
- Fuel Type: Liquid Propane (LP) or Natural Gas (NG) with included conversion kit
- Included Accessories: 8-inch LP hose and regulator, lava rock filler, tank seat, protective cover.
Image: The Riverside Fire Pit in an outdoor patio setting, showcasing its design and active flame.
Setup Instructions
- Unpacking: Carefully remove all components from the packaging. Inspect for any damage.
- Placement: Position the fire pit on a level, non-combustible surface outdoors, away from any flammable materials or structures. Ensure adequate clearance as specified in the full safety manual.
- Lava Rock Placement: Distribute the provided lava rock evenly over the burner pan, ensuring not to block the ignition electrode or burner holes.
Image: Close-up view of the lava rock distributed around the stainless steel burner ring.
- LP Gas Connection (Propane):
- Place the LP tank on the included tank seat.
- Connect the 8-inch LP hose and regulator to the LP tank valve. Hand-tighten securely.
- Ensure all connections are tight before proceeding.
- Natural Gas Conversion (Optional):
- This conversion MUST be performed by a certified gas technician.
- The included Natural Gas conversion kit contains the necessary components.
- An external gas line is required for connection to a natural gas source.
Image: Components of the Natural Gas conversion kit, including hose and fittings.
- Battery Installation: Install one AAA battery (not included) into the electronic ignition module.

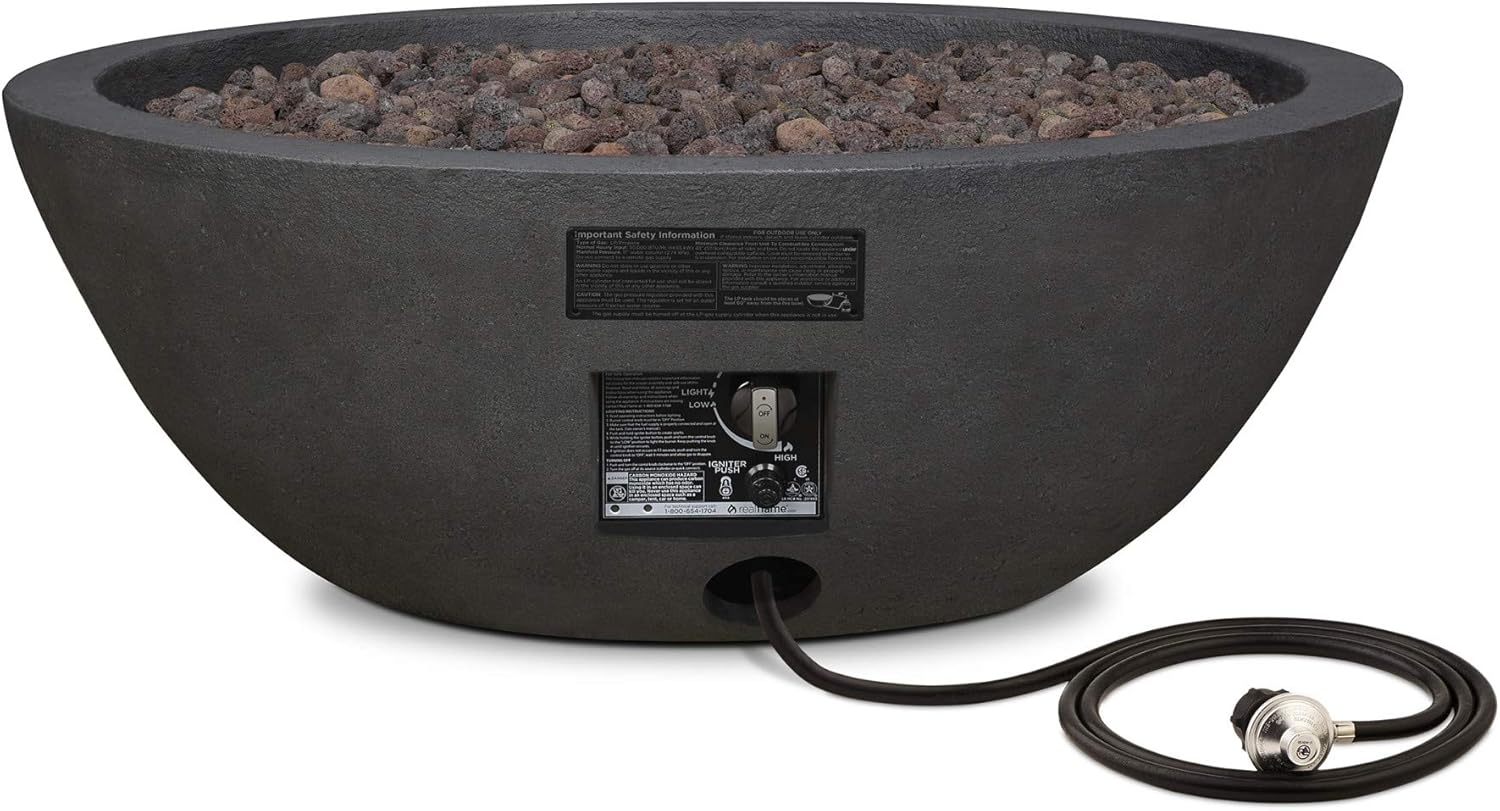

Image: Rear view of the fire pit, highlighting the control panel and the connected LP gas hose and regulator.
Operating Instructions
- Before Lighting: Ensure the gas supply valve is open (for LP tank) or the main gas line is on (for NG).
- Lighting the Fire Pit:
- Locate the control knob on the side of the fire pit.
- Push and hold the control knob in, then turn it counter-clockwise to the "LOW" position.
- While holding the knob in, press the electronic igniter button repeatedly until the burner ignites. You should hear a clicking sound and see the flame.
- Once ignited, continue to hold the control knob in for 10-15 seconds to allow the thermocouple to heat up and engage.
- Release the control knob. If the flame extinguishes, repeat the lighting process.
- Adjusting the Flame: Once lit, turn the control knob to adjust the flame height from "LOW" to "HIGH" as desired.
- Shutting Down:
- Turn the control knob clockwise to the "OFF" position.
- Close the gas supply valve on the LP tank or turn off the main gas line for NG.
- Allow the fire pit to cool completely before covering or moving.
Maintenance
- Cleaning: Clean the exterior surfaces with a soft cloth and mild soap. Do not use abrasive cleaners.
- Lava Rock: Periodically inspect lava rock for debris or blockages. Replace if significantly deteriorated.
- Protective Cover: Use the included protective cover when the fire pit is not in use to shield it from weather elements.
- Gas Connections: Regularly check all gas connections and hoses for leaks or damage. Perform a leak test with soapy water if a gas odor is detected.
- Burner: Keep the burner ports clear of insects and debris.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Burner does not light |
|
|
| Low flame or flickering |
|
|
| Flame goes out after releasing knob |
|
|
Specifications
- Model Number: C539LP-SHL
- Brand: Real Flame
- Material: Fiber-cast Concrete (Stone)
- Product Dimensions: 36.25"D x 36.25"W x 13"H
- Shape: Round
- Finish Type: Painted
- Item Weight: 99 Pounds
- Fuel Type: Liquid Propane (LP) or Natural Gas (NG)
- Heat Output: 50,000 BTUs
- Color: Shale
- UPC: 752370053925
Image: Overhead view of the fire pit with its diameter and height dimensions indicated.
Warranty and Support
For detailed warranty information, product registration, or technical support, please refer to the documentation included with your product or visit the official Real Flame website. Keep your purchase receipt for warranty claims.
Manufacturer: Real Flame
