LogiLink USB 2.0 Connection Cable

1. Product Overview

This LogiLink USB 2.0 cable is designed to connect Micro-USB devices such as smartphones, tablets, and e-readers to standard USB (Type A) ports found on laptops, desktop computers, external hard drives, power adapters, and wall/car chargers. It provides a reliable and efficient solution for both high-speed data synchronization and charging.

Figure 1: LogiLink USB 2.0 Cable (USB-A to 90° Angled Micro-USB).

2. Key Features

• Universal Compatibility: Connects USB (Type A) male to Micro-USB male, compatible with a wide range of Micro-USB enabled devices.
• High-Speed Performance: Supports USB 2.0 standard for data transfer rates up to 480 Mbps and efficient charging.
• Angled Micro-USB Connector: Features a 90-degree angled Micro-USB plug for convenient use in tight spaces or during device usage (e.g., gaming, video watching) to prevent cable strain.
• Durable Construction: Equipped with a flexible, premium quality cotton braided cable jacket for enhanced durability and tangle resistance.
• Optimal Length: 1 meter (approximately 3.3 feet) length provides flexibility without excessive clutter.
• Distinctive Design: Vibrant red color for easy identification.

Figure 2: Identification of USB-A and Micro-B Connectors.

Figure 3: The 90-degree angled Micro-USB connector design.

3. Setup and Connection

Connecting your LogiLink USB 2.0 cable is a straightforward plug-and-play process. No special drivers or software are required for basic functionality.

1. Identify Ports: Locate the standard USB Type-A port on your host device (e.g., computer, wall charger, power bank) and the Micro-USB port on your target device (e.g., smartphone, tablet).
2. Connect USB-A: Insert the USB Type-A end of the LogiLink cable into the corresponding port on your host device. Ensure it is fully seated.
3. Connect Micro-USB: Carefully insert the 90-degree angled Micro-USB end into the Micro-USB port on your target device. The angled design allows for a more ergonomic connection, especially when using the device during charging or data transfer.

Once connected, your device should automatically begin charging or be recognized by your computer for data transfer, depending on the host device.

4. Operating Instructions

4.1. Charging Your Device

To charge your Micro-USB device:

• Connect the USB-A end of the cable to a compatible USB power source (e.g., wall adapter, car charger, power bank, computer USB port).
• Connect the Micro-USB end to your smartphone, tablet, or other Micro-USB device.
• Your device's charging indicator should activate, signifying that it is receiving power.

Figure 4: Charging a smartphone using the LogiLink cable and a power bank.

4.2. Data Synchronization

To transfer data between your Micro-USB device and a computer:

• Connect the USB-A end of the cable to an available USB port on your computer.
• Connect the Micro-USB end to your smartphone, tablet, or other Micro-USB device.
• Your computer should recognize the connected device. You may need to select a "File Transfer" or "MTP" mode on your device if prompted.
• You can now access your device's storage to transfer files, photos, videos, and other data. The cable supports data transfer speeds up to 480 Mbps, typical for USB 2.0.

Figure 5: High-speed data transfer at 480 Mbps.

4.3. Enhanced User Experience (Gaming/Media)

The 90-degree angled Micro-USB connector is particularly beneficial for users who frequently use their devices while charging, such as during mobile gaming or watching videos. This design helps to:

• Reduce strain on the cable and the device's port.
• Provide a more comfortable grip, as the cable runs alongside the device rather than protruding directly.

Figure 6: Ergonomic design for comfortable use during gaming.

Figure 7: Ideal for mobile gaming and media consumption.

5. Care and Maintenance

Proper care will extend the lifespan of your LogiLink cable:

• Storage: Store the cable in a cool, dry place away from direct sunlight and extreme temperatures. Avoid tightly coiling or bending the cable excessively.
• Handling: Always grasp the connector housing when plugging or unplugging the cable. Avoid pulling directly on the cable itself, as this can damage the internal wires.
• Cleaning: If the connectors become dirty, gently wipe them with a dry, lint-free cloth. Do not use liquid cleaners or abrasive materials.
• Protection: Keep the cable away from pets and young children to prevent chewing or accidental damage.

6. Troubleshooting

If you encounter issues with your LogiLink cable, consider the following common solutions:

• Device Not Charging/Syncing:
  • Ensure both ends of the cable are fully and securely inserted into their respective ports.
  • Try connecting the cable to a different USB port on your computer or a different power adapter.
  • Test the cable with another compatible device to determine if the issue is with the cable or the device/port.
  • Check the Micro-USB port on your device for any debris or lint that might be obstructing the connection.
• Slow Charging/Data Transfer:
  • Ensure the power source (e.g., wall charger) provides sufficient current for your device. Some devices require higher amperage for fast charging.
  • Verify that your computer's USB port is functioning correctly and is not overloaded with other devices.
  • Close any unnecessary applications on your computer or device that might be consuming bandwidth or processing power.

If the problem persists after trying these steps, please refer to the support section.

7. Technical Specifications

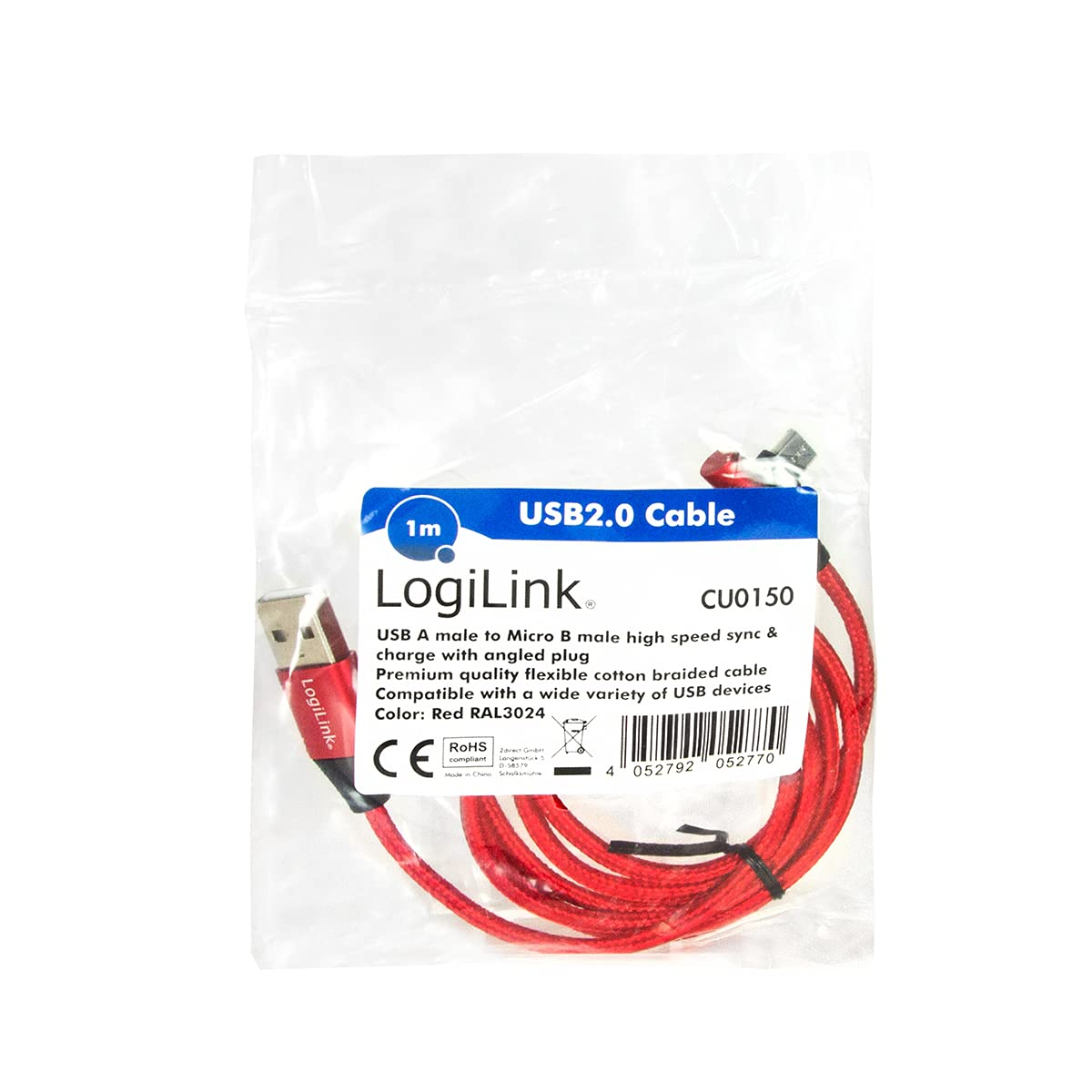

Figure 8: Product packaging with key specifications.

Figure 9: LogiLink cable and its packaging.

8. Warranty Information

LogiLink products are manufactured to high-quality standards and are typically covered by a manufacturer's warranty. For detailed information regarding the warranty period, terms, and conditions applicable to your LogiLink USB 2.0 Connection Cable, please refer to the warranty card included with your purchase or visit the official LogiLink website.

Please retain your proof of purchase for warranty claims.

9. Customer Support

Should you require further assistance, have questions, or need to report an issue with your LogiLink USB 2.0 Connection Cable, please contact LogiLink customer support through their official channels:

• Website: Visit the official LogiLink website for FAQs, support resources, and contact forms.
• Email/Phone: Refer to the LogiLink website or product packaging for specific email addresses or phone numbers for your region.

When contacting support, please have your product model number (CU0150) and proof of purchase ready.
