Earthtec W11307244 Washing Machine Lid Lock Assembly Instruction Manual

1. Product Overview

This manual provides instructions for the Earthtec W11307244 Washing Machine Lid Lock Assembly, also known as W10682535. This component is designed as a direct replacement part for various washing machine models from brands including Whirlpool, Maytag, Amana, and Kenmore.

The lid lock assembly ensures the washing machine lid remains securely closed during operation, which is crucial for safety and proper functioning of the wash cycle. It addresses common issues such as the washer door not opening or closing, the lid lock light blinking, or the washer failing to drain or spin.

Compatible Models

This lid lock assembly is compatible with a range of washing machine models. Key compatible models include:

• Whirlpool: WTW5000DW1, WTW5000DW2, WTW4816FW2
• Maytag: MVWX655DW1, MVWX655DW2, MVWC565FW1
• Amana: NTW4516FW3
• Kenmore: Series 110, 200, 500
• Roper: RTW4516FW2
• Crosley

It also replaces part numbers W10838613VP, W10838613, W11253733, PS12704713, and AP6832601.

2. Specifications

The following table details the specifications for the W11307244 Washing Machine Lid Lock Assembly:

3. Safety Information

Before attempting any repair or installation on your washing machine, always prioritize safety. Failure to follow these safety guidelines may result in electric shock, injury, or damage to the appliance.

• Disconnect Power: Always unplug the washing machine from the electrical outlet before starting any work.
• Wear Protective Gear: Use appropriate personal protective equipment, such as gloves, to prevent injury.
• Professional Assistance: If you are unsure about any step or uncomfortable performing the repair, consult a qualified appliance technician.
• Handle with Care: Be cautious when handling tools and appliance components to avoid damage or injury.

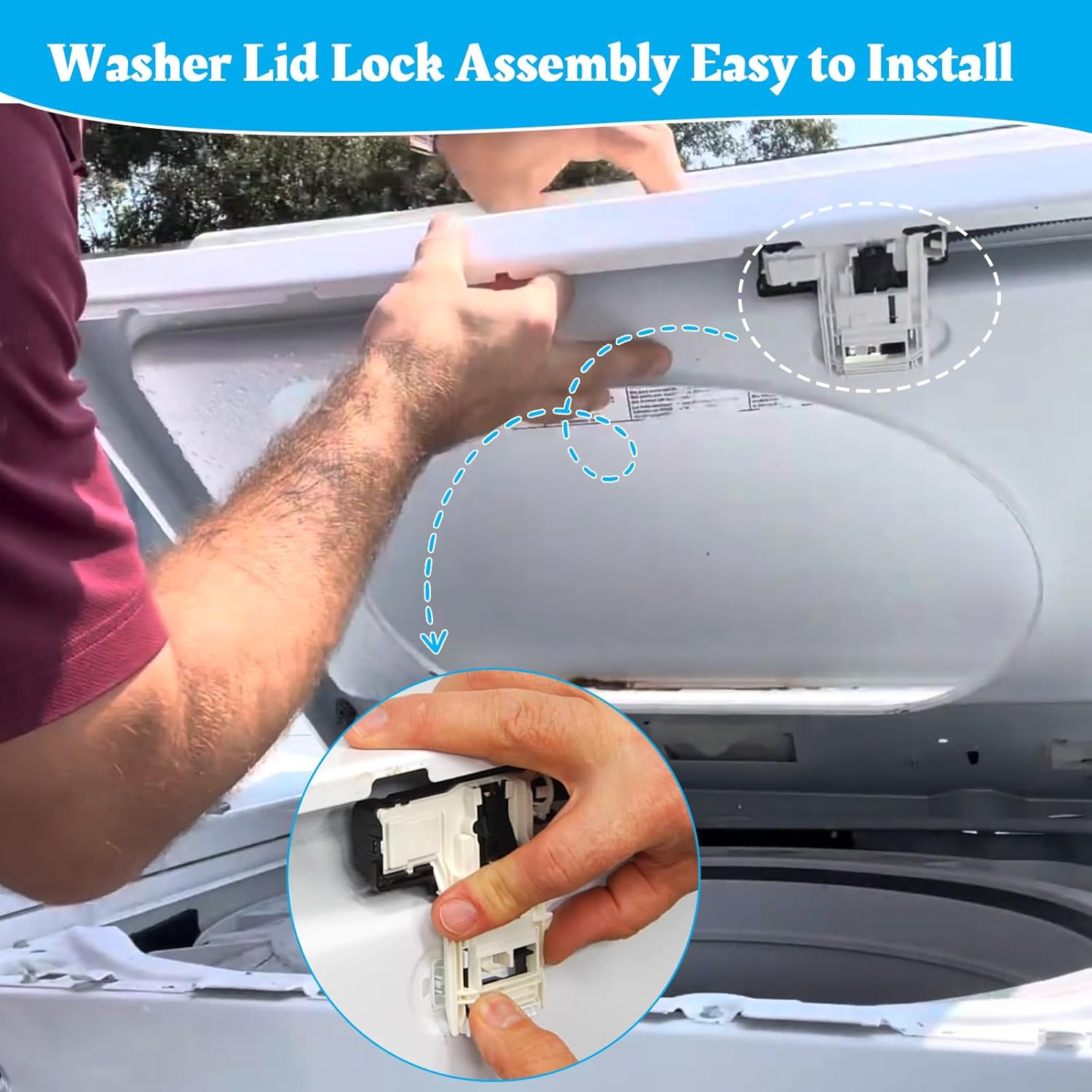

4. Setup & Installation

This section provides a step-by-step guide for replacing the washing machine lid lock assembly. A screwdriver is typically the only tool required.

Installation Steps:

1. Power Off: Ensure the washing machine is completely powered off and unplugged from the wall outlet.
2. Access Control Panel: Use a screwdriver to remove the screws that secure the washing machine's control panel. Carefully lift or slide the control panel to gain access to the internal components.
3. Locate Old Lid Lock: Identify the existing lid lock assembly and its connecting wire harness.
4. Disconnect Wiring: Carefully pull off the door lock connecting wire from the old assembly.
5. Remove Old Lock: Unscrew or unclip the old lid lock assembly from its position and remove it.
6. Install New Lock: Place the new W11307244 lid lock assembly into the original position. Ensure it is securely fastened with screws or clips.
7. Connect Wiring: Reconnect the wire harness to the new lid lock assembly.
8. Reassemble: Reattach the control panel and secure it with the screws.
9. Test: Plug the washing machine back into the outlet and test its operation.

Installation Tips:

• If the lid does not close properly or the lock appears stuck after replacement, unplug the machine. Reach into the lid latch hole and press down on the small white tab located on the left side of the lock mechanism. Then, plug the machine back in; the lock should reset and unlock after a few seconds.
• Refer to your specific washing machine model's service manual or online resources for detailed diagrams if needed.

Installation Video Guides:

5. Operating Instructions

Once the W11307244 lid lock assembly is correctly installed, the washing machine's operation should return to normal. The lid lock mechanism will automatically engage when a wash cycle begins, preventing the lid from being opened during operation. It will disengage once the cycle is complete or paused, allowing access to the drum.

• Ensure the lid is fully closed before starting a wash cycle.
• Do not force the lid open if the lock is engaged. Wait for the cycle to complete or for the lock to disengage automatically.

6. Maintenance

The W11307244 lid lock assembly is designed for durability and requires minimal maintenance. However, periodic inspection can help ensure its longevity and proper function:

• Visual Inspection: Occasionally check the lid lock area for any signs of wear, damage, or obstructions.
• Cleaning: Keep the area around the lid lock and strike plate clean from lint, detergent residue, or foreign objects that could interfere with its operation. Use a soft, damp cloth for cleaning.
• Avoid Harsh Chemicals: Do not use abrasive cleaners or harsh chemicals on the lid lock assembly, as these can damage the plastic components.

7. Troubleshooting

This section addresses common issues that the W11307244 lid lock assembly is designed to resolve or may encounter.

Common Problems Solved by this Replacement Part:

• Washer door won't open or close.
• Washer door lock light blinks.
• Washer won't drain or spin.
• Washer leaks (if related to lid not sealing properly).

Troubleshooting Tips:

• Lid Not Locking/Unlocking: If the lid lock is not engaging or disengaging, first ensure the lid is fully closed. If the issue persists, refer to the "Installation Tips" in Section 4 regarding resetting the lock by pressing the white tab.
• Error Codes: If your washing machine displays an error code related to the lid lock, consult your appliance's user manual for specific diagnostic steps.
• Intermittent Issues: Intermittent problems with the lid lock can sometimes be caused by loose connections. Ensure all wiring harnesses are securely connected.

8. Warranty and Support

For any questions or concerns regarding the W11307244 Washing Machine Lid Lock Assembly, please contact Earthtec customer service. We are committed to providing timely assistance and support.

Contact Information:

Please refer to the seller's contact information on the platform where the product was purchased for direct support.
