CLP Lounger Dublin Faux Leather Chair Instruction Manual

1. Introduction

Thank you for choosing the CLP Lounger Dublin Faux Leather Chair. This manual provides essential information for the safe assembly, operation, and maintenance of your new chair. Please read these instructions carefully before use and retain them for future reference.

The Dublin lounge chair is designed for comfort and elegance in everyday use, making it a suitable addition to modern living spaces. It features padded seating with synthetic leather upholstery, armrests, and a backrest for enhanced comfort. The chair offers height adjustment and a 360° swivel function for flexibility. Its frame is constructed from chrome-look metal, and the trumpet base includes floor protectors to prevent surface scratches.

Figure 1.1: A full front-side view of the CLP Lounger Dublin Faux Leather Chair, showcasing its grey faux leather upholstery, tufted backrest, armrests, and chrome-plated trumpet base with a height adjustment lever.

2. Safety Information

• Ensure all components are present and undamaged before assembly. Do not use if any parts are missing or faulty.
• Assemble the chair on a soft, clean surface to prevent damage to the product or your floor.
• Tighten all screws and bolts securely. Periodically check and re-tighten as necessary.
• Do not stand on the chair or use it as a step stool.
• Keep children away from the assembly area. Small parts can be a choking hazard.
• The maximum weight capacity for this chair is approximately 120 kg (265 lbs). Do not exceed this limit.
• Avoid exposing the chair to direct sunlight or extreme temperatures to prevent material degradation.

3. Package Contents

Please verify that all the following components are included in your package:

• Seat Unit with Armrests and Backrest (1)
• Gas Lift Cylinder (1)
• Trumpet Base (1)
• Mounting Plate/Mechanism (1)
• Set of Screws and Allen Key (1)

4. Assembly Instructions

Follow these steps to assemble your CLP Lounger Dublin Chair:

1. Attach Mounting Plate to Seat: Carefully place the seat unit upside down on a soft, protected surface. Align the mounting plate (which includes the height adjustment lever) with the pre-drilled holes on the underside of the seat. Secure it using the provided screws and Allen key. Ensure the lever faces the back of the seat.
2. Insert Gas Lift into Base: Place the trumpet base on the floor. Insert the wider end of the gas lift cylinder into the central hole of the trumpet base. The gas lift should fit snugly.
3. Attach Seat to Gas Lift: Carefully align the central hole of the mounting plate (attached to the seat) with the top, narrower end of the gas lift cylinder. Gently lower the seat onto the gas lift. Apply slight downward pressure to ensure the seat unit is securely seated on the gas lift.
4. Final Check: Once assembled, sit on the chair to ensure all components are properly engaged and stable. Test the height adjustment and swivel functions.

5. Operating Instructions

5.1. Height Adjustment

The CLP Lounger Dublin chair features a pneumatic gas lift for smooth height adjustment.

• To Raise the Seat: While standing, pull the height adjustment lever upwards. The seat will automatically rise. Release the lever when the desired height is reached.
• To Lower the Seat: While seated, pull the height adjustment lever upwards. The seat will lower under your body weight. Release the lever when the desired height is reached.

5.2. Swivel Function

The chair is designed to swivel 360 degrees, allowing for easy rotation without moving the base.

• Simply rotate the seat in any direction while seated or standing. The swivel mechanism operates freely.

6. Care and Maintenance

Proper care will extend the life and appearance of your chair.

6.1. Upholstery Care (Faux Leather)

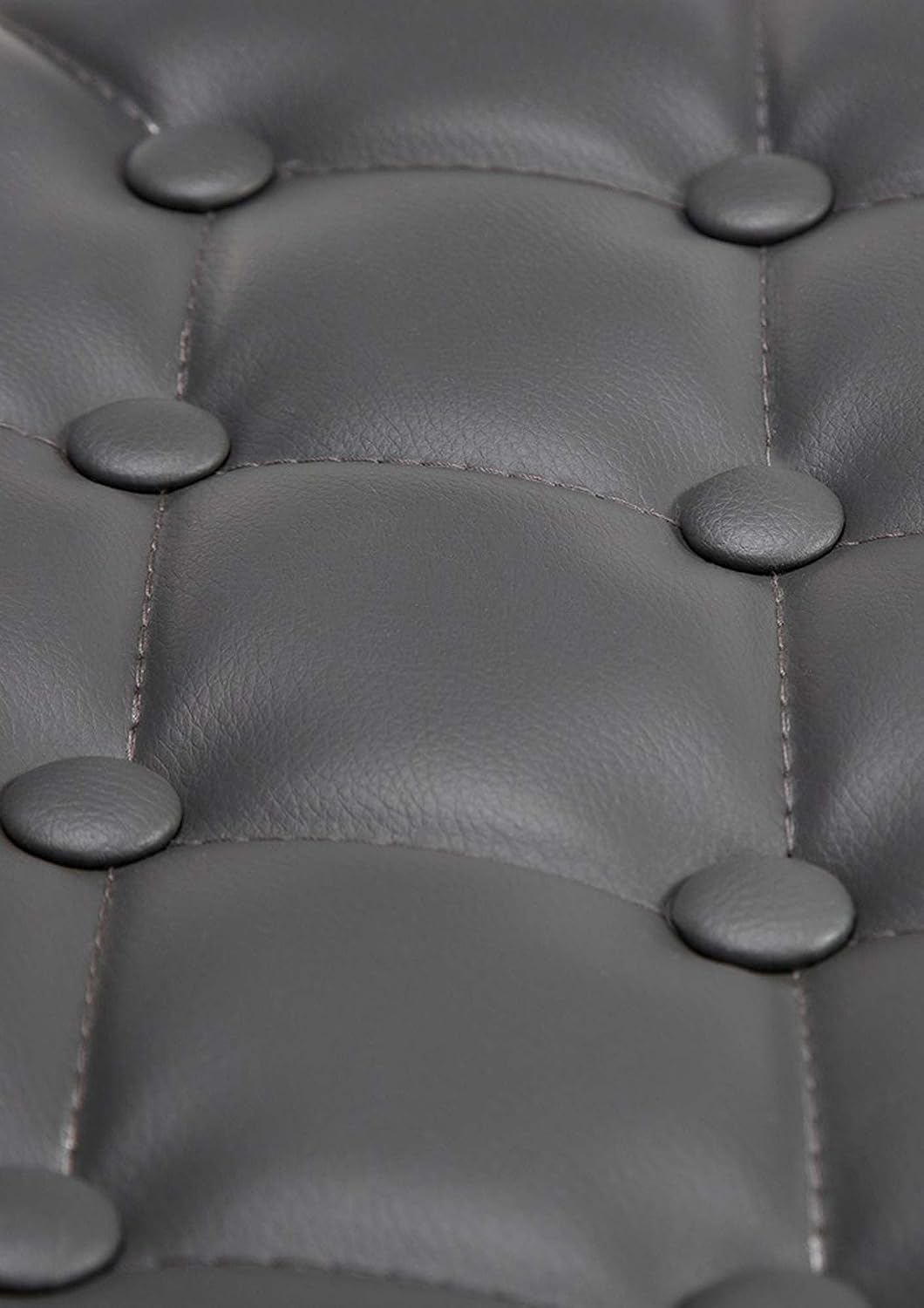

Figure 6.1: A detailed close-up image of the tufted faux leather upholstery on the backrest of the CLP Lounger Dublin chair, highlighting the button details and stitching.

• General Cleaning: For light dirt, wipe the surface gently with a damp cotton cloth.
• Deeper Cleaning: For more stubborn marks, use a solution of mild soapy water and a soft cloth. Wipe the area, then wipe again with a clean, damp cloth to remove any soap residue. Dry thoroughly with a clean, dry cloth.
• Avoid: Do not use harsh household detergents, abrasive cleaners, or solvents, as these can damage the faux leather.

6.2. Frame Care (Chrome-look Metal)

• Wipe the metal parts with a soft, dry cloth to remove dust.
• For fingerprints or smudges, use a slightly damp cloth and dry immediately to prevent water spots.
• Avoid abrasive cleaners or harsh chemicals on the chrome finish.

Figure 6.2: A close-up view of a zipper integrated into the faux leather upholstery of the CLP Lounger Dublin chair, indicating removable or adjustable components.

7. Troubleshooting

8. Specifications

Figure 8.1: An illustration showing the key dimensions of the CLP Lounger Dublin Faux Leather Chair, including total height (76-92 cm), total width (62 cm), total depth (55 cm), seat height (44-60 cm), seat width (48 cm), seat depth (45 cm), backrest height (34 cm), and armrest height (20 cm). The chair weighs 11 kg and supports up to 120 kg.

9. Warranty and Support

Specific warranty information for the CLP Lounger Dublin Faux Leather Chair is not provided in this manual. For details regarding warranty coverage, returns, or technical support, please refer to the purchase documentation or contact your retailer directly. You may also visit the official CLP website for general product information.
