Realspace Densey Bonded Leather Mid-Back Manager's Chair Instruction Manual

1. Product Overview

The Realspace Densey Mid-Back Manager's Chair is designed to provide comfort and support for extended periods of use. It features adjustable arms, a one-touch mechanism for customization, and a waterfall seat cushion to promote blood circulation. The chair's swiveling design and rolling casters offer freedom of movement, while its nylon, steel, and plywood base ensures stability and durability. This chair is BIFMA Compliant, meeting rigorous performance and safety standards.

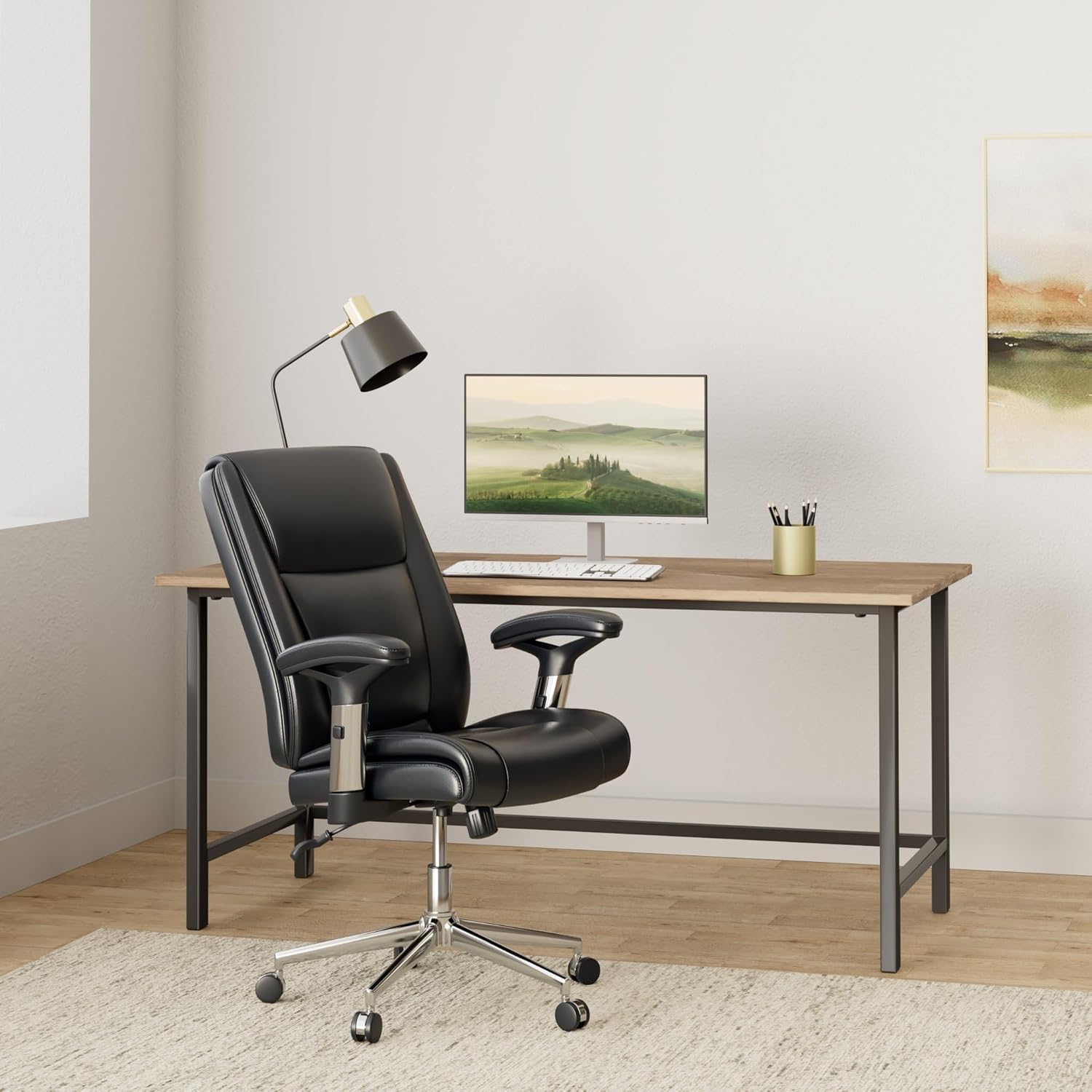

Image 1.1: Realspace Densey Mid-Back Manager's Chair in an office environment.

2. Setup and Assembly

Before beginning assembly, ensure all parts are present and undamaged. It is recommended to assemble the chair on a soft, clean surface to prevent scratches. Two people may be required for certain assembly steps.

2.1. Unpacking

• Carefully remove all components from the packaging.
• Verify all parts against the included parts list.
• Keep packaging materials until assembly is complete in case of missing parts or returns.

2.2. Assembly Steps (General)

1. Attach the casters to the chair base. Ensure they are securely inserted.
2. Insert the gas lift cylinder into the center hole of the chair base.
3. Attach the seat plate mechanism to the underside of the seat cushion using the provided screws.
4. Secure the backrest to the seat assembly.
5. Attach the armrests to the seat and backrest assembly. Note that armrests may be optional or adjustable.
6. Place the assembled seat onto the gas lift cylinder.
7. Test all functions to ensure proper operation.

Image 2.1: Chair dimensions for assembly planning.

3. Operating Instructions

This chair features several adjustment mechanisms to customize your seating experience.

3.1. Seat Height Adjustment

• To raise the seat: While standing, pull the lever located on the right side of the seat upwards. Release the lever when the desired height is reached.
• To lower the seat: While seated, pull the lever located on the right side of the seat upwards. Release the lever when the desired height is reached.

3.2. Tilt and Tilt Lock

• To recline: Pull the lever on the left side of the seat outwards. Lean back to recline.
• To lock the tilt: Push the lever on the left side of the seat inwards while in the upright position.

3.3. Tilt Tension Adjustment

• To increase tension (harder to recline): Turn the round knob located under the front of the seat clockwise.
• To decrease tension (easier to recline): Turn the round knob located under the front of the seat counter-clockwise.

3.4. Armrest Adjustment

• The armrests are adjustable. Locate the button or lever on the side of each armrest. Press or lift it to adjust the armrest height. Release to lock in place.

4. Maintenance

Proper care and maintenance will extend the life of your Realspace Densey chair.

4.1. Cleaning

• Bonded Leather: Wipe clean with a soft, damp cloth. Avoid harsh chemicals or abrasive cleaners, as these can damage the material.
• Base and Casters: Wipe with a damp cloth. Periodically check casters for hair or debris and clean as needed to ensure smooth rolling.

4.2. General Care

• Periodically check all screws and bolts to ensure they are tight. Retighten as necessary.
• Avoid exposing the chair to direct sunlight or extreme temperatures, which can cause the bonded leather to fade or crack.
• Do not stand on the chair or use it for purposes other than its intended use.

5. Troubleshooting

If you encounter any issues with your chair, refer to the following common problems and solutions.

5.1. Chair Does Not Adjust Height

• Ensure the gas lift lever is fully engaged.
• Check if the gas lift cylinder is properly seated in the base and seat mechanism.

5.2. Chair Squeaks or Wobbles

• Tighten all assembly screws and bolts.
• Ensure the base and casters are securely attached.
• Apply a small amount of silicone lubricant to moving parts if squeaking persists.

5.3. Casters Do Not Roll Smoothly

• Remove any hair, dust, or debris that may be caught in the caster wheels.
• Ensure casters are fully inserted into the chair base.

6. Specifications

7. Warranty and Support

This Realspace Densey Mid-Back Manager's Chair is backed by the manufacturer's 5-year limited warranty. For warranty claims or technical support, please refer to the contact information provided with your purchase documentation or visit the official Realspace website.

Note: No seller-created videos were found for this product. Customer review videos are not included in this manual.
