NIXON 51-30 TIDE Watch Instruction Manual

1. Introduction

Thank you for choosing the NIXON 51-30 TIDE watch. This manual provides essential information for the proper setup, operation, and maintenance of your timepiece. The 51-30 TIDE is designed for durability and functionality, featuring a robust construction and a dedicated tide display for marine enthusiasts.

2. Product Overview

The NIXON 51-30 TIDE watch combines classic watch design with specialized tide functionality. Familiarize yourself with its components to ensure optimal use.

2.1. Watch Components

• Crown: Used for setting the time and date.
• Pushers: Typically used for adjusting specific functions, such as the tide display.
• Main Dial: Displays hours, minutes, and seconds.
• Tide Subdial: Indicates high and low tide levels.
• Rotating Bezel: Can be used for tracking elapsed time or dive intervals.

Figure 1: Front view of the NIXON 51-30 TIDE watch, showing the main dial, hands, and tide subdial.

Figure 2: Side view illustrating the crown and pushers, typically used for adjustments.

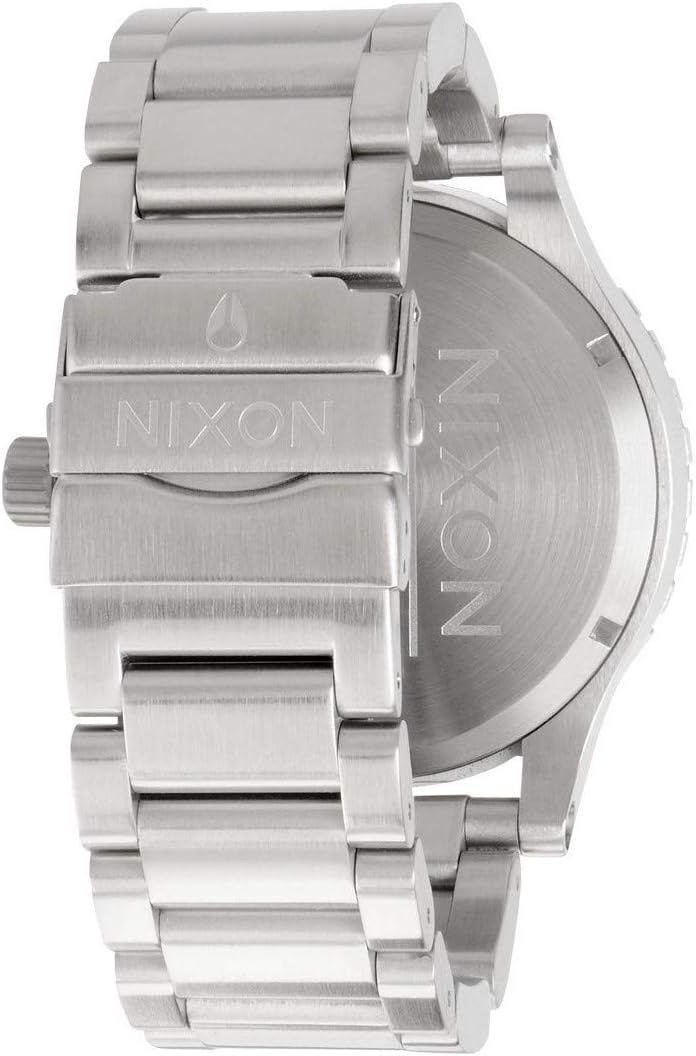

Figure 3: Rear view of the watch, highlighting the case back and bracelet clasp.

2.2. Visual Guide (360-degree view)

Observe the NIXON 51-30 TIDE watch from all angles to better understand its design and features.

Video 1: A 360-degree view of the NIXON 51-30 TIDE watch, showcasing its full design and details.

3. Setup

3.1. Initial Setup

Before wearing your watch, ensure the time and tide functions are correctly set for your location.

3.2. Setting the Time

1. Pull the crown out to the first or second position (refer to specific model instructions if available, typically the second position stops the second hand).
2. Rotate the crown to adjust the hour and minute hands to the correct time.
3. Push the crown back into its original position to start the watch.

3.3. Setting the Tide Function

The tide subdial requires calibration to your local tide cycle. This typically involves using a pusher to align the tide indicator with the current tide status (high or low) for your specific location.

1. Obtain accurate local tide information (e.g., from a local tide chart or online resource).
2. Identify the pusher designated for tide adjustment (often located at the 8 o'clock or 10 o'clock position).
3. Press and hold or repeatedly press the tide pusher to move the tide subdial hand to reflect the current tide status (e.g., 'HIGH' for high tide, 'LOW' for low tide, or an intermediate position).
4. Once set, the tide subdial will track the approximate tide cycle.

4. Operating

4.1. Reading the Time

The main dial displays the current time using standard hour, minute, and second hands. The large, luminous numerals and markers ensure readability in various conditions.

4.2. Using the Tide Display

The tide subdial provides a visual representation of the tide cycle. Once calibrated, the hand on the subdial will move between 'HIGH' and 'LOW' indicators, offering an approximation of the current tide level. This feature is useful for activities such as surfing, fishing, or boating.

4.3. Water Resistance

Your NIXON 51-30 TIDE watch is water-resistant up to 300 meters (30 ATM). This makes it suitable for swimming, snorkeling, and recreational diving. Always ensure the crown and pushers are fully pushed in before exposing the watch to water. Do not operate the crown or pushers while the watch is submerged.

5. Maintenance

5.1. Cleaning

To maintain the appearance of your watch, clean it regularly with a soft, damp cloth. For stainless steel bands, a mild soap solution can be used, followed by thorough rinsing and drying. Avoid harsh chemicals or abrasive materials.

5.2. Battery Replacement

When the watch stops or the second hand begins to skip, it indicates a low battery. Battery replacement should be performed by a qualified watch technician to ensure proper sealing and maintain water resistance.

5.3. Water Resistance Care

To preserve the water resistance of your watch, avoid exposing it to extreme temperature changes. Have the gaskets checked and replaced periodically, especially if the watch is frequently exposed to water.

6. Troubleshooting

• Watch not running: Ensure the crown is fully pushed in. If the watch still does not run, the battery may need replacement.
• Incorrect time: Refer to Section 3.2 for instructions on setting the time.
• Incorrect tide display: Recalibrate the tide function using local tide data as described in Section 3.3.
• Condensation under crystal: This may indicate a loss of water resistance. Have the watch inspected by a professional immediately.

7. Specifications

8. Warranty and Support

This NIXON 51-30 TIDE watch comes with a 1-year warranty issued by the store of purchase. Please retain your proof of purchase for warranty claims.

For technical support, service, or warranty inquiries, please contact NIXON customer service or an authorized NIXON service center. Do not attempt to open or repair the watch yourself, as this may void the warranty and compromise its water resistance.
