Etekcity Garment Steamer User Manual

Important Safety Instructions

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following:

• Read all instructions before using the garment steamer.
• To protect against electrical shock, do not immerse the steamer, power cord, or plug in water or other liquids.
• Always turn off and unplug the steamer from the electrical outlet when not in use, before filling or emptying the water tank, and before cleaning.
• Do not operate the steamer with a damaged cord or plug, or if the appliance has been dropped or damaged.
• Do not touch the steam nozzle when in use. Steam is hot and can cause burns.
• Use the steamer only for its intended household use as described in this manual.
• Keep the steamer and its cord out of reach of children.
• Use only distilled or demineralized water to prevent mineral buildup.

Product Overview

The Etekcity Garment Steamer is designed for efficient and convenient wrinkle removal from various fabrics. It features a portable design and versatile accessories.

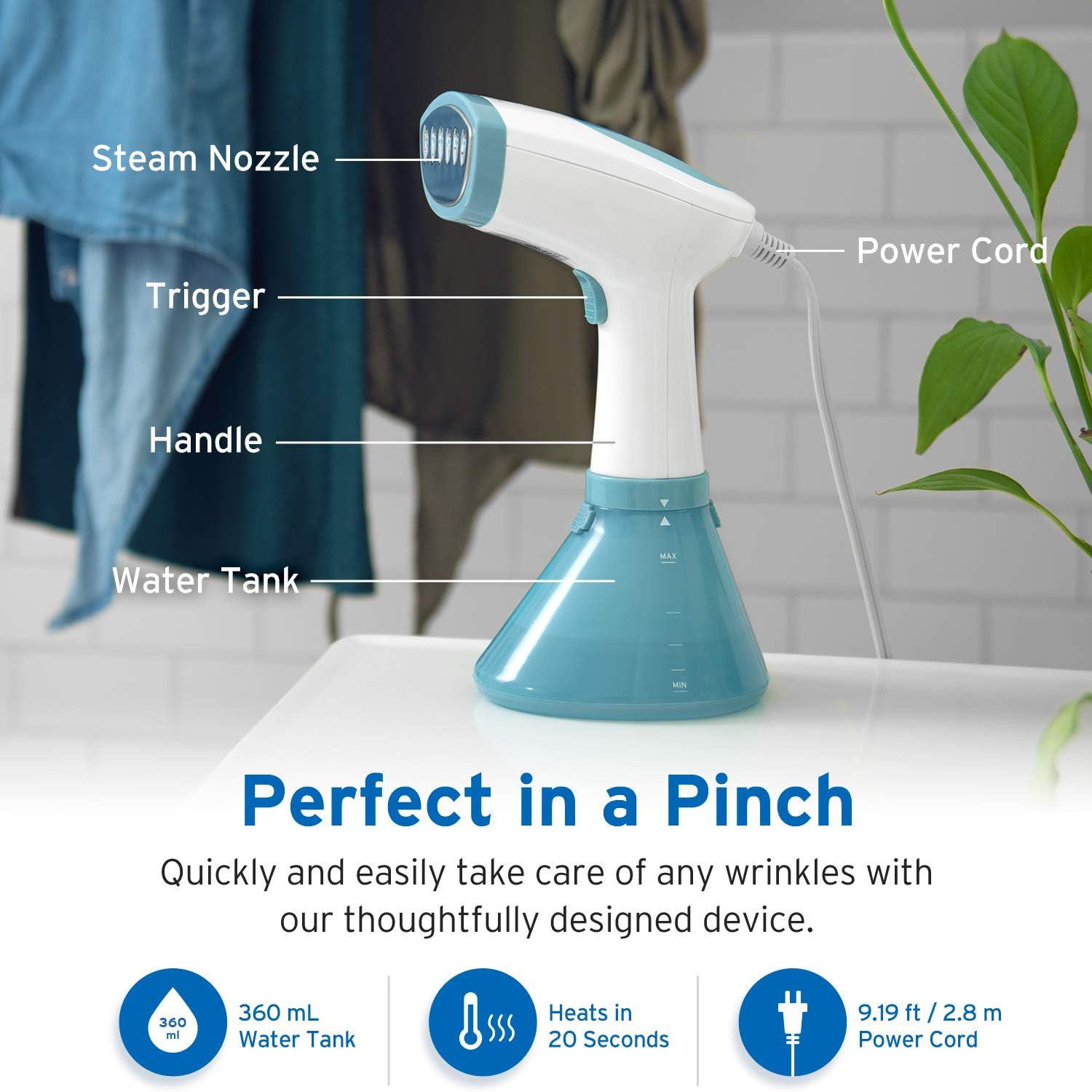

Figure 1: Steamer Components. This image shows the main parts of the Etekcity Garment Steamer, including the steam nozzle, trigger, handle, detachable water tank, and power cord.

Package Contents:

• Etekcity Garment Steamer
• Detachable Water Tank (360 mL capacity)
• 3 Water Bottle Adapters
• Lint Brush Attachment
• Fabric Brush Attachment
• Creaser Attachment
• User Manual

Figure 2: Steamer and Accessories. This image displays the Etekcity Garment Steamer alongside its various attachments, including the lint brush, fabric brush, creaser, and three water bottle adapters, highlighting the complete package.

Key Features:

• High Capacity: 360 mL detachable water tank for up to 20 minutes of continuous steaming.
• Flexible Use: Includes 3 unique water bottle adapters for use without the water tank, ideal for travel.
• Fast Heat-up: Ready for use in approximately 20 seconds.
• Fabric Friendly: Suitable for cotton, wool, polyester, silk, and more.
• Safety Features: Equipped with overheat protection.
• Portable Design: Compact and lightweight for easy packing and travel.

Setup

Follow these steps to prepare your Etekcity Garment Steamer for use:

1. Remove Water Tank: Press the release button located at the base of the handle and gently pull to detach the water tank.
2. Fill Water Tank: Pull out the rubber stopper from the water tank. Fill the tank with distilled or demineralized water up to the 'MAX' line. Avoid overfilling.
3. Secure Stopper: Insert the rubber stopper firmly back into the water tank opening.
4. Reattach Water Tank: Align the water tank with the steamer body and push it firmly until it clicks into place.
5. Attach Accessories (Optional): If desired, attach the lint brush, fabric brush, or creaser to the steam nozzle by aligning and pressing until secure.

Figure 3: Quick and Easy Setup Steps. This visual guide illustrates the process of preparing the steamer for use, from detaching and filling the water tank to plugging in the device and initiating steaming.

Using Water Bottle Adapters (for Travel):

For travel convenience, you can use the provided water bottle adapters instead of the water tank.

1. Select a standard plastic water bottle (not included).
2. Fill the water bottle with distilled or demineralized water.
3. Screw one of the three provided adapters onto the neck of the water bottle.
4. Screw the steamer onto the adapter, ensuring a secure fit.
5. Ensure the steamer is upright to prevent water leakage.

Figure 4: Versatile Use with Water Bottle Adapters. This image demonstrates the steamer's adaptability, showing it in use with its standard water tank for home use and with a water bottle adapter for travel, along with the three included adapters.

Operating Instructions

Once the steamer is set up, follow these steps to begin steaming:

1. Plug In: Insert the power cord into a standard electrical outlet. The steamer will begin to heat up.
2. Wait for Heat-up: The steamer will be ready for use in approximately 20 seconds.
3. Begin Steaming: Hold the garment taut with one hand. With the other hand, hold the steamer upright and press the steam trigger. Move the steam nozzle slowly over the fabric, from top to bottom.
4. Continuous Steam: For continuous steam, you may be able to lock the trigger in the 'on' position (refer to specific model features if applicable).
5. Fabric Compatibility: The steamer is safe for use on a wide range of fabrics including cotton, wool, polyester, and silk. Always test on an inconspicuous area first.
6. Refilling: If the water tank runs dry, unplug the steamer, allow it to cool for a few minutes, then refill the tank as per the Setup instructions.

Figure 5: Fabric Friendly Steaming. This image demonstrates the versatility of the steamer, showing its application on different household items and highlighting its compatibility with various fabric types such as cotton, wool, polyester, silk, nylon, and linen.

Figure 6: Real Results. This image provides a visual comparison of a garment before and after steaming, illustrating the effectiveness of the Etekcity Garment Steamer in removing wrinkles.

Maintenance and Care

Proper maintenance ensures the longevity and optimal performance of your steamer.

• Empty Water Tank: After each use, always empty any remaining water from the tank.
• Cleaning: Wipe the exterior of the steamer with a soft, damp cloth. Do not use abrasive cleaners or solvents.
• Descaling (Monthly/Bi-monthly): If you notice reduced steam output or mineral buildup, descale the steamer. Fill the water tank with a mixture of 50% white vinegar and 50% water. Run the steamer until half the solution is used, then unplug and let it sit for 30 minutes. Repeat the process with the remaining solution. Finally, run two full tanks of fresh water through the steamer to rinse.
• Storage: Store the steamer in a cool, dry place, away from direct sunlight and moisture. Ensure the water tank is empty before storage.

Troubleshooting

If you encounter issues with your steamer, refer to the following common problems and solutions:

Specifications

• Model: EGS-007
• Product Dimensions: 14.99 x 8.99 x 25.12 cm (5.9 x 3.54 x 9.89 in)
• Item Weight: 0.62 kg (1.37 lb)
• Water Tank Capacity: 360 mL (12.70 oz)
• Heat-up Time: Approximately 20 seconds
• Continuous Steam Time: Up to 20 minutes
• Power Cord Length: 2.8 m (9.19 ft)
• Color: Turquoise

Figure 7: Portable Design. This image shows the compact Etekcity Garment Steamer fitting easily into a suitcase, emphasizing its suitability for travel.

Figure 8: Capable Capacity. This infographic highlights the steamer's 360 mL water tank capacity and its ability to provide continuous steam for up to 20 minutes, allowing for efficient wrinkle removal.

Warranty and Support

Etekcity provides a comprehensive warranty and dedicated customer support for your product.

• Standard Warranty: Every Etekcity product comes with a 2-year warranty.
• Extended Warranty: Register your device online to extend your warranty by an additional year.
• Customer Support: Lifetime customer support is available for all Etekcity products.

For warranty claims, technical assistance, or any questions regarding your Etekcity Garment Steamer, please contact Etekcity customer support through their official website or the contact information provided with your product registration.
