Vector Optics Veyron 3-12x44mm Rifle Scope User Manual

1. Introduction

Thank you for choosing the Vector Optics Veyron 3-12x44mm Second Focal Plane Rifle Scope. This manual provides essential information for the proper use, setup, and maintenance of your new rifle scope. Designed for precision and durability, the Veyron series offers clear optics and reliable performance for various shooting applications. Please read this manual thoroughly before using the scope to ensure safe and optimal operation.

Figure 1: Overview of the Vector Optics Veyron 3-12x44mm Rifle Scope.

2. Key Features

The Vector Optics Veyron 3-12x44mm Rifle Scope is engineered with several advanced features to enhance your shooting experience:

• Magnification: Variable 3x to 12x power for versatile targeting.
• Objective Lens Diameter: 44mm for excellent light gathering.
• Second Focal Plane (SFP) Reticle: The MPR-4 reticle maintains its size relative to the target at all magnifications, ideal for hunting and general shooting.
• 30mm Monotube: Constructed from durable 30mm aluminum for robust performance.
• Zero Reset Turret Locking System: Allows for quick and precise return to zero.
• Large Eye Relief: Provides comfortable viewing and reduces eye strain.
• Diopter Compensation: Adjustable from +2 to -2 for individual eye focus.
• Nitrogen Filled: Ensures fog-proof performance in varying temperatures.
• Fully Multi-Coated (FMC) Lenses: For superior light transmission and image clarity.
• Included Flip Caps: Protect the objective and ocular lenses when not in use.

Figure 2: Detailed feature diagram of the Veyron Rifle Scope.

Figure 3: MPR-4 Reticle dimensions and details.

3. Setup and Installation

3.1 Mounting the Scope

The Veyron scope is designed for use with Weaver Mount systems. Ensure your rifle has a compatible rail.

1. Securely attach the scope rings to your rifle's mounting rail.
2. Place the scope into the rings, ensuring proper eye relief and reticle alignment.
3. Tighten the ring screws evenly to secure the scope without over-tightening.

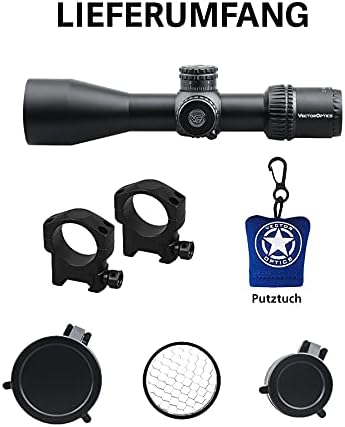

Figure 4: Included accessories for the Veyron Rifle Scope, including mounting rings.

3.2 Diopter Adjustment

To achieve a clear reticle image, adjust the diopter:

1. Point the scope at a plain, bright background (e.g., a clear sky).
2. Look through the scope and quickly glance away.
3. Adjust the diopter ring (located on the ocular lens) until the reticle appears sharp and clear instantly when you look through the scope.

3.3 Zero Reset

The Veyron scope features a zero reset turret locking system for elevation and windage adjustments. After zeroing your rifle, you can reset the turrets to '0' for easy reference. Refer to Figure 2 for the location of the zero reset mechanism.

4. Operating the Scope

4.1 Magnification Adjustment

Rotate the magnification ring (located near the ocular lens) to adjust the power from 3x to 12x.

4.2 Windage and Elevation Adjustments

The scope features precise 1/10 MIL click adjustments for windage and elevation.

• Elevation Turret: Located on top of the scope. Rotate to adjust vertical point of impact.
• Windage Turret: Located on the right side of the scope. Rotate to adjust horizontal point of impact.
• Each click moves the point of impact by 1/10 MIL at 100 yards/meters.

Figure 5: Elevation, Windage, and Parallax Turrets.

4.3 Parallax Adjustment

The parallax adjustment knob is located on the left side of the scope (refer to Figure 5). Rotate this knob to eliminate parallax error at various distances, ensuring the reticle and target are on the same focal plane.

5. Maintenance and Care

Proper maintenance will ensure the longevity and performance of your Vector Optics Veyron scope.

• Cleaning Lenses: Use the included cleaning cloth or a soft, lint-free cloth specifically designed for optical lenses. Breathe lightly on the lens to create moisture, then gently wipe. For stubborn spots, use a small amount of lens cleaning fluid.
• Cleaning Body: Wipe the scope body with a soft, damp cloth. Avoid harsh chemicals or abrasive materials.
• Storage: Store the scope in a cool, dry place, away from direct sunlight and extreme temperatures. Use the provided flip caps to protect the lenses.
• Water Resistance: The scope is designed to be water-resistant. While it can withstand splashes and light rain, avoid submerging it in water.

Figure 6: The scope's water-resistant design.

6. Troubleshooting

If you encounter issues with your scope, consider the following common troubleshooting steps:

• Unclear Image:
  • Ensure the diopter is correctly adjusted for your eye.
  • Check for dirt or smudges on the lenses and clean them carefully.
  • Adjust the parallax knob for the correct distance.
• Inconsistent Point of Impact:
  • Verify that the scope rings are securely tightened to the scope and the rifle rail.
  • Check for any loose components on the rifle itself.
  • Ensure proper shooting technique and consistent hold.
• Turret Not Adjusting:
  • Ensure the turret locking mechanism (if applicable) is disengaged before attempting to adjust.

If problems persist, please contact Vector Optics customer support for assistance.

7. Specifications

Figure 7: Physical dimensions of the Veyron Rifle Scope.

8. Warranty and Support

For information regarding warranty coverage, product registration, or technical support, please visit the official Vector Optics website or contact their customer service department directly. Keep your purchase receipt as proof of purchase.

Note on Videos: No official product videos from the seller were found in the provided data for this model.
