Tone MIX21620P Socket Wrench Bit Set Instruction Manual

1. Introduction

Thank you for choosing the Tone MIX21620P Socket Wrench Bit Set. This compact and versatile 18-piece tool set is designed for various tasks, offering convenience and efficiency. It features ultra-short sockets for working in confined spaces and a convertible ratchet handle that transforms into a T-type wrench. The set is housed in a durable resin case with a 2-color urethane tray for organized storage and easy identification of missing tools.

Image 1.1: The Tone MIX21620P Socket Wrench Bit Set, displayed open in its protective red case. The set includes a ratchet handle, an extension bar, five hexagonal sockets (8mm, 10mm, 12mm, 13mm, 14mm), and eleven various bits (Phillips, Slotted, Hexagon) along with a bit adapter. All components are neatly organized within a two-color urethane tray.

2. Package Contents

The Tone MIX21620P Socket Wrench Bit Set includes the following 18 components:

• 1x Ratchet Handle: For tightening and loosening fasteners.
• 1x Extension Bar: Extends reach and converts the ratchet into a T-type wrench.
• 5x Hexagonal Sockets (1/4-inch / 6.35mm insertion angle): Sizes 8mm, 10mm, 12mm, 13mm, 14mm.
• 3x Phillips Bits: Sizes No. 1, No. 2, No. 3.
• 2x Slotted Bits: Sizes 0.8 x 5.5mm, 1.0 x 6.0mm.
• 5x Hexagon Bits: Sizes 3mm, 4mm, 5mm, 6mm, 8mm.
• 1x Bit Adapter: 1/4-inch (6.35mm) for connecting bits to the ratchet or extension.
• 1x Compact Resin Case: For storage and transport, featuring a 2-color urethane tray.

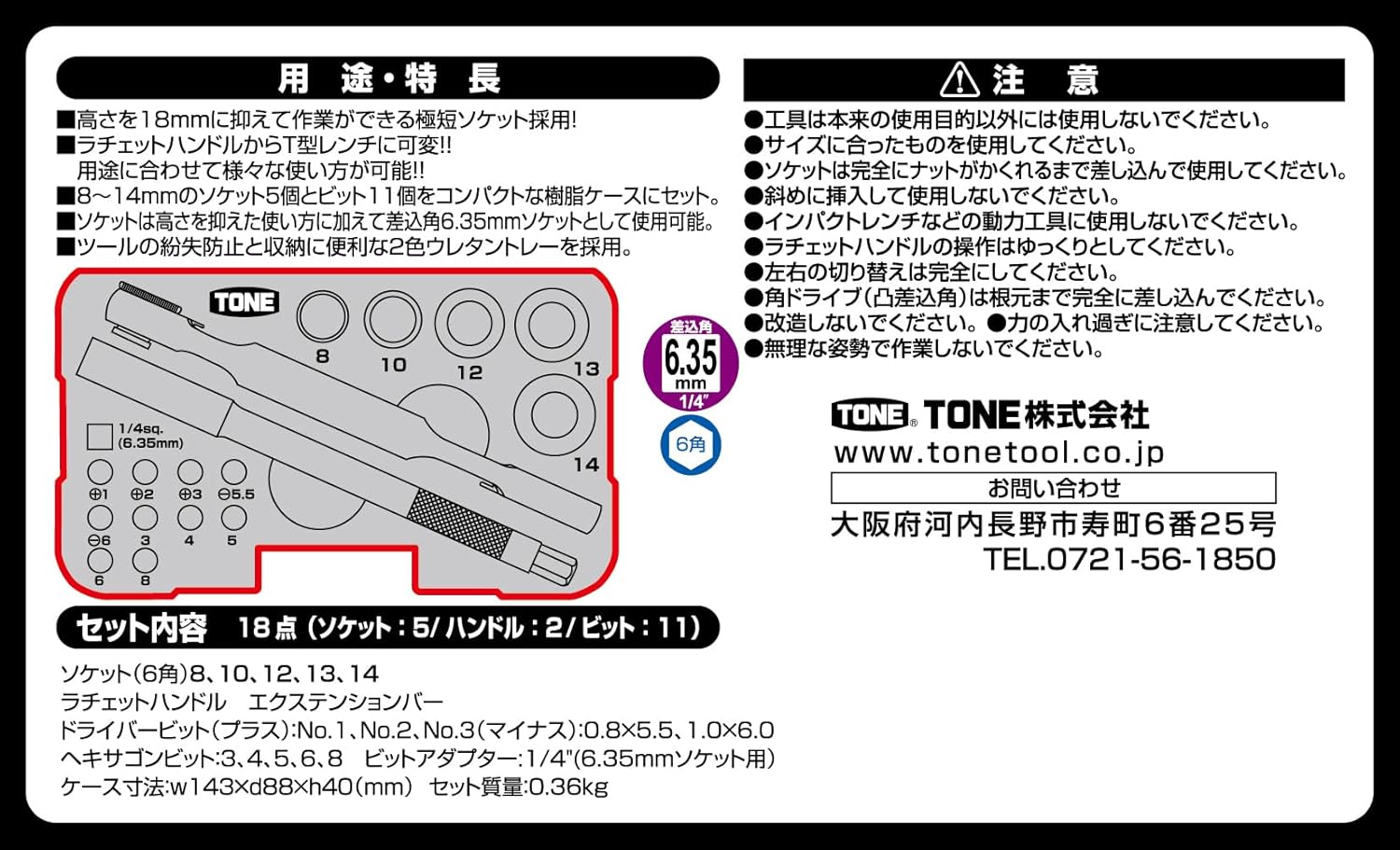

Image 2.1: A detailed diagram illustrating the individual components of the Tone MIX21620P set. This visual guide helps users identify each part, including the ratchet handle, extension, various sockets (8, 10, 12, 13, 14mm), and a range of bits (Phillips, Slotted, Hexagon) with their specific dimensions.

3. Setup

1. Unpack the Set: Carefully open the resin case and remove all components.
2. Familiarize Yourself: Identify each tool using the Package Contents section and Image 2.1. Note the 2-color urethane tray, which helps keep tools organized and indicates if any are missing.
3. Select the Right Tool: Choose the appropriate socket or bit for your fastener.
4. Attach to Ratchet/Extension:
   • For sockets, simply push the socket onto the square drive of the ratchet handle or extension bar until it clicks securely into place.
   • For bits, insert the chosen bit into the bit adapter, then attach the bit adapter to the square drive of the ratchet handle or extension bar.

4. Operating Instructions

4.1. Using the Ratchet Handle

1. Attach Socket/Bit: As described in the Setup section, attach the required socket or bit to the ratchet handle.
2. Select Direction: Use the directional switch on the ratchet head to select clockwise (for tightening) or counter-clockwise (for loosening) rotation.
3. Operate: Place the socket/bit onto the fastener. Turn the handle slowly and steadily. The ratchet mechanism allows you to turn the fastener without repositioning the handle after each stroke.

4.2. Converting to T-Type Wrench

The extension bar can be used to create a T-type wrench configuration, providing increased leverage and torque.

1. Attach Extension: Insert the square drive end of the extension bar into the square drive opening of the ratchet handle.
2. Attach Socket/Bit: Attach the desired socket or bit to the other end of the extension bar.
3. Use as T-Handle: Hold the ratchet handle perpendicular to the extension bar to form a 'T' shape. This configuration is ideal for applying higher torque or for reaching fasteners in awkward positions.

Image 4.1: Visual representation of the different configurations possible with the Tone MIX21620P set. From left to right: a compact bit driver, an extended driver using the extension bar, and a T-handle wrench configuration for enhanced leverage.

5. Maintenance

• Cleaning: After each use, wipe down tools with a clean, dry cloth to remove dirt, grease, and debris. For stubborn grime, a mild solvent or degreaser can be used, followed by thorough drying.
• Lubrication: Periodically apply a light coat of machine oil to the moving parts of the ratchet mechanism to ensure smooth operation and prevent corrosion.
• Storage: Always return tools to their designated slots in the 2-color urethane tray within the resin case. This prevents loss, protects the tools from damage, and keeps them organized for future use. Store the case in a dry environment away from direct sunlight and extreme temperatures.
• Inspection: Regularly inspect all components for signs of wear, damage, or corrosion. Replace any damaged tools immediately to ensure safety and optimal performance.

Image 5.1: The Tone MIX21620P Socket Wrench Bit Set securely closed in its durable red resin case, ready for storage or transport.

6. Troubleshooting

Most issues with hand tools can be resolved by ensuring proper usage and maintenance.

• Fastener Slipping: Ensure you are using the correct size socket or bit for the fastener. A loose fit can cause stripping.
• Ratchet Not Engaging: Check the directional switch on the ratchet head. Ensure it is fully engaged in either the tightening or loosening position. If the mechanism feels stiff, apply a small amount of lubricant.
• Difficulty Attaching/Detaching: Ensure the square drive or bit adapter is clean and free of debris. Apply slight pressure and twist gently if needed. Do not force components.
• Tool Damage: If a tool appears bent, cracked, or otherwise damaged, discontinue use immediately and replace it. Using damaged tools can lead to injury or further damage to fasteners.

7. Specifications

Image 7.1: The Tone MIX21620P Socket Wrench Bit Set case, illustrating its compact dimensions for easy storage and portability.

8. Safety Information

Always follow basic safety precautions when using hand tools to prevent injury and damage.

• Wear Eye Protection: Always wear safety glasses or goggles to protect your eyes from flying debris.
• Use the Correct Tool: Select the appropriate size and type of tool for the fastener to avoid stripping or damaging the fastener and the tool.
• Inspect Tools: Before each use, inspect tools for any signs of damage, such as cracks, bends, or excessive wear. Do not use damaged tools.
• Avoid Excessive Force: Do not apply excessive force or use extension pipes on the handle, as this can damage the tool or fastener and lead to injury.
• Maintain Proper Grip: Ensure a firm and stable grip on the tool to prevent slipping.
• Keep Work Area Clear: Ensure your work area is well-lit and free of clutter to prevent accidents.
• Store Safely: Store tools securely in their case when not in use, out of reach of children.

9. Warranty and Support

Tone products are manufactured to high-quality standards. For information regarding warranty coverage, service, or technical support, please refer to the official Tone website or contact your authorized Tone dealer. Keep your purchase receipt as proof of purchase.
