FidgetGear IPMMB-FM 664040-001 Motherboard User Manual

1. Introduction

This manual provides detailed instructions for the installation, operation, maintenance, and troubleshooting of your FidgetGear IPMMB-FM 664040-001 motherboard. Please read this manual thoroughly before attempting any installation or operation to ensure proper functionality and to prevent damage to your components.

The FidgetGear IPMMB-FM 664040-001 is a micro-ATX (mATX) motherboard designed for Intel LGA 1155 processors, featuring a Z75 chipset, DDR3 memory support, DVI video output, and USB 3.0 connectivity. It serves as the central hub for your computer system, connecting all essential components.

2. Safety Information

Always observe the following safety precautions when handling or installing the motherboard:

• Electrostatic Discharge (ESD) Prevention: Always wear an anti-static wrist strap or frequently touch a grounded metal object (like the computer case) before handling the motherboard or any internal components. ESD can severely damage electronic parts.
• Power Disconnection: Ensure the power supply is unplugged from the wall outlet before installing or removing any components.
• Component Handling: Hold components by their edges and avoid touching pins, circuits, or connectors directly.
• Ventilation: Ensure adequate ventilation within your computer case to prevent overheating.
• Professional Assistance: If you are unsure about any installation steps, consult a qualified technician.

3. Package Contents

Verify that all items are present in your motherboard package. If any item is missing or damaged, contact your retailer.

• FidgetGear IPMMB-FM 664040-001 Motherboard
• I/O Shield
• SATA Data Cables (quantity may vary)
• User Manual (this document)
• Driver CD/DVD (or link to download drivers)

4. Setup and Installation

Follow these steps carefully to install your motherboard and essential components.

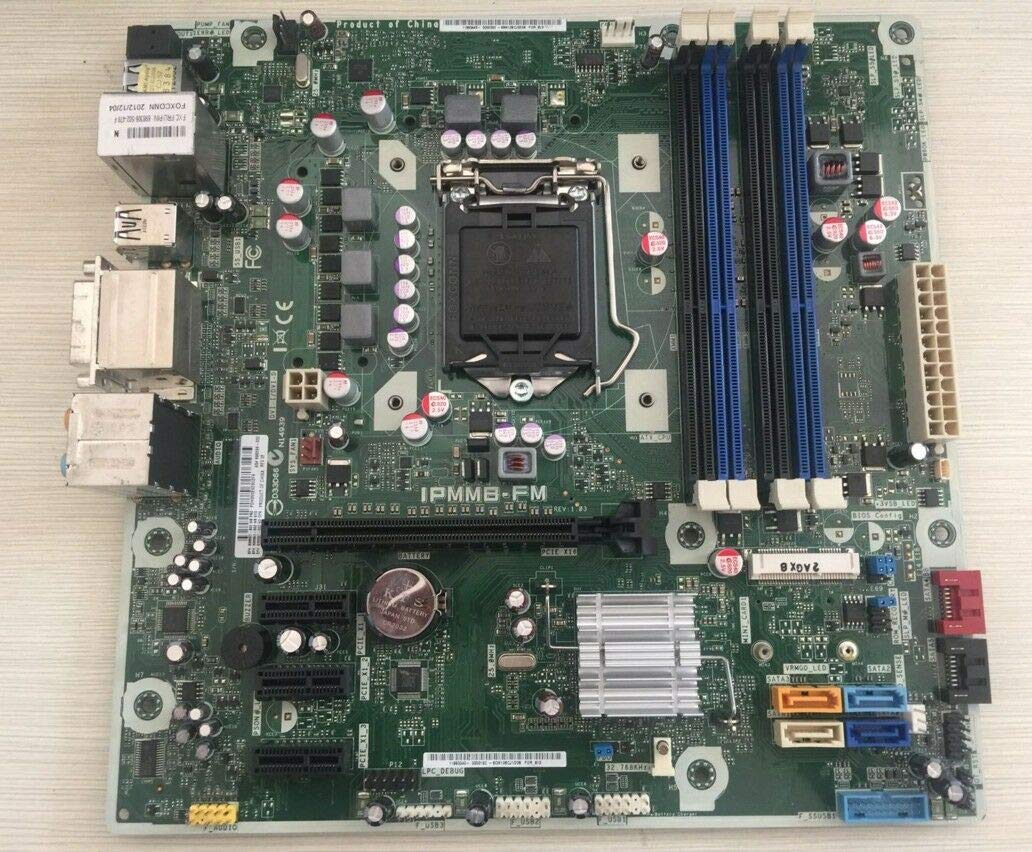

Image 1: FidgetGear IPMMB-FM 664040-001 Motherboard. This image displays the overall layout of the motherboard, including the CPU socket, RAM slots, PCIe slots, and various connectors.

4.1. Preparing the Case

1. Open your computer case and remove any existing components if you are upgrading.
2. Install the I/O shield provided with your motherboard into the corresponding opening at the rear of your computer case. Ensure it snaps securely into place.

4.2. Installing the CPU

1. Locate the LGA 1155 CPU socket on the motherboard.
2. Gently push down the load lever and pull it to the side to open the CPU socket retention frame.
3. Carefully align the CPU with the socket. Match the golden triangle on the CPU with the triangle mark on the socket. Do not force the CPU into the socket.
4. Once the CPU is seated correctly, close the retention frame and push the load lever back into its locked position.

4.3. Installing the CPU Cooler

1. Apply a thin, even layer of thermal paste to the top of the CPU if your cooler does not have it pre-applied.
2. Carefully place the CPU cooler onto the CPU, aligning the mounting holes or clips.
3. Secure the cooler according to its manufacturer's instructions (e.g., push-pins, screws, or backplate).
4. Connect the CPU fan cable to the CPU_FAN header on the motherboard.

4.4. Installing RAM (DDR3)

1. Locate the DDR3 memory slots on the motherboard. This model supports 2 DDR3 memory slots.
2. Open the clips at both ends of the memory slot.
3. Align the notch on the DDR3 memory module with the key in the memory slot.
4. Press down firmly on both ends of the memory module until the clips snap into place.

4.5. Mounting the Motherboard

1. Ensure that standoffs are correctly installed in your computer case, matching the screw holes on your mATX motherboard.
2. Carefully place the motherboard into the case, aligning the screw holes with the standoffs and the I/O ports with the I/O shield.
3. Secure the motherboard with screws. Do not overtighten.

4.6. Connecting Power Supply Cables

1. Connect the 24-pin ATX main power connector from your power supply to the corresponding header on the motherboard.
2. Connect the 4-pin or 8-pin ATX 12V CPU power connector to the header near the CPU socket.

4.7. Connecting Storage Devices (SATA 3)

1. Connect one end of a SATA data cable to a SATA 3 port on the motherboard.
2. Connect the other end of the SATA data cable to your hard drive or SSD.
3. Connect a SATA power cable from your power supply to the storage device.

4.8. Connecting Front Panel Headers

Connect the cables from your computer case's front panel (Power Button, Reset Button, HDD LED, Power LED, USB 2.0/3.0, Audio) to the corresponding headers on the motherboard. Refer to the motherboard's silkscreen labels for correct pin alignment.

4.9. Installing Expansion Cards (PCIe)

If you are installing a graphics card or other PCIe expansion cards:

1. Remove the appropriate slot cover from your computer case.
2. Align the expansion card with the PCIe slot and press down firmly until it is fully seated.
3. Secure the card with a screw or retention clip to the case.
4. Connect any necessary PCIe power cables from your power supply to the graphics card.

5. Operating Instructions

5.1. First Boot

After completing all hardware installations, connect your monitor, keyboard, and mouse. Plug in the power supply and press the power button on your case. The system should power on, and you should see a display on your monitor.

5.2. Accessing BIOS/UEFI

To enter the BIOS/UEFI setup utility, press the designated key (commonly DEL, F2, or F10) repeatedly during the initial boot sequence. The BIOS allows you to configure system settings, boot order, and monitor hardware status.

5.3. Operating System Installation

Insert your operating system installation media (USB drive or DVD) and configure the boot order in the BIOS to boot from the installation media. Follow the on-screen instructions to install your preferred operating system.

5.4. Driver Installation

After installing the operating system, install the necessary drivers for your motherboard components. These typically include chipset drivers, audio drivers, network drivers, and any specific drivers for integrated peripherals. Use the provided driver CD/DVD or download the latest drivers from the FidgetGear support website.

6. Maintenance

Regular maintenance helps ensure the longevity and optimal performance of your motherboard and system.

• Dust Cleaning: Periodically clean dust from inside your computer case, especially from fans and heatsinks, using compressed air. Ensure the system is powered off and unplugged before cleaning.
• BIOS Updates: Check the FidgetGear support website for BIOS updates. BIOS updates can improve compatibility, stability, and performance. Follow the update instructions carefully to avoid damaging the motherboard.
• Driver Updates: Keep your drivers updated to ensure compatibility with new software and to benefit from performance improvements and bug fixes.

7. Troubleshooting

This section addresses common issues you might encounter.

7.1. No Power / System Does Not Turn On

• Check if the power supply is plugged into a working outlet and switched on.
• Verify that the 24-pin ATX and 4/8-pin CPU power cables are securely connected to the motherboard.
• Ensure the front panel power button cable is correctly connected to the motherboard header.
• Test the power supply with another system or a power supply tester if available.

7.2. No Display on Monitor

• Ensure the monitor is powered on and connected to the correct video output (DVI) on the motherboard or graphics card.
• Reseat the graphics card (if applicable) and RAM modules.
• Try booting with only one RAM stick installed.
• Check for any diagnostic LEDs or POST (Power-On Self-Test) beep codes from the motherboard, which can indicate specific hardware issues.

7.3. System Instability / Crashes

• Check CPU and GPU temperatures using monitoring software. Overheating can cause instability.
• Ensure all drivers are up to date.
• Run memory diagnostic tools to check for faulty RAM.
• Verify that the power supply provides sufficient and stable power to all components.

8. Specifications

Key technical specifications for the FidgetGear IPMMB-FM 664040-001 Motherboard:

9. Warranty and Support

FidgetGear products are manufactured to high-quality standards. This motherboard comes with a standard manufacturer's warranty against defects in materials and workmanship. The specific terms and duration of the warranty may vary by region and retailer.

For technical support, warranty claims, or further assistance, please visit the official FidgetGear support website or contact your point of purchase. Please have your product model (IPMMB-FM 664040-001) and purchase information ready when contacting support.
