KICHLER Everly 1-Light Bell Pendant Instruction Manual

Product Overview

The Everly™ 15.25” one light bell shaped pendant features a curved, glass blown container with clear glass and a natural brass® finish, offering a simple and elegant aesthetic. Its versatile design allows it to coordinate with various styles and can be used individually, in multiples, or arranged at varying heights to enhance any room. The length and height are customizable based on the installation area.

Main view of the KICHLER Everly 1-Light Bell Pendant in Natural Brass with Clear Glass.

Important Safety Instructions

Please read and understand all instructions before beginning installation. Failure to do so may result in electric shock, fire, or other injuries that could be fatal or cause permanent damage.

• Always turn off the main power supply at the circuit breaker before installing, cleaning, or servicing the fixture.
• This fixture is designed for indoor use only.
• Requires a medium-based LED or incandescent bulb (bulb(s) not included).
• Operates at 120 Volts and supports up to 100 watts.
• UL listed for indoor use, ensuring compliance with safety standards.
• Proposition 65 Warning: This product may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. Please check your local laws before purchasing this product.

What's Included

Verify that all components are present before beginning assembly:

• Fixture assembly
• Necessary hardware for installation (including 6-inch and 12-inch stems for height customization)
• Clear glass shade

Image showing the clear blown glass shade and included hardware for height customization.

Setup

Before You Begin

• Ensure the power is turned off at the circuit breaker.
• Gather all necessary tools (not included): screwdriver, wire strippers, electrical tape, safety glasses.

Assembly and Installation Steps

1. Carefully unpack all components and inspect for any damage.
2. Determine the desired hanging height. The pendant comes with multiple rod sections (two 12-inch and one 6-inch) allowing for adjustable overall height up to 54 inches. Connect the appropriate rod sections to achieve your preferred length.


Diagram illustrating the dimensions and adjustable height of the pendant.

3. Attach the mounting plate to the electrical junction box in the ceiling.


Detail of the canopy and mounting point.

4. Connect the electrical wires according to local electrical codes (typically black to black, white to white, and ground to ground). Secure connections with wire nuts and electrical tape.
5. Secure the fixture canopy to the mounting plate.
6. Install the appropriate light bulb (E26 Medium base, up to 100W incandescent or equivalent LED).
7. Carefully attach the clear glass shade to the fixture.

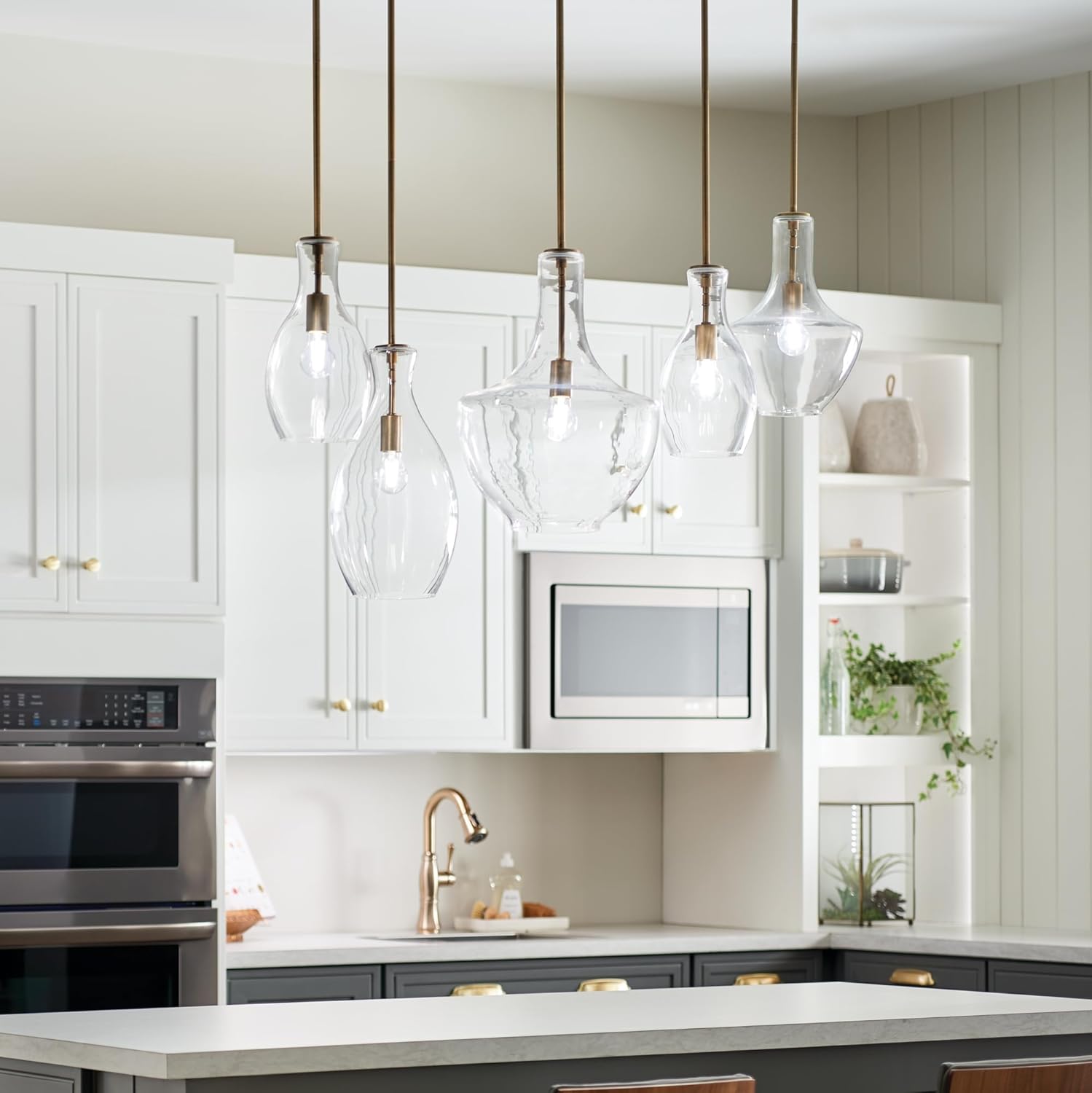

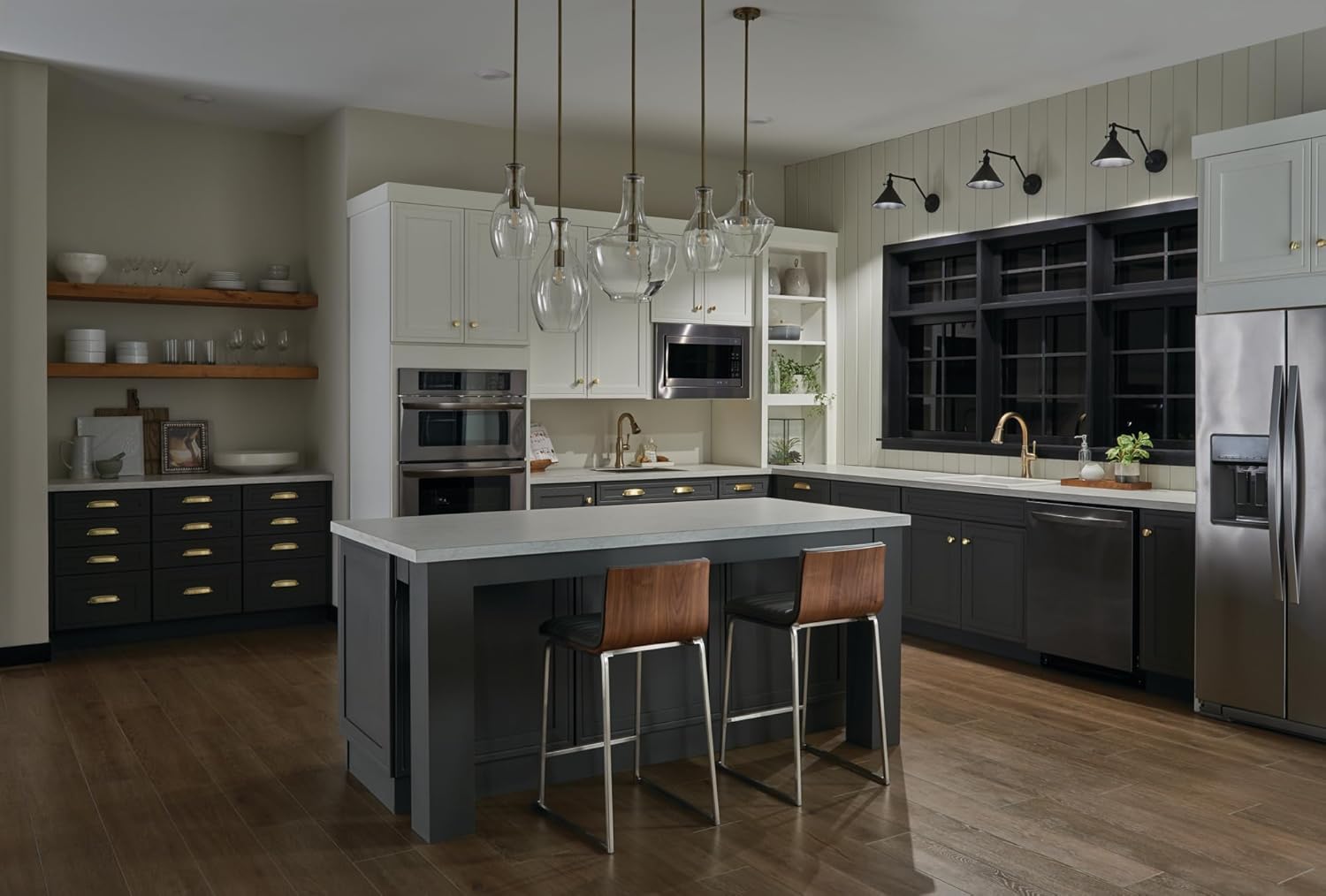

Example of multiple KICHLER Everly pendants installed in a kitchen setting.

Operation

Powering On

Once installation is complete and verified, restore power at the circuit breaker. The pendant light can then be operated via your wall switch or smart home system, if connected.

Bulb Requirements

• Bulb Type: Medium-based LED or incandescent bulb.
• Wattage: Maximum 100 watts.
• Voltage: 120 Volts.

For optimal performance and energy efficiency, LED bulbs are recommended. Consider using a dimmer switch for adjustable light levels and ambiance.

Maintenance

Care and Cleaning

Regular cleaning will help maintain the appearance and longevity of your KICHLER Everly pendant light.

• Always turn off the fixture and allow it to cool before cleaning.
• If possible, carefully remove the glass shade for thorough cleaning.
• Wipe down the glass and all metal surfaces with a soft, lint-free cloth.
• Avoid: Abrasive materials, harsh cleaners, or products containing ammonia or alcohol. These can damage the finish or coating on the fixture.
• Do not use general-purpose household window or glass cleaners on the fixture.

Troubleshooting Common Issues

If you encounter any issues with your pendant light, refer to the table below for potential solutions.

Specifications

Warranty Information

The KICHLER Everly 1-Light Bell Pendant comes with a limited warranty to cover manufacturing defects and ensure product quality.

• Standard Warranty: One (1) year from the date of purchase.
• Extended Protection Plans: Additional protection plans are available for purchase, including 3-Year and 4-Year options, as well as a monthly Complete Protect plan. These plans offer extended coverage beyond the standard manufacturer's warranty.

For specific terms and conditions of the warranty or extended protection plans, please refer to the documentation provided with your purchase or contact Kichler customer support.

Customer Support

For further assistance, technical support, or inquiries regarding your KICHLER Everly pendant light, please contact Kichler customer service. You can typically find contact information on the Kichler website or within the product packaging.

When contacting support, please have your product model number (42141NBR) and purchase date readily available to expedite the process.
