Product Overview
The Moen Belfield 9025 is a one-handle freestanding floor mount tub filler designed to complement traditional bathroom aesthetics. It features a durable chrome finish and includes a handshower for added functionality. This tub filler is built on the Moen M-PACT common valve system, allowing for future style updates without extensive plumbing changes.

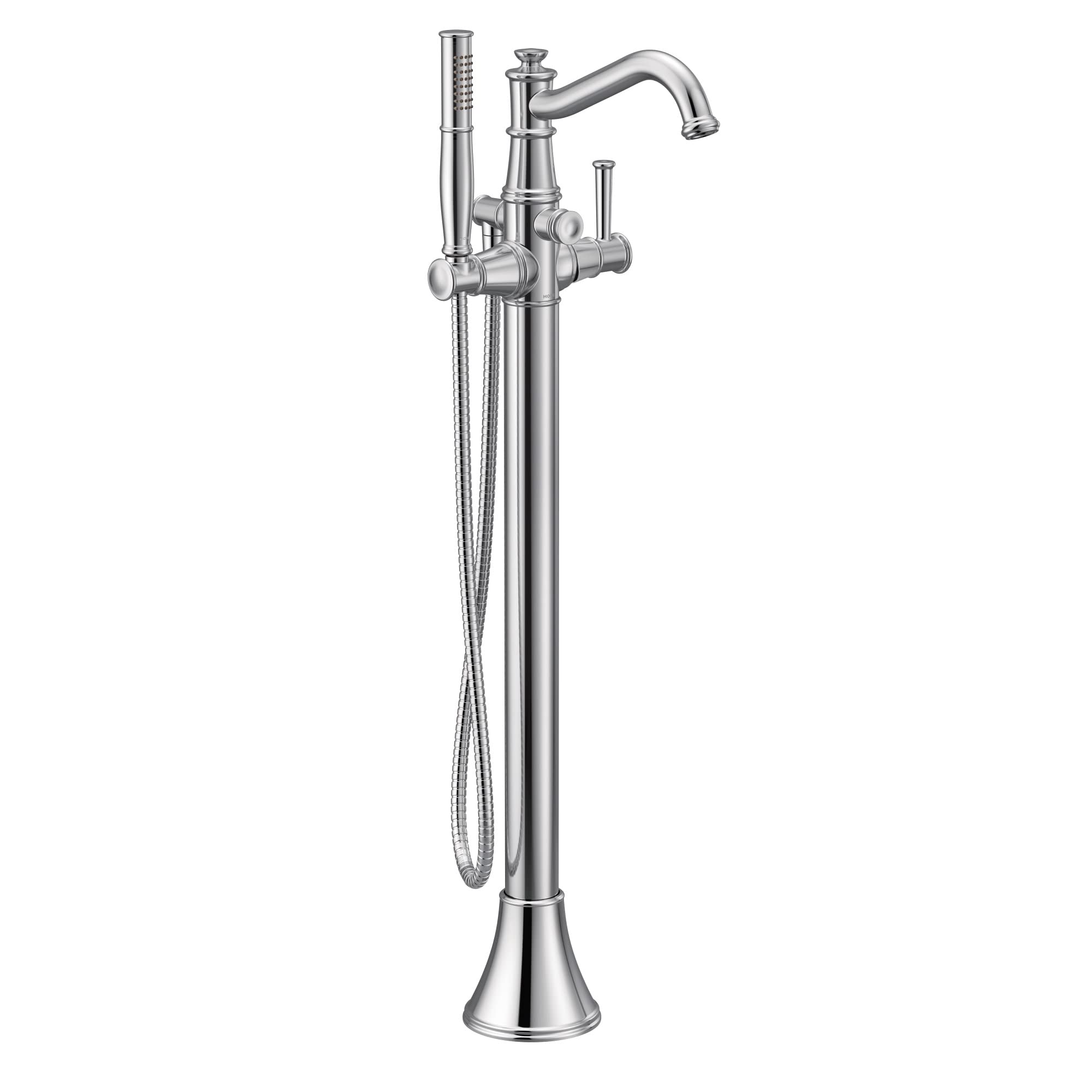

Image: Moen Belfield 9025 Freestanding Tub Filler with Handshower in Chrome finish.
Included Components
- Floor mount tub filler faucet
- Handshower
- Hose
Note: A Moen single riser floor mounting kit (TS50100 or TS50110) is required for installation and is sold separately.
Image: Illustration of the required floor mounting kit for the tub filler.
Installation Instructions
Professional installation is recommended for this freestanding tub filler. Ensure you have the correct Moen single riser floor mounting kit (TS50100 or TS50110) before beginning installation.
Key Installation Features:
- M-PACT Common Valve System: This system simplifies future faucet style updates by allowing you to change the trim without altering the plumbing.
- Secure Mounting: The proprietary bracket system ensures the floor-mounted tub filler remains stable and wobble-free.
Image: Diagram illustrating the Moen M-PACT common valve system for easy trim updates.
Installation Video (General Moen Wall Mount Tub Fillers):
While this video specifically demonstrates wall-mount tub fillers, it provides valuable insights into Moen's M-CORE installation benefits, valve versatility, and high flow rate features that are generally applicable to Moen tub filler systems. Please refer to the specific instruction manual included with your product for precise installation steps for the freestanding model.
Video: Moen Wall Mount Tub Fillers - General overview of installation benefits and features. Note: This video is for wall-mount models; consult your product's specific manual for freestanding installation.
Operating Instructions
Tub Filler Operation:
- To turn on the water, rotate the single handle.
- Adjust the water temperature by rotating the handle to the desired hot or cold position.
- To increase or decrease water flow, move the handle up or down.
- To turn off the water, return the handle to the center-off position.
Handshower Operation:
- To divert water to the handshower, pull the diverter knob located on the tub filler spout.
- Ensure the handshower is securely held before diverting water.
- Adjust water temperature and flow using the main handle as described above.
- After use, push the diverter knob back to direct water to the tub spout.
Image: Close-up view of the Moen Belfield tub filler and integrated handshower.
Maintenance and Care
To maintain the finish and performance of your Moen Belfield tub filler, follow these guidelines:
- Clean regularly with a soft cloth and mild soap. Avoid abrasive cleaners, harsh chemicals, or polishes that could damage the chrome finish.
- Wipe the faucet dry after each use to prevent water spots and mineral buildup.
- For the handshower, periodically clean the spray nozzles to remove mineral deposits. This can often be done by gently rubbing the rubber nozzles.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Low water flow from tub filler or handshower. | Aerator or handshower nozzles are clogged with mineral deposits. | Clean the aerator (if applicable) and handshower nozzles. Refer to the detailed cleaning instructions in the full product manual. |
| Handshower leaks when not in use. | Internal seals or diverter mechanism may be faulty or worn. | Ensure the diverter knob is fully engaged. If leaking persists, contact Moen customer support for assistance or replacement parts. |
| Water temperature is difficult to control. | Valve cartridge issue or improper installation. | Verify the valve cartridge is correctly installed. If the problem continues, professional inspection may be required. |
For more complex issues, please consult the comprehensive installation and troubleshooting guide provided with your product or contact Moen customer service.
Specifications
- Brand: Moen
- Model Number: 9025
- Color/Finish: Chrome
- Material: Metal (Brass handle)
- Number of Handles: 1
- Mounting Type: Floor Mount
- Item Weight: 23.8 Pounds
- Product Dimensions: 10.5 x 9.25 x 40 inches
- Spout Reach: 9.75 Inches
- Handshower Flow Rate: 1.75 GPM (Eco-Performance)
- UPC: 026508298442
Warranty and Support
The Moen Belfield 9025 Freestanding Tub Filler is backed by Moen's Limited Lifetime Warranty. This warranty covers defects in material and manufacturing workmanship for the original consumer purchaser. For full details regarding warranty coverage, claims, or to access customer support, please visit the official Moen website or refer to the warranty documentation included with your product.
Moen Official Website: www.moen.com
