METZ M40E6 40-inch Full HD Android Smart LED TV User Manual

1. Introduction

This manual provides essential instructions for the installation, operation, maintenance, and troubleshooting of your METZ M40E6 40-inch Full HD Android Smart LED TV. Please read this manual thoroughly before using the television and retain it for future reference.

Figure 1: METZ M40E6 TV with Android TV interface.

2. Safety Information

Always follow basic safety precautions when using this television to reduce the risk of fire, electric shock, and injury. Do not attempt to service this product yourself. Refer all servicing to qualified service personnel. Ensure the television is placed on a stable surface or securely mounted to prevent falling. Keep the television away from water and heat sources.

3. Package Contents

Verify that all items listed below are included in your package:

• 1 x METZ M40E6 LED TV
• 1 x Table Top Stand
• 1 x Wall Mount Bracket
• 1 x User Manual (this document)
• 1 x Warranty Card
• 1 x Remote Control (with 2 AAA batteries)

4. Setup

4.1. Physical Installation

You can install your TV using the included tabletop stand or a wall mount bracket.

4.1.1. Tabletop Stand Installation

1. Carefully place the TV screen-down on a soft, flat surface to prevent damage.
2. Attach the left and right stand bases to the corresponding slots on the bottom of the TV. Ensure they are oriented correctly (refer to Figure 2).
3. Secure the stand bases with the provided screws.

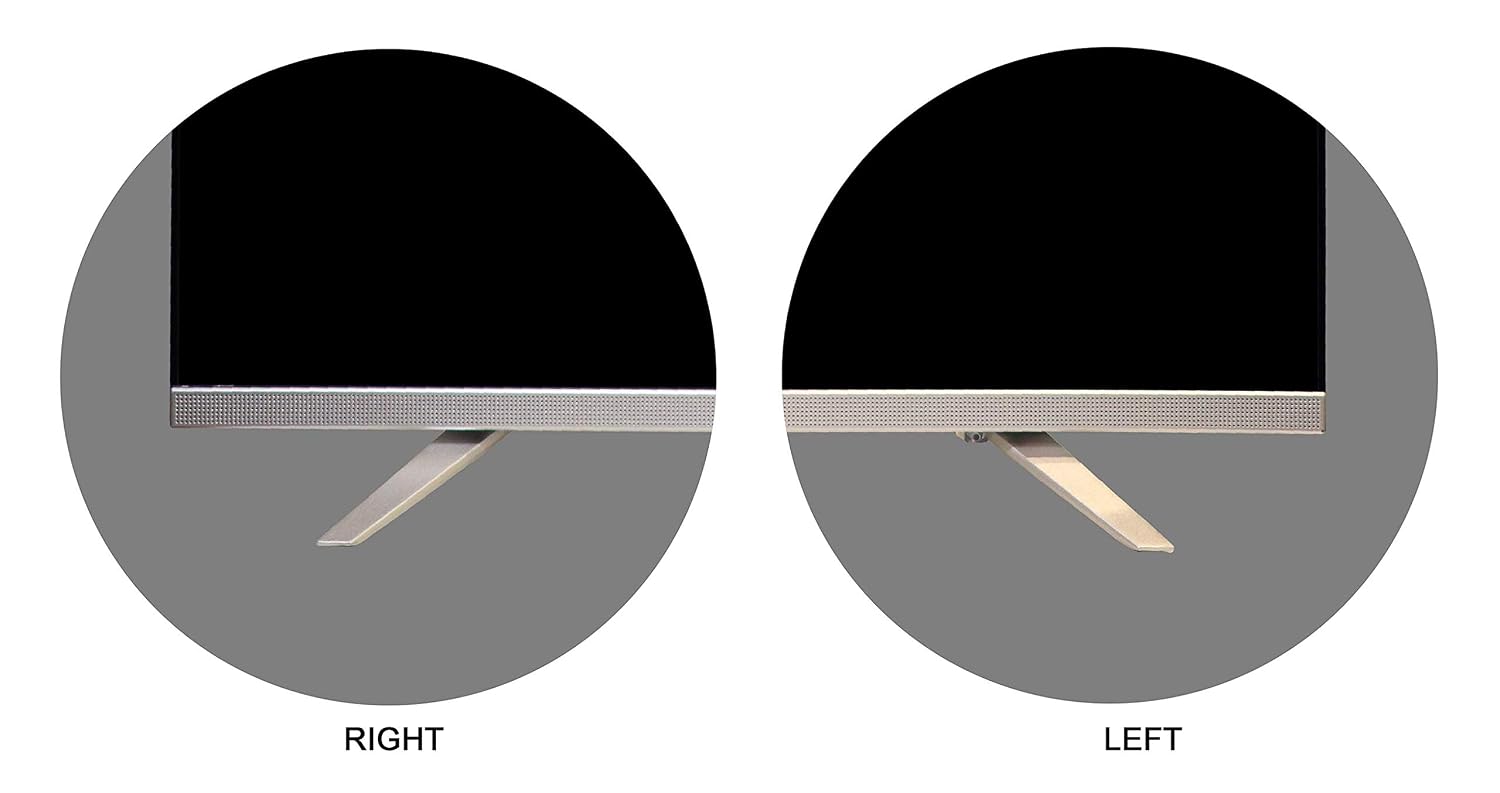

Figure 2: Tabletop stand components.

Figure 3: Stand attachment points.

Figure 4: TV with tabletop stand installed.

4.1.2. Wall Mount Installation

The TV supports a VESA mount standard of 200 x 200 mm. Use the provided wall mount bracket and follow its specific installation instructions. Ensure the wall can support the weight of the TV (approximately 6.9 kg) and the mount.

4.2. Connecting Devices

Connect your external devices to the appropriate ports on the back of the TV.

• HDMI Ports: For connecting set-top boxes, gaming consoles, Blu-ray players, etc. (2 HDMI ports available).
• USB Ports: For connecting USB storage devices to play media. (2 USB ports available).
• Digital Audio Output: For connecting to external audio systems.
• Antenna/Cable Input: For connecting an antenna or cable TV signal.

Figure 5: Rear panel with connectivity ports.

4.3. Initial Power-On and Network Setup

1. Connect the power cord to the TV and then to a power outlet.
2. Press the power button on the remote control or the TV to turn it on.
3. Follow the on-screen instructions to complete the initial setup, including language selection, time zone, and network connection.
4. Select your Wi-Fi network and enter the password to connect to the internet.
5. Sign in with your Google Account to access the Google Play Store and other Android TV features.

5. Operating Your TV

5.1. Remote Control Functions

The remote control allows you to navigate the TV's interface and access various functions. It features Google Assistant for voice commands.

Figure 6: Remote Control.

• Power Button: Turns the TV on or off.
• Navigation Pad (Up/Down/Left/Right/OK): For menu navigation and selection.
• Back Button: Returns to the previous screen.
• Home Button: Accesses the Android TV home screen.
• Google Assistant Button: Activates voice control. Press and hold to speak commands.
• Volume Up/Down: Adjusts the sound level.
• Input Button: Selects input sources (HDMI, USB, TV).

5.2. Navigating Android TV

The Android TV home screen provides access to installed apps, recommended content, and settings. Use the navigation pad on your remote to browse.

5.3. Using Smart Features

• Google Play Store: Download and install a wide range of applications.
• Chromecast Built-in: Cast content from your compatible smartphone, tablet, or computer directly to the TV.
• Google Assistant: Use voice commands to search for content, control smart home devices, and get information.
• Supported Internet Services: Access streaming platforms such as YouTube, Disney+Hotstar, Eros Now, Google Play Movies & TV, Google Play Music, Hotstar, Hungama Play, SONY LIV, Netflix, YUPP TV, Youtube Kids, and Zee5.

5.4. Input Selection

Press the 'Input' button on your remote control to switch between connected devices (e.g., HDMI 1, HDMI 2, USB, TV tuner).

6. Maintenance

6.1. Cleaning the TV

Always unplug the TV before cleaning. Use a soft, dry cloth to wipe the screen and cabinet. For stubborn marks, lightly dampen the cloth with water or a mild, non-abrasive cleaner specifically designed for electronics. Never spray cleaner directly onto the screen.

6.2. Software Updates

Your Android TV may receive software updates periodically. Ensure your TV is connected to the internet to receive these updates, which can improve performance and add new features. You can check for updates manually in the TV's settings menu.

7. Troubleshooting

If you encounter issues with your TV, refer to the following common problems and solutions:

• No Power:
  Ensure the power cord is securely plugged into both the TV and a working power outlet. Check if the power indicator light on the TV is on. Try a different power outlet.
• No Picture/Sound:
  Verify that the correct input source is selected. Check all cable connections (HDMI, antenna). Adjust volume levels.
• Remote Control Not Working:
  Replace the AAA batteries in the remote control. Ensure there are no obstructions between the remote and the TV's IR sensor. For Google Assistant, ensure the remote is paired via Bluetooth (if required for voice functions).
• Unable to Connect to Wi-Fi/Internet:
  Check your router and modem to ensure they are working correctly. Restart your router. Go to the TV's network settings and re-enter your Wi-Fi password. Ensure the TV is within range of your Wi-Fi signal.
• Netflix/Amazon Prime Video App Issues:
  Some streaming applications may require specific versions or direct installation methods not available through the standard Google Play Store. If an app is not working or installing correctly, check the app's official support page for device compatibility or alternative installation instructions. Ensure the TV's software is up to date.
• Poor Picture Quality:
  Check the source resolution. Adjust picture settings (brightness, contrast, sharpness) in the TV's menu. Ensure cables are securely connected.

8. Specifications

Detailed technical specifications for the METZ M40E6 TV:

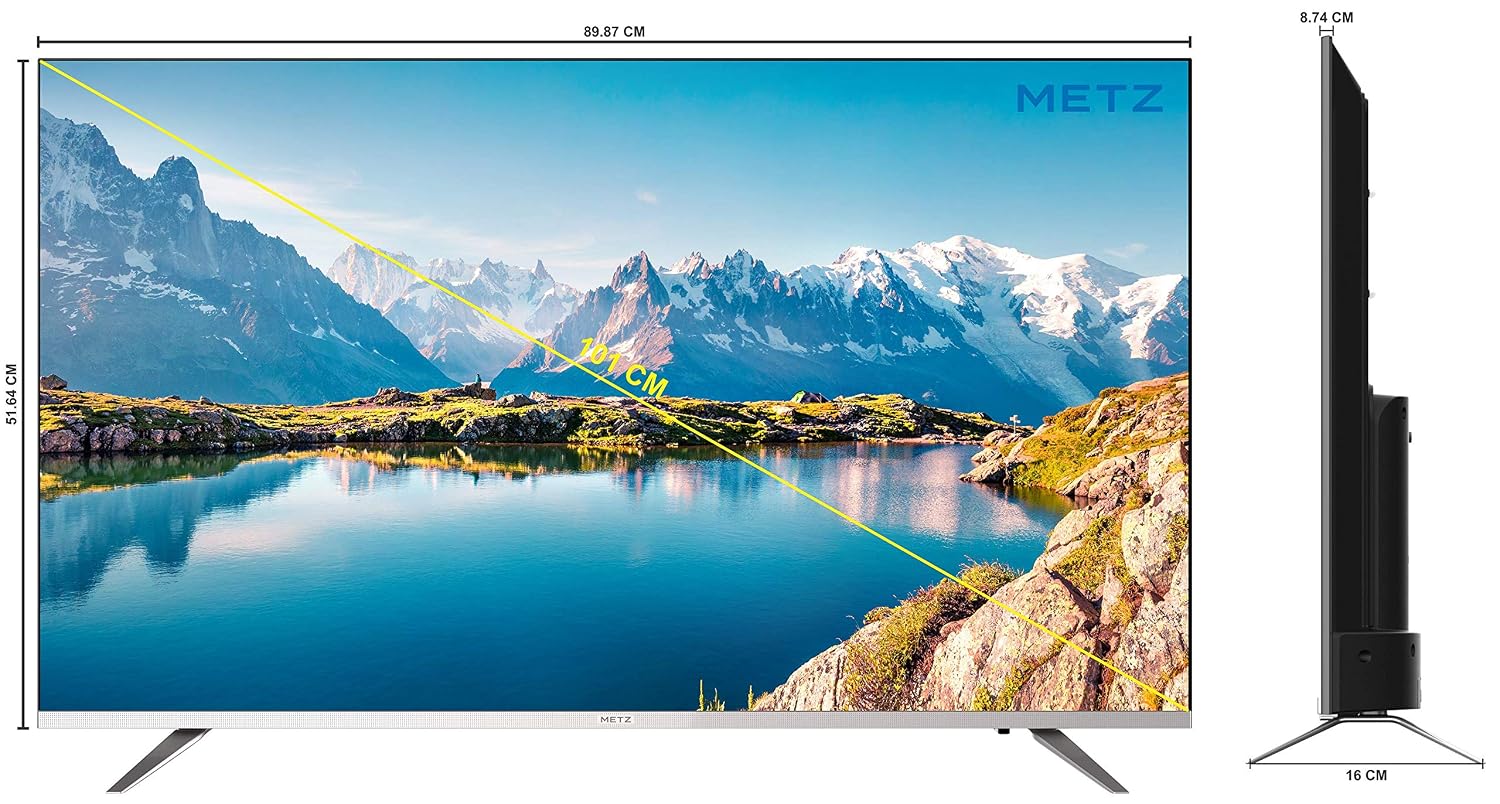

Figure 7: TV Dimensions.

9. Warranty and Support

Your METZ M40E6 TV comes with a 2-year comprehensive warranty provided by the manufacturer from the date of purchase.

9.1. Contacting Support

For assistance or to claim warranty service, please contact the brand's toll-free number: 1800-120-333-8888. When contacting support, provide your product's model name (M40E6) and the seller's details as mentioned on your invoice. The service center will schedule a convenient slot for service.

Manufacturer/Importer Contact Information: Radiant Appliances & Electronics India Pvt Ltd, No. 111 & 112, ECITY, FABCITY, Raviryal Village, Maheshwaram Mandal, RR District Hyderabad - 501141. Phone: +91-08414 667701. Email: info@radiantappliances.com
