1. Introduction
Thank you for choosing the Goplus 3-Step Folding Ladder. This manual provides essential information for the safe and effective use, maintenance, and storage of your new ladder. Please read this manual thoroughly before initial use and retain it for future reference.
Image 1.1: The Goplus 3-Step Folding Ladder in its open, ready-to-use position. This black ladder features three wide steps and a top handgrip for stability.
2. Safety Information
Your safety is paramount. Always follow these instructions to prevent injury or damage.
- Maximum Load Capacity: Do not exceed the maximum load capacity of 340 lbs (154 kg).
- Stable Surface: Always place the ladder on a firm, level, and non-slippery surface.
- Fully Open: Ensure the ladder is fully opened and locked into position before use. Check that all locking mechanisms are engaged.
- Maintain Balance: Always face the ladder when climbing up or down. Maintain three points of contact (two hands and one foot, or two feet and one hand) at all times.
- Do Not Overreach: Avoid overreaching while on the ladder. Reposition the ladder closer to your work area instead.
- Footwear: Wear clean, non-slip footwear when using the ladder.
- Children and Pets: Keep children and pets away from the ladder during use and storage.
- Inspection: Inspect the ladder for any damage or loose parts before each use. Do not use a damaged ladder.
- Electrical Safety: Do not use the ladder near live electrical wires or equipment.
Image 2.1: Visual representation of key safety features: Non-slip steps, overall safety, and a 340 lbs load capacity.
3. Product Features
The Goplus 3-Step Folding Ladder is designed for convenience and stability.
- Heavy-Duty Construction: Made from robust metal pipes for enhanced durability and stability.
- High Load Capacity: Supports up to 340 lbs, suitable for various tasks.
- Anti-Slip Platform: Features extensive plastic-wrapped pedals and foot pads to prevent slipping.
- Stable Design: Incorporates a stable triangular structure and non-slip foot covers for secure placement.
- Foldable Design: Folds compactly for easy storage and transportation.
- Integrated Handgrip: Provides additional support and balance during use.
Image 3.1: Close-up view highlighting the wear-resistant plastic sleeve, non-slip PP feet, metal strip for reinforcement, and large-size steps.
4. Setup
The Goplus 3-Step Folding Ladder requires minimal setup.
- Unpack: Carefully remove the ladder from its packaging.
- Unfold: Place the folded ladder on a flat, stable surface. Gently pull the front and back sections apart until the ladder is fully extended.
- Secure: Ensure that the safety lock mechanism (typically a metal bar or hinge lock) is fully engaged and locked into place. This prevents accidental folding during use.
- Stability Check: Before stepping on the ladder, gently push down on the steps and check for any wobbling or instability. All four feet should be firmly on the ground.

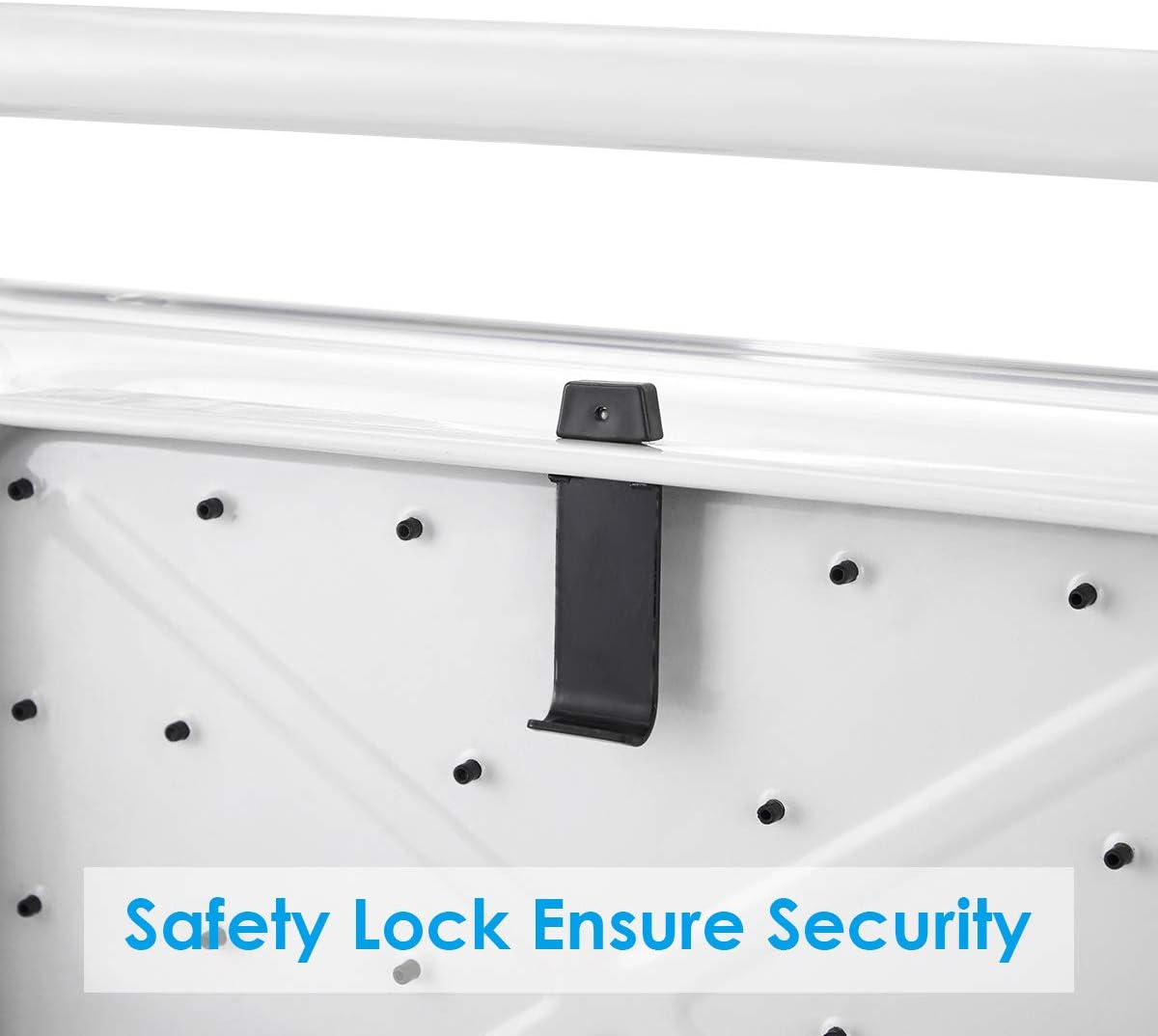

Image 4.1: Detail of the safety lock mechanism, which must be engaged to ensure the ladder is securely open before use.
5. Operating Instructions
Follow these steps for safe operation of your Goplus 3-Step Folding Ladder.
- Placement: Position the ladder directly in front of the task area.
- Climbing: Step onto the lowest step first, ensuring your foot is fully on the platform. Use the handgrip for support.
- Ascending: Proceed to the next step, maintaining three points of contact. Do not skip steps.
- Working Position: For optimal safety, avoid standing on the top step unless it is designed as a platform. This ladder has a handgrip above the top step, indicating it is safe to use all three steps.
- Descending: Face the ladder and descend carefully, maintaining three points of contact.
Image 5.1: A user demonstrating safe operation of the Goplus 3-Step Folding Ladder in a kitchen environment, reaching for items on a high shelf.
Image 5.2: Examples of common household tasks where the ladder can be used, such as changing light bulbs, washing windows, hanging pictures, and accessing high storage.
6. Maintenance
Regular maintenance ensures the longevity and safe operation of your ladder.
- Cleaning: Wipe down the ladder with a damp cloth and mild detergent. Avoid abrasive cleaners that could damage the finish or anti-slip surfaces.
- Inspection: Periodically check all joints, rivets, and moving parts for tightness and wear. Ensure the anti-slip foot covers are intact and securely attached.
- Lubrication: If hinges become stiff, apply a small amount of silicone-based lubricant to the pivot points.
- Damage: If any part of the ladder is damaged, discontinue use immediately and contact customer support for assistance. Do not attempt to repair damaged components yourself.
7. Storage
Proper storage helps preserve the ladder's condition and ensures safety.
- Folding: To fold the ladder, disengage the safety lock and gently push the front and back sections together until it is flat.
- Location: Store the folded ladder in a dry, cool place, away from direct sunlight and extreme temperatures.
- Security: Store the ladder in a location where it will not be a tripping hazard and cannot fall over. Leaning it against a wall or hanging it securely is recommended.
Image 7.1: The Goplus 3-Step Folding Ladder in its compact, folded state, ideal for space-saving storage.
8. Troubleshooting
If you encounter issues with your Goplus 3-Step Folding Ladder, refer to these common solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Ladder feels unstable or wobbly. | Not fully opened; uneven surface; damaged foot covers. | Ensure ladder is fully extended and safety lock is engaged. Move to a flat, level surface. Inspect and replace damaged foot covers. |
| Difficulty folding/unfolding. | Hinges are stiff or dirty; safety lock not disengaged. | Clean hinges and apply lubricant. Ensure safety lock is properly disengaged before attempting to fold. |
| Anti-slip steps losing grip. | Steps are dirty or worn. | Clean steps thoroughly. If wear is significant, consider replacement if available, or discontinue use if safety is compromised. |
9. Specifications
Key technical details for the Goplus 3-Step Folding Ladder.
- Model: GO-TL35248-SU
- Number of Steps: 3
- Material: Heavy Duty Iron
- Color: Black
- Load Capacity: 340 Pounds (154 kg)
- Item Weight: 14 Pounds (6.35 kg)
- Product Dimensions (Open): 19.5" W x 36.5" H (approx. 49.5 cm W x 92.7 cm H)
- Maximum Height (Top Step): 28 Inches (approx. 71.1 cm)
- Special Features: Foldable, Heavy Duty, Lightweight, Handgrip, Wide Anti-Slip Platform
- UPC: 798470381469

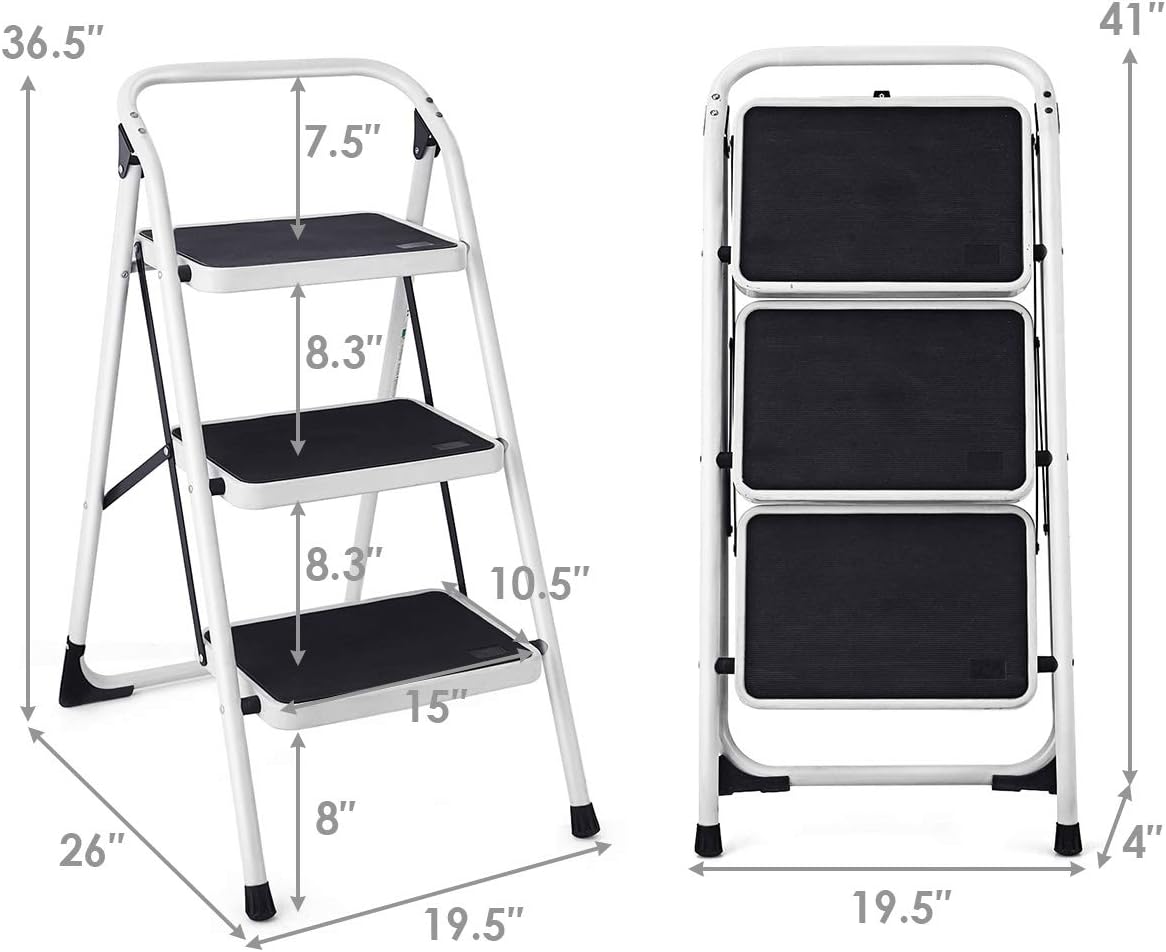

Image 9.1: Detailed dimensions of the Goplus 3-Step Folding Ladder, including height, width, and step spacing, both open and folded.
10. Warranty and Support
For warranty information or technical support, please contact Goplus customer service. Keep your purchase receipt as proof of purchase.
Visit the Goplus Store for more products and support: Goplus Official Store
