Beko EFE6030W Air Cooler User Manual

Introduction

Thank you for choosing the Beko EFE6030W Air Cooler. This appliance is designed to clean and humidify the air quietly and energy-efficiently, providing a comfortable environment by lowering the domestic temperature without the use of refrigerant gas. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new air cooler. Please read it thoroughly before first use and keep it for future reference.

Important Safety Instructions

To reduce the risk of fire, electric shock, or injury, always follow these basic safety precautions:

• Read all instructions before operating the appliance.
• Do not block air inlets or outlets. Ensure proper ventilation around the unit.
• Use the appliance only on a stable, level surface to prevent tipping.
• Keep the appliance away from water or excessive moisture. Do not immerse the unit, cord, or plug in water or other liquids.
• Unplug the appliance from the power outlet before cleaning, maintenance, or when not in use for extended periods.
• Keep out of reach of children and pets. This appliance is not intended for use by persons with reduced physical, sensory, or mental capabilities unless supervised.
• Do not operate the appliance with a damaged cord or plug. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent, or similarly qualified persons to avoid a hazard.
• Do not insert fingers or foreign objects into the air inlets or outlets.
• Only use attachments/accessories specified by the manufacturer.

Package Contents

Please check the package contents upon opening. If any items are missing or damaged, contact your retailer.

• Beko EFE6030W Air Cooler Unit
• Remote Control
• User Manual (this document)
• Bio-chemical cotton filter (pre-installed or separate)

Product Overview

Familiarize yourself with the components of your Beko EFE6030W Air Cooler.

Figure 1: Angled view of the Beko EFE6030W Air Cooler, showing its sleek white design and casters for mobility.

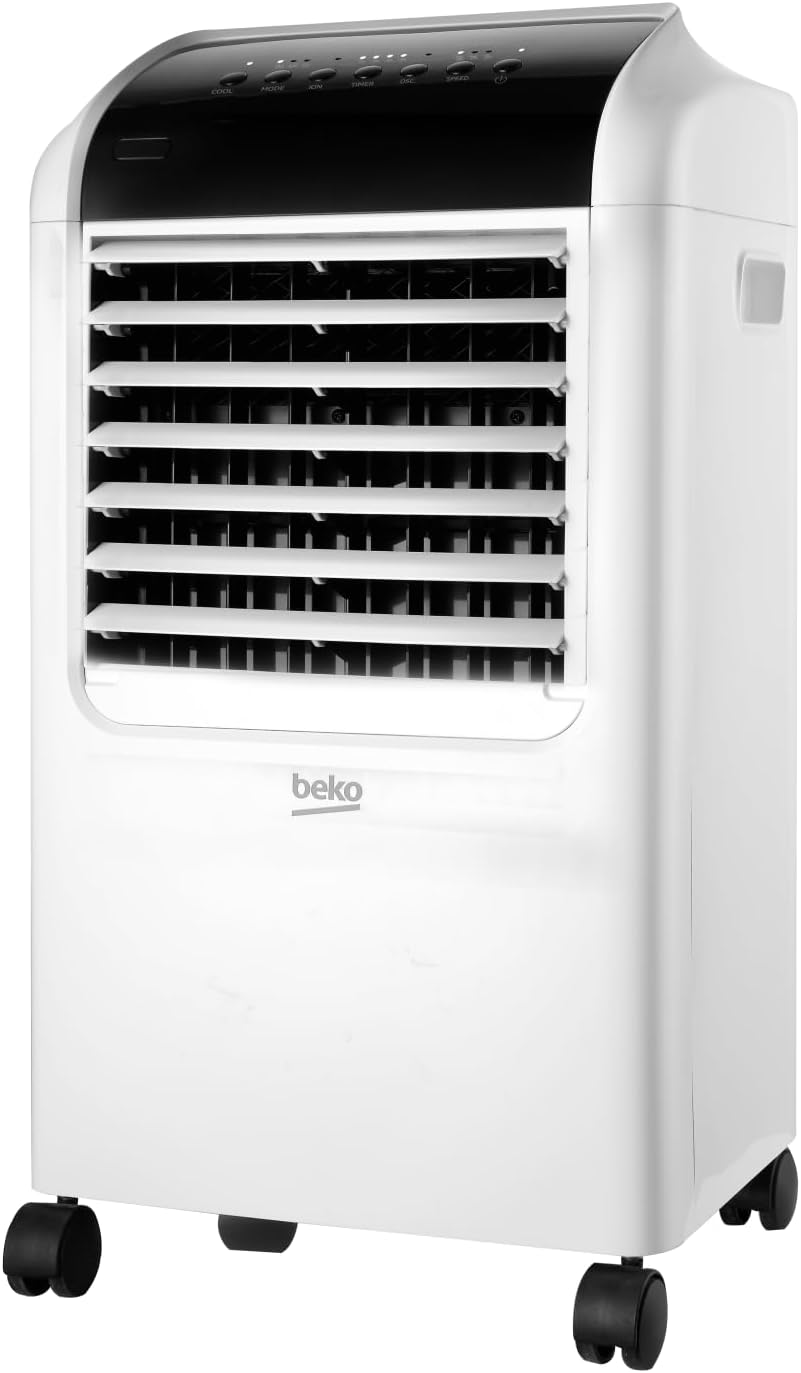

Figure 2: Front view of the air cooler, highlighting the air outlet and the Beko logo.

Figure 3: Close-up of the LED control panel with buttons for Cool, Mode, Ion, Timer, Oscillation, Speed, and Power.

Figure 4: The compact remote control for convenient operation of the air cooler.

Figure 5: View of the rear access panel, showing the bio-chemical cotton filter and the water tank compartment.

Setup

Follow these steps to set up your air cooler for the first time:

1. Unpack the Unit: Carefully remove the air cooler and all accessories from the packaging. Retain packaging for future storage or transport.
2. Placement: Place the unit on a firm, level surface in the desired location. Ensure there is adequate space around the unit for proper airflow.
3. Fill Water Tank: Pull out the water tank from the rear of the unit. Fill the 8-liter tank with clean, cold water. For enhanced cooling, you may add ice packs or ice cubes to the water tank. Do not overfill. Securely close and reinsert the water tank.
4. Filter Installation: Ensure the bio-chemical cotton filter is correctly installed in its designated slot, typically located behind the rear access panel.
5. Power Connection: Plug the power cord into a standard 230 Volts (AC) electrical outlet.

Operating Instructions

Your Beko EFE6030W Air Cooler can be operated using the control panel on the unit or the provided remote control.

Control Panel and Remote Control Functions:

• Power Button (): Press to turn the unit ON or OFF.
• Speed Button: Cycles through 3 fan speeds: Low, Medium, and High.
• Mode Button: Selects between different operating modes: Normal, Natural, and Sleep.
• Oscillation Button (OSC.): Activates or deactivates the automatic oscillation function, which swings the air outlet louvers to distribute air more widely.
• Timer Button: Sets the operating timer from 1 to 15 hours. The unit will automatically turn off after the set time.
• Ionizer Button (ION): Activates or deactivates the ionizer function. The ionizer generates negative ions to help reduce dust in the air and restore electrostatic balance.
• Cool Button (COOL): Activates the cooling function, which uses water and ice to lower the air temperature.

Modes of Operation:

• Normal Mode: Provides a constant airflow at the selected speed.
• Natural Mode: Simulates a natural breeze by varying the fan speed intermittently.
• Sleep Mode: Operates at a lower, quieter fan speed, ideal for use during sleep. The fan speed may gradually decrease over time in this mode.

Maintenance

Regular maintenance ensures optimal performance and longevity of your air cooler. Always unplug the unit before performing any maintenance.

• Cleaning the Exterior: Wipe the exterior surfaces of the unit with a soft, damp cloth. Do not use abrasive cleaners, waxes, or solvents, as these may damage the finish.
• Cleaning the Water Tank: The water tank should be drained and cleaned regularly (e.g., weekly) to prevent the buildup of mold, mildew, and mineral deposits. Remove the tank, empty any remaining water, and clean with mild soap and water. Rinse thoroughly before refilling.
• Cleaning the Filter: The bio-chemical cotton filter should be cleaned periodically, depending on usage and air quality. Refer to the specific instructions in your manual for removing and cleaning the filter. Typically, filters can be rinsed under running water and allowed to air dry completely before reinstallation.
• Storage: If storing the unit for an extended period, ensure the water tank is empty and clean, and the filter is dry. Store the unit in a cool, dry place, preferably in its original packaging.

Troubleshooting

If you encounter issues with your air cooler, refer to the following table for common problems and solutions.

Specifications

Detailed technical specifications for the Beko EFE6030W Air Cooler:

Warranty and Support

For warranty information and customer support, please refer to the warranty card included with your product or visit the official Beko website. Keep your purchase receipt as proof of purchase for any warranty claims.

If you require technical assistance or have questions not covered in this manual, please contact Beko customer service.
