Bilstein 5100 Series Front Shock Absorber Manual

1. Introduction

The Bilstein B8 5100 Series shock absorbers are engineered as a direct-fit solution for lifted trucks and SUVs, specifically for the 2017-2019 Nissan Titan. These shock absorbers feature a monotube design, which provides consistent, fade-free performance across various conditions. They incorporate a unique, velocity-sensitive, digressive piston that adapts to changing road conditions, ensuring optimal performance. Each B8 5100 shock absorber is specifically tuned for its application to achieve superior ride quality, handling, and comfort.

Key Features:

• 46mm monotube design for consistent, fade-free performance.
• Patented digressive valving for instant reaction to changing surface conditions.
• OEM certified mounting hardware for straightforward installation.
• Zinc plated finish for enhanced resistance against harsh environmental elements.
• Durable vulcanized neoprene rubber bushings.

2. Safety Information

WARNING: Installation of automotive suspension components requires specialized tools and knowledge. It is highly recommended that installation be performed by a qualified professional. Improper installation can lead to serious injury or vehicle damage.

• Always wear appropriate personal protective equipment, including safety glasses and gloves.
• Ensure the vehicle is securely supported on a level surface using jack stands before beginning any work. Never rely solely on a jack.
• Use appropriate spring compressors for coil spring removal and installation. Spring compression can be dangerous if not handled correctly.
• Refer to your vehicle's service manual for specific torque specifications and procedures.
• This product may expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm (California Proposition 65). Wash hands after handling.

3. Package Contents

Verify that all components are present and undamaged before beginning installation.

• One (1) Bilstein 5100 Series Front 46mm Monotube Shock Absorber (Model 24-268189)
• Associated mounting hardware (washers, nuts, bushings)

4. Installation Instructions

These instructions are a general guide. Always consult your vehicle's specific service manual for detailed procedures and torque specifications.

4.1. Preparation

1. Park the vehicle on a level surface and engage the parking brake.
2. Loosen the lug nuts on the front wheels.
3. Safely lift the front of the vehicle using a jack and support it securely with jack stands.
4. Remove the front wheels.
5. Gather necessary tools, including wrenches, sockets, a torque wrench, and a spring compressor.

4.2. Removal of Existing Shock Absorber

1. Disconnect any brake lines or ABS sensor wires that may be attached to the shock assembly.
2. Remove the upper mounting nuts from the shock tower.
3. Remove the lower mounting bolt connecting the shock to the lower control arm.
4. Carefully remove the entire shock and coil spring assembly from the vehicle.

4.3. Spring Compression and Shock Assembly

Important: Compressing coil springs can be hazardous. It is strongly recommended to have this step performed by a professional shop with appropriate equipment.

1. Using a suitable spring compressor, carefully compress the coil spring until tension is relieved from the upper mount.
2. Remove the top nut, upper mount, and spring from the old shock.
3. Install the coil spring onto the new Bilstein 5100 Series shock absorber.
4. Assemble the upper mount and associated hardware onto the new shock.
5. Note on Dust Boot: To reuse the factory dust boot, it may be necessary to "double stack" the lower washers. Place the original factory lower washer on top of the Bilstein-supplied lower washer, ensuring the Bilstein washer's orientation prevents damage to the shock's upper seal. This provides proper support for the dust boot.
6. Tighten the top nut to the manufacturer's specified torque.
7. Carefully release the spring compressor.

4.4. Installation of New Shock Absorber

1. Carefully guide the assembled shock and spring into the vehicle's shock tower.
2. Secure the upper mounting nuts, but do not fully tighten them yet.
3. Connect the lower end of the shock to the lower control arm with the mounting bolt. Tighten to the manufacturer's specified torque.
4. Reconnect any brake lines or ABS sensor wires that were detached.
5. Once the vehicle is on the ground and suspension is loaded, fully tighten the upper mounting nuts to the specified torque.

4.5. Final Steps

1. Reinstall the front wheels and tighten lug nuts to factory specifications.
2. Lower the vehicle completely.
3. It is recommended to have a wheel alignment performed after suspension component replacement.

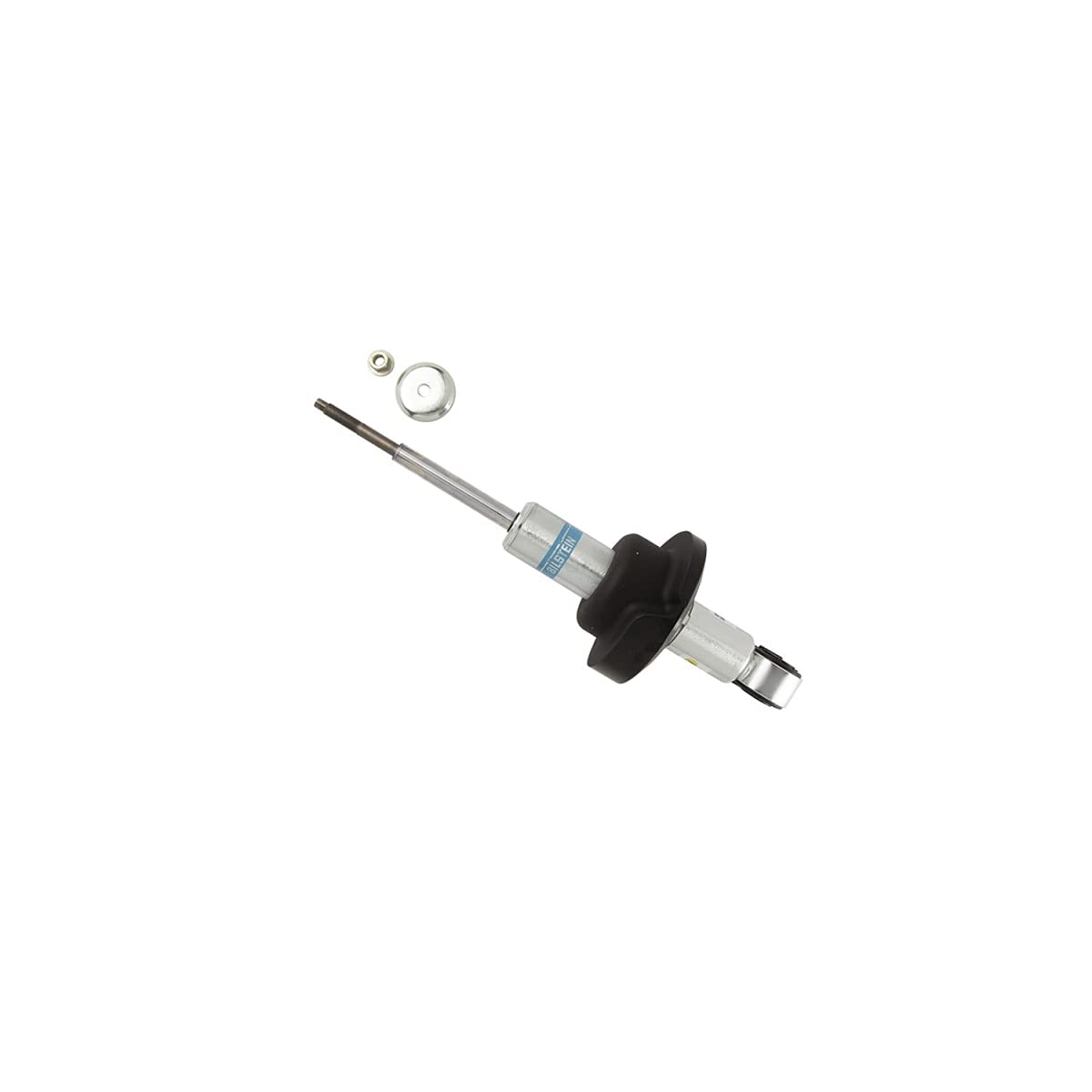

Image: Bilstein 5100 Series Front Monotube Shock Absorber. This image displays the shock absorber with its zinc-plated body and mounting points, ready for installation.

5. Operating Principles

The Bilstein 5100 Series shock absorber operates on a monotube design, which separates the oil and gas with a floating piston. This design prevents aeration and foaming of the oil, ensuring consistent damping performance even under demanding conditions. The patented digressive valving system allows the shock to react instantly to varying road surfaces, providing a firm yet controlled ride. This technology contributes to improved vehicle stability, reduced body roll, and enhanced overall handling characteristics, especially in lifted applications.

6. Maintenance

Bilstein 5100 Series shock absorbers are designed for durability and require minimal maintenance. However, regular inspection is recommended to ensure optimal performance and longevity.

• Visual Inspection: Periodically inspect the shock absorbers for any signs of damage, leaks, or corrosion. Check the rubber bushings for cracks or excessive wear.
• Mounting Hardware: Ensure all mounting bolts and nuts are securely tightened. Re-torque if necessary according to vehicle specifications.
• Cleaning: Keep the shock absorbers clean from excessive dirt and debris, especially around the piston rod, to prevent seal damage.

7. Troubleshooting

• Harsh Ride: The Bilstein 5100 Series is a performance-oriented shock absorber. While it offers improved handling, some users may perceive the ride as firmer than stock. This is generally a characteristic of the product's design for enhanced control. Ensure tire pressures are correct and that the shock is set to the appropriate lift height (if adjustable).
• Unusual Noises (Clunking/Squeaking):
  • Check all mounting hardware for proper torque. Loose bolts can cause noise.
  • Inspect bushings for wear or improper seating.
  • Verify that the dust boot is properly seated and not interfering with other components.
• Leaking Shock: A small amount of oil residue is normal. However, if there is significant oil leakage, the shock absorber may be damaged and require replacement.

8. Specifications

9. Warranty and Support

Bilstein provides a manufacturer's warranty for this product. For specific warranty terms, conditions, and duration, please refer to the official Bilstein website or contact Bilstein customer support directly. Keep your proof of purchase for warranty claims.

For technical assistance, installation questions, or support, please visit the official Bilstein website or contact their customer service department. Contact information can typically be found on their website or product packaging.
