1. Introduction
This manual provides essential information for the safe and efficient use of your Whirlpool NEO DF278 PRM (3S) 265L Frost-Free Double Door Refrigerator. Please read it thoroughly before operating the appliance and retain it for future reference.
1.1. What's in the Box
- 1 Refrigerator unit
- 1 User Manual
- 1 Warranty Card
Image 1.1: Front view of the Whirlpool NEO DF278 PRM (3S) Refrigerator in Wine Hibiscus.
2. Setup & Installation
2.1. Delivery and Inspection
Upon delivery, a free open box inspection service is provided. The delivery associate will open the product for your inspection to ensure it matches your order and is free from damage. If the product is found to be damaged, missing parts, or different from what you ordered, you may refuse the delivery. A refund will be credited to your account as per the return and refund policy. This service is available for prepaid scheduled delivery orders in select pin codes.
2.2. Preparing for Installation
- Clear a Path: Ensure a clear path from the doorstep to the intended location of the appliance. The path should be wide enough to accommodate the refrigerator.
- Presence Required: Make sure someone is present at the time of delivery and installation.
- Contactability: Ensure you are reachable on the contact number provided during the order placement for scheduling the installation appointment.
Image 2.1: Illustration demonstrating the importance of clearing a path for smooth appliance delivery.
2.3. Installation Process
Once your product is delivered, Amazon will automatically raise an installation request to Whirlpool. You will receive an SMS with the service request number within 24 to 36 hours of delivery. The brand team will contact you to fix the installation appointment as per your convenience. An authorized technician from Whirlpool will visit on the mutually agreed time slot to install the product and explain its features.
3. Features & Operation
3.1. Freshflow Air Tower with Flexi Vents
The scientifically designed air tower and strategically placed vents ensure uniform cooling throughout the refrigerator. This system circulates cool and fresh air into different sections, providing up to 12 days of garden freshness for your produce.
Image 3.1: Interior view highlighting the Freshflow Air Tower and Flexi Vents for uniform cooling.
3.2. Honeycomb Design with Moisture Control System
The unique honeycomb design helps retain the optimal moisture levels for your vegetables and fruits, keeping them fresh for longer periods.
Image 3.2: Close-up of the Honeycomb Moisture Crisper Cover, designed to maintain freshness of produce.
3.3. Microblock Technology
This technology prevents up to 99% bacterial growth, ensuring your fruits and vegetables remain fresh and hygienic for an extended duration.
Image 3.3: Visual representation of Microblock Technology preventing bacterial growth.
3.4. 6th Sense DeepFreeze Technology & Chilling Gel
The 6th Sense DeepFreeze Technology, combined with the Chilling Gel, ensures full circular airflow in the freezer compartment. The chilling gel stores cool air, which is released during power cuts to prevent ice from melting and other contents from spoiling, offering extended cooling retention.
Image 3.4: Freezer compartment showcasing 6th Sense DeepFreeze Technology and Chilling Gel.
3.5. Active Deo
Integrated at the bottom of the Freshflow Air Tower, the Active Deo provides effective anti-odor action, keeping the refrigerator environment fresh and odor-free.
Image 3.5: Active Deo unit visible inside the refrigerator, ensuring an odor-free environment.
3.6. Toughened Glass Shelves
The shelves inside the refrigerator are made of toughened glass, making them durable and capable of holding the weight of large and heavy containers securely.
Image 3.6: Interior view showing the toughened glass shelves filled with food items.
3.7. Energy Efficiency and Voltage Fluctuation
This refrigerator has a 3 Star Rating (as per 2019 BEE rating), indicating energy efficiency and helping to save electricity. It is designed to operate stably even with high voltage fluctuations (130V to 300V) and does not require a separate stabilizer.
Image 3.7: Energy Star rating label for the refrigerator.
4. Specifications
| Feature | Detail |
|---|---|
| Brand | Whirlpool |
| Model | NEO DF278 PRM (3S) |
| Energy Efficiency | 3 Star Rating (2019) |
| Capacity | 265 litres |
| Annual Energy Consumption | 253 Kilowatt Hours |
| Refrigerator Fresh Food Capacity | 184 litres |
| Freezer Capacity | 75 Litres |
| Installation Type | Freestanding |
| Form Factor | Double Door |
| Special Features | Automatic Defrost |
| Colour | Wine Hibiscus |
| Voltage | 230 Volts |
| Defrost System | Frost Free |
| Shelf Type | Toughened Glass |
| Material | Steel |
| Item Weight | 56 kg |
| Item Dimensions (LxWxH) | 57 x 67 x 159 Centimeters |
| Date First Available | 28 June 2019 |

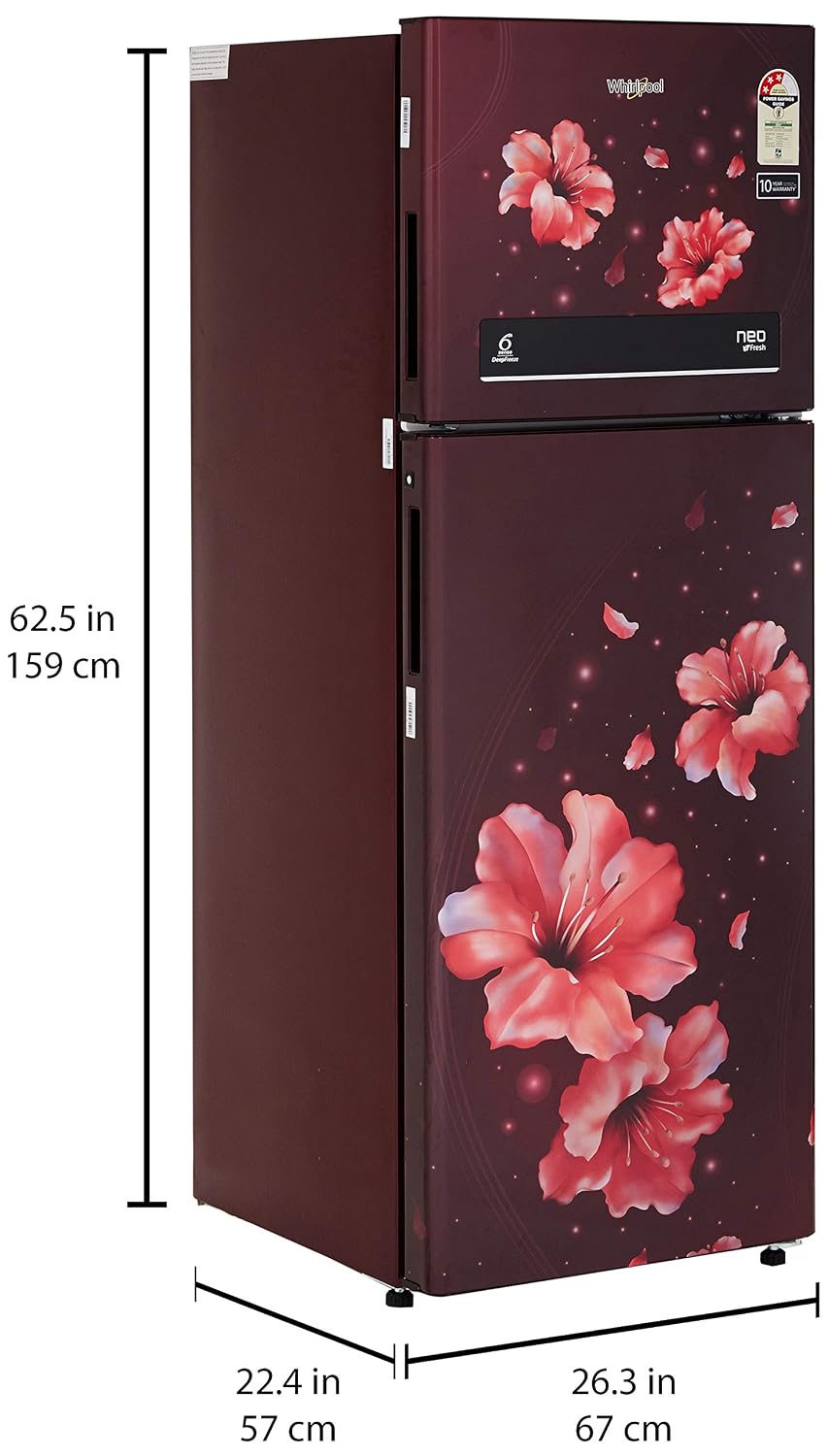

Image 4.1: Refrigerator dimensions for planning placement.
5. Warranty & Support
The Whirlpool NEO DF278 PRM (3S) Refrigerator comes with a 1-year warranty on the product and a 10-year warranty on the compressor from the date of purchase.
Image 5.1: Warranty details highlighting the 10-year compressor warranty.
5.1. Customer Support
For any service requests, technical assistance, or warranty claims, please refer to the contact information provided on your warranty card or visit the official Whirlpool India website.
