Huanyu Commercial Digital Electric Shaved Ice Machine User Manual

1. Introduction

Thank you for purchasing the Huanyu Commercial Digital Electric Shaved Ice Machine. This appliance is designed for efficient and consistent production of various types of shaved ice, suitable for commercial use in cafes, restaurants, and dessert shops. Please read this manual thoroughly before operation to ensure safe and correct usage, and retain it for future reference.

1.1 Safety Precautions

• Always connect the machine to a grounded power outlet.
• Do not operate the machine with wet hands.
• Keep hands and utensils away from moving parts during operation.
• Ensure the machine is stable on a flat, dry surface before use.
• Unplug the machine before cleaning or maintenance.
• Do not immerse the main unit in water or other liquids.
• This appliance is for commercial use; supervise children if they are near the machine.

2. Product Components

Familiarize yourself with the main parts of your shaved ice machine:

• Main Unit: Houses the motor and shaving mechanism.
• Ice Box: Container for holding ice blocks. Features an automatic lock.
• Control Panel: Digital display and buttons for operation.
• Ice Thickness Adjustment Knob: Located on the double blade mechanism.
• Rotating Tray: Collects shaved ice and is removable for cleaning.
• Heat Dissipation Cover: Located on top for ventilation.
• Plastic Ice Bowls (x3): For preparing ice blocks.

Image: Overview of the Huanyu Shaved Ice Machine with key components labeled, including the touch panel, ice box, automatic lock, ice thickness knob, and rotating tray.

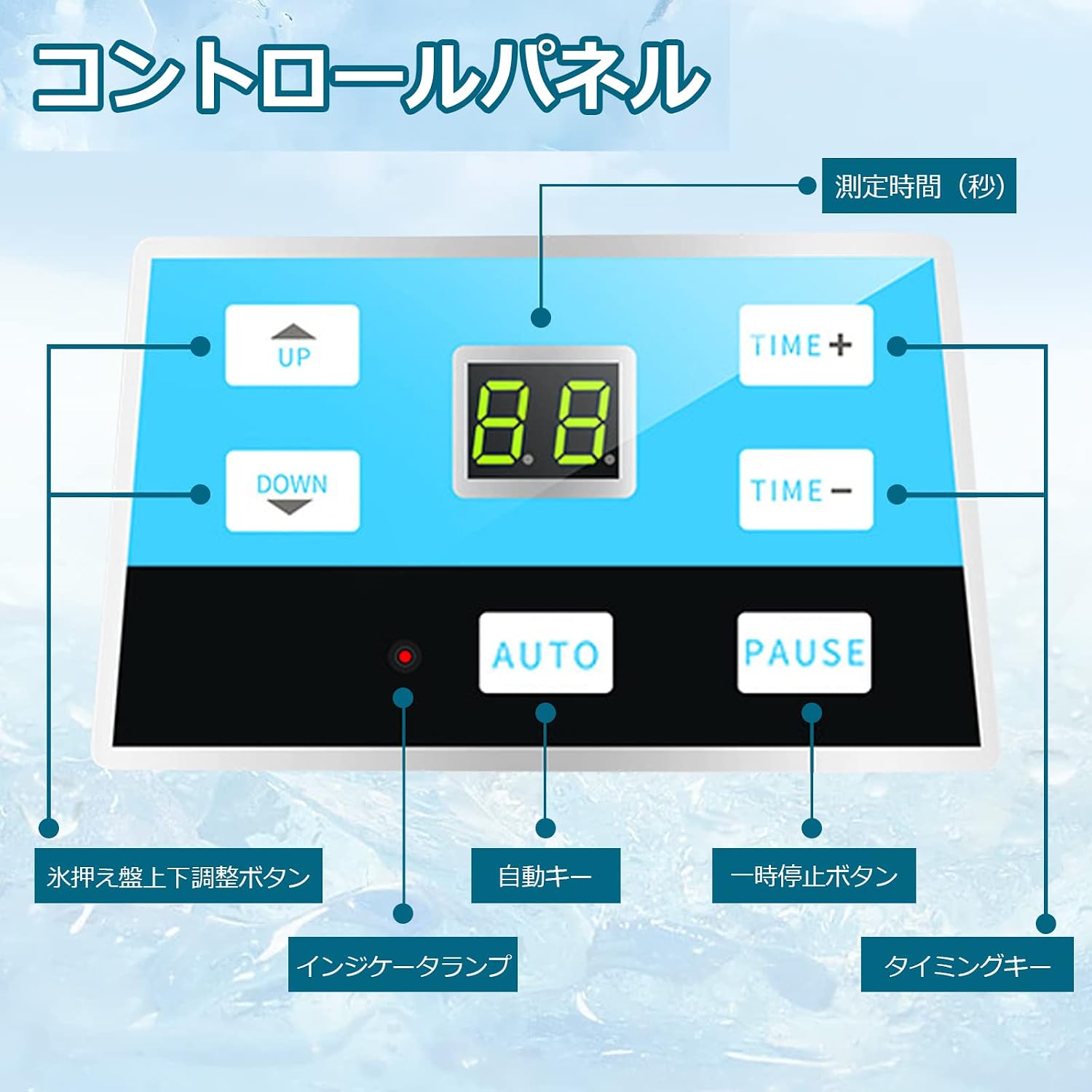

Image: Detailed diagram of the control panel, showing the digital display, UP/DOWN buttons for ice press adjustment, TIME+/- buttons for timing, AUTO button for automatic operation, PAUSE button, and indicator lamp.

3. Setup

3.1 Unpacking and Placement

1. Carefully remove all packaging materials.
2. Place the machine on a stable, level, and dry surface. Ensure adequate ventilation around the unit.

3.2 Preparing Ice Blocks

For best results, use the provided plastic ice bowls to freeze your desired liquid (water, syrup, milk, etc.).

• Fill the ice bowls with your chosen liquid.
• Freeze for at least 12 hours until solid.
• The recommended ice block dimensions for other containers are a diameter within 8.5 cm and a height within 7 cm, with a volume of 350ml to 380ml.

Image: Diagram showing the dimensions of the ice container and the recommended ice making cups, ensuring proper fit and operation.

3.3 Power Connection

Connect the power cord to a suitable grounded electrical outlet. Ensure the voltage matches the machine's requirements.

4. Operating Instructions

Follow these steps to operate your Huanyu Shaved Ice Machine:

1. Prepare Ingredients: Have your frozen ice blocks ready.
2. Insert Ice Block: Open the ice box cover and place a frozen ice block into the ice box. Ensure it is properly seated. The machine features an automatic lock for the ice box.
3. Adjust Ice Thickness: Use the double blade adjustment lever to set your desired ice thickness. This allows for various textures, from fine, fluffy snow ice to coarser, crispy ice.
4. Place Serving Bowl: Position a serving bowl or container on the rotating tray beneath the ice outlet.
5. Power On: Press the power switch to turn on the machine.
6. Select Mode:
   • Automatic Mode: Press the 'AUTO' button for continuous shaving.
   • Timed Mode: Use the 'TIME+' and 'TIME-' buttons to set a specific shaving duration. The digital display shows the time in seconds.
7. Start Shaving: The machine will begin shaving the ice. The powerful 300W pure copper motor operates at 320 r/min, producing up to 70kg of shaved ice per hour.
8. Pause/Stop: Press the 'PAUSE' button to temporarily stop shaving. Press it again to resume, or turn off the machine when finished.
9. Collect Shaved Ice: The rotating tray helps distribute the shaved ice evenly into your bowl.

Image: Visual guide illustrating the step-by-step process of preparing ingredients, freezing ice, inserting ice, adjusting blades, and operating the machine.

Image: Close-up of the double blade mechanism and adjustment lever, demonstrating how to control the thickness of the shaved ice for different textures like snow-like, striped, or flaky ice.

Image: The Huanyu Shaved Ice Machine actively producing shaved ice, highlighting its commercial capacity of 70kg per hour and quick output of one cup in approximately 30 seconds.

5. Maintenance and Cleaning

Regular cleaning ensures optimal performance and hygiene.

1. Unplug: Always unplug the machine from the power outlet before cleaning.
2. Remove Tray: The rotating tray is detachable for easy cleaning. Wash it with mild soap and water, then rinse thoroughly and dry.
3. Clean Ice Box and Blades: Carefully wipe the inside of the ice box and around the blades with a damp cloth. Be cautious around the sharp blades.
4. Wipe Exterior: Clean the exterior of the machine with a soft, damp cloth. Do not use abrasive cleaners or immerse the main unit in water.
5. Dry Thoroughly: Ensure all parts are completely dry before reassembling or storing the machine.

Image: Illustration of the removable rotating tray and the ease of cleaning, emphasizing its detachable design for hygiene.

6. Troubleshooting

If you encounter issues, refer to the following common problems and solutions:

If the problem persists after attempting these solutions, please contact customer support.

7. Specifications

8. Warranty and Support

8.1 Warranty Information

This Huanyu Shaved Ice Machine comes with a 1-year manufacturer's warranty from the date of purchase. The warranty covers defects in materials and workmanship under normal use. It does not cover damage caused by misuse, accident, unauthorized modification, or improper maintenance.

8.2 Customer Support

For technical assistance, warranty claims, or any questions regarding your product, please contact the seller or Huanyu customer service. Please have your model number (B07S6BFJ1Z) and proof of purchase ready when contacting support.
