1. Introduction
Thank you for choosing the Yaheetech Large Bird Cage. This multi-level aviary is designed to provide a spacious and secure environment for various bird species, including parakeets, cockatiels, conures, and canaries. Please read this manual thoroughly before assembly and use to ensure proper setup, safe operation, and optimal maintenance of your bird cage.
2. Safety Instructions
- Always assemble the cage on a flat, stable surface to prevent tipping.
- Keep small parts away from children and pets during assembly.
- Ensure all connections are securely fastened before placing birds inside.
- Regularly inspect the cage for any damaged or loose parts that could harm your birds.
- Do not overload the cage with excessive accessories or birds beyond its recommended capacity.
- Position the cage in a safe location, away from direct sunlight, drafts, and hazardous materials.
- The cage is made of iron with a non-toxic coated texture. While safe for pets, avoid prolonged exposure to extreme weather conditions if used outdoors.
3. Package Contents
Please verify that all components listed below are present before beginning assembly. If any parts are missing or damaged, please contact customer support.
| Item | Description | Quantity |
|---|---|---|
| Cage Panels | Various wire panels forming the cage structure | 1 set |
| Rolling Stand | Base frame with 4 caster wheels | 1 |
| Perches | Wooden perches for birds to rest | 6 |
| Feeders | Food and water bowls | 8 |
| Metal Ladders | Connectors between cage levels | 2 |
| Elastic Rope with Bell | Bird toy | 1 |
| Removable Tray | Bottom tray for waste collection | 1 |
| Mesh Panel | Removable mesh panel above the tray | 1 |
| Hardware | Screws, nuts, and other fasteners | 1 set |
| Assembly Instructions | Printed manual | 1 |
4. Setup and Assembly
Assembly typically requires two people for easier handling of larger panels. Follow these steps carefully:
- Unpack and Identify Parts:
Carefully remove all components from the packaging. Lay them out and compare them with the "Package Contents" list to ensure everything is present.
- Assemble the Rolling Stand:
Attach the four 360-degree swivel wheels to the base frame of the stand. Ensure they are securely tightened. The stand also includes a bottom mesh shelf for storage.

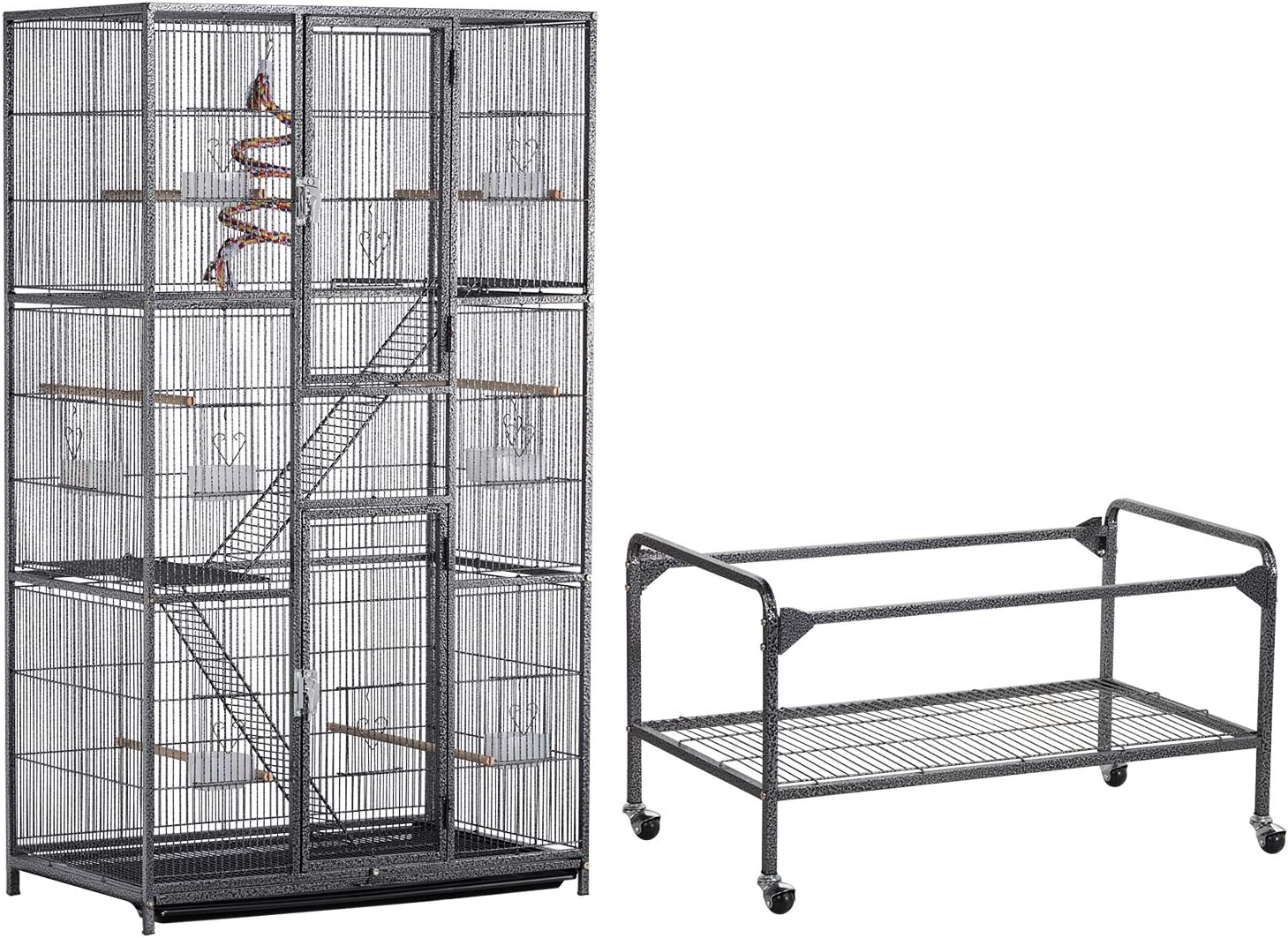

Figure 4.1: Rolling stand with 360-degree swivel wheels and bottom storage shelf.
- Attach Cage Base to Stand:
Carefully place the main cage base onto the assembled rolling stand. Ensure it aligns correctly and is stable. The cage can be separated from the stand if needed.
Figure 4.2: Cage base being positioned on the rolling stand.
- Assemble Cage Panels:
Connect the side, front, and back panels of the cage. Use the provided hardware to secure all connections. The cage features a 1 cm bar spacing to prevent birds from getting pinched.
Figure 4.3: Fully assembled cage structure.
- Install Internal Components:
Insert the 6 wooden perches at desired heights within the cage. Place the 8 feeders into their designated slots. Install the 2 metal ladders to allow birds to climb between the three levels.
Figure 4.4: Interior view of the cage with perches, feeders, and ladders.
- Install Removable Tray and Mesh Panel:
Slide the removable tray into the bottom of the cage. Position the removable mesh panel directly above the tray. This design facilitates easy cleaning.
Figure 4.5: Close-up of the removable tray and mesh panel for cleaning.
- Final Checks:
Ensure all doors (2 large entry doors, each with a window and lock) close securely. Verify that all connections are tight and the cage is stable. Attach the elastic rope with a bell for added bird entertainment.
5. Operating Instructions
5.1 Moving the Cage
The cage is equipped with a rolling stand featuring four 360-degree swivel wheels. To move the cage, simply push or pull it gently. Ensure the path is clear of obstacles. The stand can be separated from the cage for stationary use or easier transport of the cage section.
5.2 Utilizing Storage Space
The rolling stand includes a mesh grid at the bottom, providing additional storage space. This area is ideal for storing bird food, toys, cleaning tools, or other pet supplies, keeping them organized and easily accessible.
5.3 Accessing the Interior
The cage features two large entry doors, each equipped with a window and a secure lock. Use these doors for placing or removing birds, as well as for arranging internal accessories. There are also smaller access points for feeders.
6. Maintenance and Cleaning
Regular cleaning is essential for maintaining a hygienic environment for your birds.
- Daily Cleaning:
Empty and clean the feeders and water bowls daily. Wipe down any soiled surfaces with a bird-safe cleaner.
- Tray and Mesh Panel Cleaning:
The removable tray and mesh panel make cleaning easy. Slide out the tray and remove the mesh panel. Dispose of waste and wash both components thoroughly with warm, soapy water. Rinse well and dry completely before reinserting.
Figure 6.1: Removable tray and mesh panel for convenient cleaning.
- Deep Cleaning:
Periodically, perform a deep clean of the entire cage. Remove all birds, perches, and accessories. Wipe down all cage bars and surfaces with a bird-safe disinfectant. Rinse thoroughly and allow the cage to air dry completely before returning birds and accessories.
- Perch Maintenance:
Inspect wooden perches regularly for wear or damage. Clean them as needed. Replace any splintered or heavily soiled perches to ensure your bird's foot health.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Cage is wobbly after assembly. | Loose connections or uneven surface. | Ensure all screws and fasteners are tightened. Move the cage to a flat, level surface. |
| Wheels do not roll smoothly. | Debris in wheels or loose attachment. | Clean any debris from the wheels. Check that the wheels are securely attached to the stand. |
| Doors do not close properly. | Misalignment or obstruction. | Check for any bent cage wires or obstructions. Gently adjust the door frame if necessary. Ensure locks engage fully. |
| Tray is difficult to slide out. | Accumulated debris or misalignment. | Clear any debris from the tray runners. Ensure the tray is inserted straight and not at an angle. |
8. Specifications
- Model: YA-VOLIERE-20170524
- Overall Dimensions (L x W x H): 81 x 46.5 x 175.5 cm (31.9 x 18.3 x 69.1 inches) (with stand)
- Cage Dimensions (L x W x H): 77 x 46 x 130 cm (30.3 x 18.1 x 51.2 inches) (cage only)
- Bar Spacing: 1 cm (0.39 inches)
- Material: Iron with non-toxic coated texture
- Number of Levels: 3
- Weight: Approximately 24.6 kg (54.2 lbs)
- Recommended Species: Parakeets, Cockatiels, Conures, Canaries, and similar sized birds.
- Special Features: Multi-level design, 360-degree swivel wheels, removable tray and mesh panel, bottom storage shelf, 2 large entry doors with locks.
Figure 8.1: Detailed dimensions of the Yaheetech bird cage.
9. Warranty and Support
Yaheetech products are designed for quality and durability. For any questions, concerns, or assistance with your product, please contact Yaheetech customer support. Please have your model number (YA-VOLIERE-20170524) and purchase information ready when contacting support.
For more information and support, visit the official Yaheetech brand store: Yaheetech Brand Store
Return Policy: This product typically comes with a 30-day return/replacement policy. Please refer to your purchase platform's specific return policy for details.
