1. Introduction
This manual provides essential information for the safe and efficient installation, operation, and maintenance of your Cata UC-10 Bathroom Exhaust Fan. Please read this manual thoroughly before installation and use, and retain it for future reference. Proper installation and adherence to these instructions will ensure optimal performance and longevity of the product.
2. Safety Information
Always observe the following safety precautions to reduce the risk of fire, electric shock, or injury.
- Electrical Safety: Ensure the power supply is disconnected before installation, maintenance, or cleaning. All electrical wiring must be performed by a qualified electrician and comply with local regulations.
- Installation: Install the fan in accordance with the instructions provided. Do not install in areas where temperatures exceed 40°C. Ensure proper ventilation and clearance around the unit.
- Usage: This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
- Maintenance: Only use original spare parts for repairs. Do not attempt to modify the fan. Regular cleaning is recommended to maintain performance.
3. Product Overview
The Cata UC-10 is a high-efficiency bathroom exhaust fan designed for effective ventilation, featuring an extra-flat design, low noise operation, and adjustable speed settings. It includes a humidity sensor (Hygro) and a timer function for automated control.
3.1 Key Features
- Extra-Flat Design: Modern and discreet aesthetic.
- Very Silent Operation: Minimum sound level of 26 dB(A).
- High Energy Efficiency: Maximum power consumption of 8 W.
- Adjustable Speed: Six selectable speed levels for optimal airflow control.
- Humidity Sensor (Hygro): Automatically activates the fan based on ambient humidity levels.
- Timer Function: Adjustable run-on timer after activation.
- Backdraft Damper: Prevents unwanted air entry when the fan is off.
- Thermal Protector: Ensures safe operation up to 40°C ambient temperature.
- IP-44 Rated & Double Insulated: Provides protection against splashing water and electrical hazards.
3.2 Components
The Cata UC-10 fan unit typically includes the main fan body, a removable front cover, and necessary electrical cabling for installation.
Figure 1: Front view of the Cata UC-10 Bathroom Exhaust Fan. This image displays the fan's white, extra-flat design with its central impeller visible through the protective grille.
Figure 2: Angled front view of the Cata UC-10 fan, highlighting its compact and modern aesthetic suitable for various bathroom decors.
Figure 3: Side view of the Cata UC-10 fan, showing the depth of the unit and the exhaust duct connection point.
4. Setup and Installation
Installation of the Cata UC-10 fan requires electrical knowledge and should be performed by a qualified professional. The fan is designed for wall mounting.
4.1 Dimensions
Figure 4: Technical diagram illustrating the dimensions of the Cata UC-10 fan. The front panel measures 150x150 mm, with a depth of 18.5 mm. The exhaust duct has a diameter of 100 mm and a length of 77.5 mm.
4.2 Installation Steps (General Guidelines)
- Preparation: Disconnect power at the main circuit breaker. Choose a suitable wall mounting location, ensuring adequate space for the fan and ducting.
- Mounting: Create an opening in the wall according to the fan's duct diameter (100 mm). Secure the fan body to the wall using appropriate fasteners.
- Ducting: Connect suitable ducting from the fan's exhaust outlet to the exterior. Ensure ducting is sealed to prevent air leakage.
- Wiring: Connect the electrical cable to the fan's terminal block. Ensure correct polarity and secure all connections. The fan operates on 220-240V, 50/60Hz.
- Final Assembly: Attach the front cover securely to the fan body.
- Testing: Restore power and test the fan's operation, including the timer and humidity sensor functions.
5. Operating Instructions
The Cata UC-10 fan offers automated and adjustable operation modes.

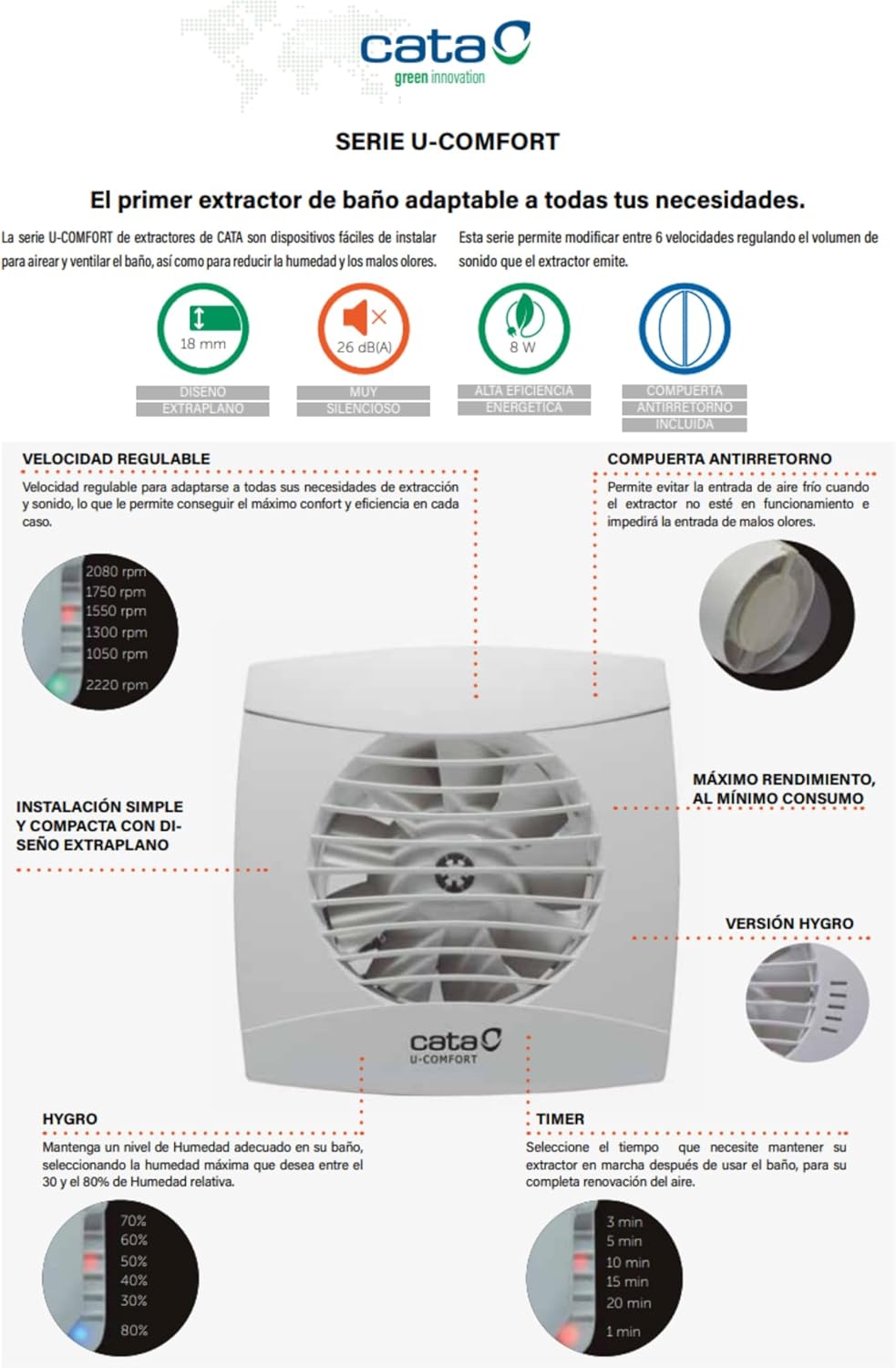

Figure 5: Diagram illustrating the adjustable speed, humidity sensor (Hygro), and timer settings of the Cata UC-10 fan.
5.1 Adjustable Speed
The fan features six adjustable speed levels, allowing you to optimize airflow and noise levels according to your needs. The available speeds range from 1050 RPM to 2220 RPM. Consult the internal adjustment mechanism (typically potentiometers or switches accessible after removing the front cover) to select the desired speed setting.
5.2 Humidity Sensor (Hygro)
The integrated humidity sensor automatically activates the fan when the ambient humidity exceeds a preset threshold. This threshold can typically be adjusted (e.g., from 30% to 80% relative humidity) using a control knob or potentiometer located inside the fan unit. The fan will run until the humidity level drops below the set point.
5.3 Timer Function
The timer function allows the fan to continue operating for a set period after it has been manually switched off or after the humidity level has dropped below the sensor's threshold. The timer duration is adjustable, commonly offering settings such as 3, 5, 10, 15, or 20 minutes. This setting is usually adjusted via a control knob or potentiometer within the fan unit.
6. Maintenance
Regular maintenance ensures the efficient and safe operation of your Cata UC-10 fan.
6.1 Cleaning
- Disconnect Power: Always ensure the power supply to the fan is disconnected before cleaning.
- Remove Front Cover: Carefully detach the extra-flat front cover.
- Clean Components: Use a soft, damp cloth to wipe down the front cover and the fan blades. Avoid using abrasive cleaners or solvents. Ensure no water enters the electrical components.
- Reassemble: Once all parts are dry, reattach the front cover securely.
It is recommended to clean the fan at least once every six months, or more frequently in dusty or high-humidity environments.
7. Troubleshooting
If you encounter issues with your Cata UC-10 fan, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Fan does not turn on. | No power supply. Faulty wiring. Humidity sensor not triggered. Timer not set. | Check circuit breaker and power connection. Verify wiring connections (consult an electrician). Increase humidity or manually activate. Adjust timer settings. |
| Fan is excessively noisy. | Dirty fan blades. Loose mounting. Obstruction in ducting. | Clean fan blades (see Maintenance). Ensure fan is securely mounted. Check ducting for blockages. |
| Poor air extraction. | Blocked ducting. Dirty fan blades. Incorrect speed setting. | Clear any obstructions in the duct. Clean fan blades. Adjust to a higher speed setting. |
| Humidity sensor not working. | Sensor setting too high. Sensor malfunction. | Adjust the humidity threshold to a lower percentage. If problem persists, contact support. |
If the problem persists after attempting these solutions, please contact Cata customer support or a qualified technician.
8. Specifications
| Feature | Specification |
|---|---|
| Model | UC-10 (1200200) |
| Brand | Cata |
| Type | Bathroom Exhaust Fan |
| Mounting Type | Wall Mount |
| Power Source | Corded Electric |
| Voltage / Frequency | 220-240V, 50/60Hz |
| Maximum Power Consumption | 8 W |
| Maximum Airflow | 110 m³/h |
| Minimum Noise Level | 26 dB(A) |
| Fan Speed | Adjustable, up to 2220 RPM (6 levels) |
| Outlet Diameter | 100 mm |
| Front Panel Dimensions (W x H) | 150 mm x 150 mm |
| Front Panel Depth | 18.5 mm |
| Duct Length | 77.5 mm |
| Weight | 0.65 kg |
| Material | Plastic (Kunststoff) |
| IP Rating | IP-44 |
| Insulation Class | Double Insulation (Class B) |
| Thermal Protection | Up to 40°C ambient temperature |
| Special Features | Timer, Humidity Sensor (Hygro), Adjustable Speed, Backdraft Damper |
9. Warranty and Support
Cata products are manufactured to high-quality standards and are covered by a manufacturer's warranty against defects in materials and workmanship. Please refer to the warranty card included with your product or visit the official Cata website for detailed warranty terms and conditions.
For technical assistance, spare parts, or warranty claims, please contact your local dealer or Cata customer service. Ensure you have your product model number (UC-10, 1200200) and proof of purchase available when contacting support.
