Yoidesu Vintage Retro Rotary Dial Telephone User Manual

Introduction

Thank you for purchasing the Yoidesu Vintage Retro Rotary Dial Telephone. This manual provides detailed instructions for the setup, operation, and maintenance of your new telephone. Please read this manual thoroughly before use to ensure proper functionality and to maximize your product experience.

Package Contents

Please check the package contents to ensure all items are present:

• 1 x Telephone Base
• 1 x Handset
• 1 x Telephone Line Cord
• 1 x Handset Stand
• 1 x English User Manual

Setup

Follow these steps to set up your Yoidesu Vintage Retro Rotary Dial Telephone:

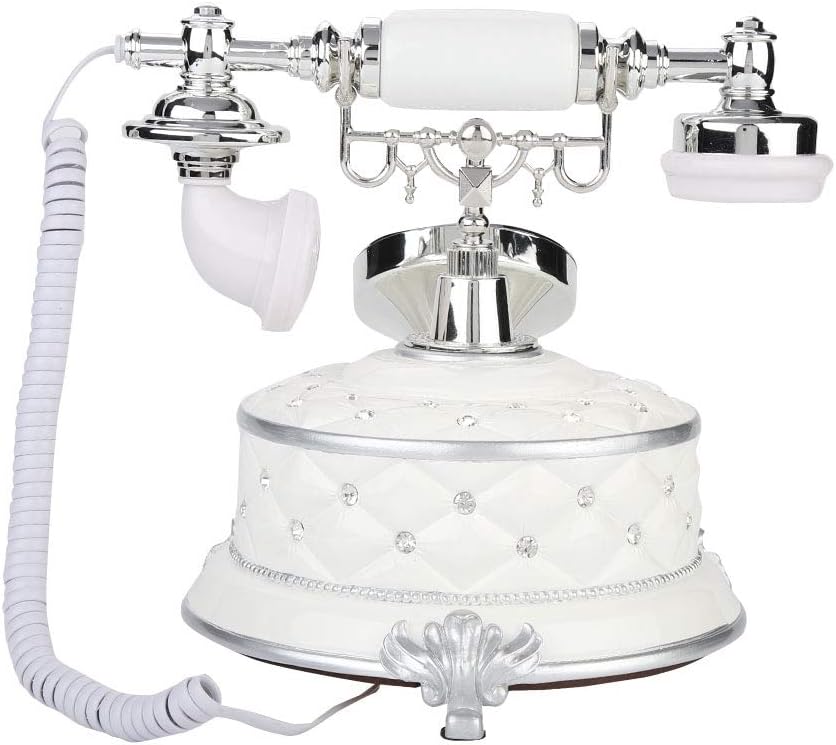

1. Connect the Handset: Plug one end of the coiled handset cord into the handset and the other end into the designated port on the telephone base.


   Image: The telephone base with the handset connected via a coiled cord.

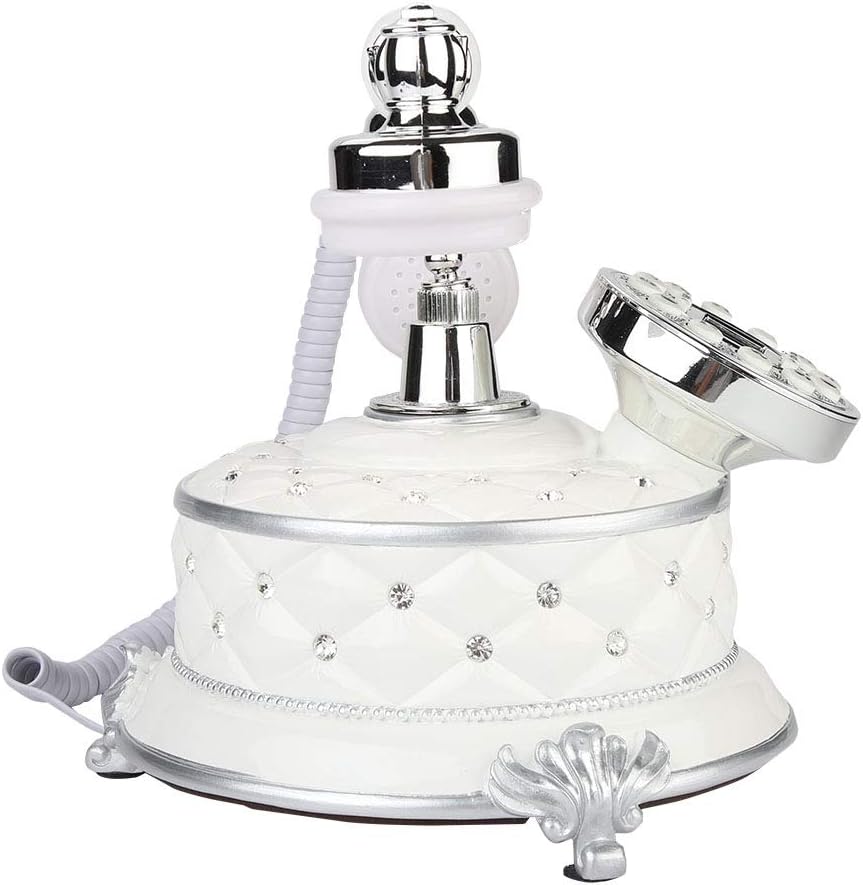

2. Install the Handset Stand: Securely attach the handset stand to the telephone base. Note that a slight wobble in the stand is a deliberate design feature to prevent leverage issues and is not a defect.


   Image: A close-up view of the telephone base showing the handset stand attachment point.

3. Connect the Telephone Line: Plug one end of the telephone line cord into the telephone base and the other end into your wall telephone jack.


   Image: The back of the telephone base with the telephone line cord connected, illustrating that no battery is required.

4. Power On: The telephone does not require batteries and is powered directly by the telephone line. Once connected, it is ready for use.

Operating Instructions

Making a Call

1. Lift the handset.
2. Wait for the dial tone.
3. Dial the desired number using the keypad.
4. To use the pre-dialing function, enter the number before lifting the handset, then lift the handset to initiate the call.

Receiving a Call

• When the phone rings, lift the handset to answer the call.

Caller ID Function

The telephone supports FSK/DTMF dual systems for caller ID. It stores up to 38 groups of incoming call records. You can review these records using the navigation buttons on the dial pad.

Image: The telephone's dial pad and display, indicating the caller ID feature.

Redial Function

The phone stores the last 5 groups of dialed numbers. To redial, lift the handset and press the redial button (if available, or navigate through dialed numbers using the keypad's query function).

Clock Display

The integrated display shows the current year, month, and day.

Features Overview

• Dual FSK/DTMF Compatibility: Ensures broad compatibility with telephone networks.
• Clear Call Quality: Designed for noise-free communication.
• Pre-dialing Function: Allows number entry before lifting the handset.
• Automatic IP Function: For streamlined calling.
• Caller ID Storage: Stores up to 38 groups of incoming call records.
• Dialed Number Query: Access the last 5 dialed numbers.
• Clock Display: Shows year, month, and day.
• One-Touch Redial: Conveniently redial the last number.
• Adjustable Ringer Volume: Customize the single ringtone volume.
• Battery-Free Operation: Powered directly by the telephone line.

Image: The telephone with a text overlay highlighting FSK/DTMF dual system compatibility.

Specifications

Troubleshooting

If you encounter any issues with your telephone, please refer to the following common troubleshooting steps:

• No Dial Tone:
  • Ensure the telephone line cord is securely connected to both the phone base and the wall jack.
  • Test the wall jack with another working phone to confirm the line is active.
• Cannot Make/Receive Calls:
  • Verify all connections are secure.
  • Check if your telephone service is active.
• Poor Call Quality/Noise:
  • Ensure the handset cord is fully plugged in.
  • Try connecting the phone to a different wall jack to rule out line interference.
• Caller ID Not Displaying:
  • Confirm that your telephone service provider offers Caller ID service.
  • Ensure the phone is properly connected to a compatible line.

Maintenance

To ensure the longevity and optimal performance of your telephone:

• Clean the telephone regularly with a soft, dry cloth. Avoid using harsh chemicals or abrasive cleaners.
• Keep the telephone away from direct sunlight, heat sources, and moisture.
• Do not disassemble the telephone. Refer to qualified service personnel for repairs.

Important Notes

• Handset Stand Stability: After installing the handset stand, a slight wobble may be observed. This is a deliberate design feature to prevent leverage issues and is not a quality defect. It does not affect the phone's appearance or functionality.
• Color Variation: Product color may vary slightly from images due to lighting conditions during photography and differences in display settings.
• Measurement Tolerance: A measurement error of +/- 1-3cm is permissible for product dimensions.

Warranty and Support

For warranty information or technical support, please refer to the contact details provided with your purchase documentation or visit the official Yoidesu website. Please retain your proof of purchase for warranty claims.
