MEE audio MX4 PRO In-Ear Monitor Headphones User Manual

Introduction

The MEE audio MX4 PRO Quad-Driver Hybrid In-Ear Monitor Headphones are engineered to deliver high-resolution reference sound for musicians and audio professionals. This manual provides essential information for the proper setup, operation, and maintenance of your MX4 PRO monitors to ensure optimal performance and longevity.

Package Contents

Verify that all items listed below are included in your package:

• MX4 PRO In-Ear Monitors (Left and Right)
• Standard Audio-Only Cable
• Headset Cable with Built-in Microphone and Remote
• Protective Carrying Case
• Comply Memory Foam Eartips
• Silicone Eartips (4 pairs)
• Shirt Clips (2 pairs)
• 1/4" (6.3mm) Adapter
• User Manual

Image: All components of the MEE audio MX4 PRO complete kit, including the in-ear monitors, two cables, various eartips, a 1/4 inch adapter, and a protective carrying case.

Product Features

• Quad-Driver Hybrid Design: The MX4 PRO features a sophisticated four-driver setup, combining a 10mm dynamic subwoofer with three balanced armatures. This configuration delivers linear bass response, exceptional clarity, and crisp detail across the audio spectrum, providing a high-fidelity reference sound for stage and studio use.

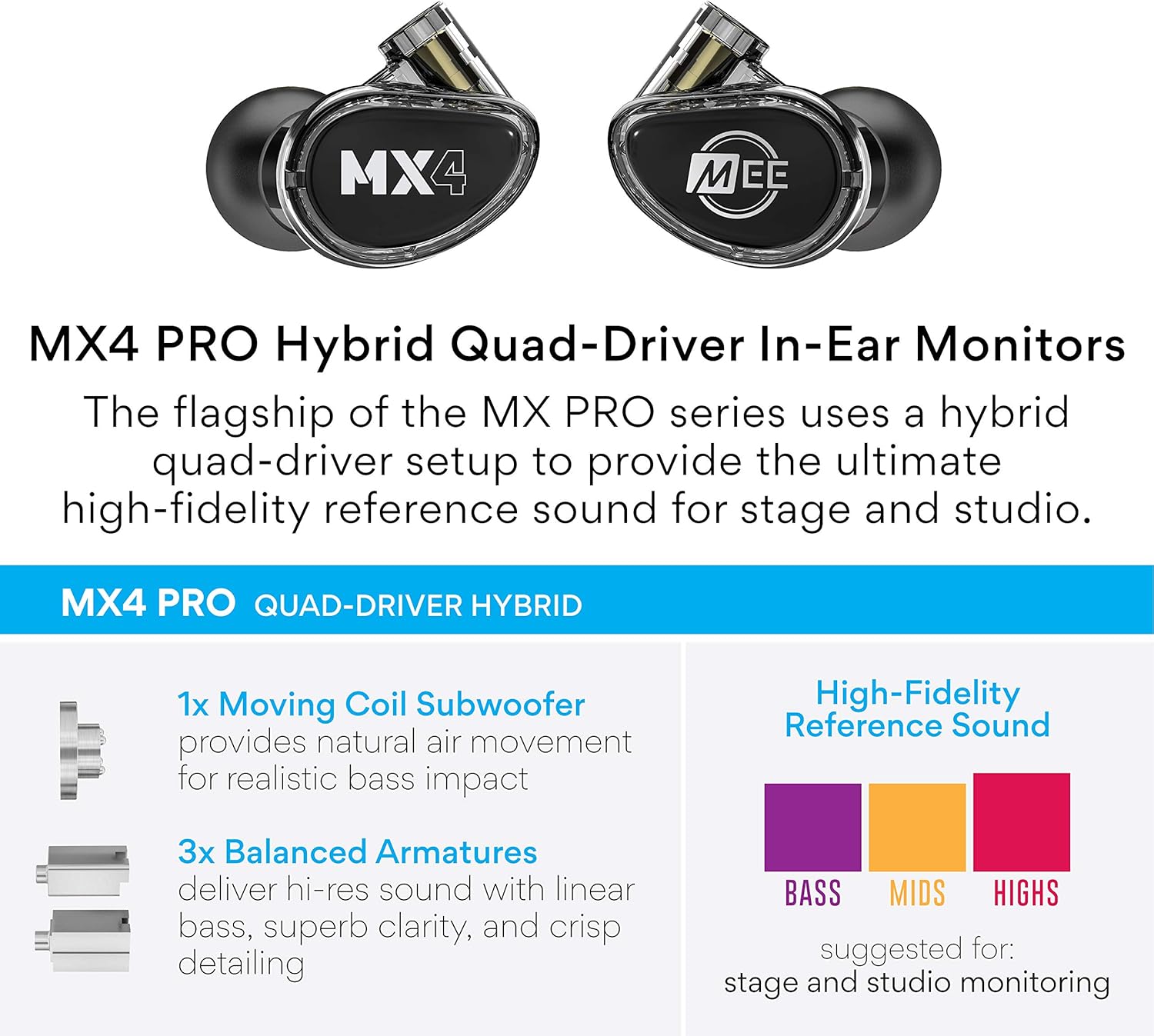

  Image: Diagram illustrating the internal quad-driver hybrid setup of the MX4 PRO, showing one moving coil subwoofer and three balanced armatures, with indicators for bass, mids, and highs.
• Modular Design with Detachable Cables: Built for durability and versatility, the MX4 PRO features a sweat-resistant construction and a modular design. All parts, including the two included detachable cables, are replaceable and interchangeable with other models in the MX PRO series.


  Image: A pair of MEE audio MX4 PRO in-ear monitors with their detachable cables shown disconnected, highlighting the modular design.

• Superior Fit & Comfort: The ergonomic design incorporates flexible memory wire earhooks that conform securely to the shape of your ears. This ensures a personalized and stable fit that remains comfortable during extended use, preventing the monitors from dislodging.


  Image: A close-up view of an MEE audio in-ear monitor worn in an ear, demonstrating the secure and comfortable fit provided by the flexible over-the-ear memory wire.

• Optional Customization: Enhance your MX4 PRO with optional custom-fit eartips and engraved metal faceplates. Custom-fit eartips are 3D-printed to the exact size and shape of your ears for improved noise isolation and fit. Engraved faceplates allow for personalization with existing artwork options or your own custom designs (customization options sold separately).


  Image: A pair of MEE audio MX PRO in-ear monitors with custom-engraved faceplates, showcasing personalization options.

Setup

1. Attaching the Cables

1. Identify the left and right earpieces and cable connectors. The earpieces are marked 'L' and 'R'.
2. Align the cable connector with the corresponding socket on the earpiece. Ensure the connector is oriented correctly.
3. Push the connector firmly into the socket until it clicks into place. Do not force the connection.
4. To detach, grasp the cable connector firmly and pull straight out from the earpiece. Avoid pulling on the cable itself.

2. Choosing and Installing Eartips

Proper eartip selection is crucial for sound quality and noise isolation. Experiment with the included Comply memory foam and silicone eartips to find the best fit for your ears.

• Silicone Eartips: Select a size that creates a comfortable, snug seal in your ear canal.
• Comply Memory Foam Eartips: Compress the foam tip by rolling it between your fingers before inserting it into your ear. Hold it in place for a few seconds while the foam expands to create a custom seal.

3. Wearing the Monitors

1. Insert the earpieces into your ears, ensuring a secure and comfortable fit.
2. Guide the memory wire portion of the cable over the top of your ear. Gently bend the memory wire to conform to the shape of your ear for added stability.
3. Adjust the cable length using the cable cinch to prevent tangling and provide a secure fit behind your head or under your chin.

Operating Instructions

1. Connecting to an Audio Source

Connect the 3.5mm audio jack of the chosen cable to your audio device (e.g., smartphone, tablet, mixer, audio interface). If your device requires a larger connection, use the included 1/4" (6.3mm) adapter.

2. Using the Headset Cable (with Microphone and Remote)

The headset cable allows for hands-free calling and media control with compatible smartphones and tablets.

• Microphone: Position the microphone close to your mouth for clear voice pickup during calls.
• Remote Button: Functions may vary by device, but typically include:
  • Press once: Play/Pause music, Answer/End call
  • Press twice: Skip to next track
  • Press three times: Go to previous track

Maintenance

1. Cleaning

• Regularly clean the eartips with a soft, damp cloth. Remove eartips from the monitors for thorough cleaning if necessary.
• Wipe the earpieces and cables with a dry, soft cloth to remove any sweat or debris. Avoid using harsh chemicals or abrasive materials.
• Ensure the earpieces are dry before reattaching eartips and storing.

2. Cable Care

Handle the detachable cables with care. Avoid sharp bends, excessive pulling, or twisting, which can damage the internal wiring.

3. Storage

When not in use, store your MX4 PRO monitors and accessories in the provided protective carrying case. This helps prevent damage from impacts, dust, and tangling.

Image: A person playing guitar while wearing MEE audio in-ear monitors, illustrating their use in a performance setting and highlighting their durable, sweat-resistant construction.

Troubleshooting

Specifications

Warranty and Support

Warranty Information

The MEE audio MX4 PRO In-Ear Monitor Headphones come with a 1-year manufacturer's warranty. Please retain your proof of purchase for warranty claims.

Customer Support

For further assistance, technical support, or warranty inquiries, please visit the official MEE audio website or contact their customer service department. Detailed contact information can typically be found on the product packaging or the MEE audio website.
