Product Overview
This manual provides comprehensive instructions for the assembly, operation, maintenance, and troubleshooting of your FITUEYES Floor TV Stand, model TT206001GB. This versatile TV stand is designed to accommodate televisions ranging from 32 to 60 inches, offering a stable and adjustable viewing solution for various room settings.
Figure 1: The FITUEYES Floor TV Stand with a television mounted, showcasing its sleek design and integrated shelf.
Setup and Assembly
Carefully unpack all components and verify against the parts list (not provided in this manual, refer to your product packaging for a complete list). Assembly typically involves attaching the base, vertical support column, TV mounting bracket, and any shelves.
1. Component Identification
Before beginning assembly, identify all parts. The stand consists of a tempered glass base, a steel support column, a TV mounting plate, and a media shelf.
2. Base Assembly
Attach the main support column to the tempered glass base. Ensure all screws are securely tightened. The base measures approximately 21.6 inches by 14.9 inches, providing robust stability. Non-slip rubber feet are integrated into the base to prevent movement and protect floor surfaces.
Figure 2: Detail of the sturdy tempered glass base, designed for stability.
3. TV Mounting Bracket Installation
Attach the TV mounting bracket to the support column. This stand supports VESA patterns up to 600mm x 400mm and is compatible with most LCD, LED, and curved TVs from 32 to 60 inches. Ensure your TV's VESA pattern and weight (maximum 66 lbs / 30 kg) are within the supported limits.
Figure 3: VESA mounting patterns and maximum weight capacity details.
4. Securing the Television
Once the bracket is installed, carefully lift and attach your television to the mounting bracket. Utilize the "Bracket Lock" safety design to secure your TV and prevent accidental dislodgement.
Figure 4: The "Bracket Lock" feature ensures the television is securely attached to the stand.
5. Cable Management
The stand features integrated cable management to help conceal wires and maintain a tidy appearance. Route your TV and device cables through the designated channels on the support column.
Figure 5: Cable management system for a clean and organized setup.
6. Placement Considerations
This floor TV stand is ideal for various spaces including living rooms, bedrooms, offices, small apartments, or yoga rooms. Its design allows for flexible placement without needing to drill holes in walls. Consider the "Pass Through" vs. "Will Not Pass" image for optimal placement in relation to furniture or walls.
Figure 6: Visual guide for optimal placement to ensure clearance and accessibility.
Operating Instructions
1. Swivel Adjustment
The TV mount can be swiveled 35 degrees to the left or right, allowing you to achieve optimal viewing angles from different positions in your room. Gently rotate the television to the desired angle.
Figure 7: The swivel feature allows for flexible viewing angles.
2. TV Height Adjustment
The TV mount offers height adjustment. It can be moved up and down in 2.4-inch increments. Additionally, the overall stand has 4 fixed height options, adjustable in 1.6-inch increments. The top height of the stand can range from 41.7 inches to 48.8 inches from the floor. Adjust the height to suit your viewing preference.
Figure 8: Adjusting the TV height for a comfortable viewing experience.

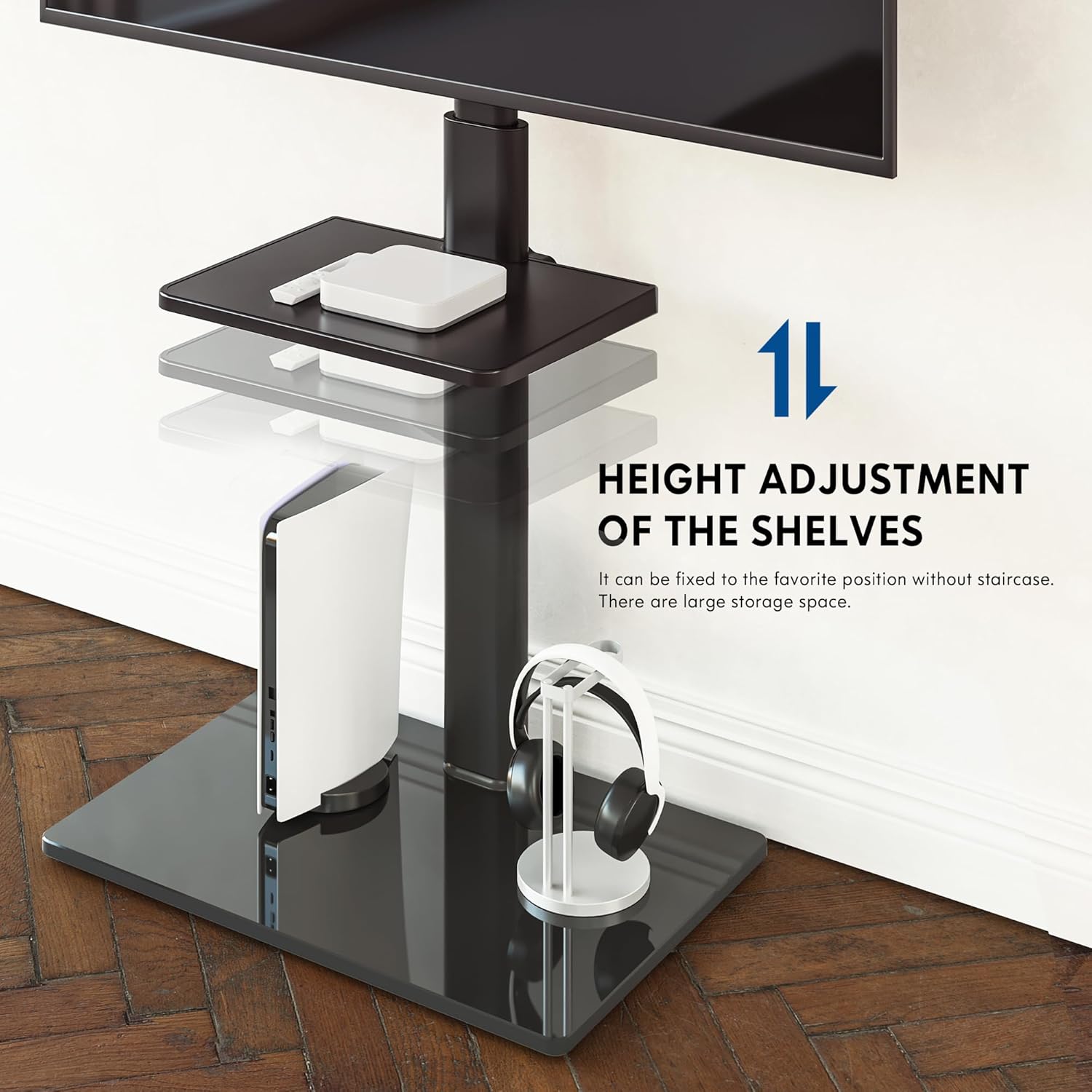

3. Shelf Height Adjustment
The integrated media shelf can also be adjusted to your preferred height. This allows for convenient placement of media devices, gaming consoles, or other accessories.
Figure 9: The adjustable shelf provides flexible storage space.
Maintenance
- Cleaning: Use a soft, damp cloth to clean the tempered glass base and steel components. Avoid abrasive cleaners or harsh chemicals that could damage the finish.
- Regular Inspection: Periodically check all screws and connections to ensure they remain tight and secure. Loose connections can affect stability and safety.
- Weight Limits: Do not exceed the maximum weight capacity of 66 lbs (30 kg) for the TV or the shelf. Overloading can compromise the stand's integrity.
- Environmental Conditions: Avoid placing the stand in direct sunlight or in areas with extreme temperature fluctuations, which could affect the material integrity over time.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Stand feels unstable or wobbly. | Loose screws; uneven floor surface; TV weight exceeds capacity. | Ensure all assembly screws are tightened. Move the stand to a level surface. Verify TV weight is within 66 lbs (30 kg). |
| TV cannot be swiveled or adjusted for height. | Adjustment mechanisms are too tight; obstruction. | Check for any obstructions. Ensure no screws are overtightened on movable parts. Apply a small amount of silicone lubricant if mechanisms are stiff. |
| Cables are not neatly hidden. | Incorrect cable routing. | Reroute cables through the designated cable management channels on the main column. Use cable ties if necessary. |
| TV appears crooked on the mount. | TV not level on the bracket; bracket not level on the column. | Adjust the leveling screws on the TV bracket. Ensure the main column is vertically aligned during assembly. |
Product Specifications
| Feature | Detail |
|---|---|
| Model Number | TT206001GB |
| Compatible TV Sizes | 32 - 60 inches |
| Maximum TV Weight Capacity | 66 lbs (30 kg) |
| VESA Compatibility | Up to 600mm x 400mm (e.g., 100x100, 200x100, 200x200, 300x300, 400x200, 400x300, 400x400, 600x400) |
| Swivel Angle | 35 degrees left or right |
| TV Height Adjustment | Mount adjustable in 2.4-inch increments; Stand has 4 fixed height options (1.6-inch increments). Top height: 41.7 - 48.8 inches from floor. |
| Shelf Height Adjustment | Adjustable along the main column. |
| Base Dimensions | 21.6 x 14.9 inches (approx.) |
| Product Dimensions (Overall) | 25.35 x 14.96 x 48.82 inches |
| Item Weight | 20.7 pounds |
| Material | Steel, Tempered Glass |
| Color | Black |
| UPC | 606479277853 |
Figure 10: Comprehensive dimensions and specifications of the TV stand.
Warranty Information
FITUEYES products are designed for durability and quality. This product may be covered by a warranty of up to 10 years. For specific warranty terms and conditions, please refer to the warranty card included with your product or visit the official FITUEYES website.
Customer Support
Should you require assistance with assembly, operation, or encounter any issues not covered in this manual, please contact FITUEYES customer support.
- Online Support: Visit the official FITUEYES store on Amazon for FAQs and product information: FITUEYES Amazon Store
- Service Availability: FITUEYES offers 24-hour global service.
- Local Delivery: Local warehouse delivery services are available for parts or replacements.
