Madesa Topazio 86 Compact Kitchen 180cm Instruction Manual

1. Introduction

This manual provides essential information for the safe and correct assembly, installation, operation, and maintenance of your Madesa Topazio 86 Compact Kitchen. Please read all instructions carefully before beginning assembly or use to ensure optimal performance and longevity of your product.

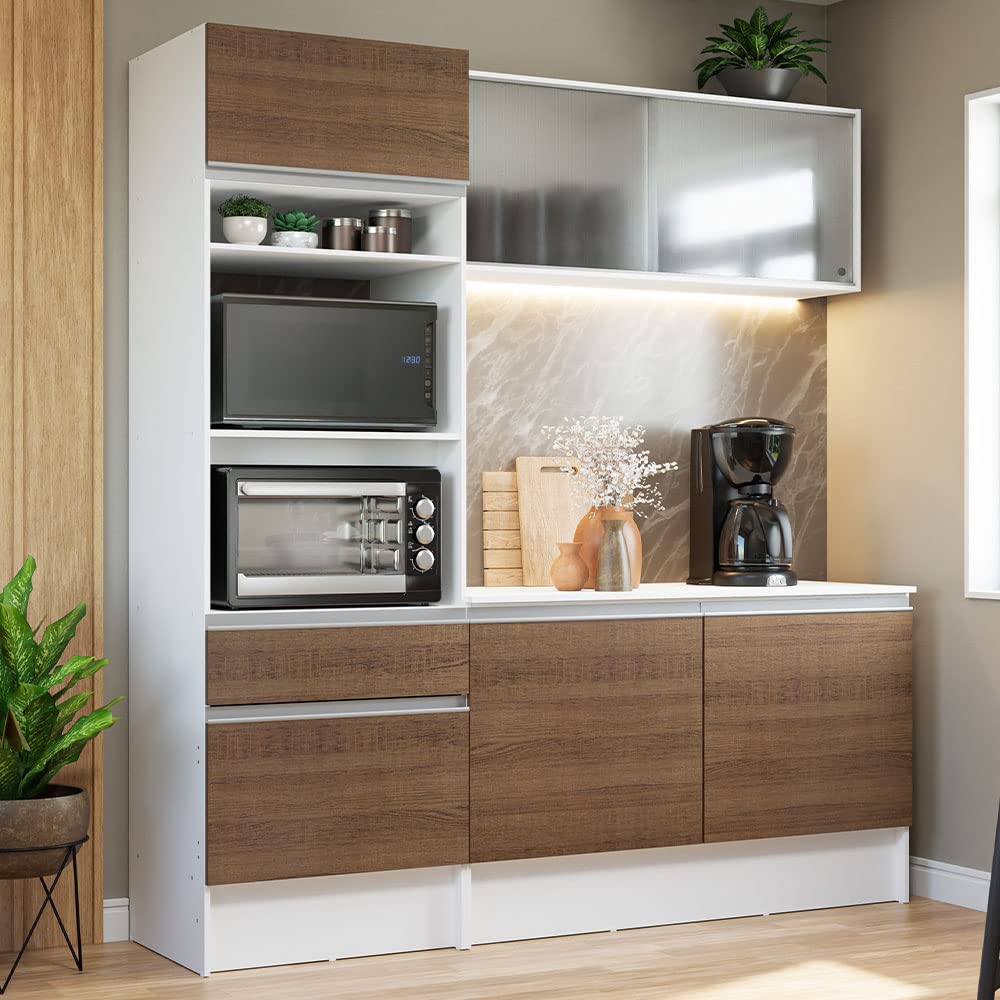

Figure 1.1: Madesa Topazio 86 Compact Kitchen 180cm in white and brown, featuring a modern design with integrated storage solutions.

2. Safety Instructions

• Always follow the assembly instructions precisely. Incorrect assembly can lead to instability and potential injury.
• Ensure the kitchen unit is placed on a flat, stable surface.
• Secure the unit to the wall using appropriate fasteners to prevent tipping, especially if children are present. Wall mounting hardware may vary depending on wall material and is not always included.
• Do not overload shelves or drawers. Distribute weight evenly.
• Keep the unit away from direct heat sources, open flames, and excessive moisture to prevent damage to the wood material.
• Keep small parts and packaging materials out of reach of children during assembly.

3. Package Contents

Your Madesa Topazio 86 Compact Kitchen package includes all necessary components and hardware for assembly. Please verify that all parts are present and undamaged before beginning assembly. Refer to the detailed parts list provided in the separate assembly manual for a complete inventory.

4. Setup and Assembly

Assembly of the Madesa Topazio 86 Compact Kitchen requires careful attention to detail. It is recommended to have two people for assembly. Please refer to the dedicated assembly manual included with your product for step-by-step instructions and diagrams. The following general steps apply:

1. Unpack and Identify Parts: Lay out all components and hardware on a clean, soft surface to prevent scratches. Compare them with the parts list in the assembly manual.
2. Assemble Base Units: Follow the instructions to construct the base cabinets and drawers. Ensure all fasteners are tightened securely.
3. Install Upper Cabinets and Shelving: Attach the upper cabinets and open shelving units according to the manual. Pay close attention to alignment and wall mounting instructions.
4. Attach Doors and Drawers: Install all doors and drawers, adjusting hinges and slides for proper alignment and smooth operation.
5. Final Placement and Securing: Position the assembled kitchen unit in its desired location. Secure it to the wall using appropriate wall anchors and screws (not always included) to prevent tipping.

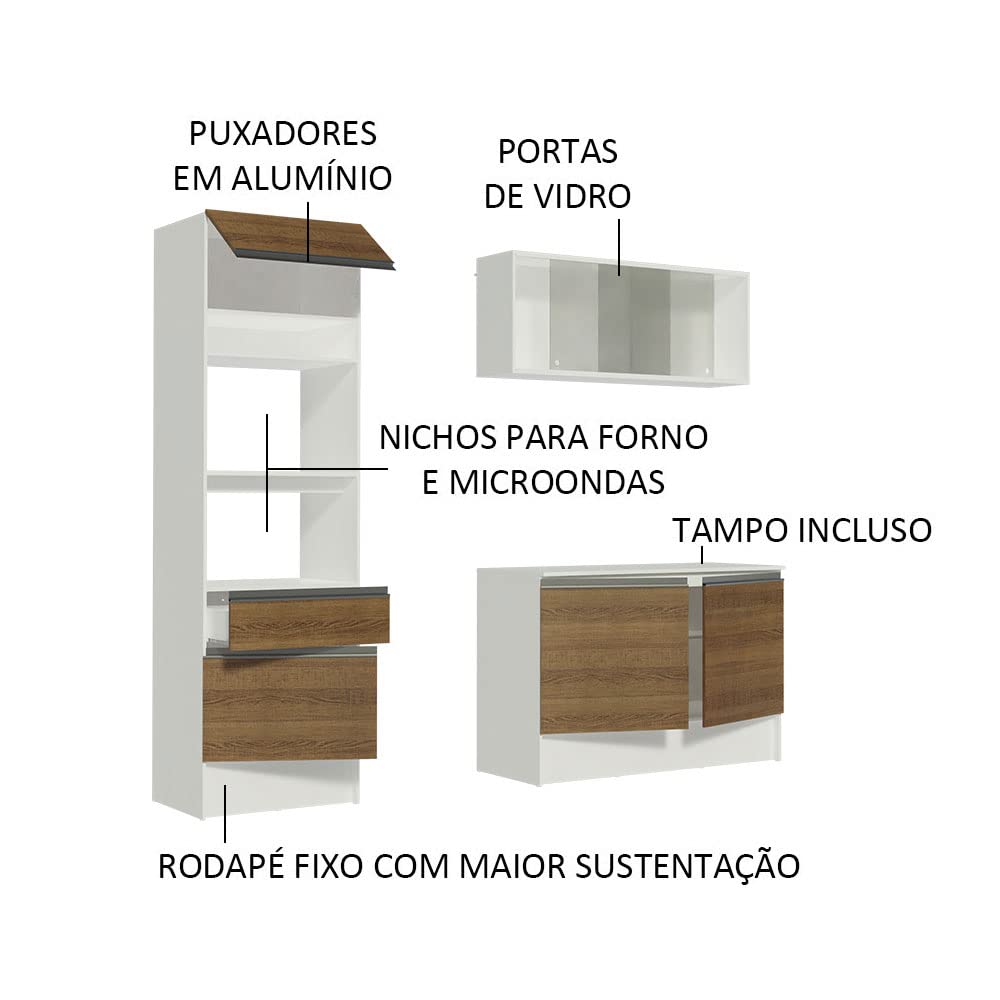

Figure 4.1: Key components of the Madesa Topazio 86 kitchen, including handles, glass doors, and dedicated appliance niches.

Figure 4.2: Side view of the Madesa Topazio 86 Compact Kitchen during assembly, showing modular construction.

5. Operating Instructions

The Madesa Topazio 86 Compact Kitchen is designed for efficient storage and organization. Utilize the various compartments, drawers, and shelves to store your kitchen utensils, cookware, and food items.

• Drawers: Open and close drawers smoothly. Avoid forcing them if they encounter resistance. Ensure items are placed within the drawer's capacity.
• Cabinets: Use the cabinet doors to access storage. Ensure doors close completely to protect contents from dust.
• Shelves: Distribute weight evenly across shelves. Avoid placing excessively heavy items on upper shelves.
• Appliance Niches: The dedicated niches are designed to accommodate standard-sized ovens and microwaves. Ensure proper ventilation for appliances as per their respective manuals.

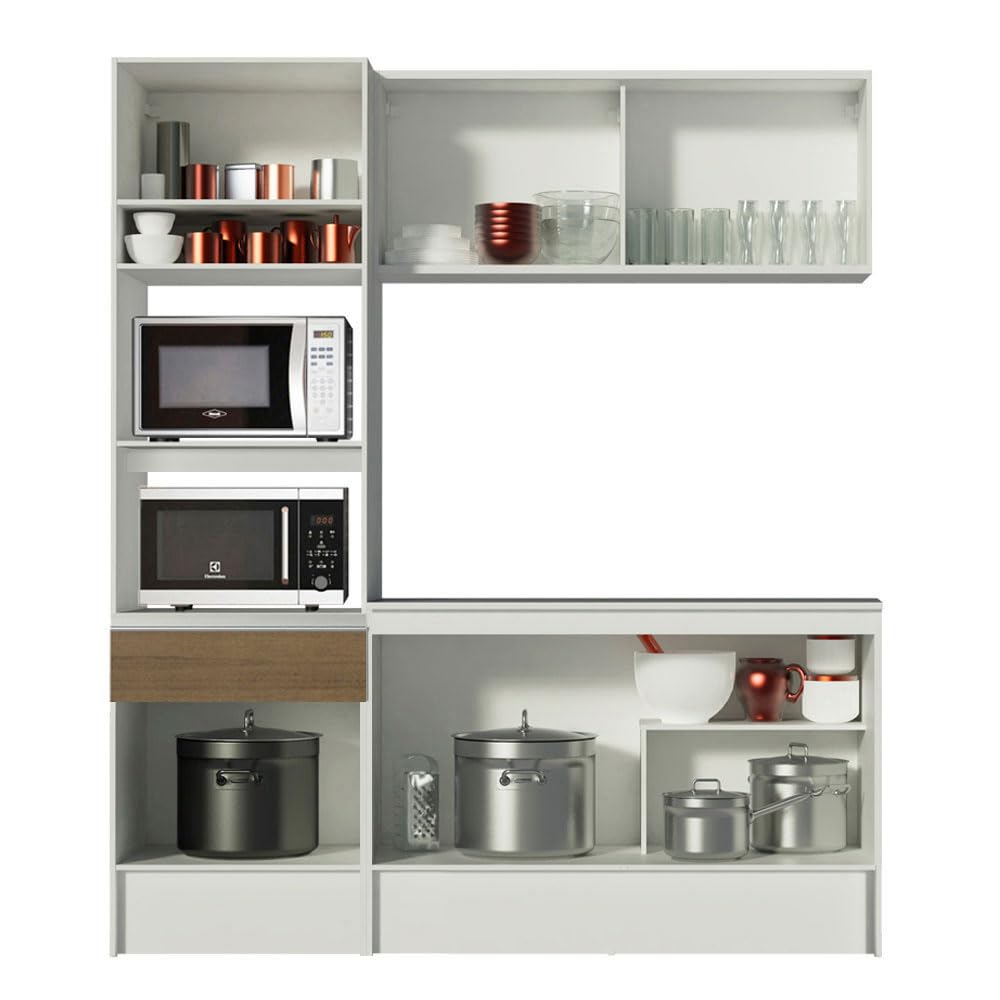

Figure 5.1: Interior storage view of the Madesa Topazio 86 kitchen, demonstrating its organizational capacity.

6. Maintenance

Proper maintenance will extend the life and appearance of your Madesa Topazio 86 Compact Kitchen.

• Cleaning: Regularly clean surfaces with a soft, damp cloth. Avoid using abrasive cleaners, harsh chemicals, or solvents, as these can damage the finish.
• Spills: Wipe up spills immediately to prevent moisture absorption and staining, especially on wood surfaces.
• Hardware Check: Periodically check all screws, bolts, and fasteners to ensure they are tight. Retighten if necessary to maintain structural integrity.
• Avoid Overloading: Do not exceed the recommended weight capacity for shelves and drawers.

Figure 6.1: Madesa products undergo laboratory testing to ensure durability and quality.

7. Troubleshooting

If you encounter issues with your Madesa Topazio 86 Compact Kitchen, consider the following common solutions:

• Wobbly Unit: Ensure the unit is on a level surface. Check all assembly fasteners and retighten if loose. Verify wall anchors are securely installed.
• Drawers Not Closing Smoothly: Check for obstructions in the drawer slides. Ensure the drawer is correctly aligned on its runners. Verify that the drawer box itself is assembled squarely.
• Doors Misaligned: Adjust the hinges on the cabinet doors. Most hinges allow for minor adjustments in height, depth, and side-to-side positioning.
• Scratches/Minor Damage: For minor scratches, touch-up pens or furniture repair kits matching the wood finish may be used.

8. Specifications

Figure 8.1: Dimensional diagram of the Madesa Topazio 86 Compact Kitchen.

9. Warranty Information

For specific warranty terms and conditions applicable to your Madesa Topazio 86 Compact Kitchen, please refer to the warranty card included with your purchase or consult your retailer. Keep your proof of purchase for any warranty claims.

10. Support and Contact

If you require further assistance, have questions regarding assembly, or need to report missing/damaged parts, please contact Madesa customer support. You can typically find contact information on the Madesa official website or through your retailer.

For more information about Madesa's commitment to sustainable practices, including the use of wood from renewable forests, please visit our official channels.

Figure 10.1: Madesa utilizes wood from renewable forests, reflecting a commitment to environmental sustainability.
